5.0 megapixel wide-angle camera -
OV5648 auto-zoom -
HD quality
-
Orange Pi Camera(5 megapixel) can be used to take high-definition video, as well as stills photographs. You can also use it for time-lapse, slow-motion, and other video cleverness. This camera is only for Orange Pi 4G-IoT. It is connected to the screen not the board, and only compatible with the 5.5 inch screen of 4G-IoT. Please order them together.
Performance Index
| Item | Performance | Note |
| Pixel | 500W | OV5640 |
| Dynamic image resolution | 5M | |
| lmage resolution | 5M | |
| Color number | 24 bit true color | |
| Focal length | 3.51mm | |
| F number | 2.4 | |
| Shooting range | 0.2m to infinity | |
| View Angle | 72° | |
| Distortion | ＜1% | |
| Relative llumination | ＞65% | |
| Relative llumination | 30/60fps | 5M |
| White balance | Automatic | |
| Gain | Automatic | |
| Exposure control | Automatic | |
| Output signal | YUV/YcbCr/GRB 4:2:2/RGB565/555/444/RAWRGB |
|
| Encoded output | Analog or digital video | |
| Output pin | 25Pin | |
| Working voltage | 1.8V-3.0V | |
| Consumption | Active:60Mw/Standby:＜20uA | ±0.2 |
| Outline dimension | See structure diagram | |
| Working tempenrature | -30°-70° |
Structure diagram

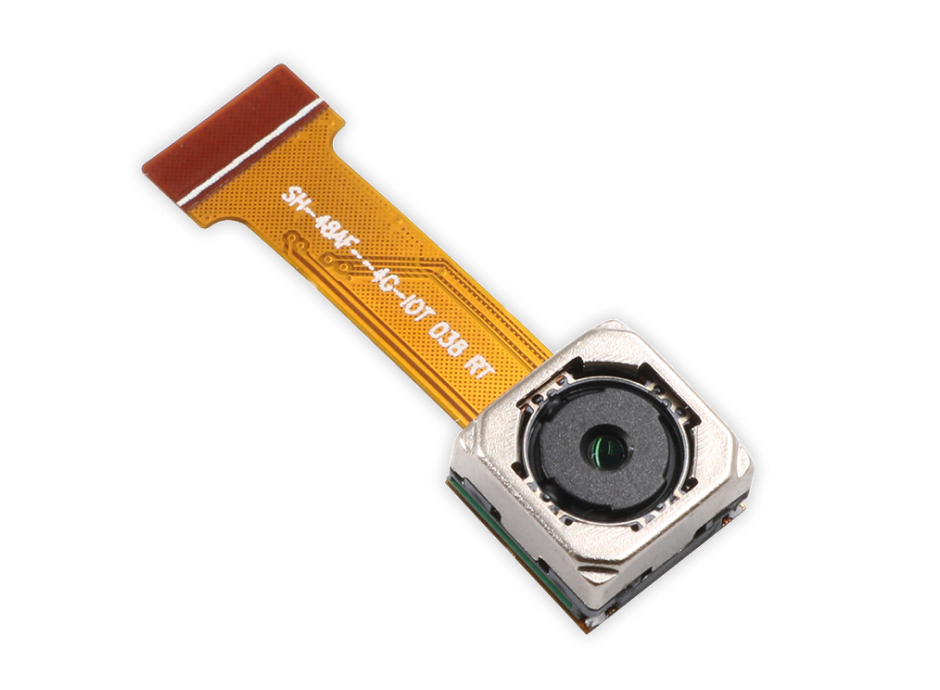

Product display
