 5.0 megapixel wide-angle camera 5.0 megapixel wide-angle camera
 OV5648 auto-zoom OV5648 auto-zoom
 HD quality HD quality
- Orange Pi Camera(5 megapixel) can be used to take high-definition video, as well as stills photographs. You can also use it for time-lapse, slow-motion, and other video cleverness. This camera supports Allwinner H3 series development boards:Orange Pi One, Orange Pi Lite, Orange Pi PC, Orange Pi PC Plus, Orange Pi Plus 2E, Orange Pi Zero plus 2 (H3) .
Performance Index
| Item | Performance | Note |
| Pixel | 500W | OV5640 |
| Dynamic image resolution | 5M | |
| lmage resolution | 5M | |
| Color number | 24 bit true color | |
| Focal length | 2.8mm | |
| F number | 2.5 | |
| Shooting range | 0.15→∞ | |
| View Angle | 70° | |
| Distortion | <1% | |
| Relative llumination | >65% | |
| Relative llumination | 30/60fps | 5M |
| White balance | Automatic | |
| Gain | Automatic | |
| Exposure control | Automatic | |
| Output signal | YUV/YcbCr/GRB 4:2:2/RGB565/555/444/RAWRGB | |
| Encoded output | Analog or digital video | |
| Output pin | 24Pin | |
| Working voltage | 1.7V-3.0V | |
| Consumption | Active:60mW/Standby:<20uA |

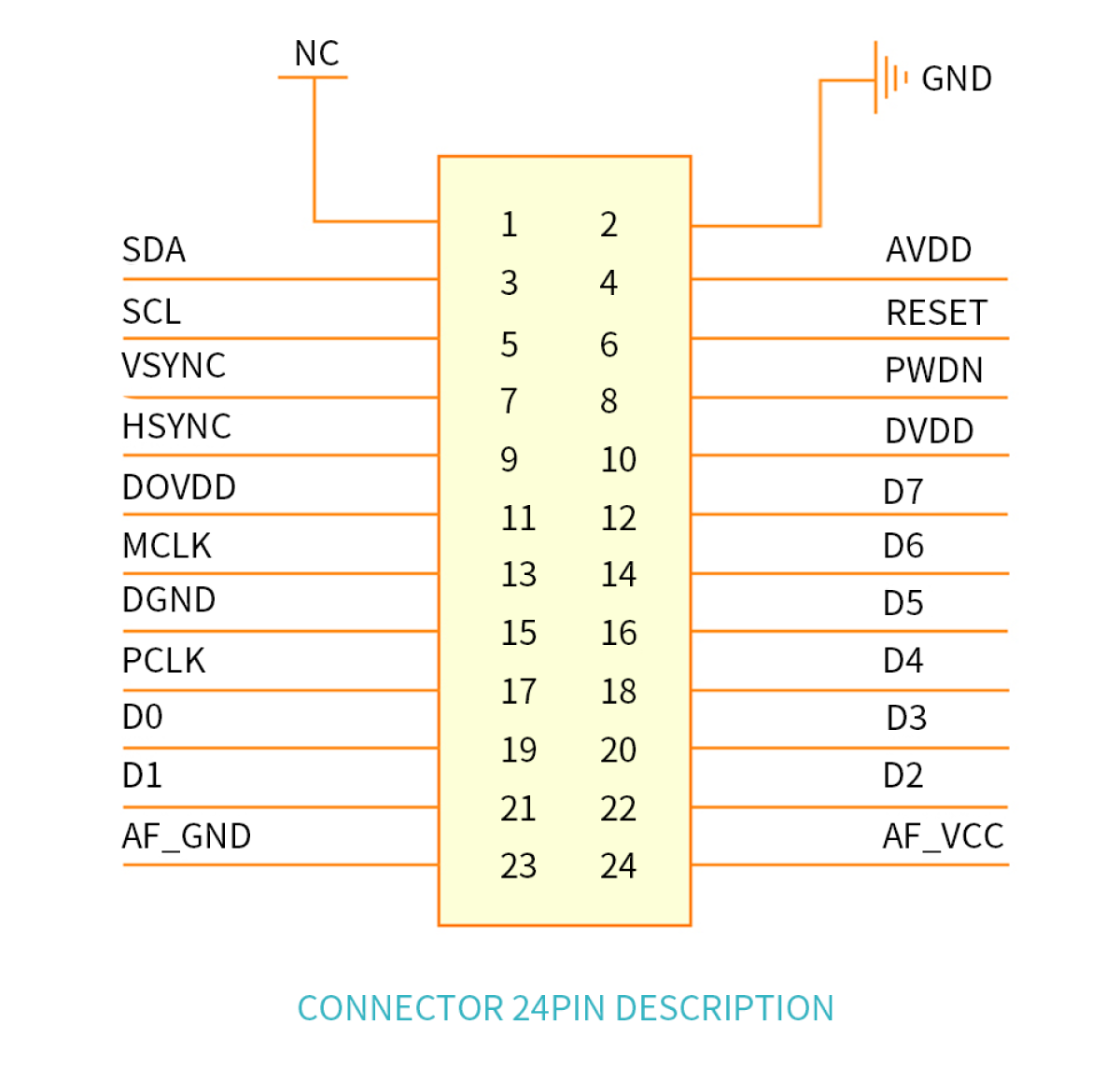

Structure diagram

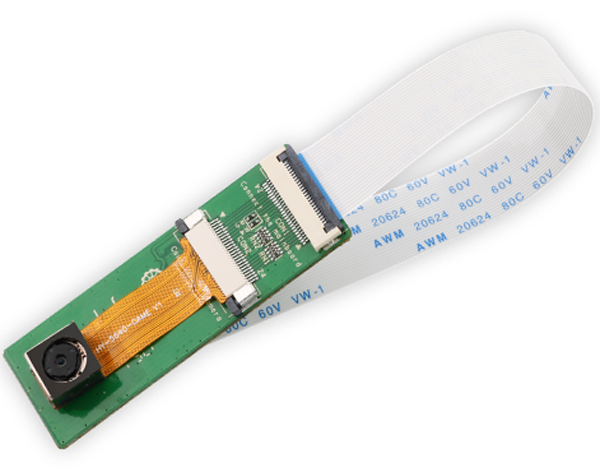

Connection diagram

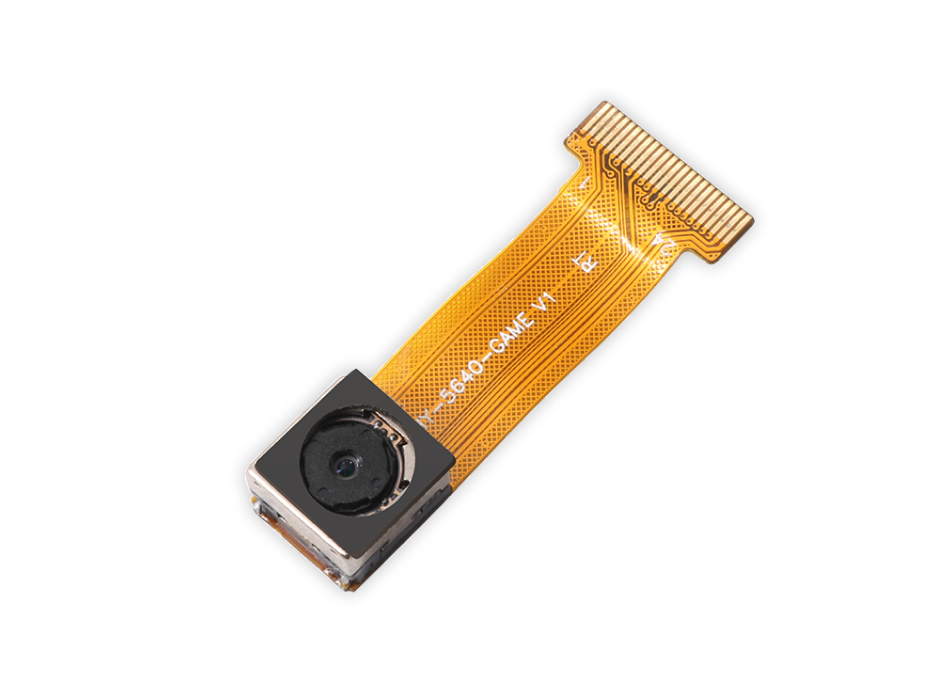

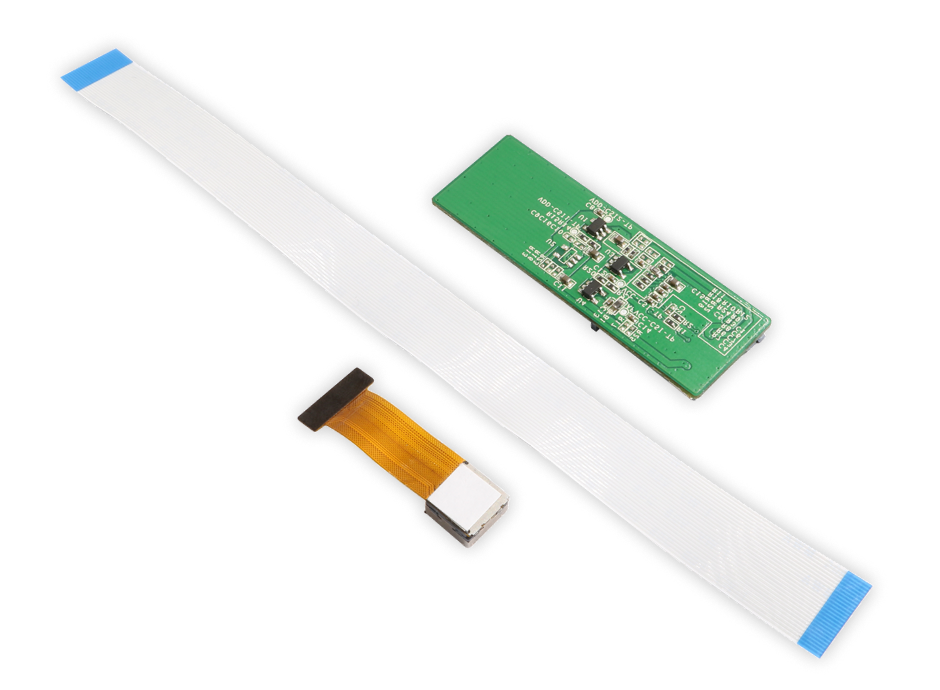

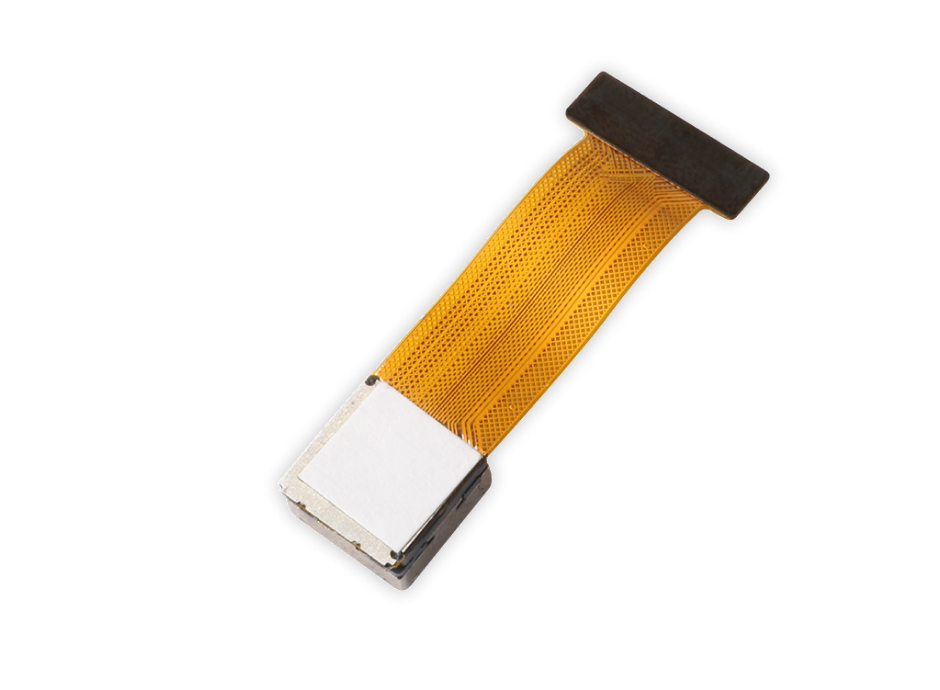

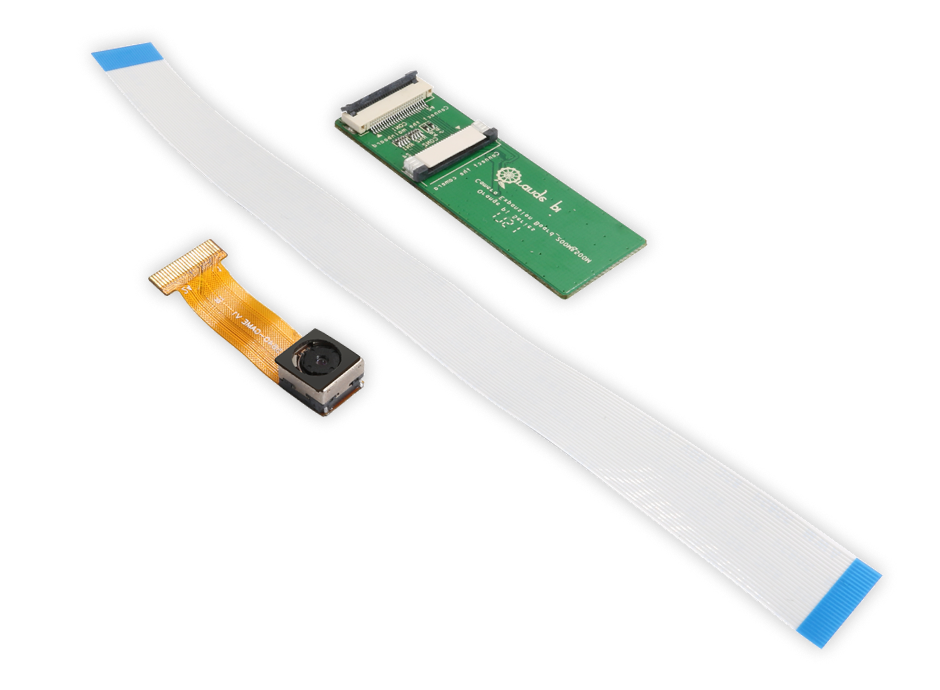

Product display
