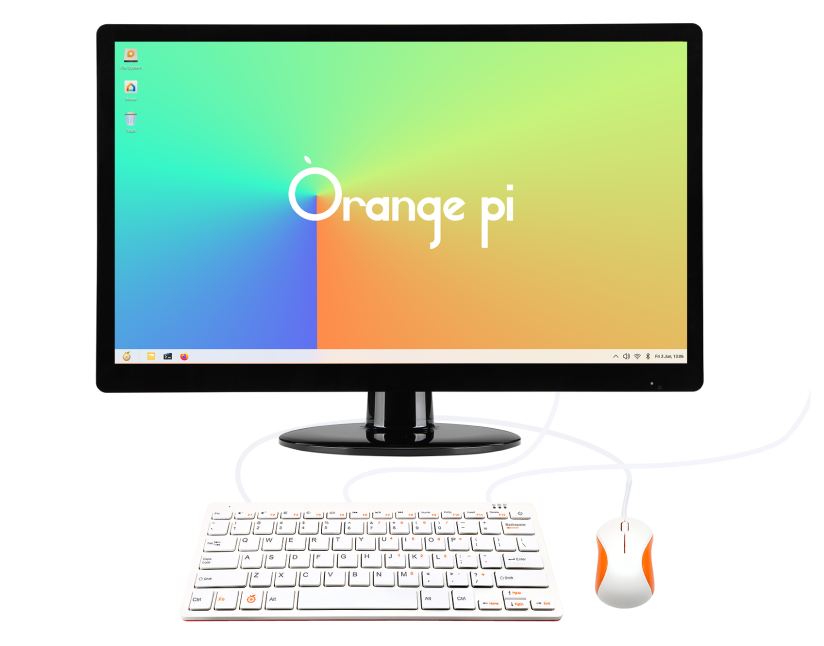

Orange Pi 800 is a powerful, easy-to-use PC in a keyboard. Just simply connect to a mouse and a monitor, you will get a complete personal computer.
-
Rockchip RK3399 SoC -
2 * USB3.0+1 * USB2.0 -
Dual-band WiFi + Bluetooth 5.0 -
64-bit processor -
HDMI 4K HD video output -
64G eMMC
It uses the Rockchip RK3399 SoC, and has 6-core ARM® 64-bit processor, 4GB LPDDR4, dual-band (2.4GHz and 5.0GHz) wireless WiFi, Bluetooth 5.0, Gigabit Ethernet, dual-display output, HDMI 4K HD video output, 1080P VGA video output, 2*USB 3.0 and 1* USB 2.0 ports. Orange Pi 800 offers a range of different ports .You can insert TF card,display screens and other devices. 26 Pin interface is reserved on the keyboard, which is convenient for users to complete some basic experimental projects.
Orange Pi 800 delivers outstanding development performance that you can use to start taking control of the world around you. It is also an educational tool for students of all ages.
Multiple functional interfaces, Rich demand
WiFi+Bluetooth
Dual-band wireless WiFi+Bluetooth 5.0, Enjoy wonderful network anytime and anywhere
4K HD video output,
Beautiful horizon,Clearly presented

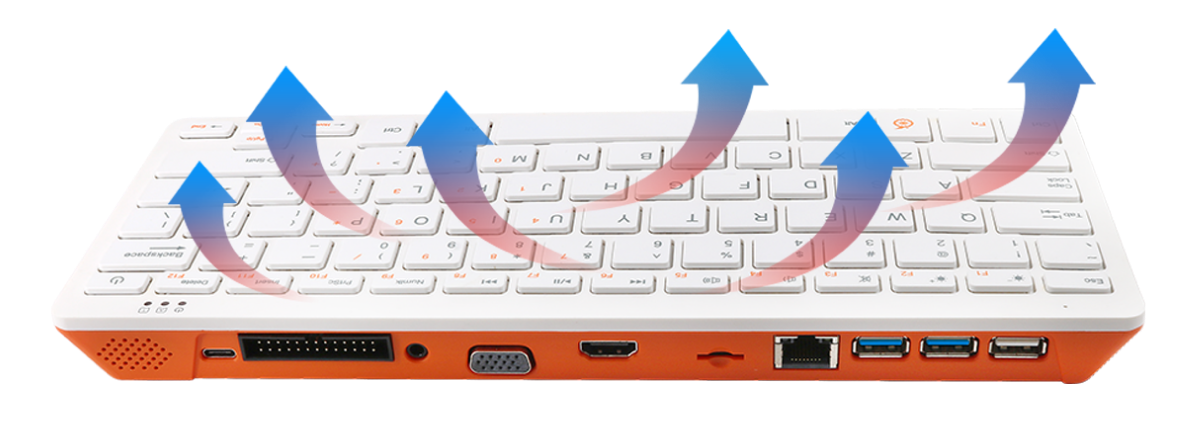

The heat-conducting silicagel，Better heat dissipation effect
Orange Pi 800 has specially designed thermals and a piece of heat-conducting silicagel to keep your computer cool and silent.
Product parameter
| CPU | • RockchipRK3399(28nm HKM Gprocess) • 6-core ARM® 64-bit processor • Based on the large and small size core architecture of big.LITTLE: Dual-core Cortex-A72 up to 1.8GHz(large core)+ Quad-core Cortex-A53 up to 1.4GHz(small core) |
| GPU | ARM Mali-T860MP4 |
| RAM | 4GB(LPDDR4) |
| EMMC | 64GB |
| Ethernet | Gigabit Ethernet |
| WiFi | Dual-band(2.4GHz and 5.0GHz)IEEE 802.11a/b/g/n/ac wireless WiFi |
| Bluetooth | Bluetooth5.0,BLE |
| Video Output | 1*HDMI2.0,Supports 4K@60fps output，VGA*1 |
| Audio | Output:3.5mm Jack,HDMI2.0，Speakers Input:MIC |
| Keyboard | 78-key QWERTY Keyboard |
| USB port | USB2.0*1;USB3.0*2 |
| Power Supply | Type-C |
| GPIO | 26Pin |
| Supported OS | Android12.1、Orange Pi OS、Manjaro、Ubuntu22.04、Debian11 |

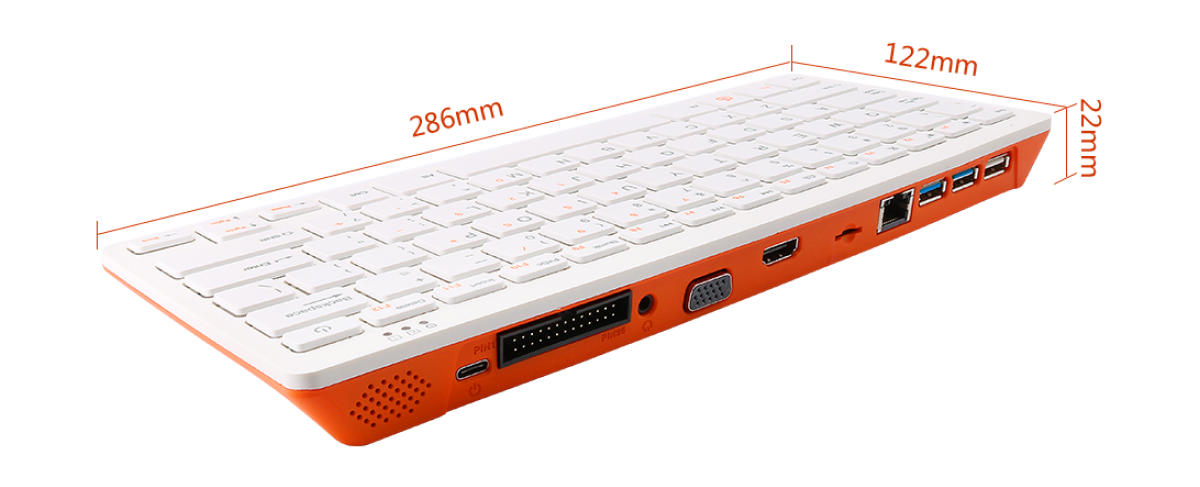

Appearance specification introduction
| Dimensions | 286mmX122mmX22mm |
| Weight | 385g |
