All-aluminium heat sink, high heat dissipation efficiency
PC transparent material fan, safe and environmental protection, good heat resistance
Sleeve Bearing, smooth running, low noise, long service life
Easy and simple installation
Specifications
| Heat sink | Aluminium profile |
| Heat sink size | 38mmX38mm |
| Fan material | PC transparent material |
| Bearing type | Sleeve bearing |
| Rating voltage | DC 5V |
| Working voltage | DC 4.5V-5.5V |
| Start-up voltage | ≤DC 3V（ON/OFF) |
| Air flow | 5.22CFM(REF) |
| Air pressure | 2.7mmH₂O(REF) |
| Rated speed | 4900 RPM ± 15% |
| Noise level | 21.44 dB(A) |

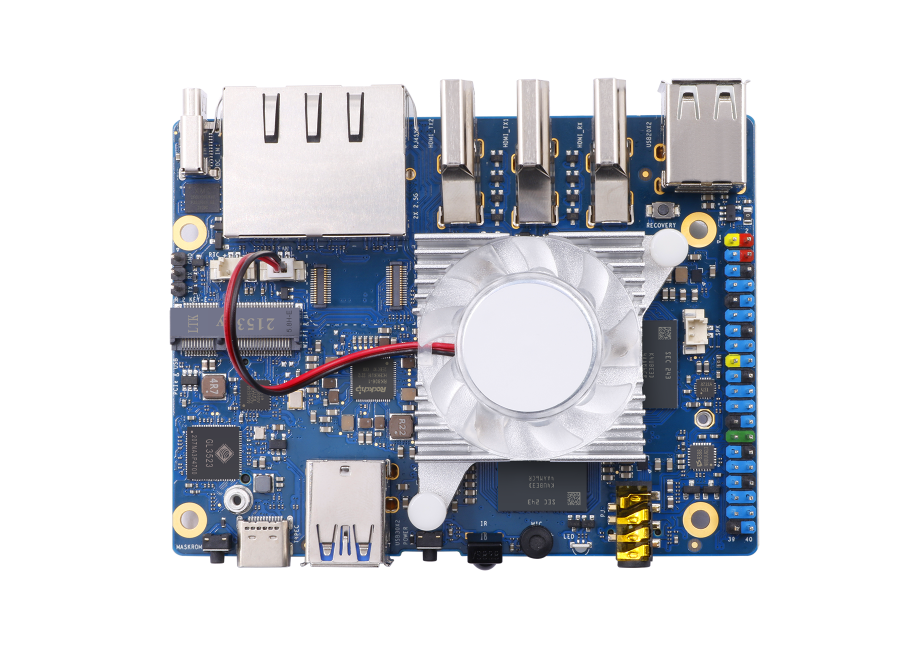

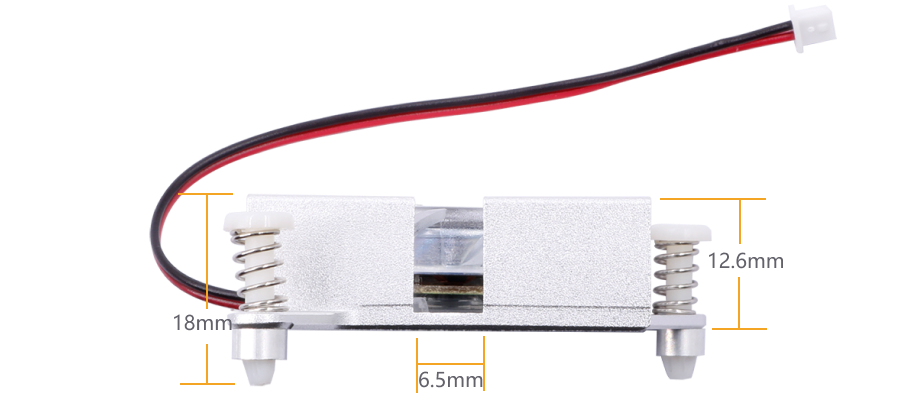

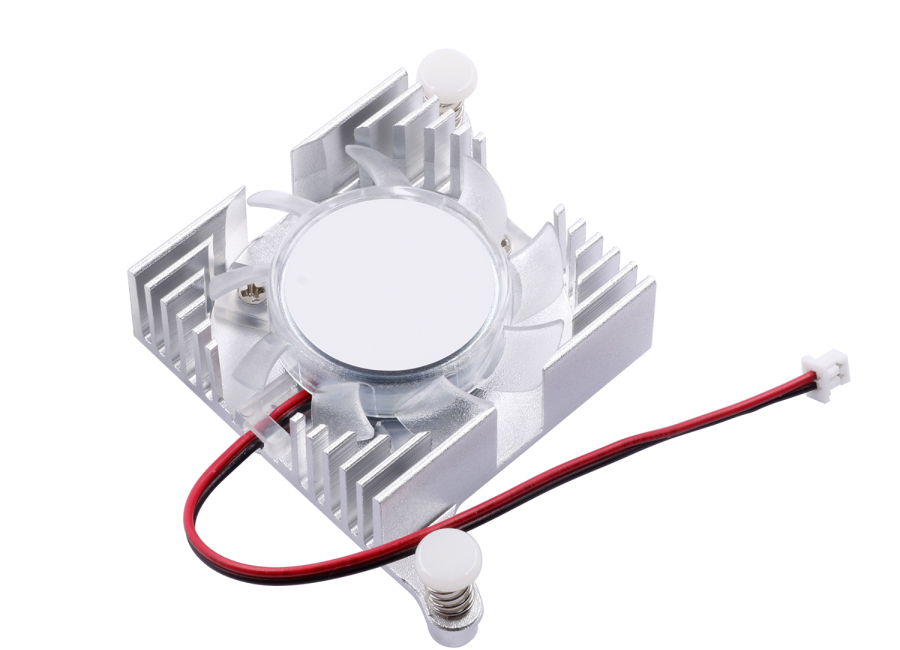

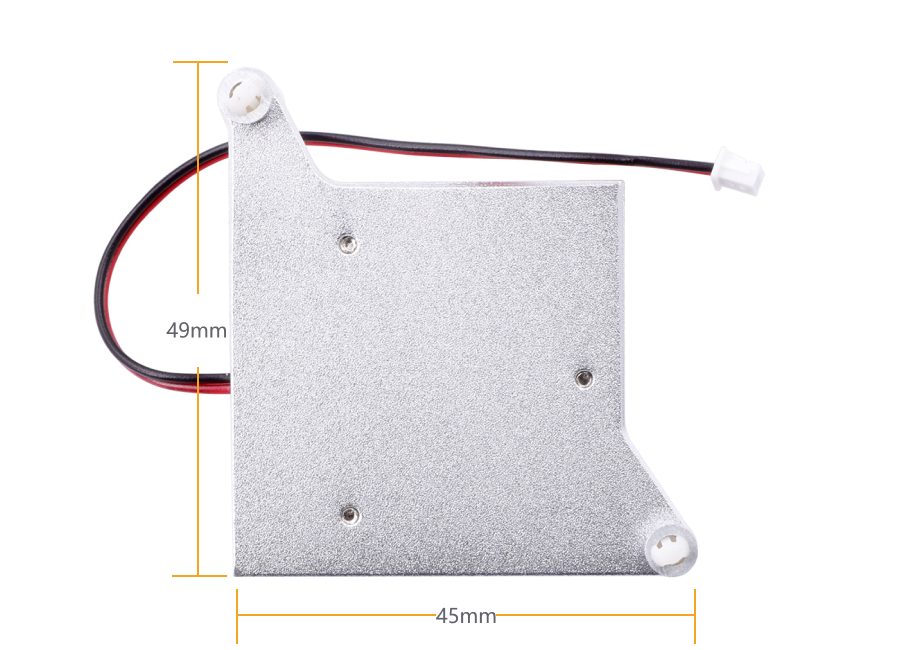

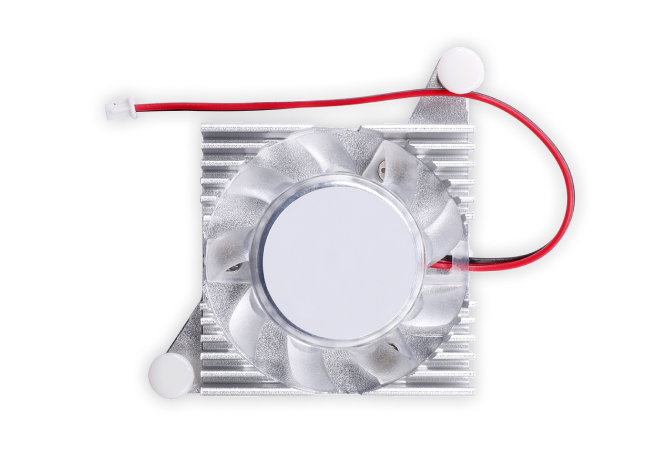

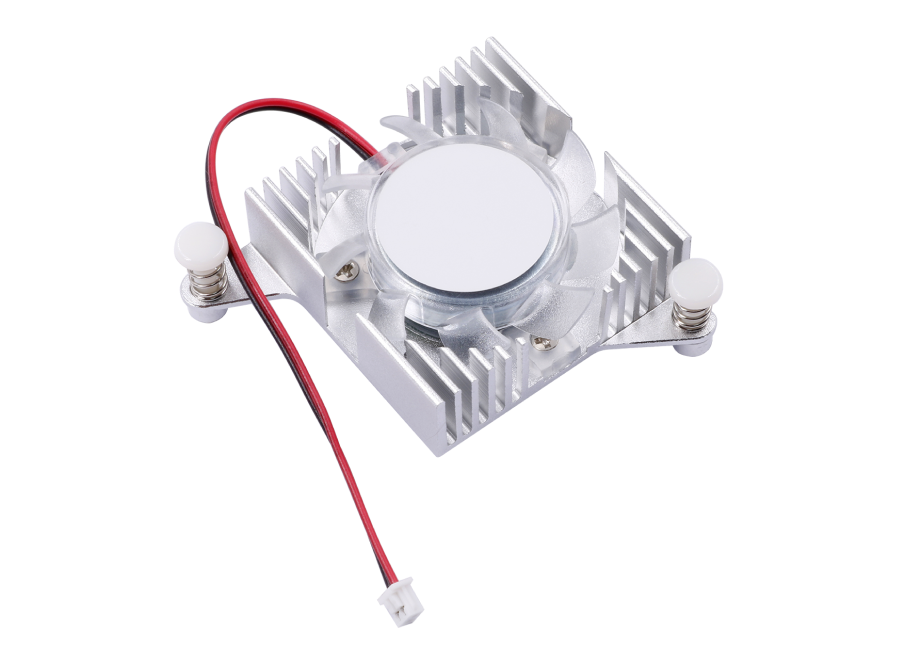

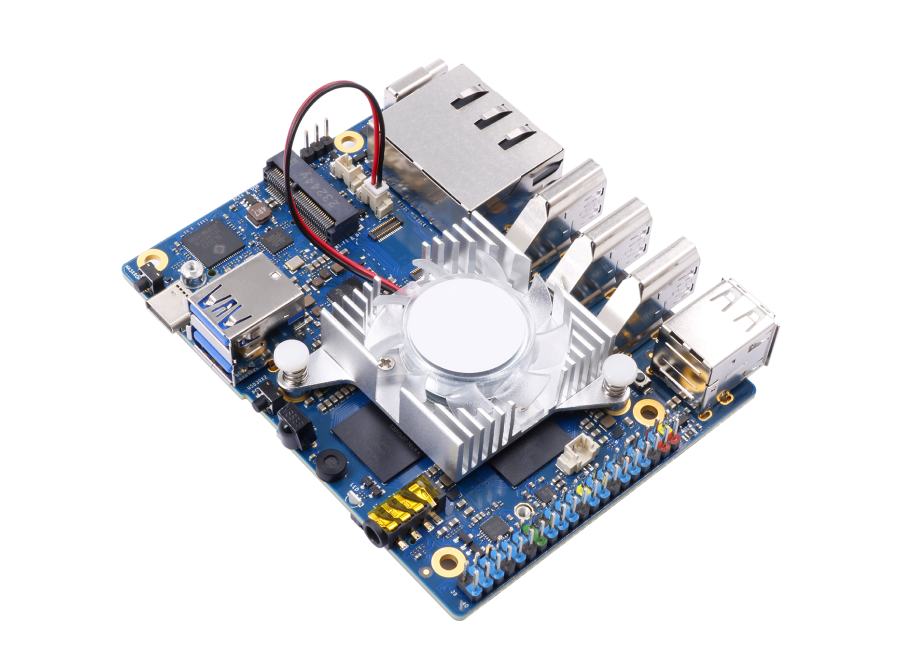

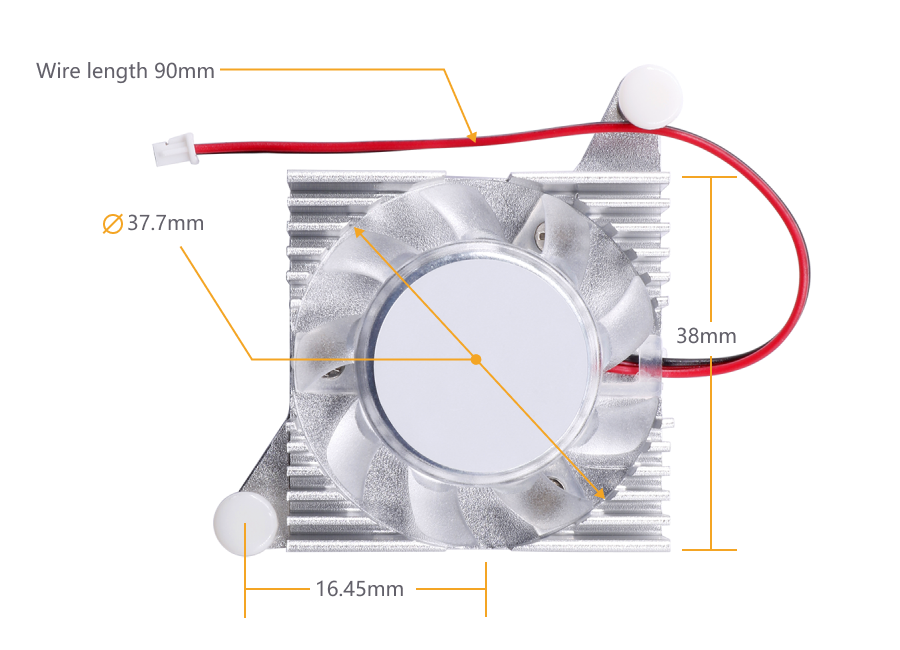

Product Images
