Product introduction

Allwinner H616 SoC
1GB LPDDR3
USB 2.0
Gbps Ethernet ports

Type-C
WiFi
2MB SPI FLASH
Bluetooth 5.0

Orange Pi Zero 2B is an open-source single board computer. It uses the Allwinner H616 SoC, and has 1GB LPDDR3, Gbps Ethernet ports, USB 2.0,dual-band wireless WiFi, Bluetooth 5.0,2MB SPI FLASH. It is powered through Type-C .lt can run Android 10,Ubuntu, Debian.

Orange Pi Zero 2B is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth

Dual-band wireless WiFi+Bluetooth 5.0 Enjoy wonderful network anytime and anywhere

Multiple functional interfaces

Integrates the popular HDMI, Ethernet, USB-Host

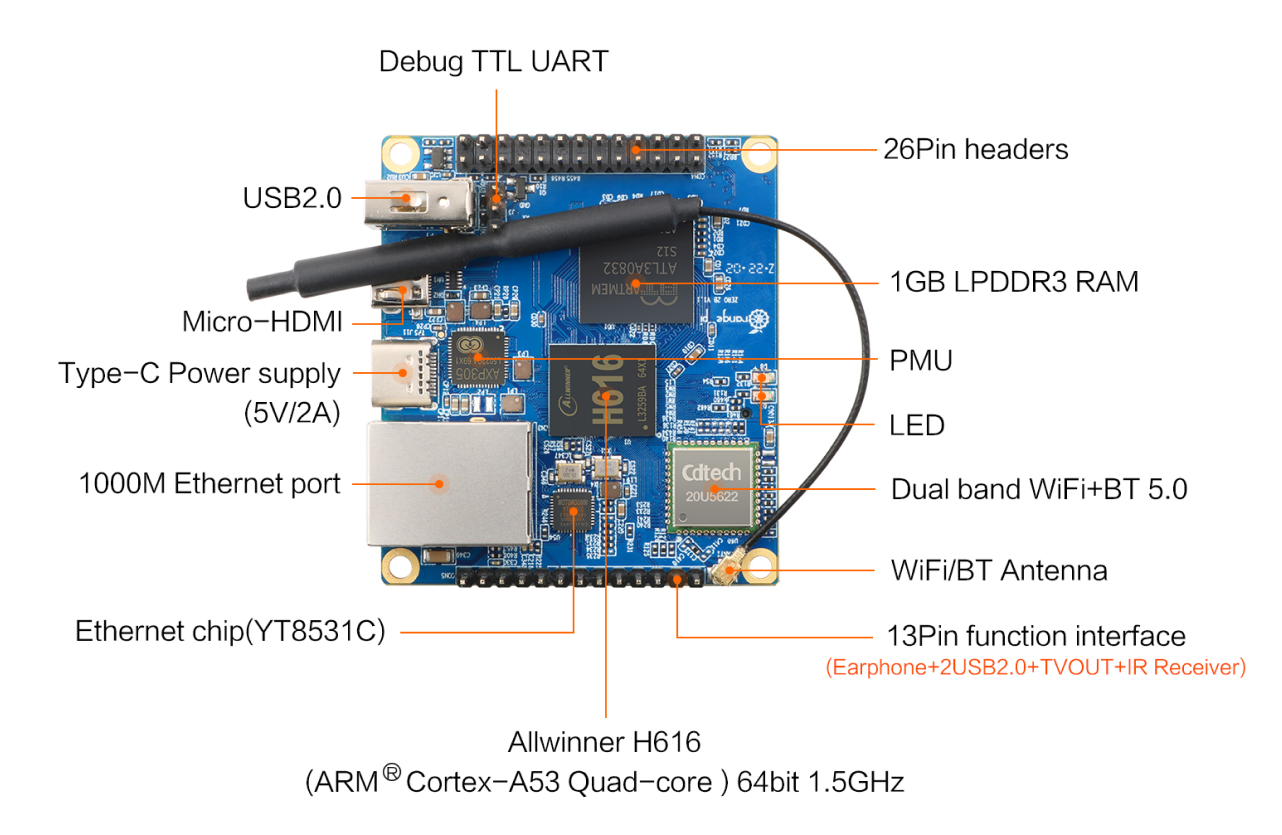

Hardware specification

CPU	Allwinner H616 64-bit 1.5GHz High-performance Quad-core Cortex-A53 Processor
GPU	Mali G31 MP2
Memory	1GB LPDDR3(FBGA178)

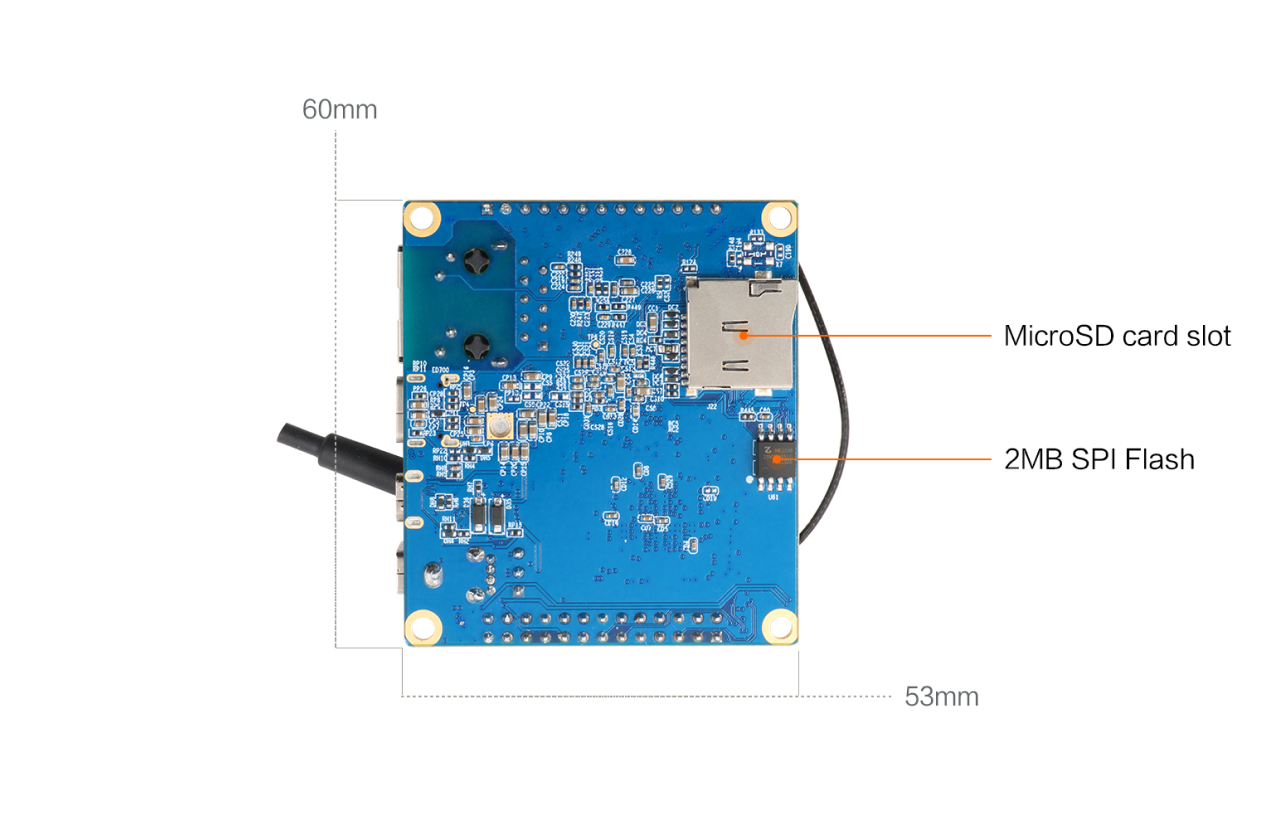

Onboard Storage	• TF Card Slot • 2MB SPI Flash
Onboard Network	Support 1000M/100M/10M Ethernet ( YT8531C )
WiFi+BT	• CDW-20U5622-00 Chip • Support IEEE 802.11 a/b/g/n/ac • Support BT5.0
Video Outputs	• Micro HDMI 2.0a • TV CVBS Output, Support PAL/NTSC ( Via 13Pin Interface Board )
Audio Outputs	• Micro HDMI • 3.5mm Audio Port (Via 13Pin Interface Board)
Power Source	Type C Interface 5V2A Input
USB2.0 Ports	3* USB 2.0 HOST(Two of Them Are Via 13Pin Interface Board)
Low-level Peripherals	• 13Pin Headers with 2USB Host,lR-RX,TV-OUT, LINE OUT and 3GPIO Ports • 26Pin Headers with I2C,SPI,UART and Multiple GPIO Ports
Debug Serial Port	UART-TX,UART-RX and GND
LED	Power Led & Status Led
IR Receiver	Support IR Remote Control (Via 13Pin Interface Board)
Supported OS	Android10,Ubuntu,Debian
