Orange Pi RTC Clock Module

Aliexpress Store BUY Amazon Store BUY
Orange Pi RTC Clock Module
BUY NOW

How it works

The DS1307 serial real-time clock is a low-power, complete binary coded decimal (BCD) clock/calendar plus 56-bit bytes of NV SRAM. address and data are transmitted serially via IIC, bidirectional bus. The clock/calendar provides information on seconds, minutes, hours, days, weeks, months and years. The last day of the month automatically adjusts the number of days in the month to less than 31, including correction for leap years. The clock runs in 24-hour or 12-hour format with AM/PM indicators.

Pin Description

Name Description Orangepi
VCC 2pins Power 5V Pin 2
GND 6 pins GND Pin 6
SDA 3 pins Data Pin 3
SCL 5 pins Clock Pin 5

Product images

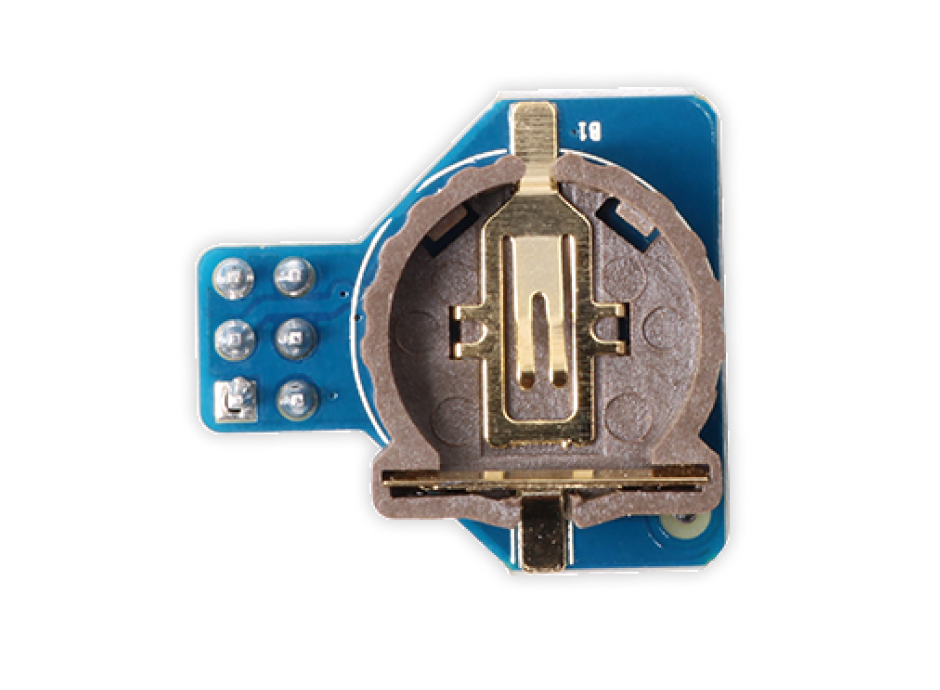

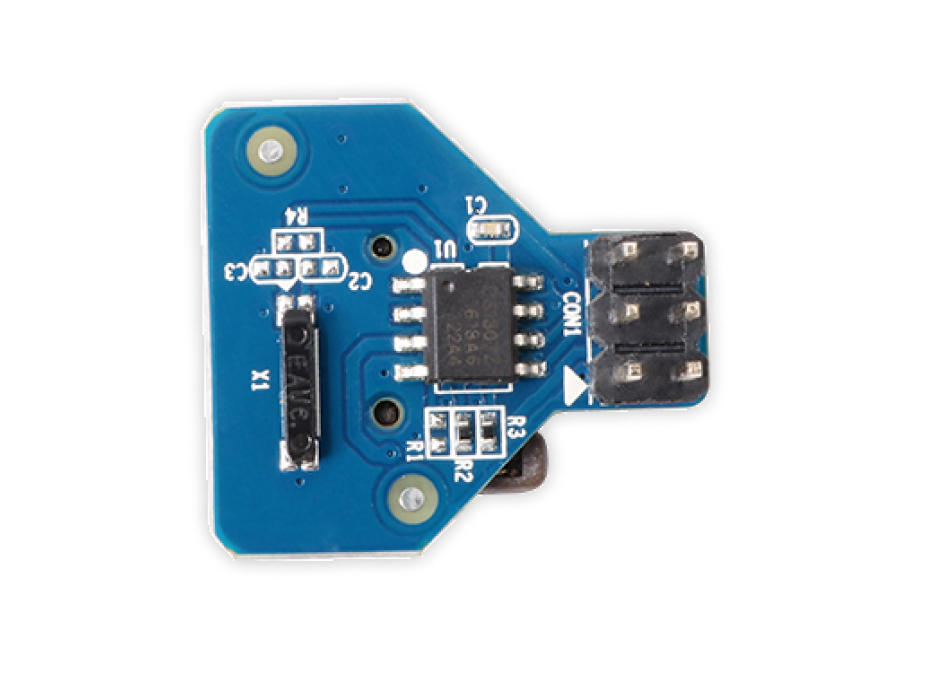

Top view Bottom view
