Orange Pi 5 dedicated touch screen

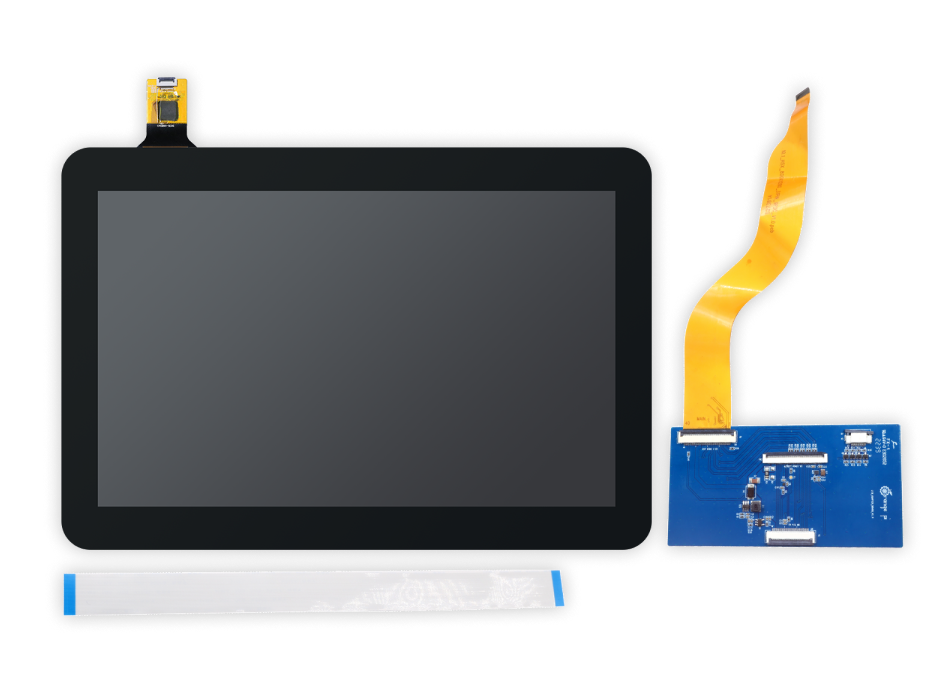

Product description
-
10.1" screen including TFT LCD and capacitive touch screen, hardware resolution is 800x1280
-
Support screen brightness control by software PWM
-
Refresh rate up to 60Hz through MIPI DSI interface driver
-
Support Orange Pi 5 development board, need to use with adapter board
Parameter
| ltem | Specification | Unit |
| Panel Size | 10.1" | inch |
| Number of Pixels | 800×RGB (3)×1280 | pixels |
| Active Area | 135.36(H)x216.576(V) | mm |
| Outline Dimension | 143(W)×228.6(H)×2.7(D) | mm |
| Number of Colors | 16.7M | - |
| Viewing Direction | ALL | - |
| Luminance (cd/m^2) | 250(TYP.) | nit |
| Interface | MIPI | - |
| Backlight | 27-LEDs (White) | - |
| Operation Temperature | 0~50 | °C |
| Storage Temperature | -10~60 | °C |
| Weight | TBD | g |
| Source IC | ILI9881C | - |

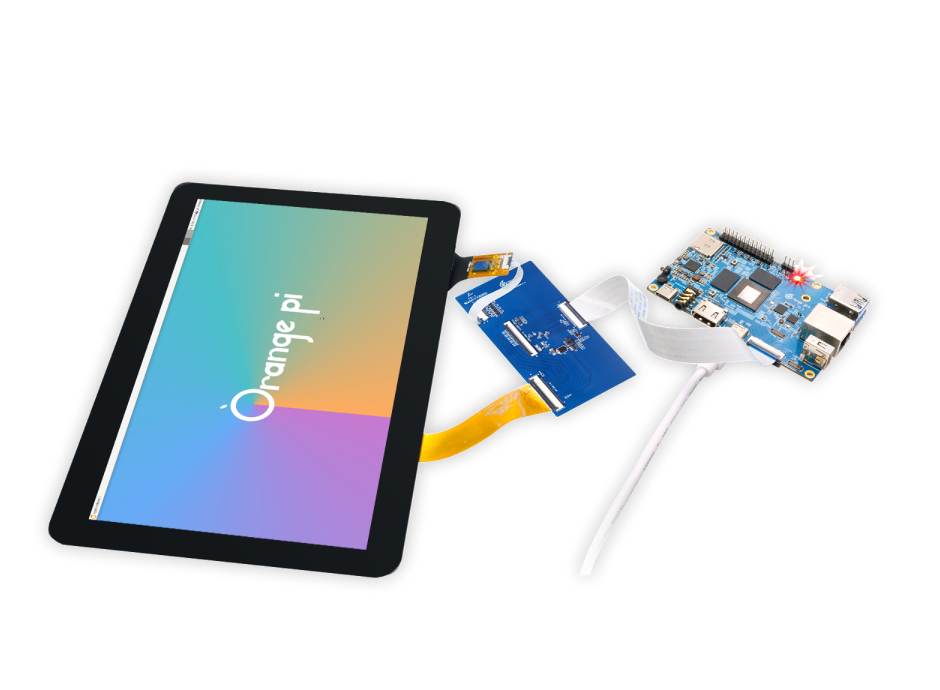

Connection display

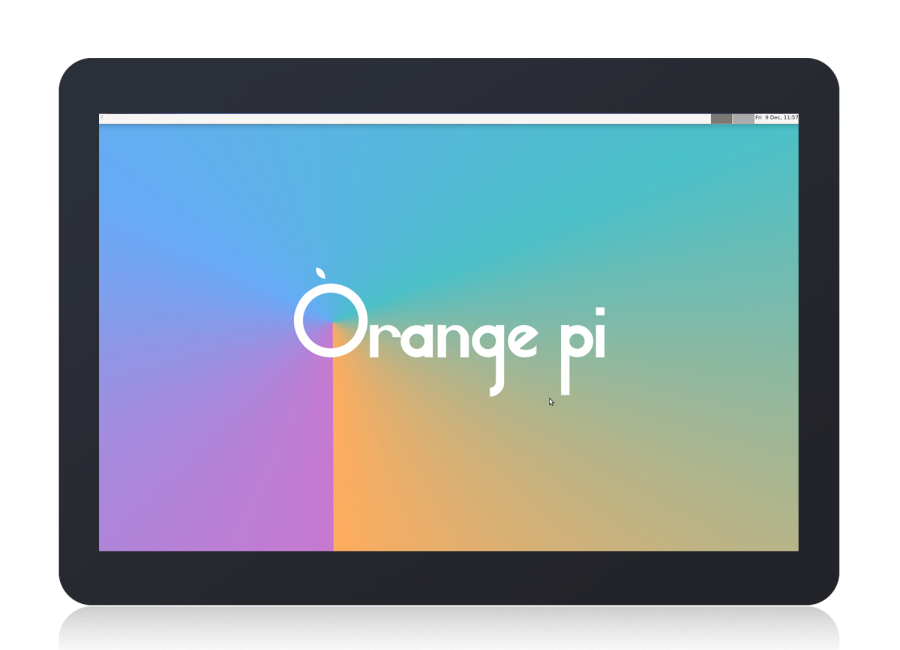

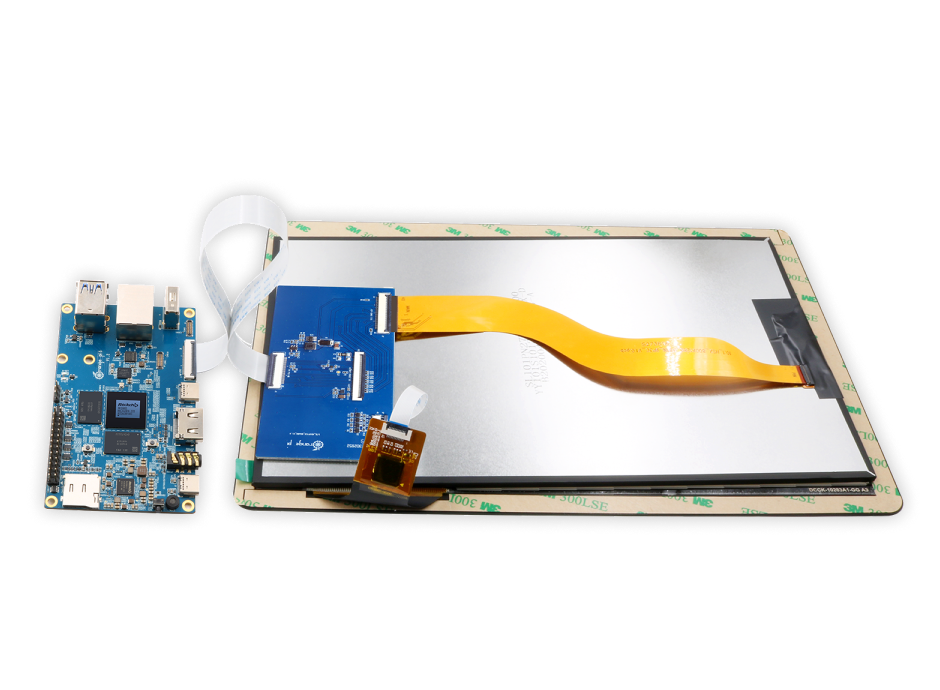

Product display
