The official and recommended touch screen for Orange Pi 4G-IoT
-
4.98 inch -
TFT LCD screen
Specifications
| Touch Panel Parameter | Touch panel mode | Capacitive screen |
| Size | 74.56mm*151.26mm | |
| Driver IC | FT6336U G+F | |
| Power voltage | 2.8V | |
| Light transmission | ≥82% | |
| Surface hardness | 7H | |
| Operating temperature | -10℃~+60℃≤90%RH | |
| Storage temperature | -20℃~+70℃≤90%RH | |
| Display panel parameter | Display mode | TFT |
| Driver IC | JD9522Z | |
| Pixel lattice | 540（RGB）X 960 | |
| Module size | 5.5 inch | |
| Display area | 68.04mm*120.96mm | |
| Connector | MIPI |

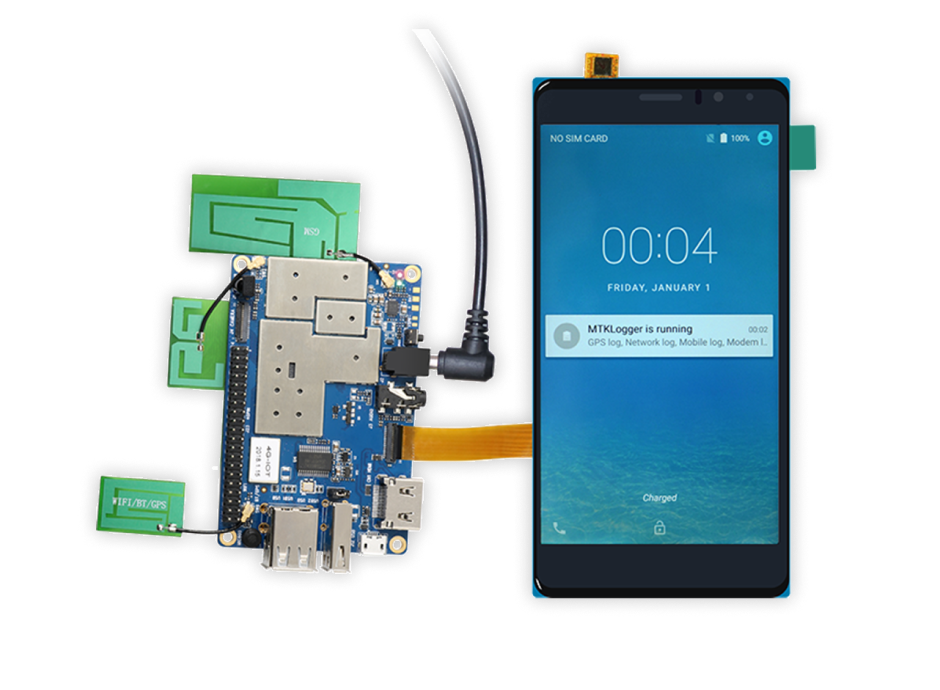

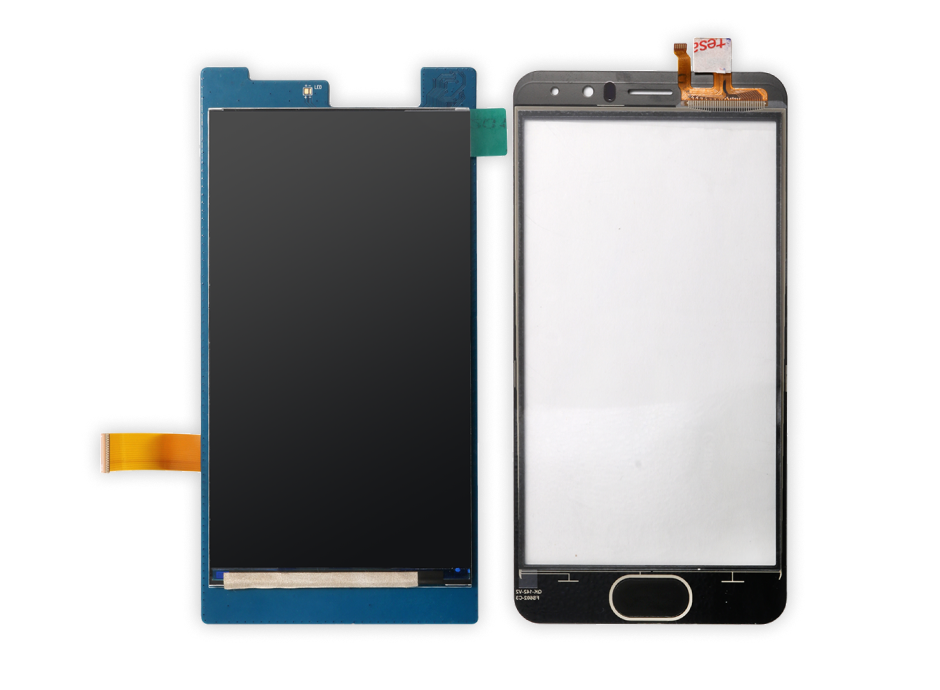

Product images
