1 points 3AV line ,suitable for all kinds of TVs
Ideal for connecting your camcorder/DV to your TV or VCR for video and stereo audio playback, the Orange Pi AV cable is suitable for a variety of products that require a 3.5mm cable. Compatible with most mini DV and digital camcorders from Sony, Canon, JVC, Samsung, Panasonic, Sharp and other brands that use a single 3.5mm (1/8') connector for audio/video output.
High quality ,three AV cable
Sony, Canon, JVC, Samsung, Panasonic, Sharp perfectly compatible
| Product | Interface |
| Sony | 3.5mm（compatible√） |
| Canon | 3.5mm（compatible√） |
| JVC | 3.5mm（compatible√） |
| Samsung | 3.5mm（compatible√） |
| Panasonic | 3.5mm（compatible√） |
| Sharp | 3.5mm（compatible√） |
| Other brand cameras | 3.5mm（compatible√） |
| Most mini DV | 3.5mm（compatible√） |
| Digital camera | 3.5mm（compatible√） |

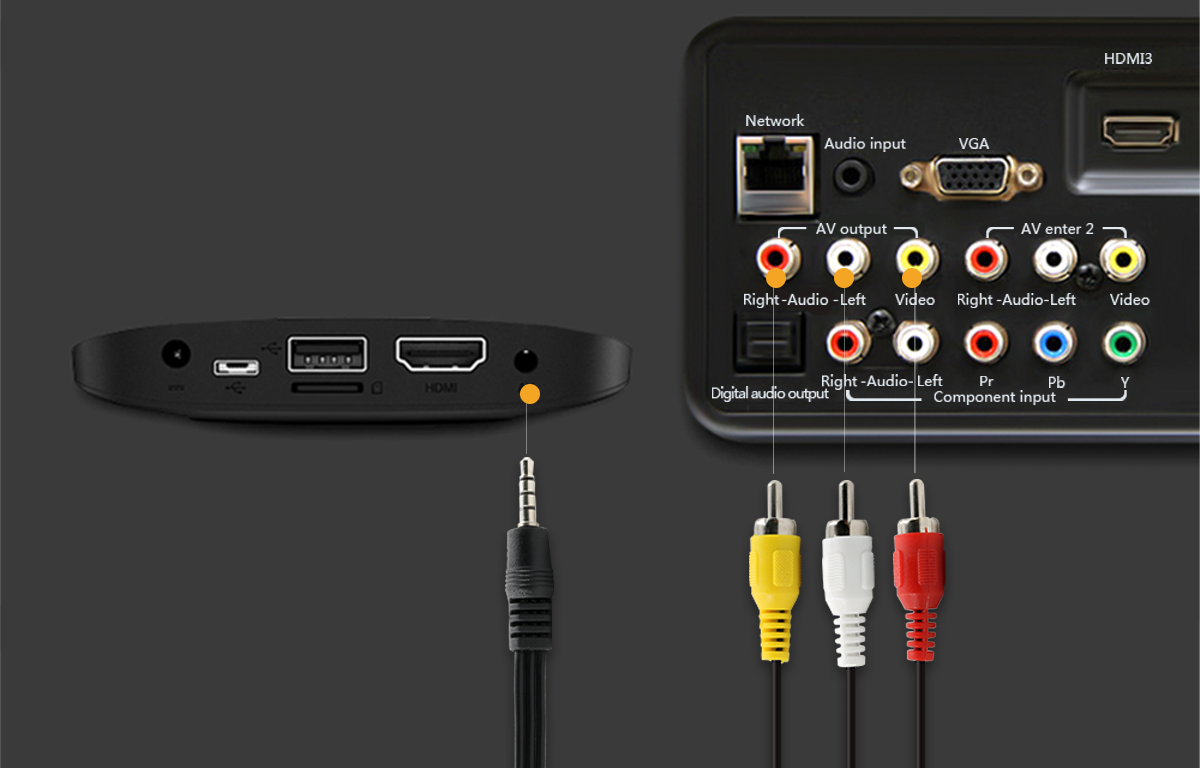

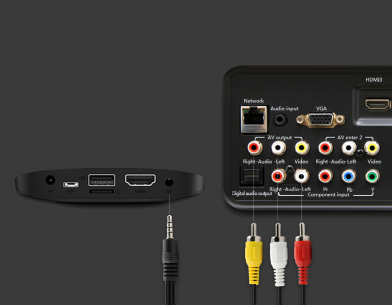

Connection method
AV video line is divided into three lines (white =left, yellow = right, red = video channel), the AVcable plug slot in the corresponding color TV innormal use
Applicable equipment
A three AV cable,for TV,computer,collection of audio and video signal transmission between the machine,CD player,power amplifier and loudspeaker box;the winding shielding line,can be widely connected.
-
Oxygen free copper (OFC) conductor
24K gold plated joint effectively reduces contact resistance and signal attenuation
-
Nickel terminal joint
The use of nickel terminal connector, no interference transmission, plug and socket more practical
-
Environmental protection exterior material
By use of environmentally friendly fire PVC material, long time use will not cause any damage to the body
Specifications
| Type | AV link |
| Connector | Connector |
| Linewidth | 6.5mm |
| Conductor | Conductor |
| Plug diameter | 3.5mm |
| Plug length | 15mm,17mm |
| Product length | 1.5m |
| Packing | environmental protection sealed composite bag packing |
| Guarantee | Orange Pi quality, one-year warranty, lifetime warranty |

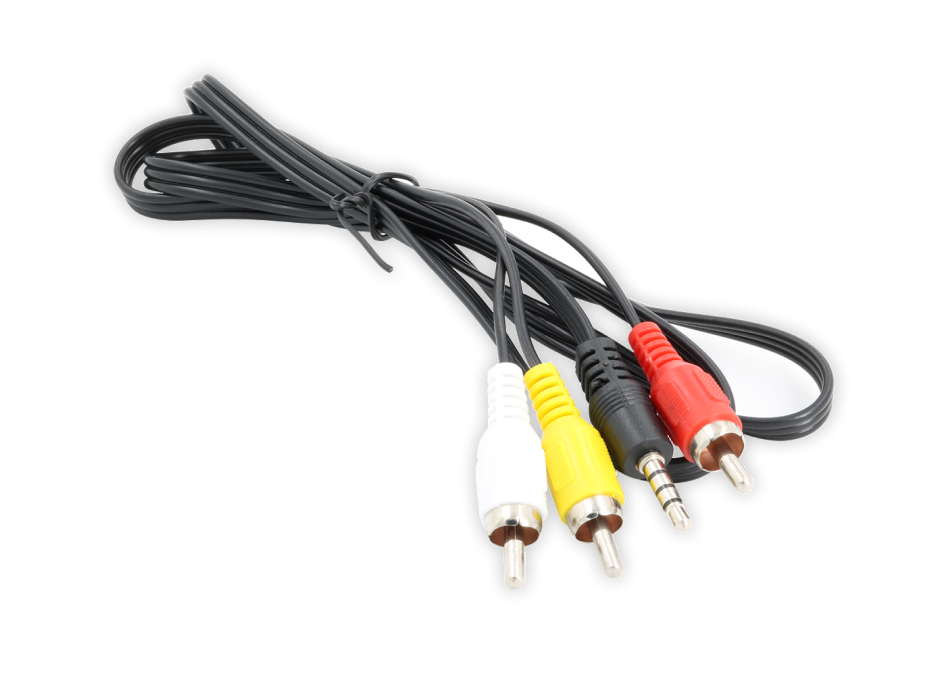

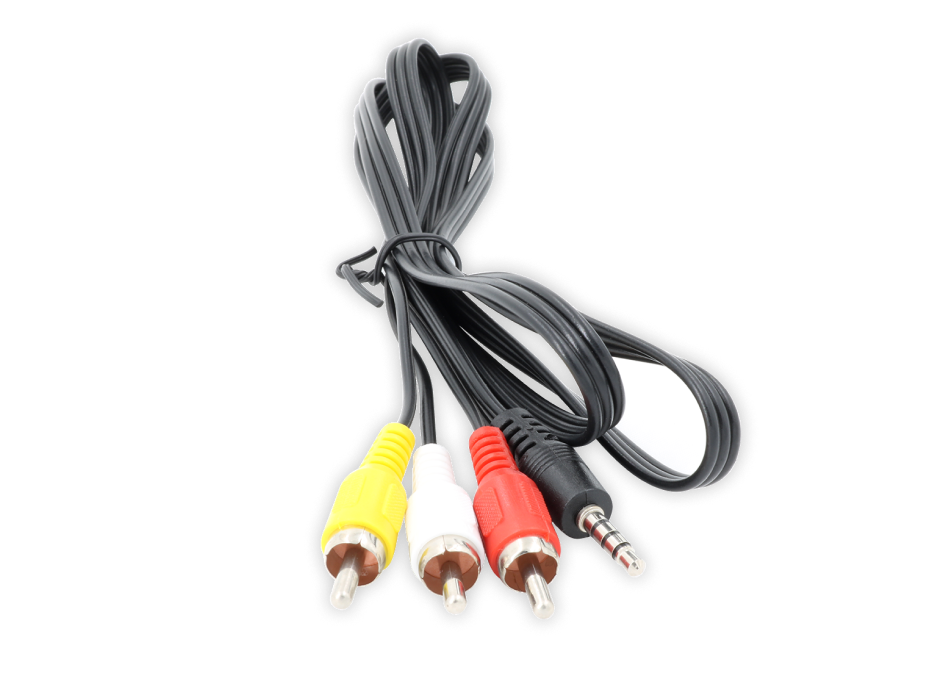

Product images
