Connect TV to big screen to share
The notebook connects to the big screen TV, and every detail is shown with a high degree of clarity, which gives the vision a different quality than the senses
Strengthen the signal stability, more enjoy the audio and video effects brought by HD，for Orange Pi Zero 2
-
MicroHDMI
-
True Hd4K x 2K
-
Super3D
-
24KGilded
4k vision,super shock
Support ultra-high definition true 4K resolution 3D movies, you can enjoy the visual feast at home, feel the shocking experience of ultra-clear movies
Support ultra-high definition true 4K resolution 3D movies, you can enjoy the visual feast at home, feel the shocking experience of ultra-clear movies
Lossless synchronous transmission of audio and video
lt breaks through the limitations of traditional video and audio transmission separately, and integrates innovative audio and video with synchronous transmission
.png)
Standard 19 core micro HDMI
19 24 ~30 AWG pure copper transmission conductors are adopted for more stable signal transmission
-
Rate average lifting35%
-
Stronger than usual50%
-
lsolated interference90%
-

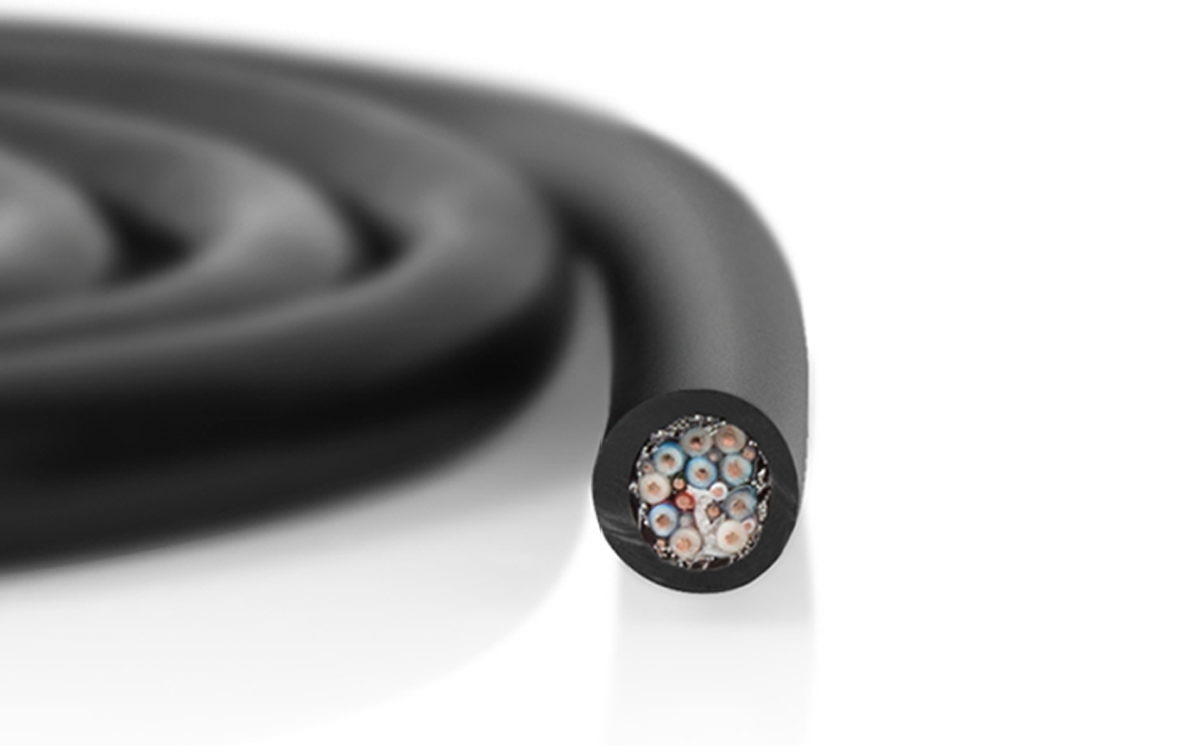

Pure copper conductor
High quality and high purity oxygen free copper is used as the conductor to effectively ensure the signal attenuation in the process of micro HDMI HD signal transmission
-
24K gold-plated joint
24K gold plated joint effectively reduces contact resistance and signal attenuation
-
Anti-interference design
Special aluminum foil is used for shielding to prevent signal cross interference

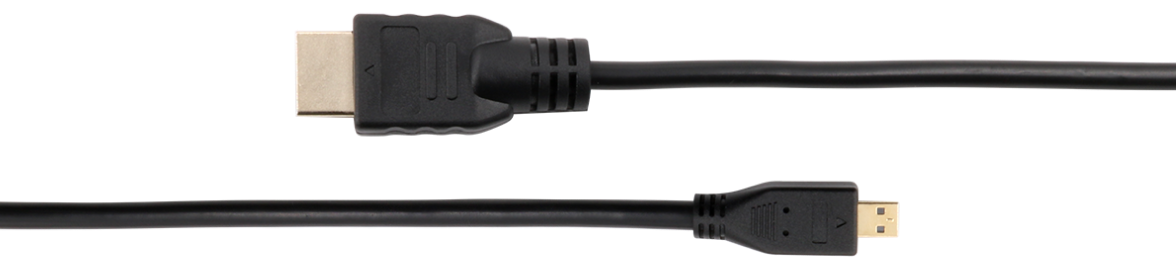

Micro HDMI interface
One end of the company's products is a standard HDMl interface, and the other end is a micro HDMl interface, which is described below HDMl / mini HDMl / micro HDMl interface comparison
-
.png)
Standard HDMI14x4.5mm
-
.png)
Mini HDMI10.5x2.5mm
-
.png)
Micro HDMI6x2.3mm
Product applicable equipment
Products suitable for HDMl interface computer, notebook,TV sets, set-top boxes, projectors and other equipment connections
Projector
Laptop
PS4
Smart box
STB
Monitor
LCD TV
Specifications
| lnterface | Micro HDMl interface |
| Joint | Gold-plated |
| support | Support 3D |
| shield | Three layer shielding aluminum foil + ground wire + braid |
| Color | black |
| line length | 1.5m |
| Wire core | Pure copper conductor |
| Material | Superconducting copper clad steel |

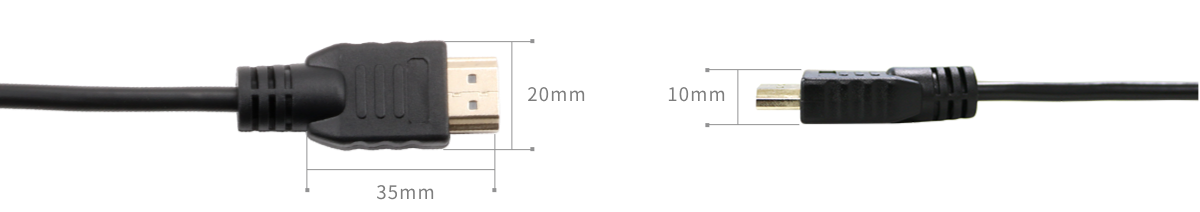

Dimensional drawing
.png)

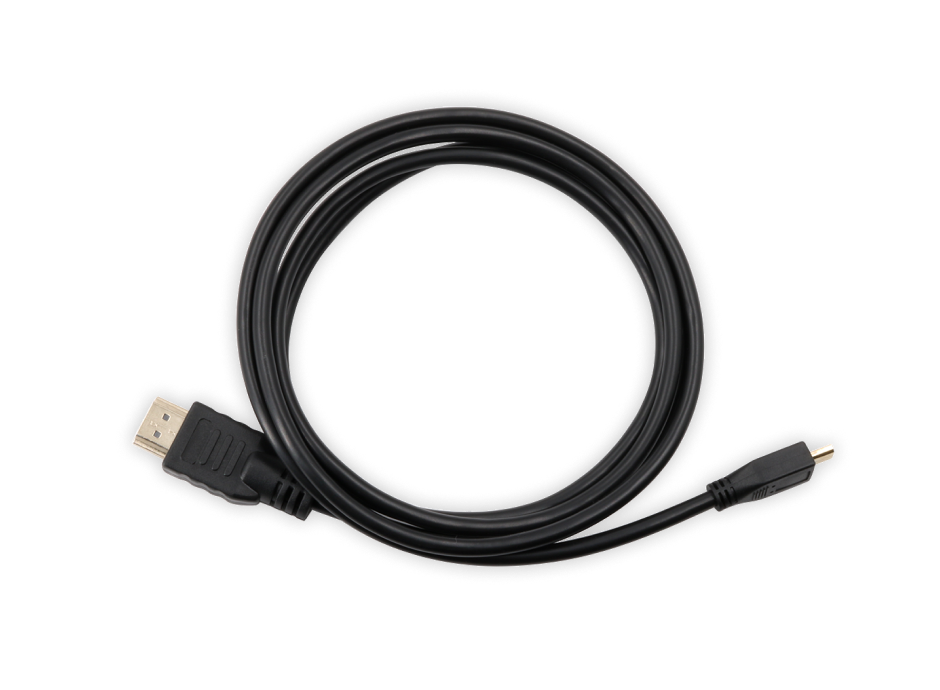

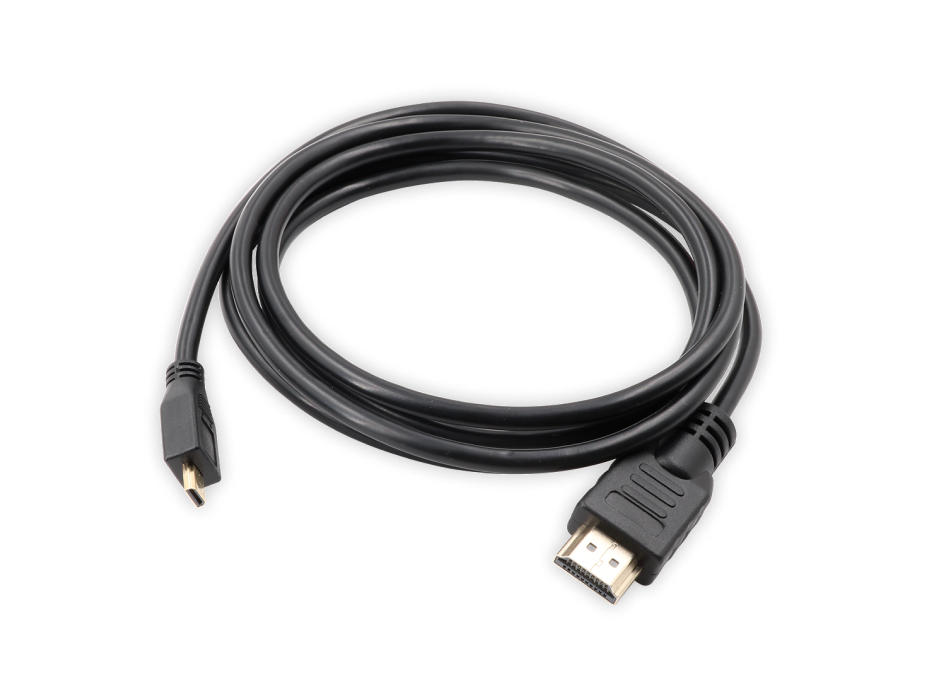

Product images
