Overview

Orange Pi SATA Line

Aliexpress Store BUY Amazon Store BUY

Simple and easy to use, no driver installation required

SATA 7+15pin to 7pin + 2 pin cable is a rare connection cable for SATA hard drives.In addition to transfer speed and more reliable data transfer, space saving is the most attractive aspect of SATA, which is more conducive to heat dissipation inside the case and the crosstalk between cables is effectively controlled.

Universal Standard

Standard SATA interface, compatible with SATA2 and SATA3 hard drives, and can support SSD solid state drives

Encrypted shielding for efficient transmission

Specially designed high-density shielding cable shields out unwanted interference and enhances the stability of transmission performance

Notes

There is a board with a 13pin functional interface, which can be directly connected to the main board and the NAS board through 13pin, and the NAS board has a SATA interface.

For boards without 13pin functional interface, you can connect NAS to the motherboard through a USB cable, and then connect the hard disk with SATA interface through NAS

Specifications

Transfer Rate SATA 1.0: 1.5Gb/s
SATA 2.0: 3Gb/s
SATA 3.0: 6Gb/s
Length 35cm

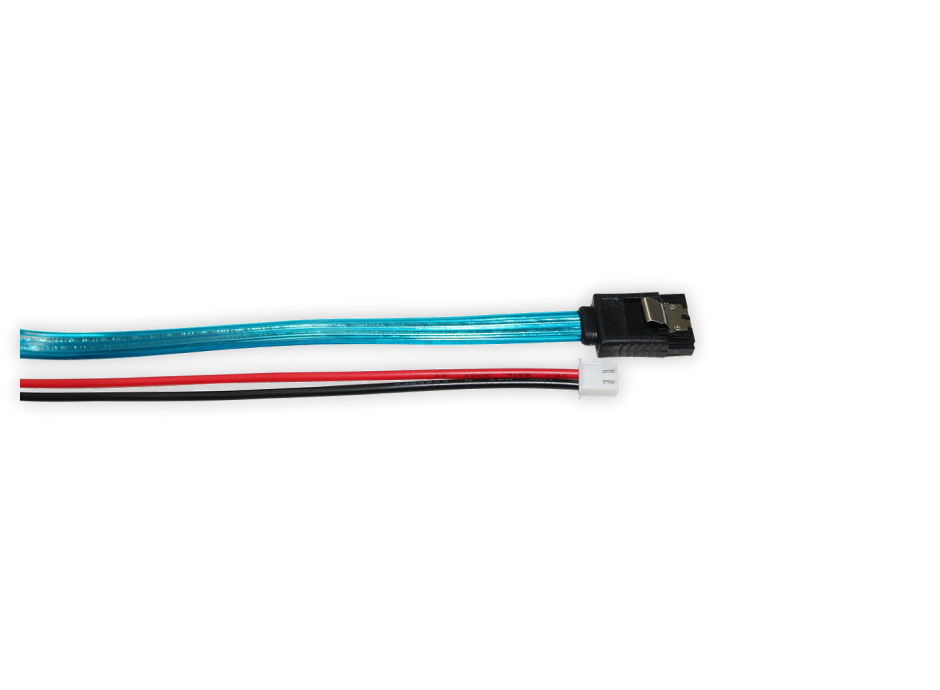

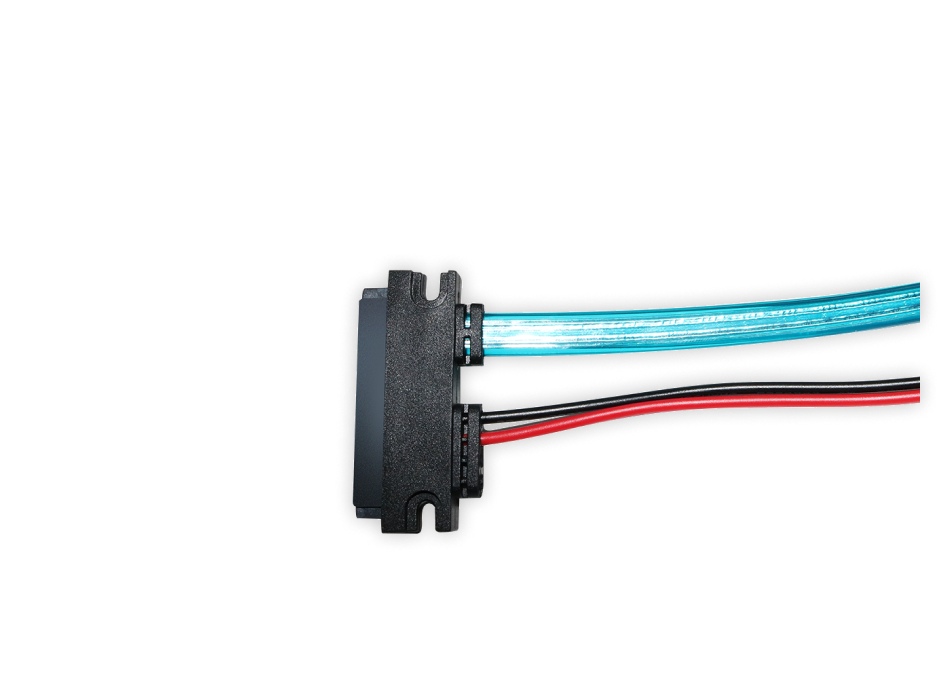

Product images
