Suitable for Orange Pi 5, Orange Pi 5B, Orange Pi 5 Plus
13 megapixels
Special camera for RK3588, RK3588S
HD quality
Product parameters
| Item | Performance |
| Pixel | 1300W |
| Dynamic image resolution | 4224x3136 |
| lmage resolution | Image size support：13.2MP(4224X3136) 10MP(16.9-4224x2376) 4K2K(3840x2160) EIS 1080P(2112X1188) EIS 720P(1408X792) |
| Color number | 10-bit |
| Focal length | 3000mm |
| F number | 2±5% |
| Shooting range | 0.1m→∞ |
| View angle | 77.6° |
| Distortion | <1.5％ |
| Relative illumination | 450mV/LUX-sec |
| Image transmission rate | 6~64MHz |
| White balance | Defect pixel correction, automatic black level calibration, lens shading correction, and alternate row HDR |
| Gain | 63.4dB @ 1x gaim |
| Exposure control | Programmable controls: gain, exposure, frame rate |
| Output signal | 10-bit RGB RAW |
| Encoded output | Analog or digital video |
| Output pin | 40Pin |
| Working voltage | AVDD2.8V/DOVDD1.8V/DVDD1.2V |
| Consumption | Active:199mW(13mp@30fps,ISP OFF) Standby:300uW XSHUTDOWN:1uW |

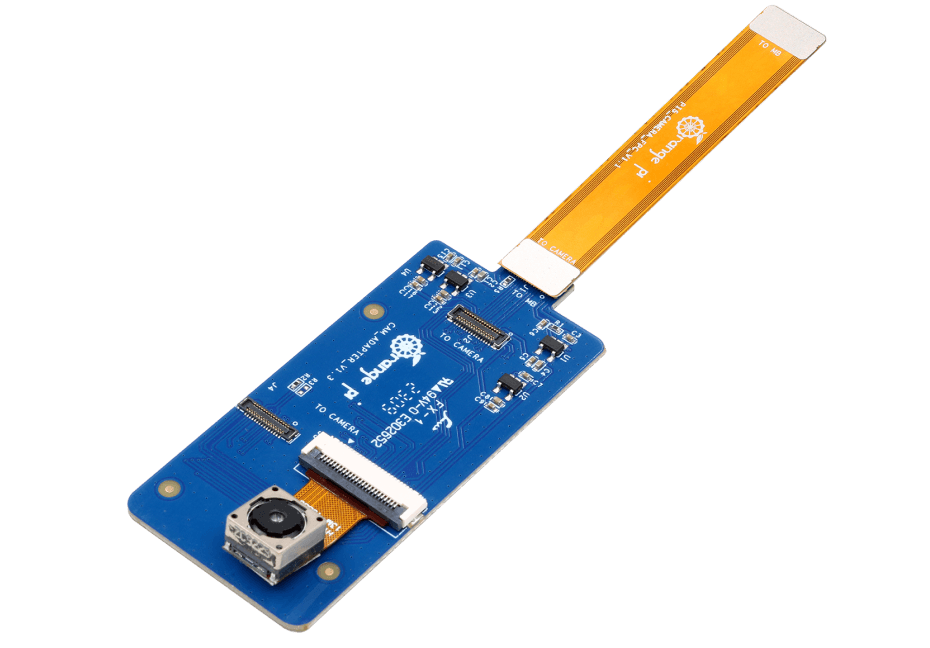

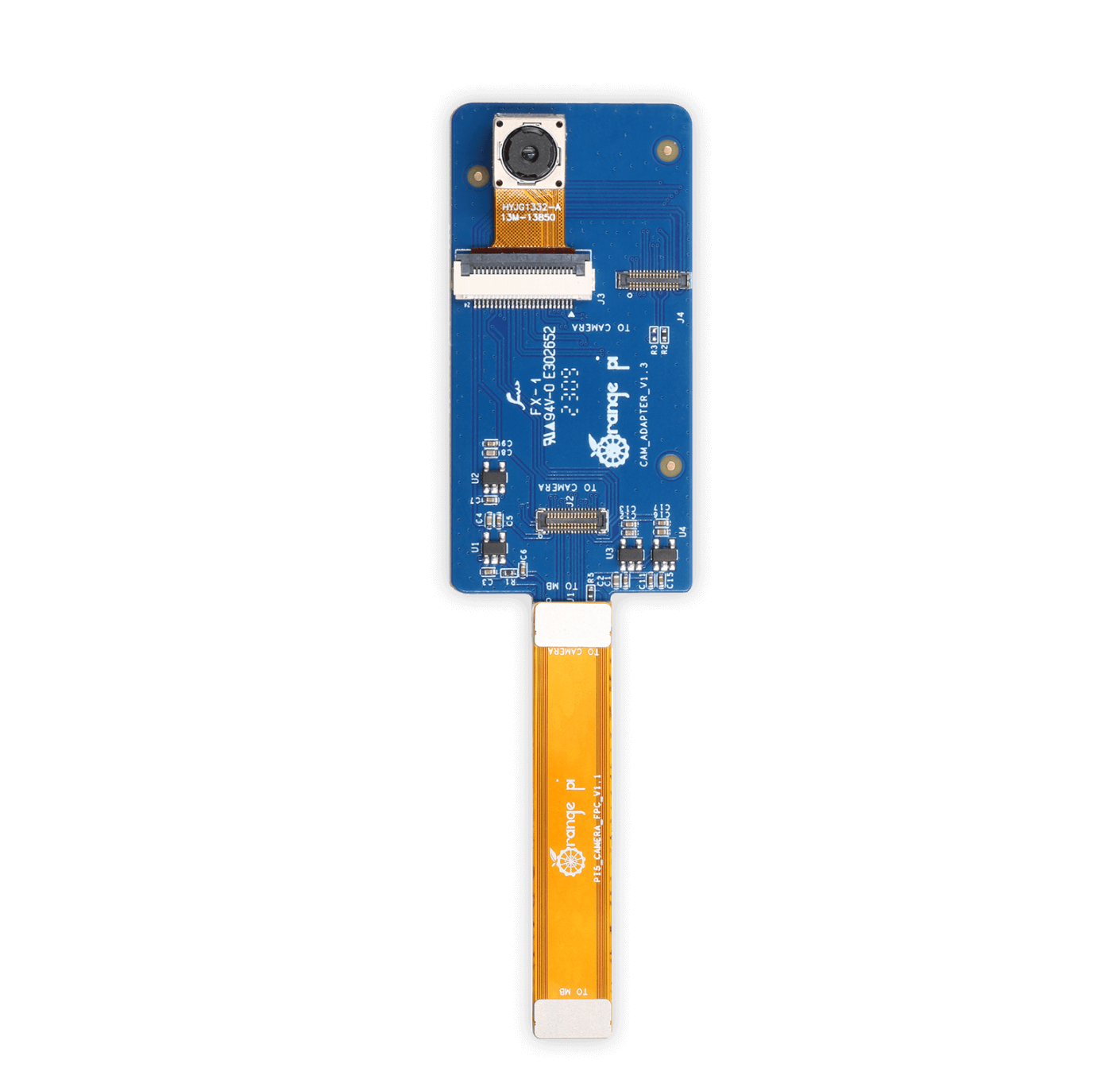

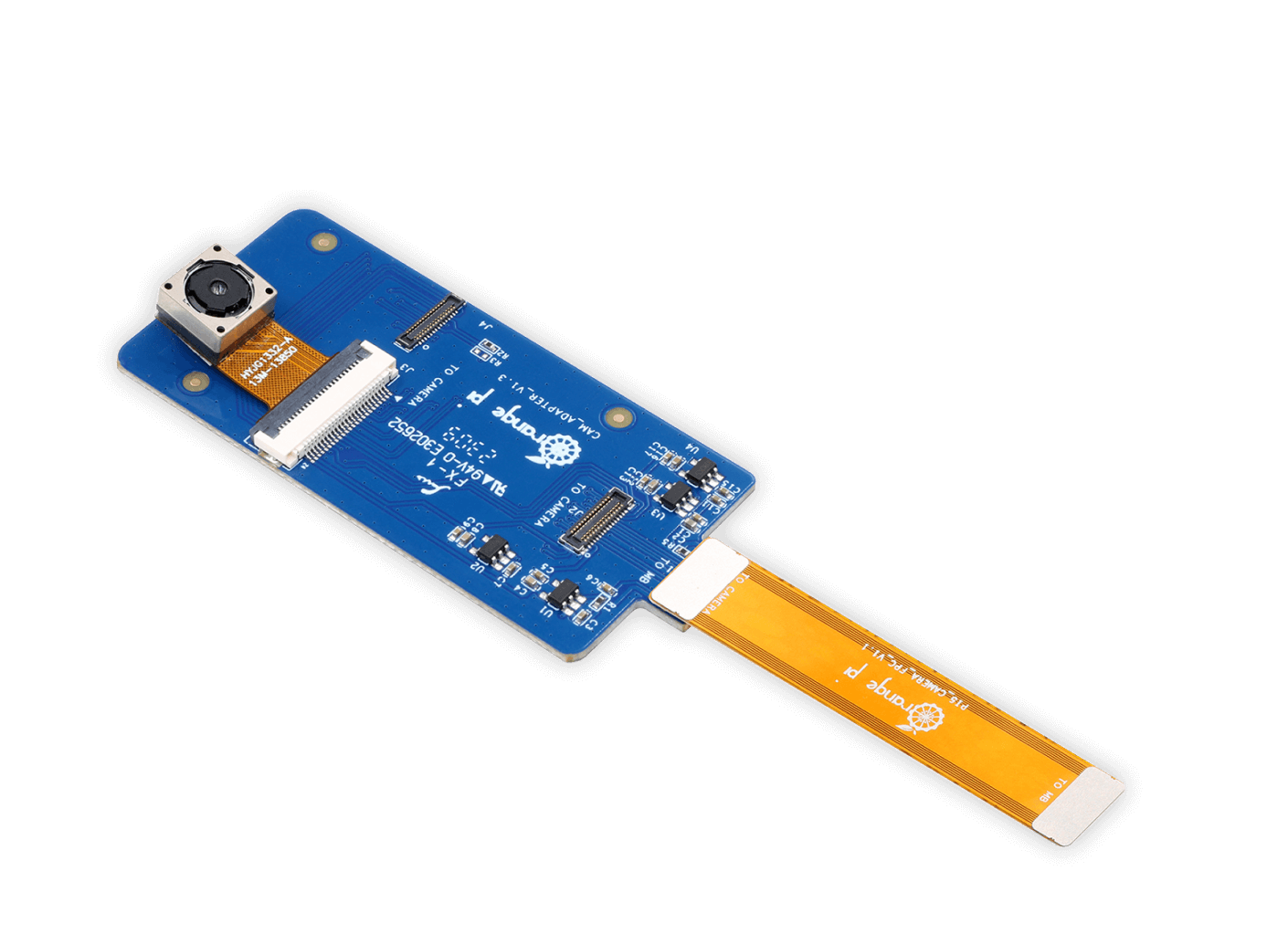

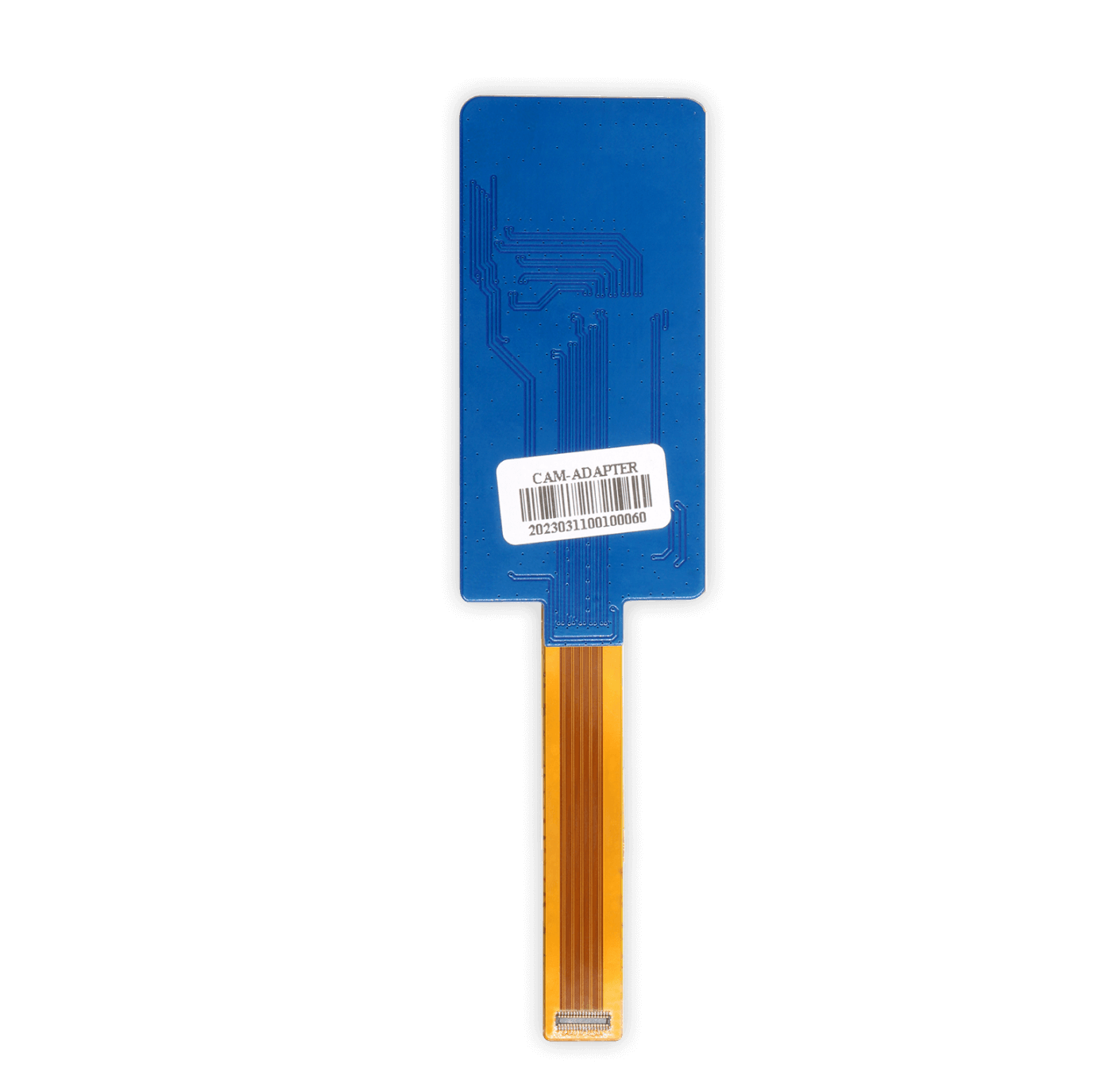

Product Images
