Suitable for Orange Pi 5, Orange Pi 5B, Orange Pi 5 Plus
13 megapixels
Special camera for RK3588, RK3588S
HD quality
Product parameters
| Item | Performance |
| Pixel | 1300W |
| Dynamic image resolution | 4256x3168 |
| lmage resolution | Image size support：13MP(4224X3136) 10MP(16.9-4224x2376) 3MP（2112x1568），and more |
| Color number | 10-bit |
| Focal length | 3000mm |
| F number | 2±5% |
| Shooting range | 0.1m→∞ |
| View angle | 77.6° |
| Distortion | <1.5％ |
| Relative illumination | 3900e-/ LUX-sec |
| Image transmission rate | 6~27MHz |
| White balance | Defect pixel correction, automatic black level calibration, and lens shading correction |
| Gain | 65dB @ 1x gaim |
| Exposure control | VTS-8 |
| Output signal | 10-bit RGB RAW |
| Encoded output | Analog or digital video |
| Output pin | 49Pin |
| Working voltage | AVDD2.8V/DOVDD1.8V/DVDD1.2V |
| Consumption | Active: 233mW(based on ISP ON) Standby: 1mW XSHUTDN: <10uA |

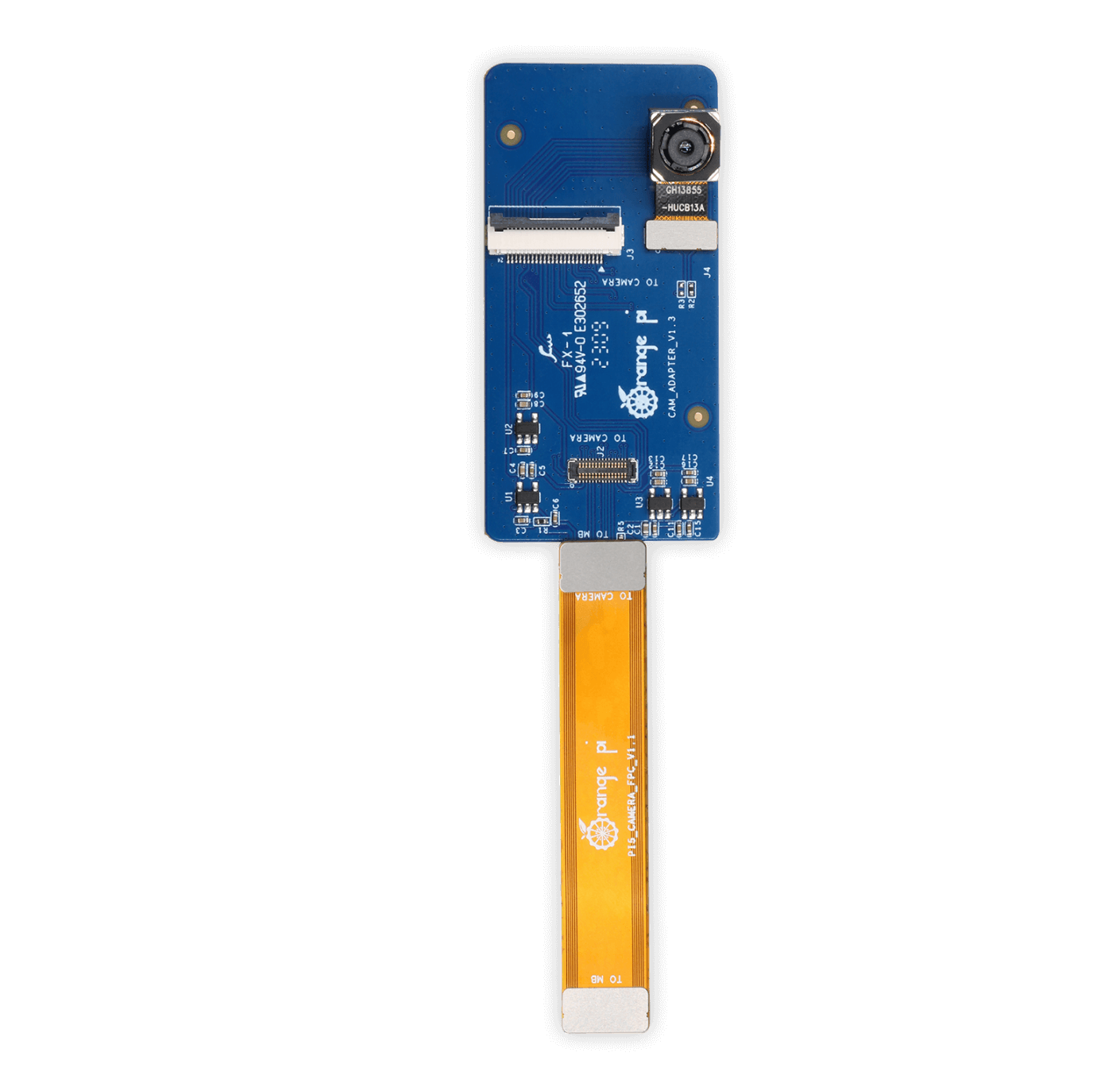

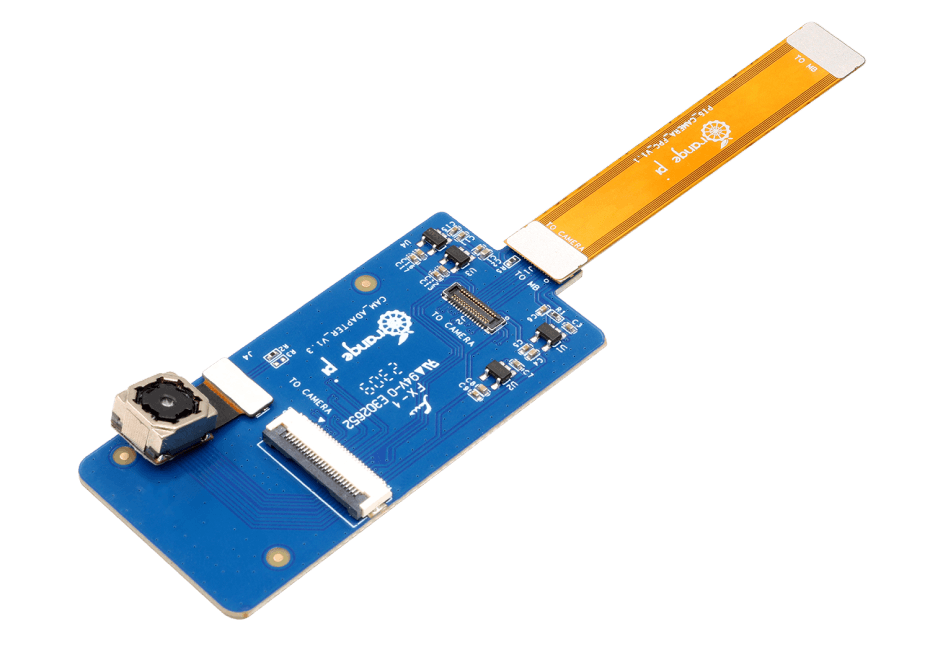

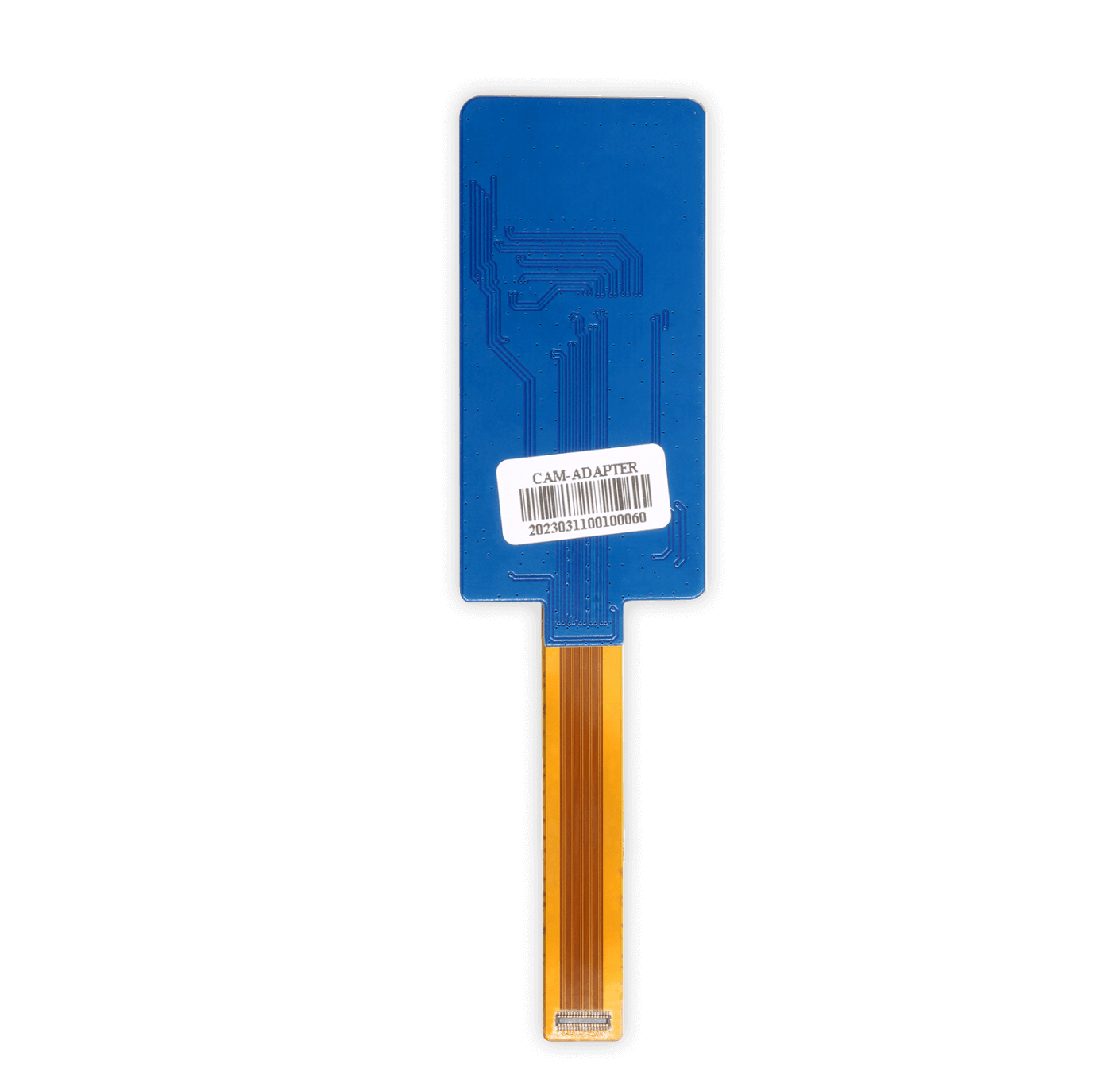

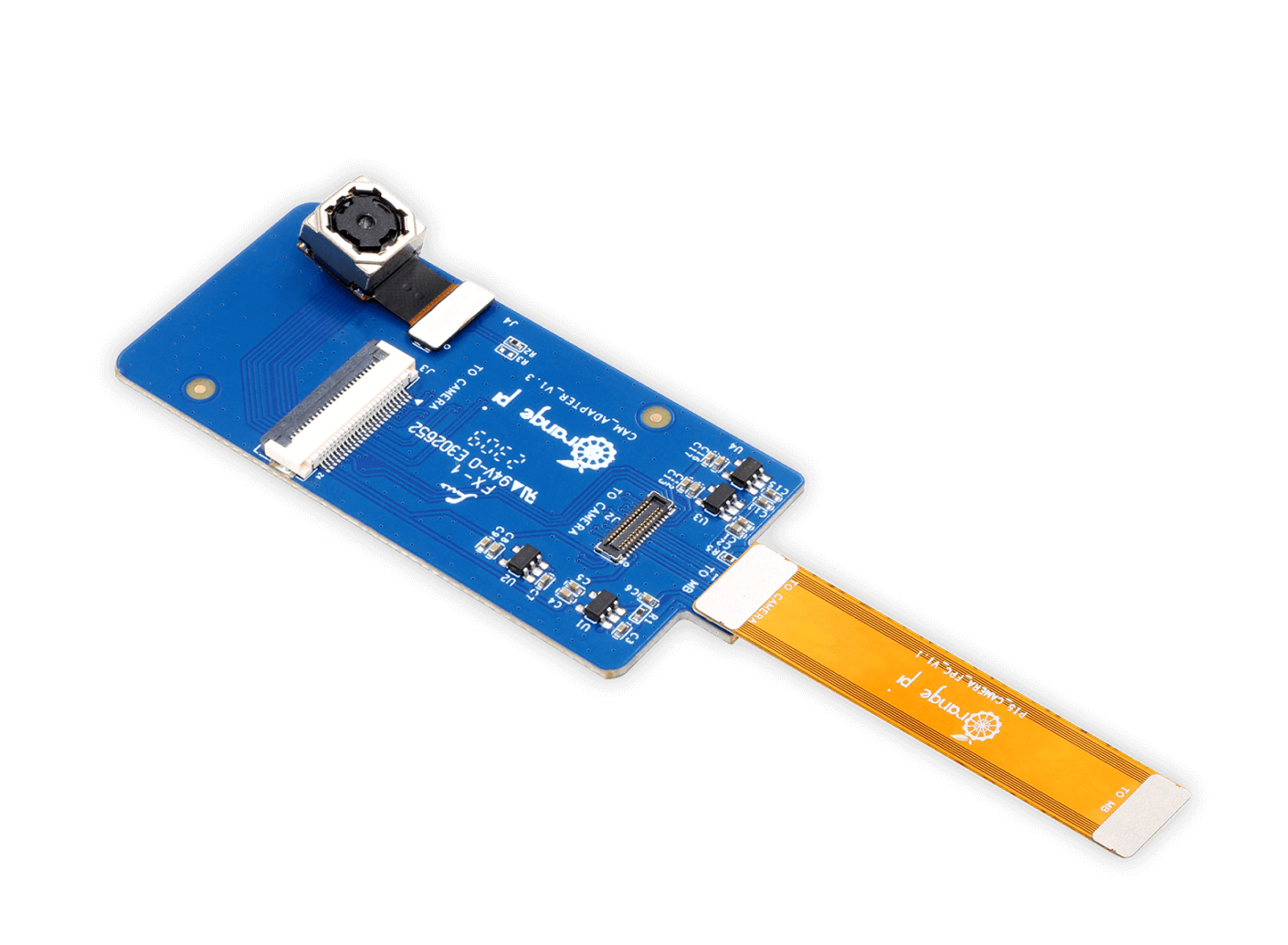

Product Images
