Suitable for Orange Pi Zero 2W
-
This expansion board is suitable for Orange Pi Zero 2W, which can be expanded with USB2.0, 100M Ethernet, IR receive, audio out, TVout, power button and other functions through 24Pin connector.

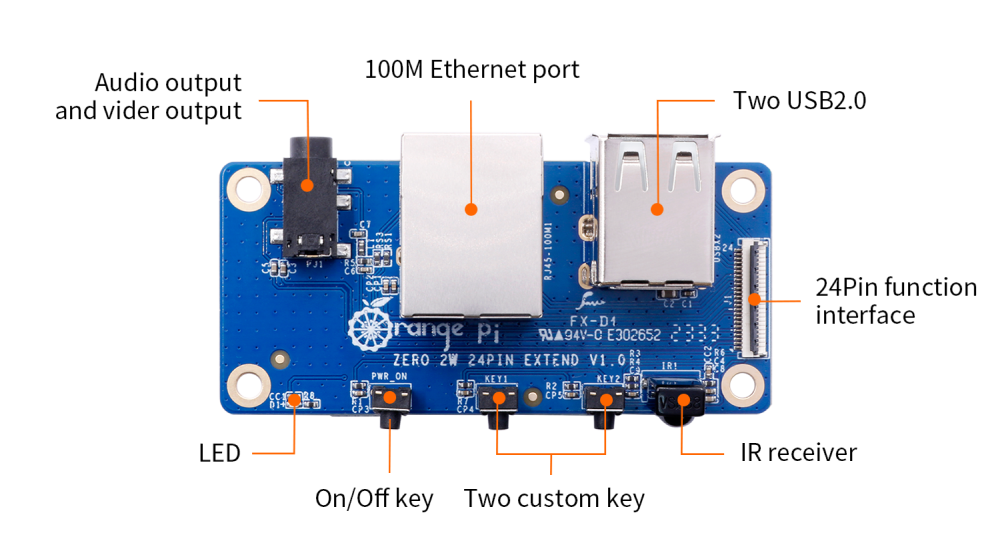

Hardware Resource
| Ethernet port | 100MB |
| USB | USB2.0 * 2 |
| Key | On/Off key * 1 , Custom key * 2 |
| Audio | 3.5mm headphone jack, audio and TV out |
| Infrared receiver | Infrared receiver tube * 1 |

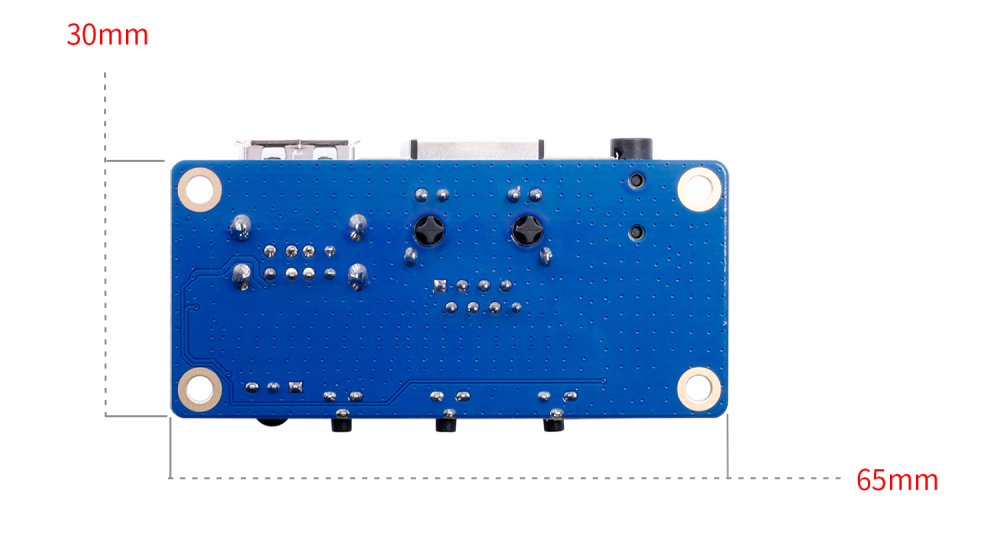

| PCB | 30 X 65 mm |

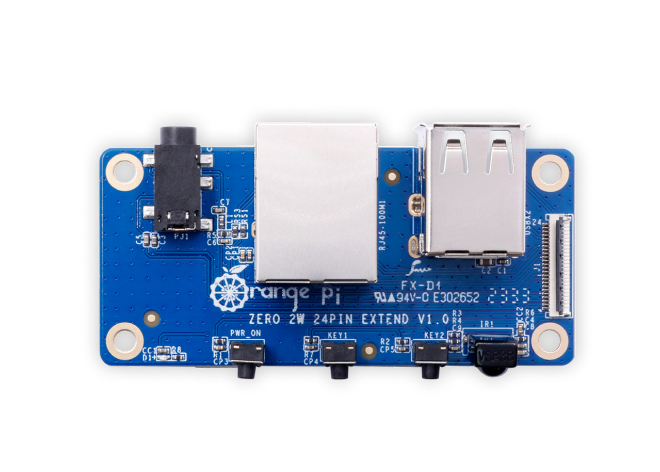

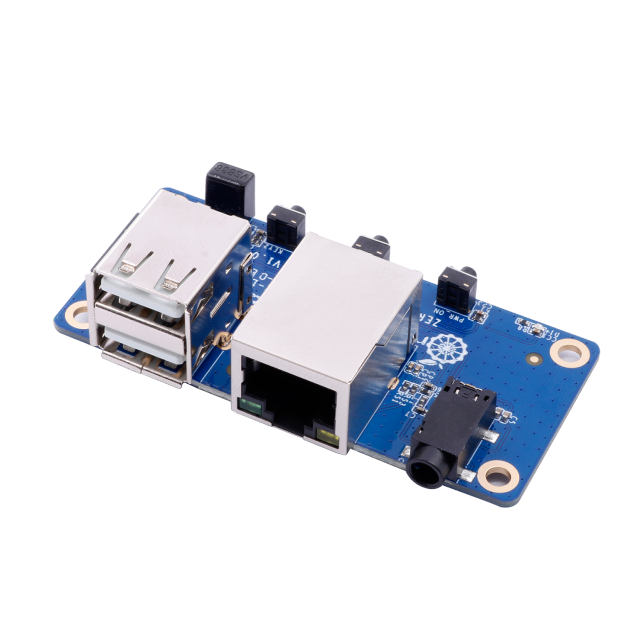

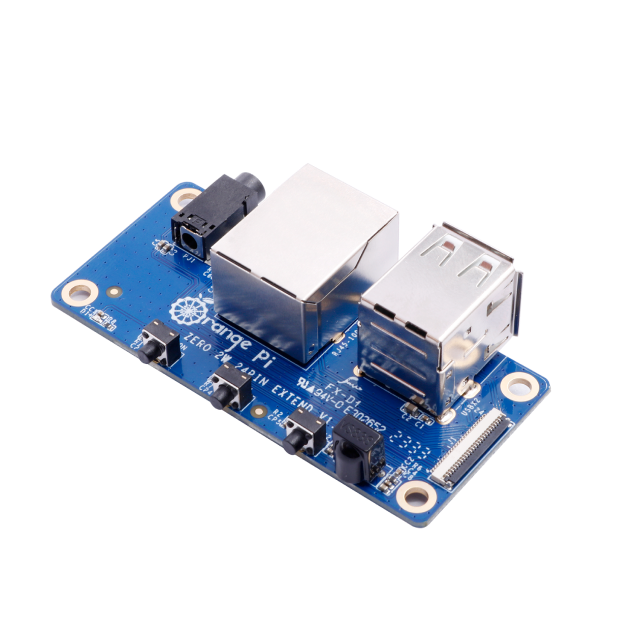

Product Images

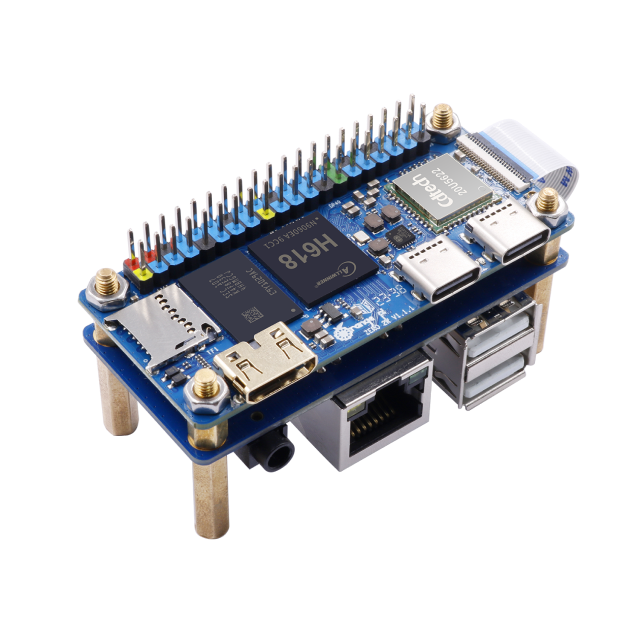

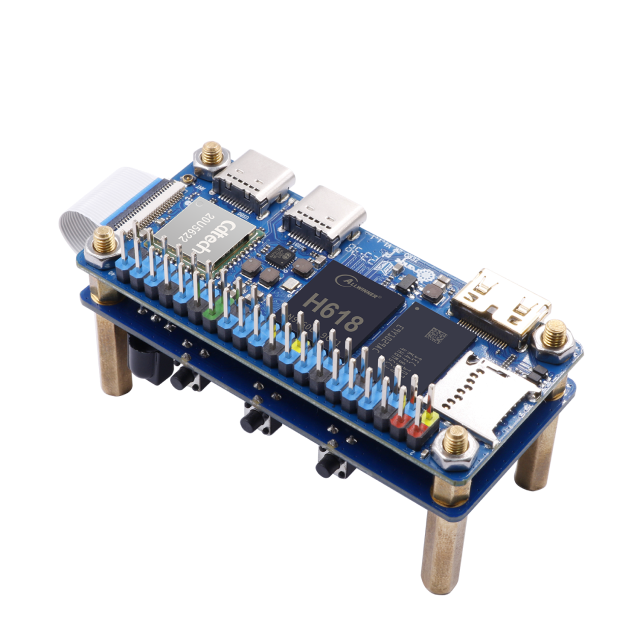

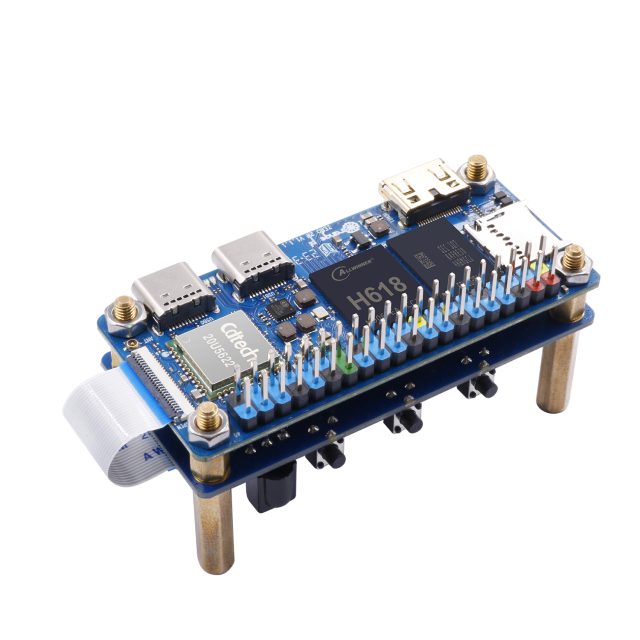

Expansion Board Connection Diagram
