Orange Pi 2G-IoT is an open-source single-board computer with WiFi and Bluetooth. It is highly compact with a dimension of 67X42mm. It uses the RDA8810 Soc, and has 256MB LPDDR2 SDRAM. It can run Android 4.4, Ubuntu, Debian Image.
Product introduction
Multiple operating systems
USB 2.0
WiFi
TF card
Bluetooth
40pin headers
Powered through USB-OTG
CSI camera port
Orange Pi 2G-IoT uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 2G-IoT offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0，etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.
Orange Pi 2G-IoT is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
WiFi+Bluetooth
Enjoy wonderful network anytime and anywhere
Multiple functional interfaces
Integrates the popular HDMI, CSI camera port , USB-OTG,etc.
Hardware specification
| CPU | ARM Cortex-A5 32bit |
| GPU | • Separate graphic processor, Vivante's GC860 • support OpenGLES1.1/2.0 • support OpenVG1.4 • support DirectFB • support GDI/DirecShow • 30M Triangle/s, 250M Pixel/s |
| Memory (SDRAM) | Integrated 256MB LPDDR2 SDRAM |
| Onboard Storage | TF card / Integrated 512MB 8Bit 1.8V 4K SLC Nand Flash |
| Onboard WiFi+BT | RDA5991, WiFi+BT |
| 2G model | • The four frequency single card • GSM/GPRS Dedicated accelerators • SIM card |
| Video Input | • A CSI input connector Camera • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps |
| Audio Input | MIC, 3.5 mm Jack |
| Video Outputs | LCD |
| Audio Outputs | 3.5 mm Jack, FM, SPEAK（Optional） |
| Power Source | • USB OTG can supply power • Battery input can supply power（Optional） |
| GPIO(1x3) pin | UART, Ground. |
| USB 2.0 Ports | One USB 2.0 HOST, One USB 2.0 OTG |
| Buttons | Power Button(SW602) |
| Low-level peripherals | 40 Pins Header |
| LED | Power led |
| Supported OS | Android, Ubuntu, Debian Image |

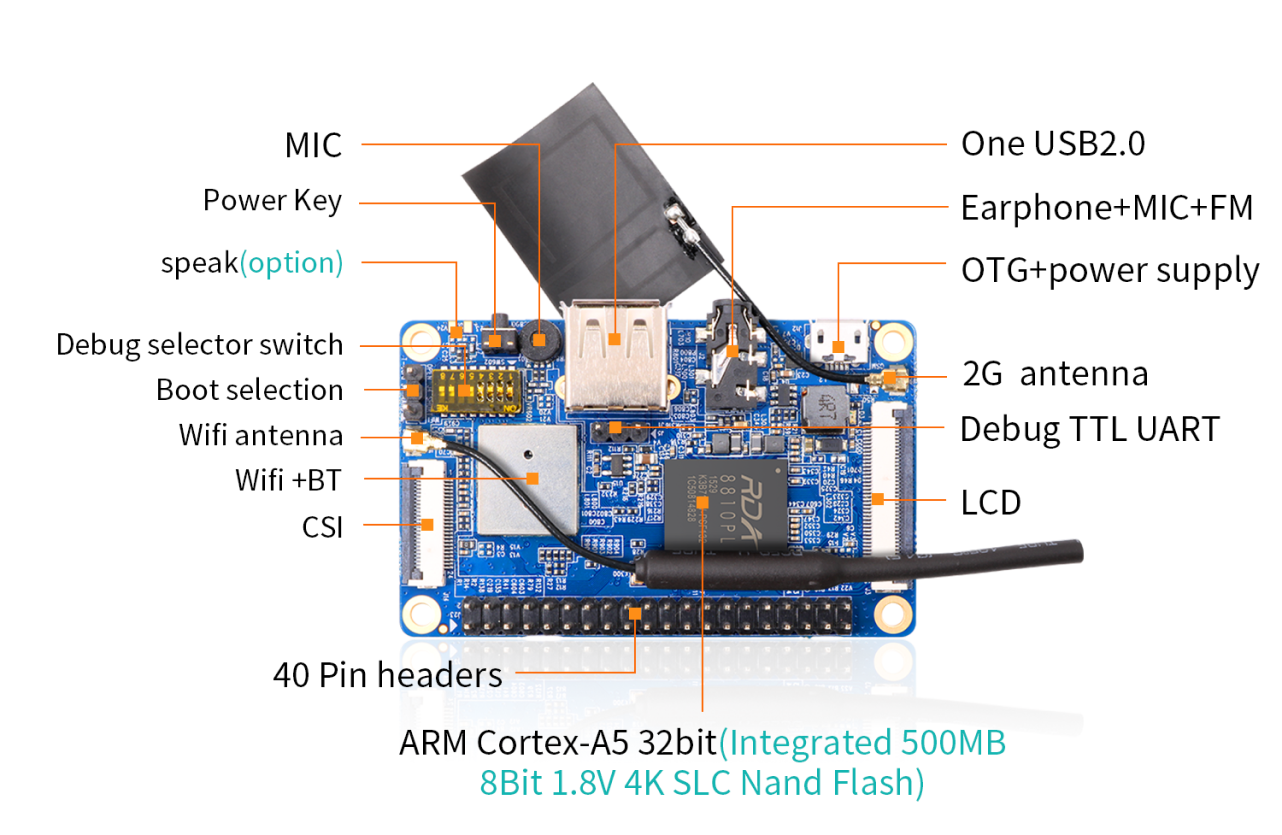

Interface definition
| Product size | 67 mm × 42mm |
| Weight | 35g |
Top view
Bottom view

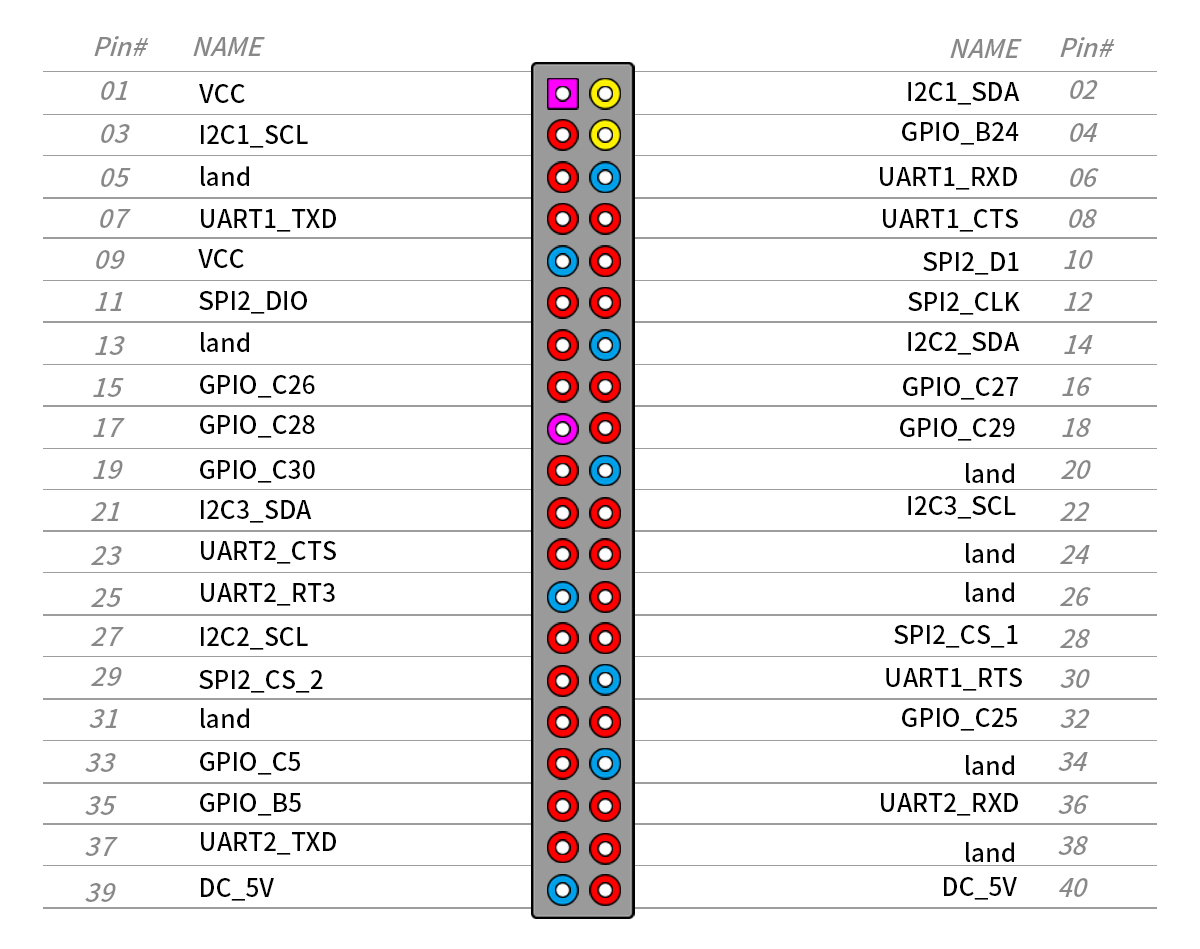

Orange Pi 2G-IoT v1.2 pinout diagram
Completely open source maker artifact

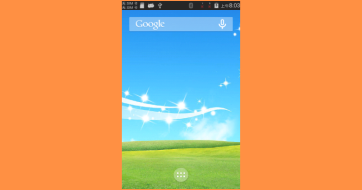

Orange Pi 2G-IoT runs Android
Orange Pi 2G-IoT runs Ubuntu
Orange Pi 2G-IoT runs Debian
Product display

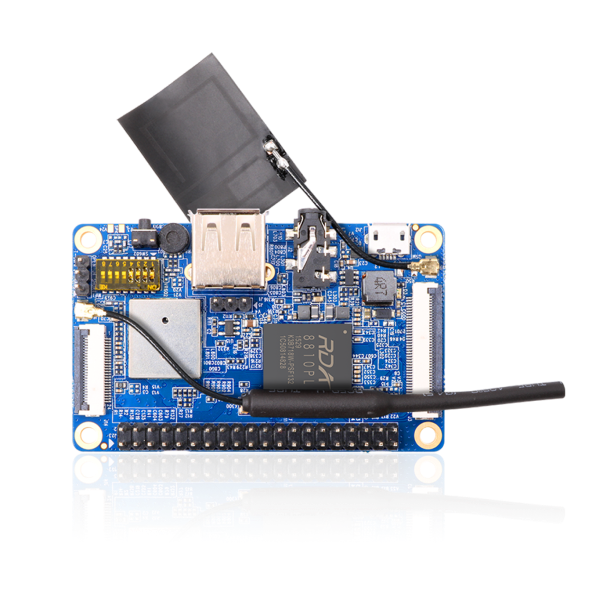

Front

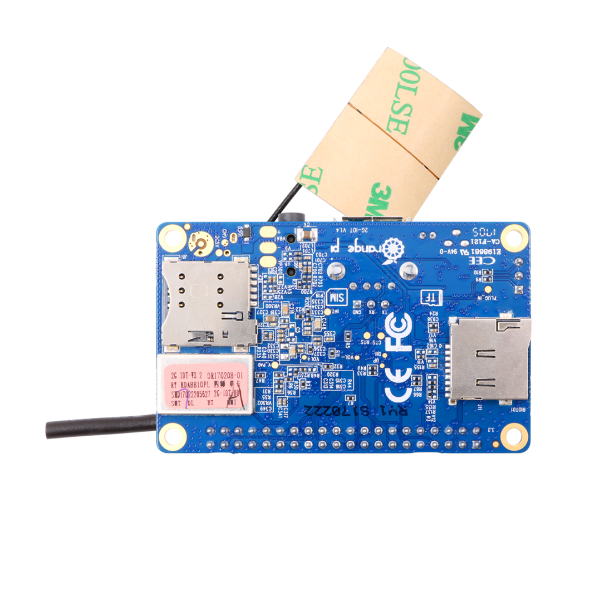

Back

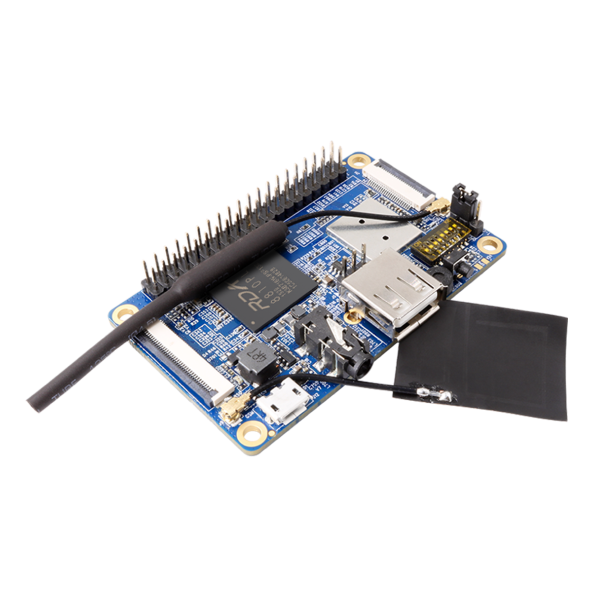

45° angle

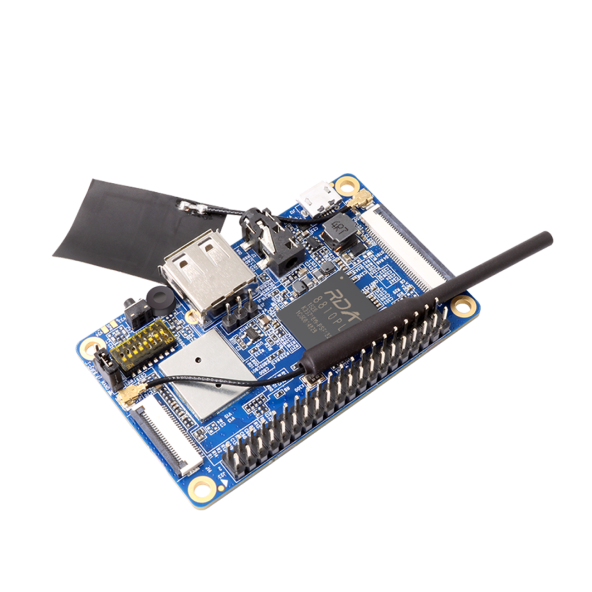

45° angle
What can l do with Orange Pi 2G-IoT?
You can use it to build-…
Pretty much anything else, because Orange Pi 2G-IoT is open source
