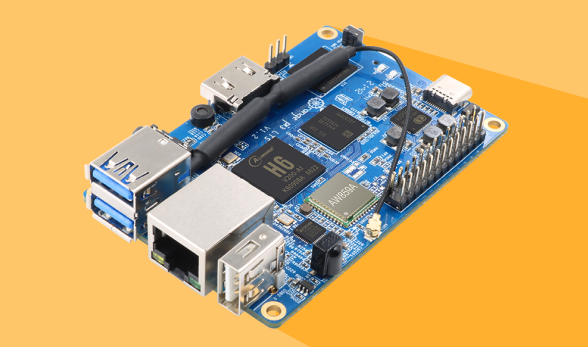

Orange Pi 3 is an open-source single-board computer with wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 90X64mm.
Product introduction
-
4 * USB3.0 -
Powered through DC -
TF card -
Bluetooth 5.0 -
Gigabit Ethernet port -
1GB/2GB LPDDR3 -
HDMI output -
WiFi
-
26pin headers -
Multiple operating systems
Orange Pi 3 uses the Allwinner H6 SoC, and has 1GB/2GB LPDDR3 (shared with GPU) , an optional 8GB eMMC flash. It can run Android 7.0,Ubuntu,Debian image. Orange Pi 3 offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,4*USB 3.0, etc. It is powered through DC and USB OTG. It is a good choice for applications that need strong networking perfomance.
Orange Pi 3 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
-
WiFi+Bluetooth 5.0 Fast networking
Orange Pi 3 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.
-
8GB EMMC Flash
An optional 8GB EMMC Flash to meet users' higher demand for storage capacity
USB 3.0
Orange Pi 3 has upgraded USB capacity: along with two USB 2 ports，you'll find one USB 3 port, which can transfer data up to ten times faster.
Hardware specification
| CPU | H6 Quad-core 64-bit 1.8GHZ ARM Cortex™-A53 |
| GPU |
• High-performance multi-core GPU Mali T720 • OpenGL ES3.1/3.0/2.0/1.1 • Microsoft DirectX 11 FL9_3 • ASTC(Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS |
| Memory+Onboard Storage |
Four Types: • 1GB LPDDR3 (shared with GPU)+EMMC(Default Empty) • 2GB LPDDR3(shared with GPU)+EMMC(Default Empty) • 1GB LPDDR3 (shared with GPU)+8GB EMMC Flash • 2GB LPDDR3(shared with GPU)+8GB EMMC Flash |
| WiFi+BT | AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0 |
| Onboard Network | 10/100M/1000M , ethernet RJ45 |
| Network Chip | RTL8211 |
| Audio Input | MIC |
| Audio Output | HDMI 2.0a and 3.5 mm AV Jack |
| Video Output | HDMI 2.0a and CVBS |
| Video Decoding | • H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
• H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps • VP9，Profile 0/2, 4K@30fps • AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps |
| PCIE | • Supports RC mode • Supports x1 Gen2(5.0Gbps) lane • Complies with PCI Express Base 2.0 Specification |
| Power Source | DC input，MicroUSB (OTG) |
| PMU | AXP805 |
| USB 2.0 Ports | 1*USB 2.0 Host, 1*USB OTG 2.0 |
| USB 3.0 Ports | 4*USB 3.0 Host |
| Low-level peripherals | 26 Pin |
| GPIO(1x3) pin | UART, Ground |
| IR | YES |
| Key | Power(SW4) |
| Supported OS | Android7.0, Ubuntu, Debian |
Appearance specification introduction
| Dimension | 56mm*85mm |
| Weight | 45g |

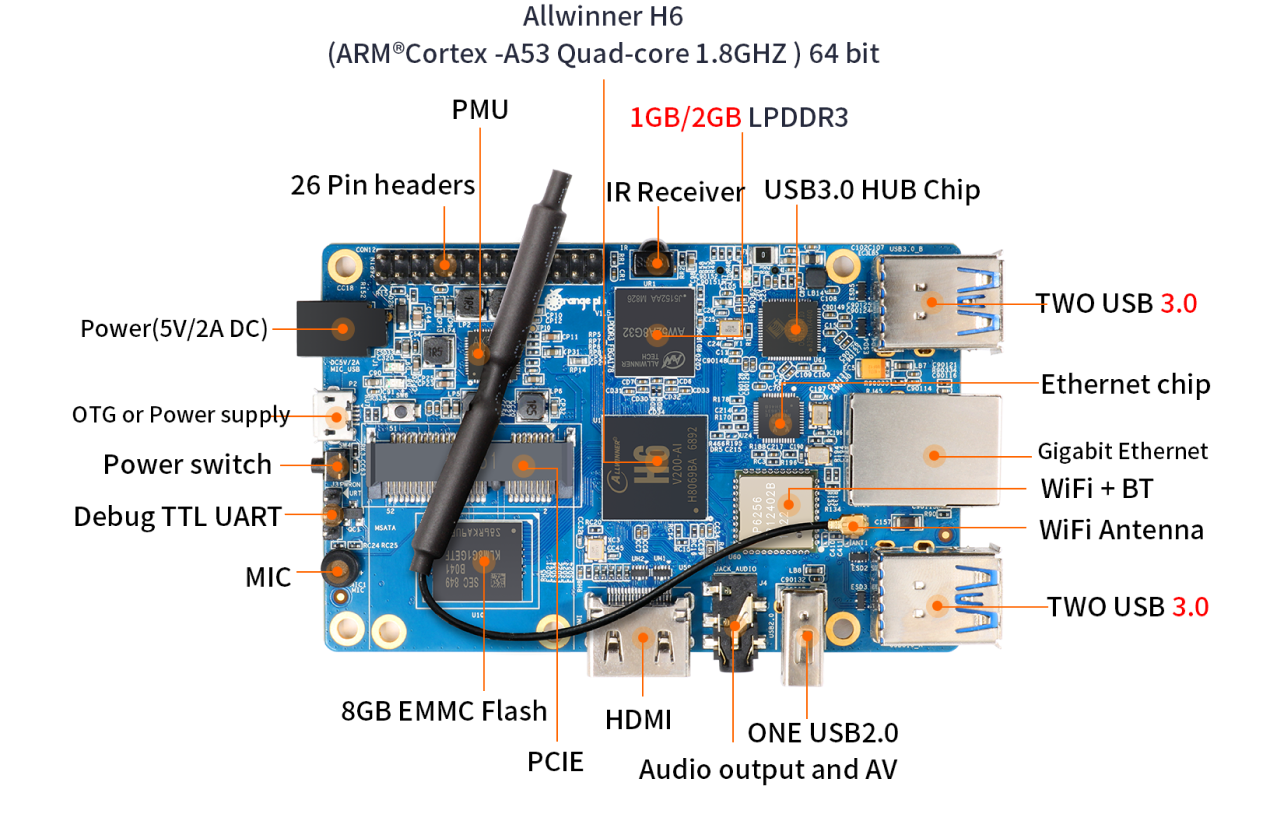

Top view
Bottom view

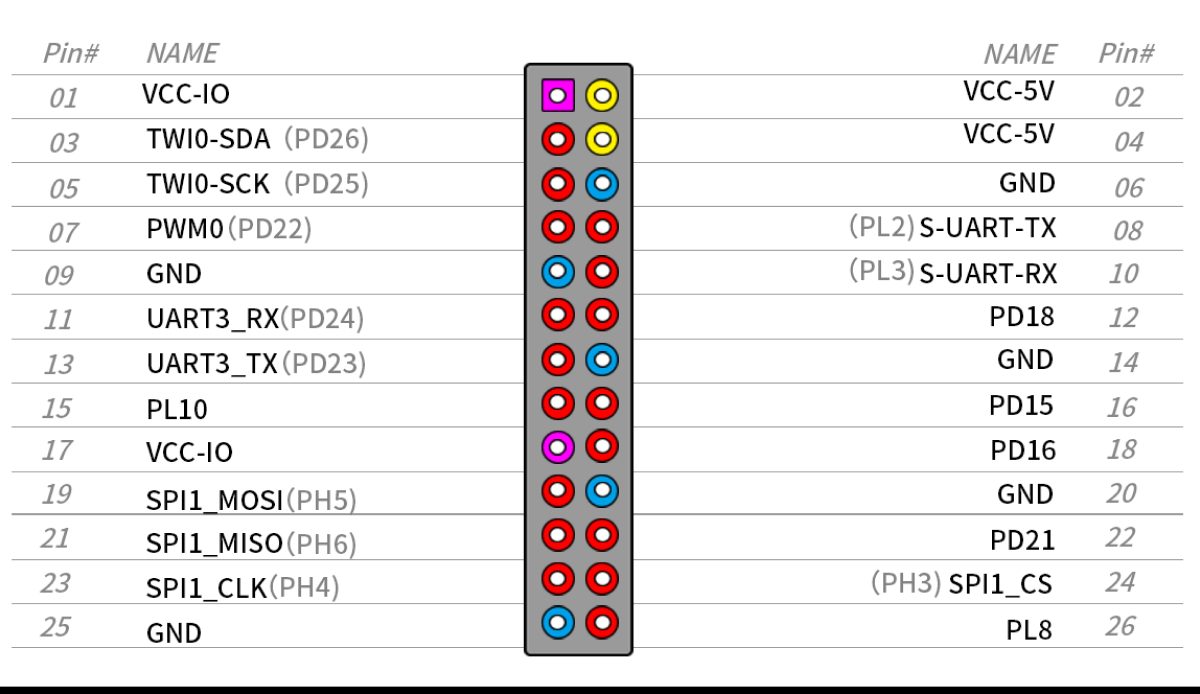

Orange Pi 3 v1.2 pinout diagram
-
Completely open source maker artifact
-
Orange Pi 3 runs Android
-
Orange Pi 3 runs Ubuntu
-
Orange Pi 3 runs Debian
-
Product display
-

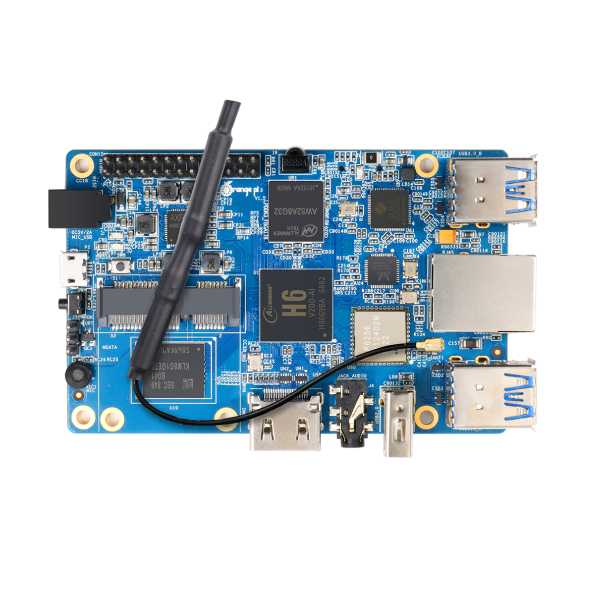

Front -

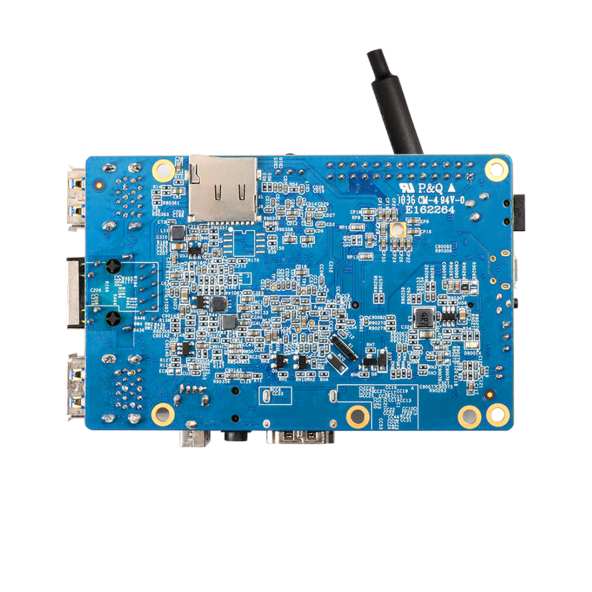

Back -

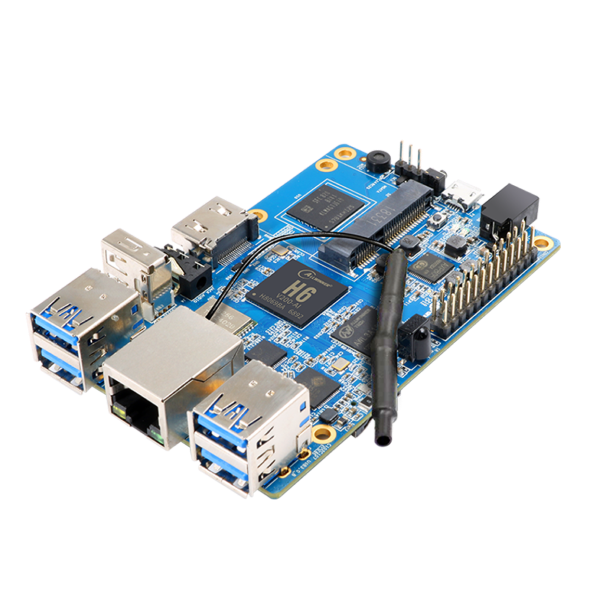

45° angle -

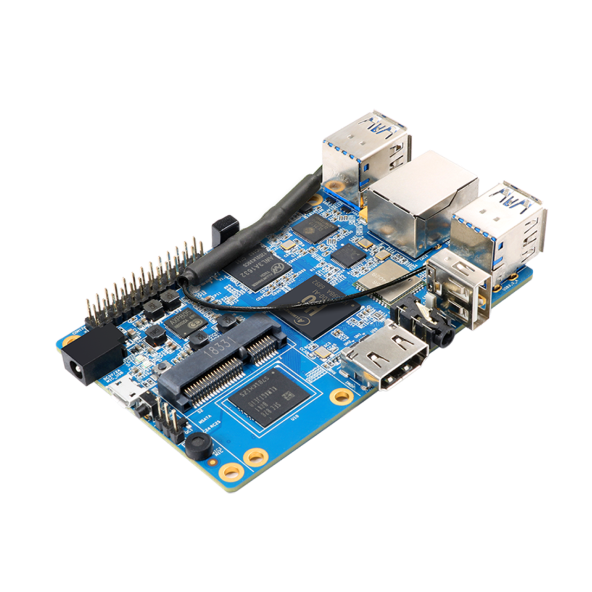

45° angle
What can l do with Orange Pi 3?
You can use it to build-…
Pretty much anything else, because Orange Pi 3 is open source
