Orange Pi 3G-IoT-A

Amazon Store BUY

Orange Pi 3G-IoT-A is an open-source single-board computer with WiFi and Bluetooth. It is highly compact with a dimension of 52X68mm.

Product introduction

  • WiFi
  • Bluetooth
  • Multiple operating systems
  • TF card
  • USB 2.0
  • 40pin headers
  • CSI camera port
  • 512MB EMMC Flash

Orange Pi 3G-IoT-A uses the MTK serial of MT6572 SoC, and has 256MB DDR2 SDRAM with 512MB EMMC Flash. It offers a range of different ports, including 40pin headers,USB 2.0, CSI camera port, TF card slot, etc. It can run Android 4.4, Ubuntu, Debian Image.

Orange Pi 3G-IoT-A is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth

Enjoy wonderful network anytime and anywhere

Multiple functional interfaces

Integrates the popular HDMI, CSI camera port , USB-OTG,etc.

Hardware specification

Processor MT6572
CPU Dual Core ARM® Cortex-A7, Main frequency up to 1.2GHz
GPU ARM Mali-400MP1 GPU
Memory 256MB DDR2
Emmc 512MB EMMC Flash
Wireless WiFi / BT / FM / GPS Four in one
Radio frequency • GSM: 850/900/1800/1900
• WCDMA: B1/B2/B5/B8
• TD-CDMA
• CDMA2000
Display FWVGA(FPC zif Connector)
Capacitance touch Support (FPC zif Connector)
Camera MIPI Connector
SIM Card mini Single SIM Card
TF Card Support hot-plugging
Audio • Earphone: For audio input / output
• Mic: For audio input
USB One USB Host, one Micro USB
LED Red for power indicator, Green for status indicator
Key Power button(SW602)
Low-level peripherals 40pin Expansion Headers: GPIO 1.8V, SPI × 2 , I2C × 3, UART×2
Power Supply Micro USB(5V/2A),Battery(Optional)
OS Android 4.4
Programming support C, C++, Kotlin, Java, Shell, Python, etc

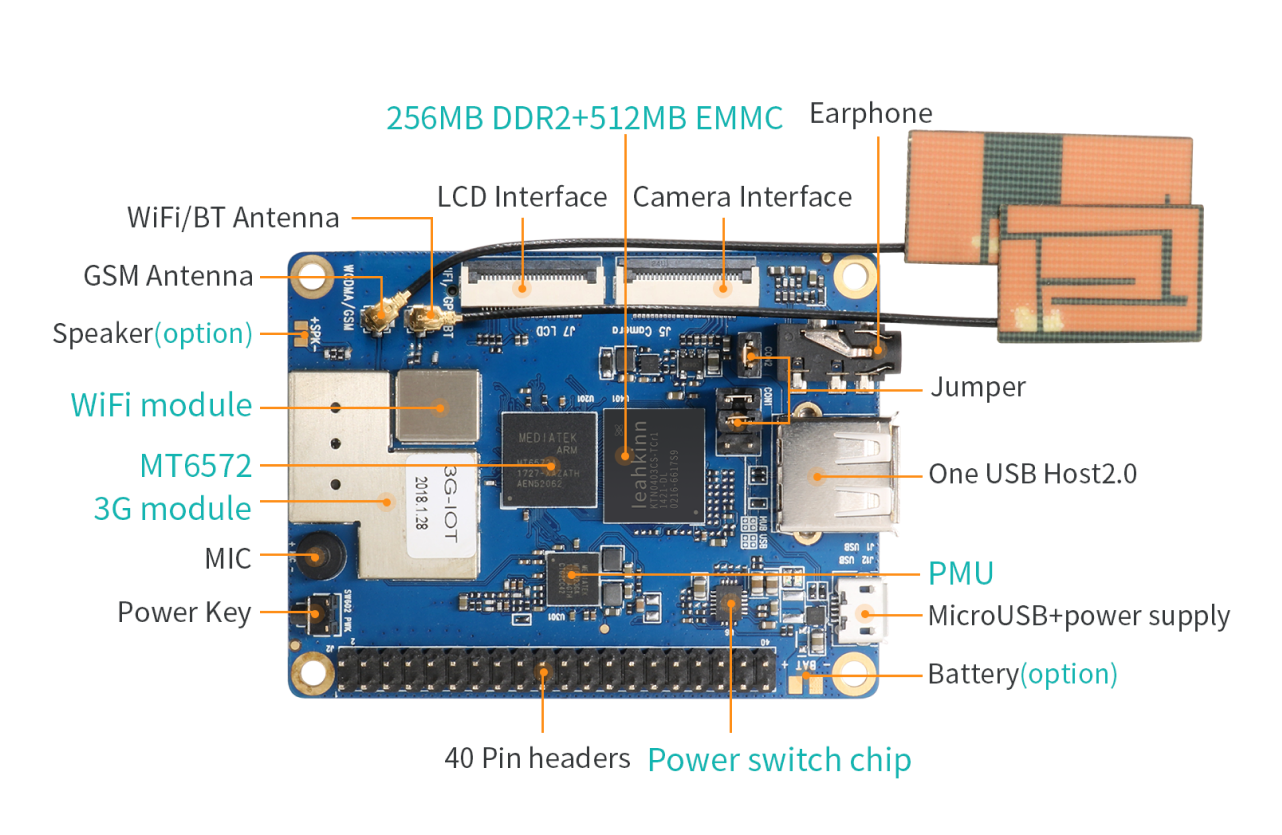

Interface definition

Size 52mm × 68mm
Weight 25.5g

Top view

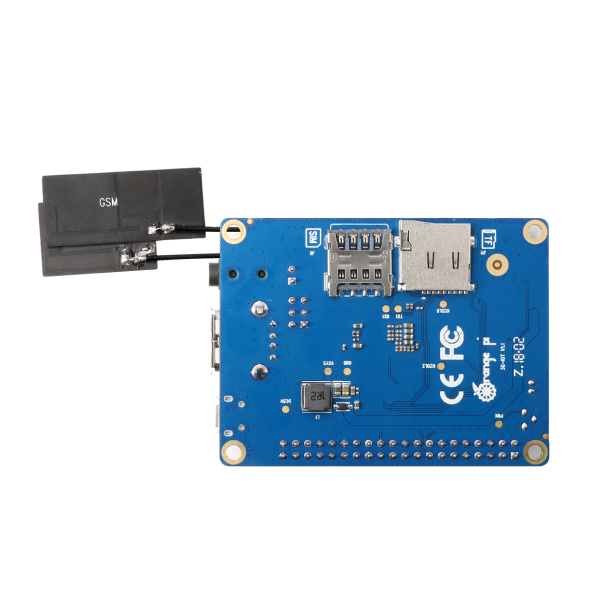

Bottom view

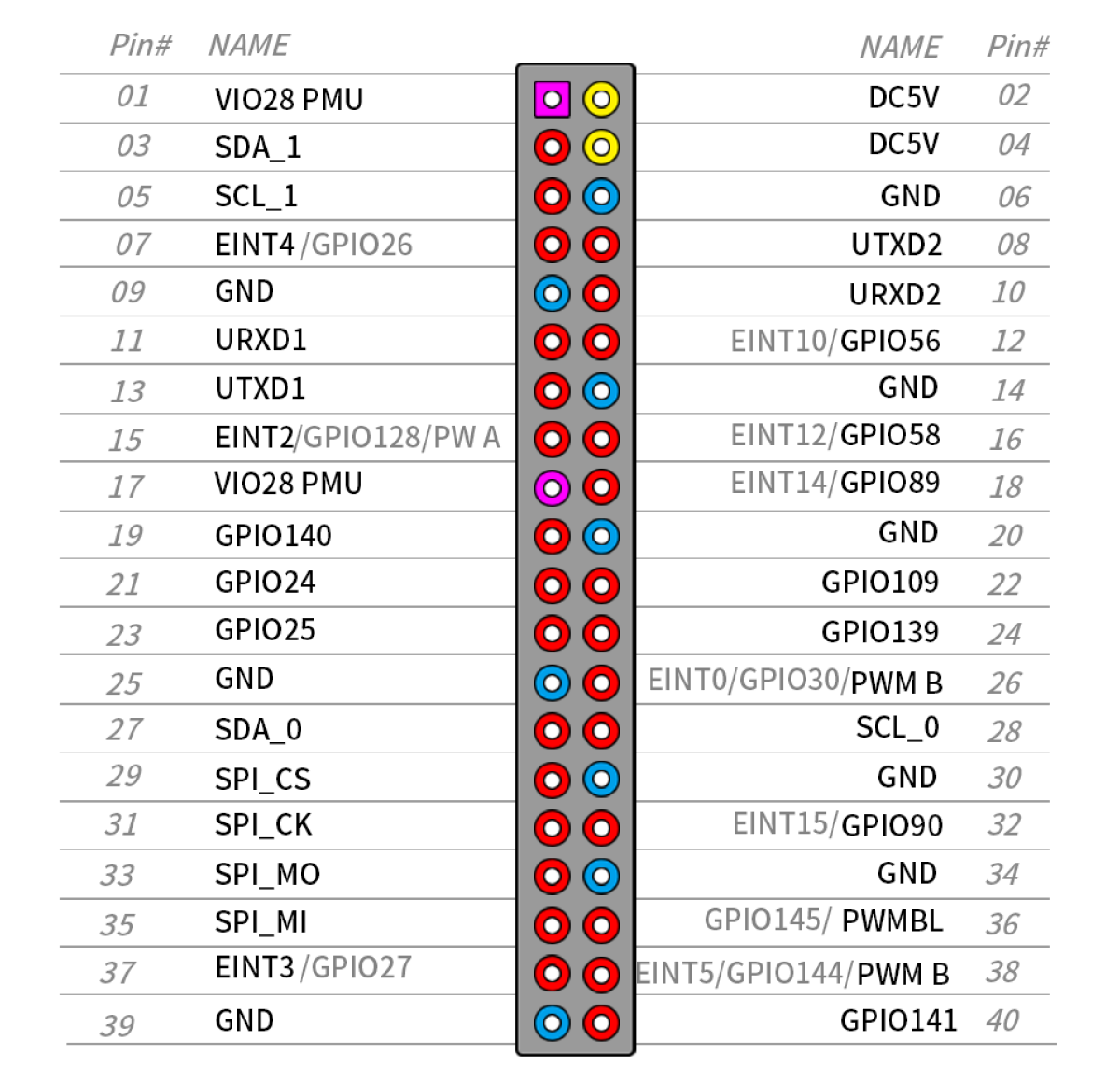

Orange Pi 3G-IoT-A v1.2 pinout diagram

Completely open source maker artifact

Orange Pi 3G-IoT-A runs Android4.4

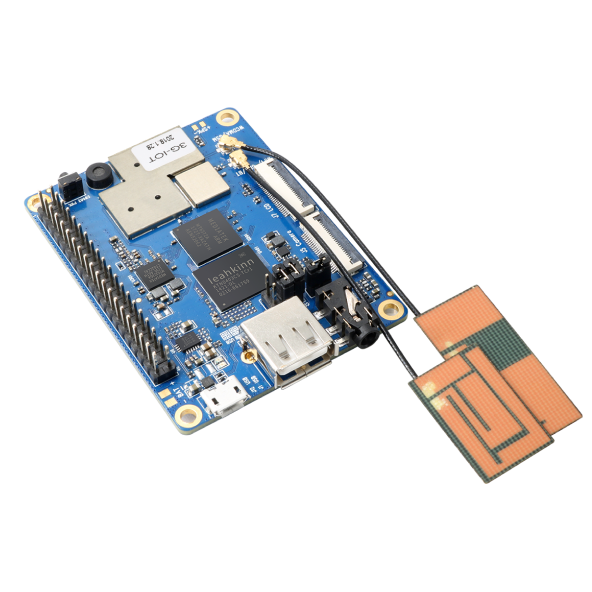

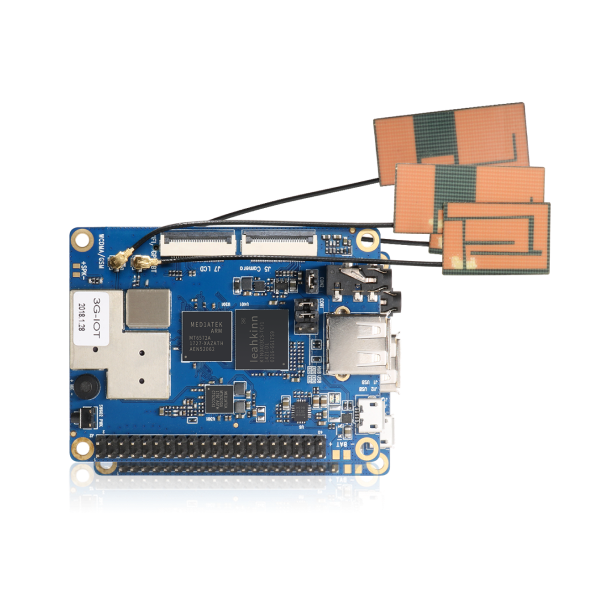

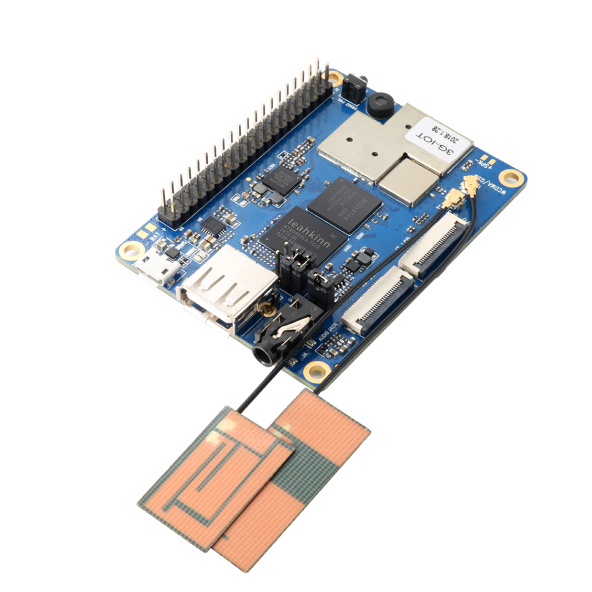

Product display

What can l do with Orange Pi 3G-IoT-A?

You can use it to build-…

Pretty much anything else, because Orange Pi 3G-IoT-A is open source
