Orange Pi 3G-IoT-B

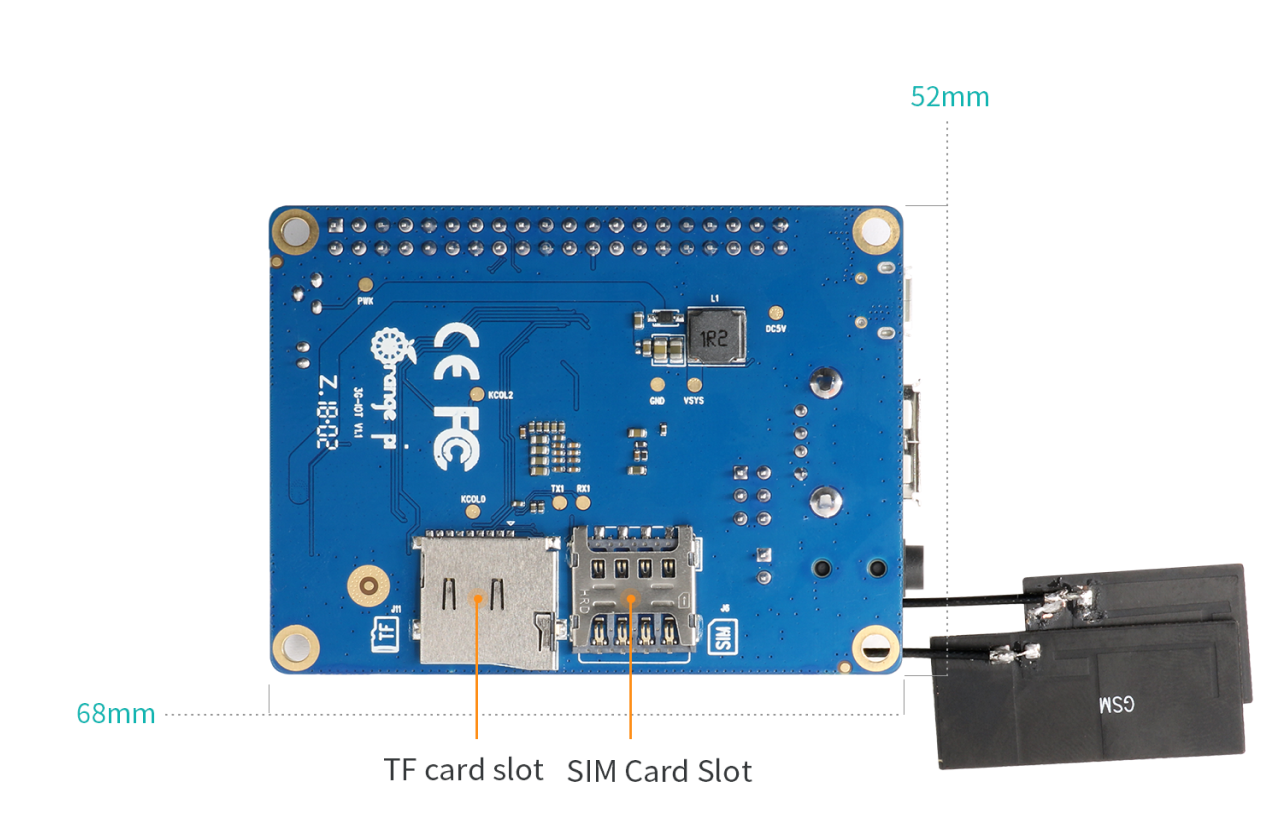

Orange Pi 3G-IoT-B is an open-source single-board computer with WiFi and Bluetooth. It is highly compact with a dimension of 52X68mm.

Product introduction

WiFi
Bluetooth
Multiple operating systems
TF card
USB 2.0
40pin headers
CSI camera port
512MB EMMC Flash

Orange Pi 3G-IoT-B uses t uses the MTK serial of MT6572 SoC with dual Core ARM® Cortex-A7, main frequency up to 1.2GHz, and has 512MB DDR2 with 4GB EMMC Flash. It offers a range of different ports, including 40pin headers, USB 2.0, CSI camera port, TF card slot, etc. It can run Android 4.4 Image.

Orange Pi 3G-IoT-B is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth

Enjoy wonderful network anytime and anywhere

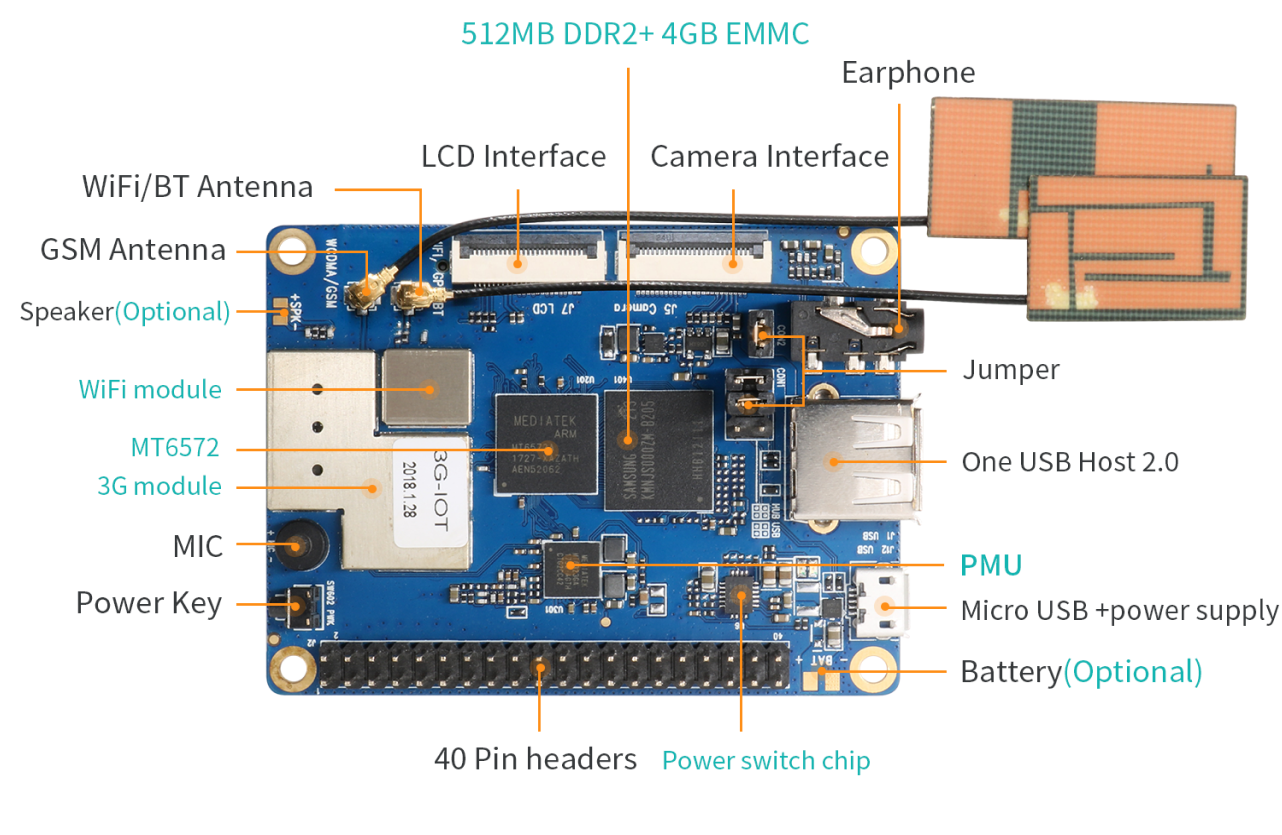

Multiple functional interfaces

Integrates the popular HDMI, CSI camera port , USB-OTG,etc.

Hardware specification

Processor	MT6572
CPU	Dual Core ARM® Cortex-A7, Main frequency up to 1.2GHz
GPU	ARM Mali-400MP1 GPU
Memory	512MB DDR2
Emmc	4GB EMMC Flash
Wireless	WiFi / BT / FM / GPS Four in one
Radio frequency	• GSM: 850/900/1800/1900 • WCDMA: B1/B2/B5/B8 • TD-CDMA • CDMA2000
Display	FWVGA(FPC zif Connector)
Capacitance touch	Support (FPC zif Connector)
Camera	MIPI Connector
SIM Card	mini Single SIM Card
TF Card	Support hot-plugging
Audio	• Earphone: For audio input / output • Mic: For audio input
USB	One USB Host, one Micro USB
LED	Red for power indicator, Green for status indicator
Key	Power button(SW602)

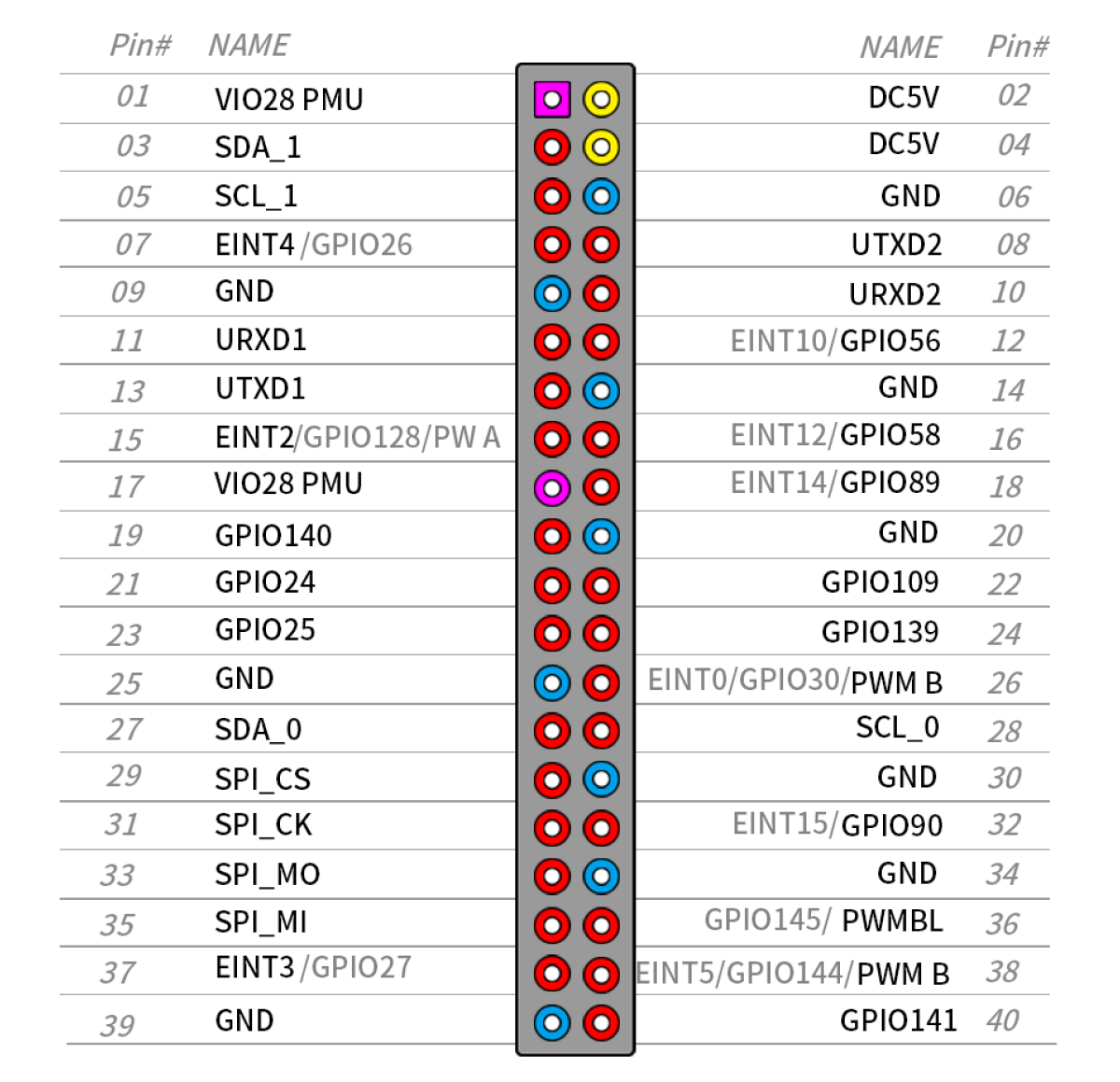

Low-level peripherals	40pin Expansion Headers: GPIO 1.8V, SPI × 2 , I2C × 3, UART×2
Power Supply	Micro USB(5V/2A)，Battery(Optional)

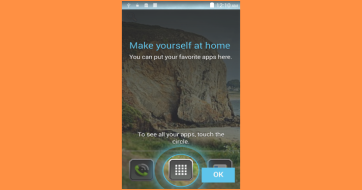

OS	Android 4.4
Programming support	C, C++, Kotlin, Java, Shell, Python, etc
