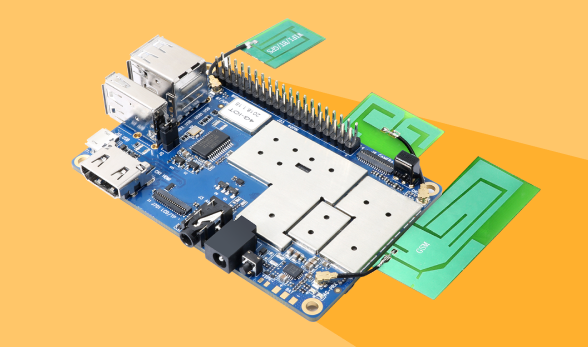

Orange Pi 4G-IoT is an open-source single-board computer with WiFi and Bluetooth. It is highly compact with a dimension of 55X85mm.
Product introduction
WiFi
Bluetooth
TF card
1GB DDR3 SDRAM
8GB EMMC Flash
main frequency up to 1.25GHz
HDMI output
40pin headers
USB 2.0
CSI camera port
Cortex-A53
Android 6.0 Image
Orange Pi 4G-IoT use the MTK serial of MT6737 SoC with Quad core ARM® Cortex-A53, main frequency up to 1.25GHz, and has 1GB DDR3 SDRAM with 8GB EMMC Flash. It offers a range of different ports, including HDMI output, 40pin headers, USB 2.0, CSI camera port, TF card slot, etc. It can run Android 6.0 Image. Orange Pi 4G-IoT is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Orange Pi 4G-IoT is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
WiFi+Bluetooth
Enjoy wonderful network anytime and anywhere
Multiple functional interfaces
Integrates the popular HDMI, CSI camera port , USB-OTG,etc.
8GB EMMC Flash
8GB EMMC Flash to meet users' higher demand for storage capacity
Hardware specification
| Processor | MT6737 |
| CPU | Quad core ARM® Cortex-A53, Main frequency up to 1.25GHz |
| GPU | ARM Mali-T720 MP1 |
| Memory | 1GB DDR3 |
| Emmc | 8GB EMMC Flash |
| Wireless | WiFi / BT / FM / GPS Four in one |
| Radio frequency | • GSM: 900/1800 (850/1900 optional) • WCDMA: B1/B8 (B2/B4/B5 optional) • TD-CDMA • CDMA2000 • FDD-LTE: B1/B3/B7/B20 (B2/B4/B17optional) • TDD-LTE: B38/40/41B |
| Display | HD |
| Capacitance touch | Support |
| Camera | 13M （25pin ZIF Connector） |
| Accelerometer Sensor | Support |
| IR Control | Support (Adapted iDroid remote controller) |
| Fingerprint Identification | Support |
| SIM Card | mini Single SIM Card |
| TF Card | Support hot-plugging |
| Audio | • Earphone: For audio input / output • Mic: For audio input |
| USB | • USB Host × 3: Support OTG • Micro USB × 1: Only for writing image |
| LED | • Power Indicator LED:Red • Status Indicator LED: Green |
| Key | Power |
| HDMI | Support |
| Low-level peripherals | 40pin Headers: 1.8V, SPI × 2 , I2C × 3, UART × 2 |
| Power | • DC : 5V 2A • Battery:Connection through a weld plate |
| OS | Android 6.0 |
| Programming support | C、C++、Kotlin、Java、Shell、Pyhon |
Interface definition
| Size | 55mm × 85mm |
| Weight | 43g |

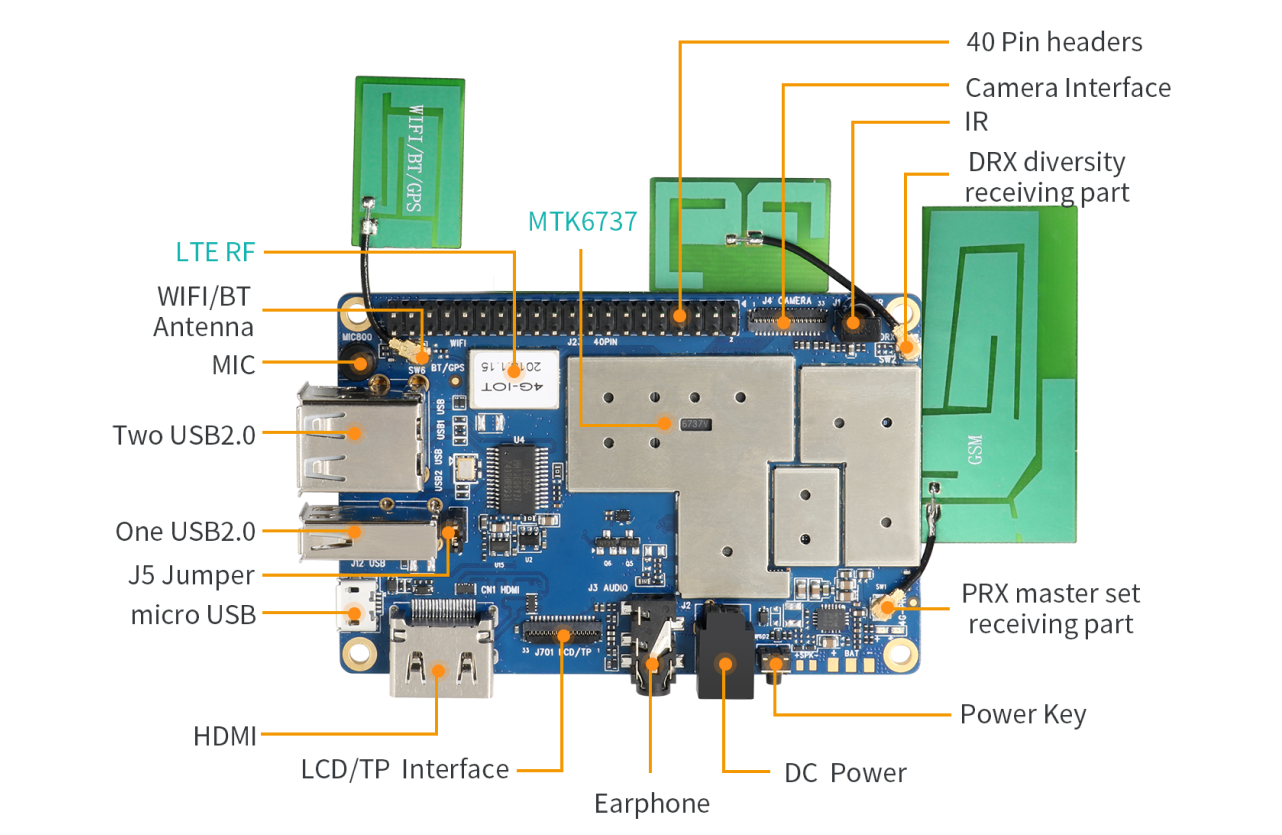

Top view

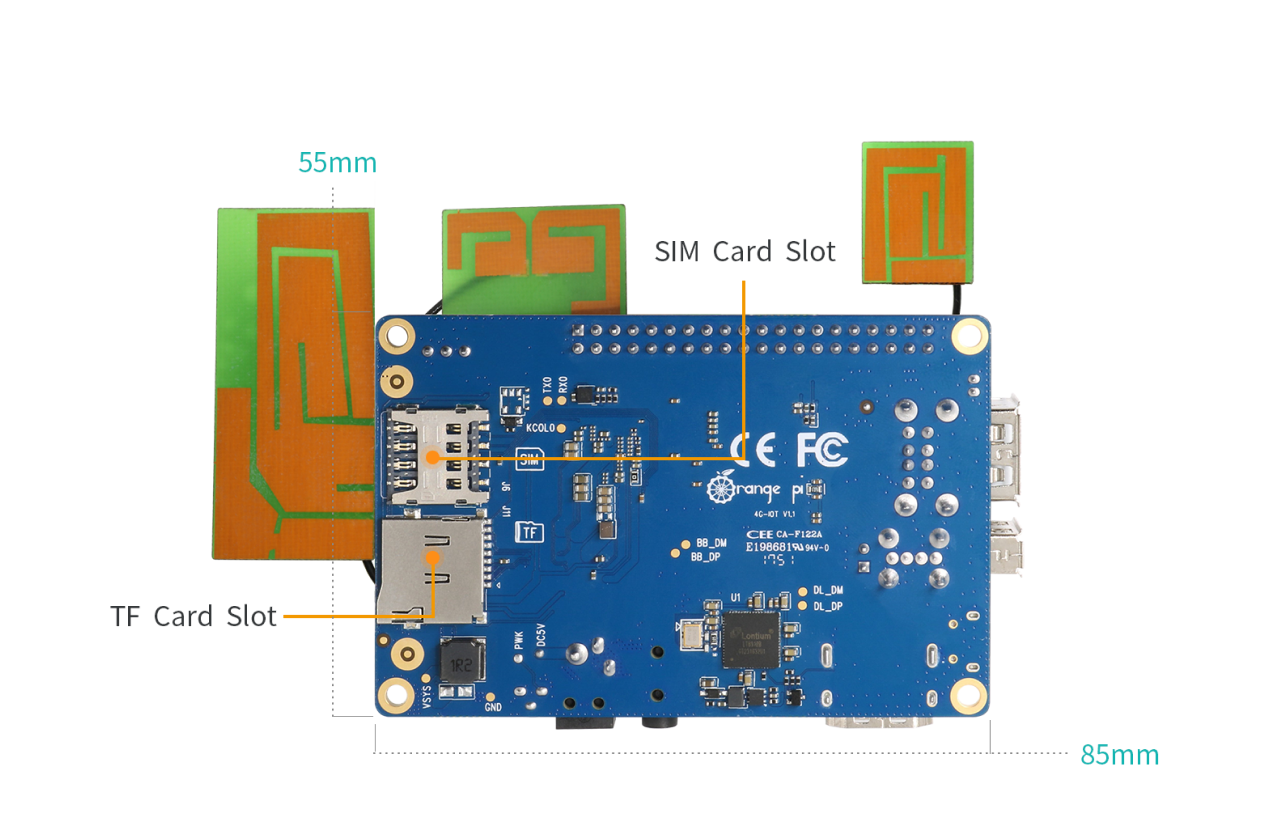

Bottom view

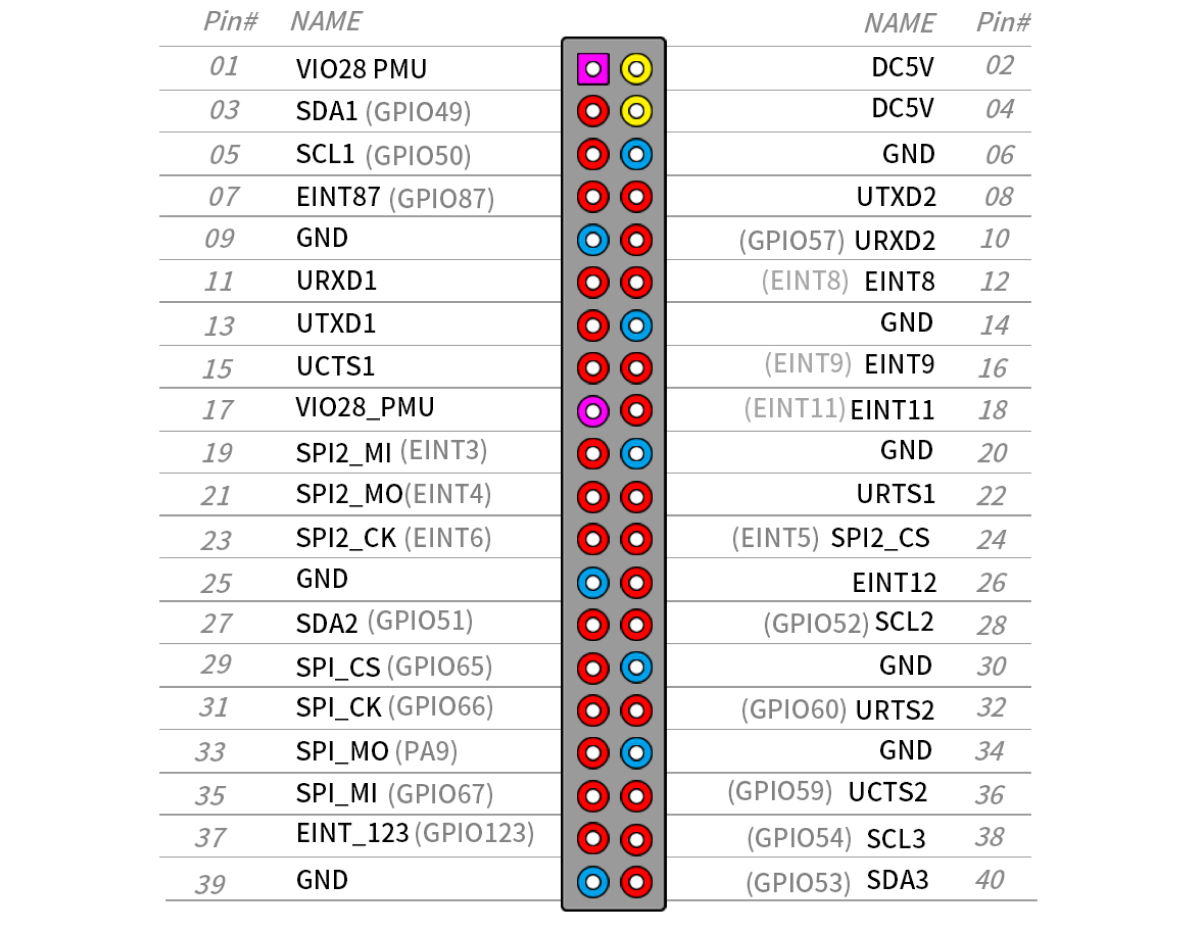

Orange Pi 4G-IoT v1.2 pinout diagram
Completely open source maker artifact

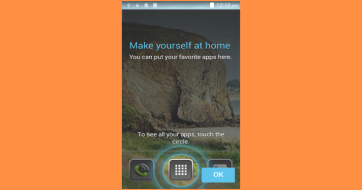

Orange Pi 4G-IoT runs Android6.0
Product display

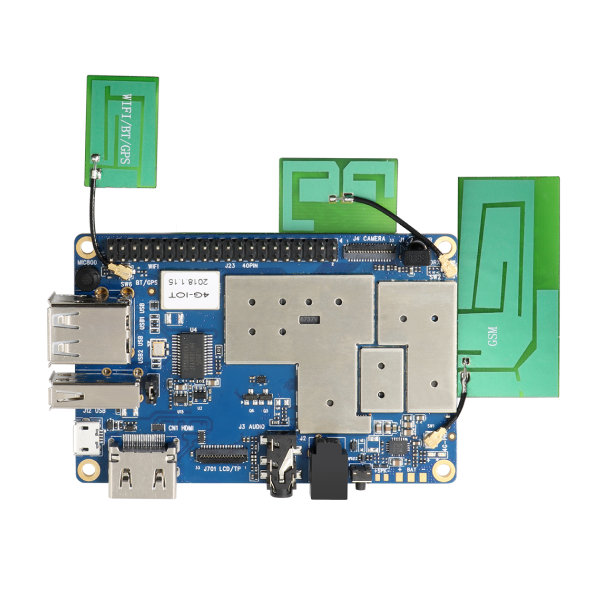

Front

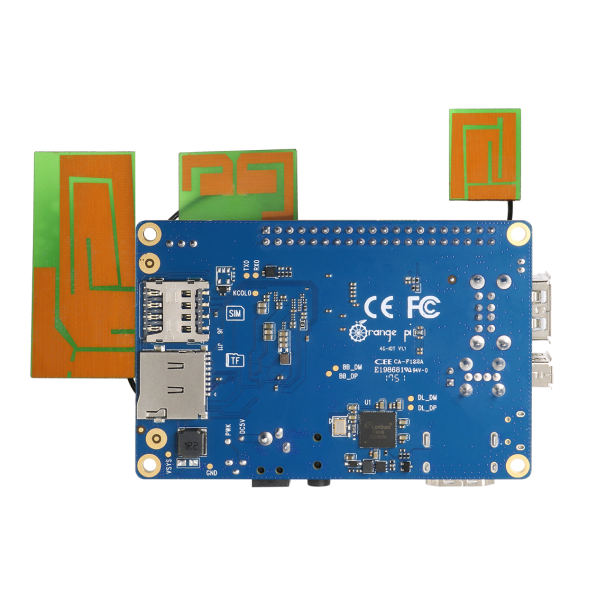

Back

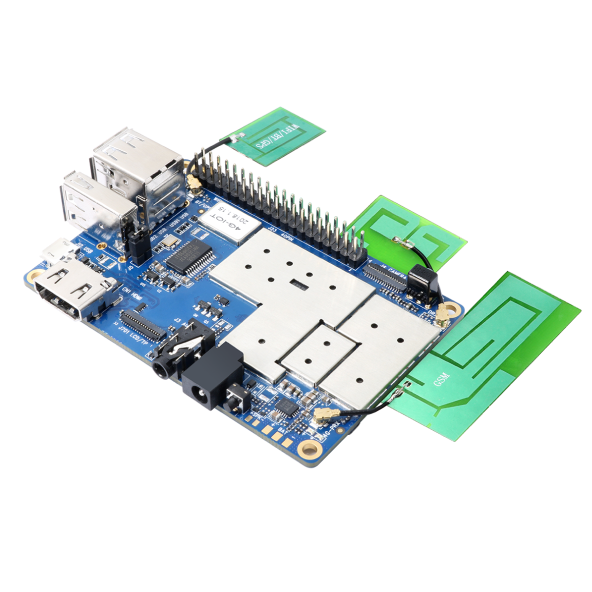

45° angle

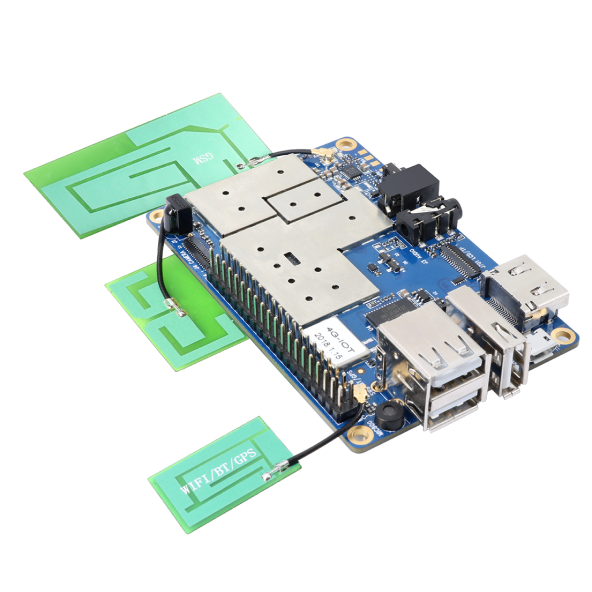

45° angle
What can l do with Orange Pi 4G-IoT?
You can use it to build-…
Pretty much anything else, because Orange Pi 4G-IoT is open source
