Rockchip RK3588S 8-
core 64-bit processor
Main frequency up to
Support 8K video codec
- Rockchip RK3588S octa-core 64-bit processor
- Main frequency up to 2.4GHz
- 32GB LPDDR4X
- Support 8K video codec
Gigabit LAN port
Type-C power supply
TF card slot

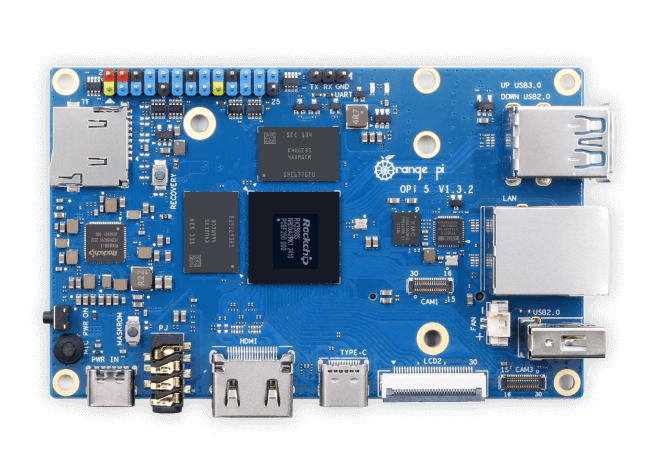

Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor,
quad-core A76+quad-core A55,
with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded
high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with
32GB LPDDR4X, and up to 8K display processing capability.
Orange Pi 5 provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5 supports Orange Pi OS（Droid）, the official operating system developed by Orange Pi, as well as Android12 and Debian11.
A new generation AIoT chip
Using 8nm LP process, it is faster and consumes less power, bringing superior performance to various AI application scenarios.
CPU8-core 64 core architecture, 4*Cortex-A76 + 4*Cortex-A55
NPU6Tops AI computing power
Meet the application requirements of products with large RAM and large storage.
8K video codec for clearer images
Up to support 8K @ 60fps, the powerful video codec allows for clearer images and more detailed picture quality.
On-board 1000Mbps Ethernet for stronger and more stable network connection and higher transmission speed.
Rich interfaces, easy to expand
Gathering all kinds of popular interfaces such as MIPI D-PHY, MIPI CSI, USB3.0, USB2.0, Type-C, HDMI2.1, M.2 PCIe2.0, Gigabit Ethernet, etc.
Multi-channel input and output
Support HDMI 2.1 8K video output, USB-C (DP1.4), dual MIPI D-PHY video output for multi-screen display, support three MIPI interface camera inputs.
Supports NVMe SSD hard drives for massive capacity expansion
The onboard M.2 PCIe 2.0 interface supports access to NVMe SSD hard drives to increase massive data storage space and meet the demand for fast read/write and large-capacity storage.
Supports Orange Pi OS（Droid）
With its self-designed Launcher, it provides users with the same operating habits as a regular computer to the maximum extent. The installation of Aurora Store allows users to run Facebook, Instagram, Twitter, YouTube, Telegram and other applications smoothly.
Wide range of application scenarios
It can be widely applied to tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5 v1.0 pin definition
|SoC||Rockchip RK3588S (8nm LP process)|
• 8-core 64-bit processor
• Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
• Arm Mali-G610 MP4 “Odin” GPU |
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• 3D graphics engine and 2D graphics engine
|NPU||Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation|
• QSPI Nor FLASH 16MB
• MicroSD (TF) Card Slot
• M.2 M-KEY Socket
|USB||USB3.0 × 1
USB2.0 × 2
Type-C (USB3.1) ×1
• HDMI2.1, up to 8K @60Hz
• DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
|Camera||• MIPI CSI 4Lane
• 2 * MIPI D-PHY RX 4Lane
• 3.5mm headphone jack audio input/output
• Input: Onboard MIC
• HDMI 2.1 eARC
|Expansion Port||For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.|
|M.2 M-KEY Socket Expansion Slot||
Support PCIe NVMe SSD
Support custom PCIe Wi-Fi6+BT5.0 module
|Power Source||Support Type-C power supply, 5V @ 4A|
|LED||Power indicator: red
Status indicator: green
|Debugging||3 Pin debug serial port (UART)|
|Supported OS||Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12|

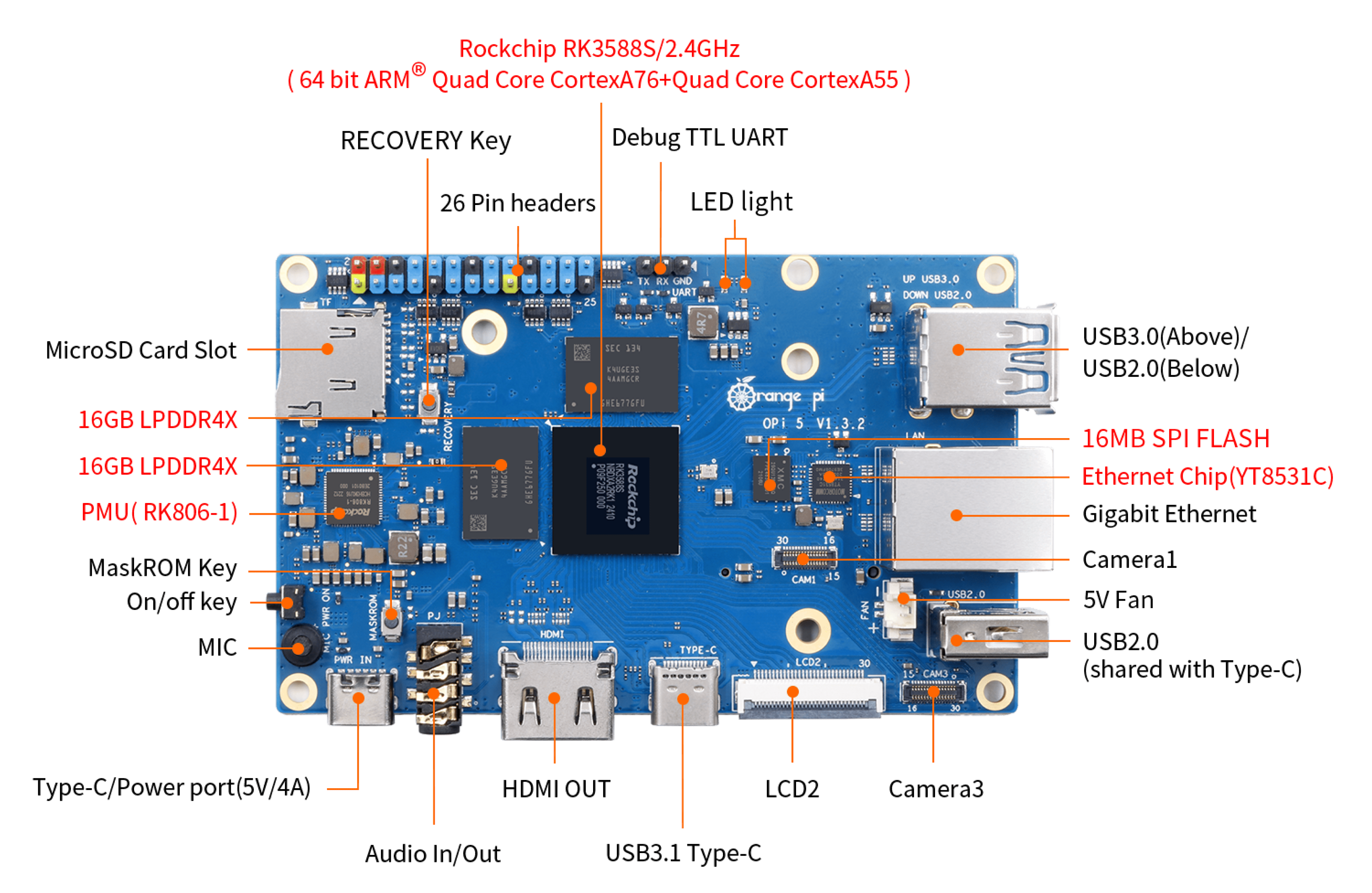

Appearance specification introduction
