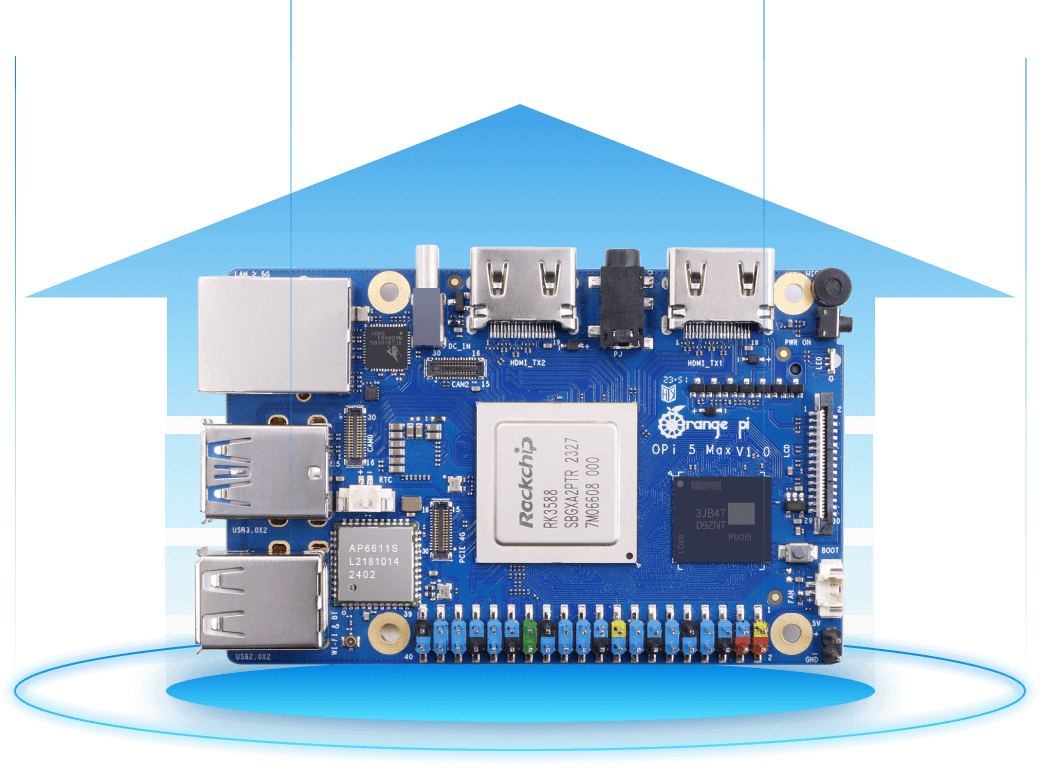

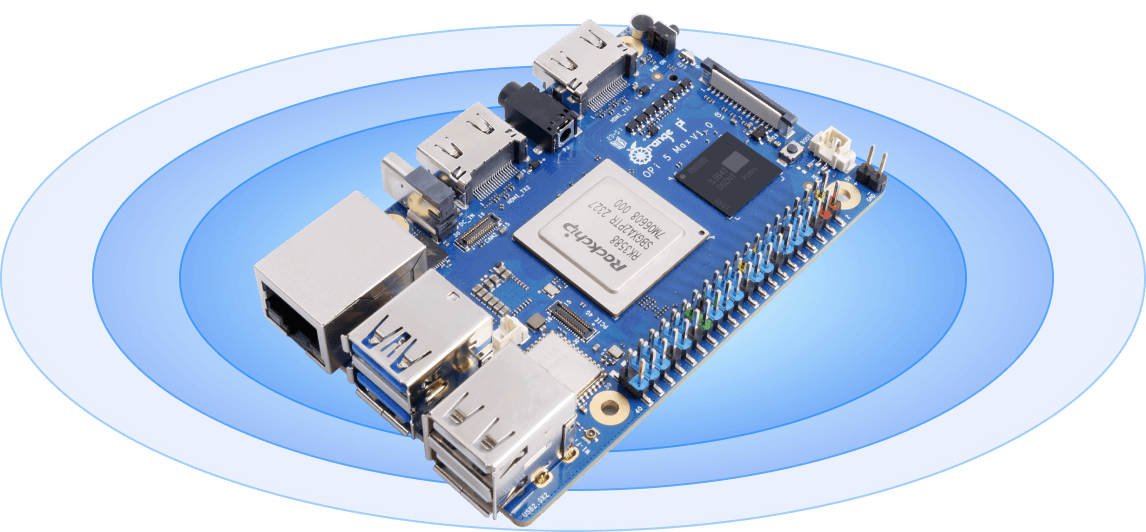

OrangePi 5 Max
OrangePi 5 Max upgraded product with more performance and higher arithmetic power
Upgrade Highlights
With 1 PCIe extended 2.5G high-speed network port. Realize faster data transmission speed, conforming to the future network development trend.
Equipped with an M.2 M-Key slot (PCIe 3.0 4-Lane), supporting the installation of NVMe solid state drives to expand massive capacity.
Onboard Wi-Fi 6E+BT 5.3/BLE module.
Rockchip RK3588
(8nm LP process)
OrangePi 5 Max is powered by Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor.
Artificial Intelligence NPU
Embedded 6TOPS arithmetic NPU, supporting INT4/INT8/INT16 hybrid computing, suitable for developing AI applications.
New LPDDR 5 memory standard
Equipped with 4GB/8GB/16GB LPDDR5. Compared with LPDDR4 standard, LPDDR 5 brings higher data rate and lower power consumption, which better meets the needs of large applications and complex 3D games.
Enriched display ports

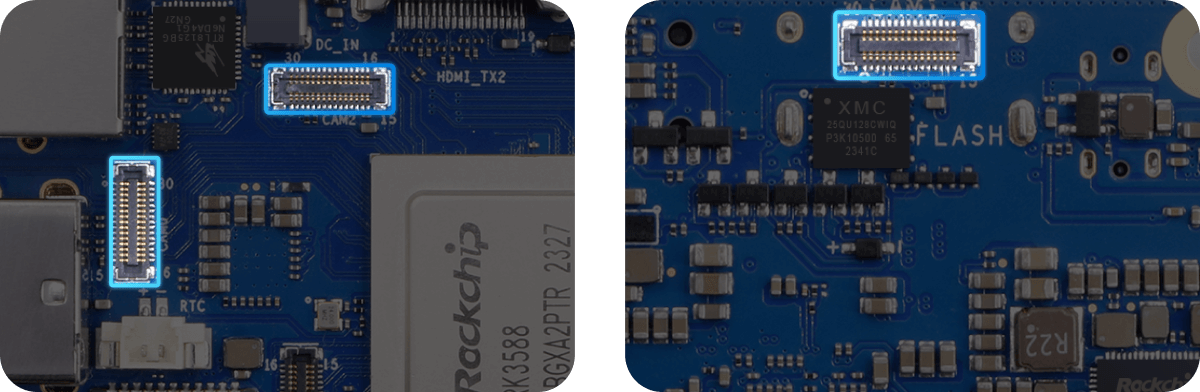

Dual HDMI 2.1, supports up to 8K@60FPS + 4-Lane MIPI DSI for high-end applications such as VR cameras and deep vision.
3 camera ports
Dual 4-Lane MIPI CSI + MIPI D-PHY
Powerful wireless communication
Wi-Fi 6E + BT 5.3, supports BLE
8K video decoding
8-core CPU + 8nm process + 8K video decoding, combining clear picture quality and smooth experience.
OrangePi 5 Max uses Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz), 4 Cortex-A55
(1.8GHz) and independent NEON coprocessor. Adopting 8nm process design, the main frequency is up to
2.4GHz, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and
Vulkan 1.2; the embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing, with up to 6TOPS of
computing power, which can meet the edge computing needs of most terminal devices; it has 4GB/8GB/16GB
LPDDR5, with up to 8K display processing capability, supports eMMC socket and onboard eMMC (either one
), and has Wi-Fi 6E+BT 5.3 with BLE support.

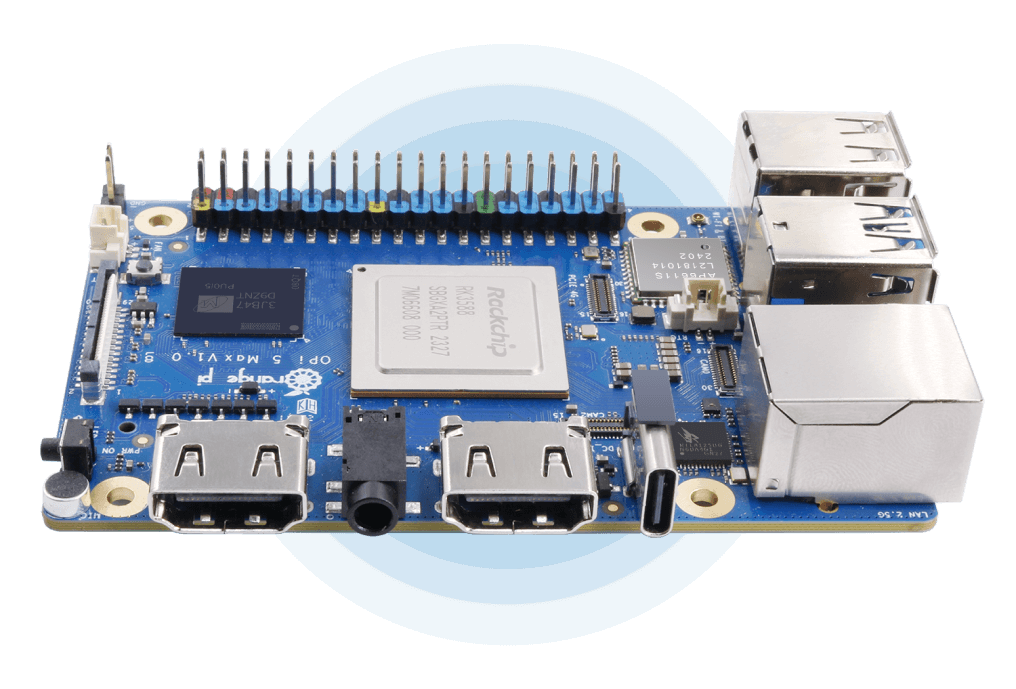

OrangePi 5 Max provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.
OrangePi 5 Max is compact, PCB measuring only 89mmX57mmX1.6mm, and powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, etc., covering various industries of AIoT. OrangePi 5 Max supports Orangepi OS（Droid）、Orangepi OS（Arch）、Orangepi OS（OH）、Ubuntu、Debian、Android13 operating system.
OrangePi 5 Max provides abundant interfaces, including HDMI output, GPIO interface, USB2.0, USB3.0, 3.5mm headphone socket, one PCIe extended 2.5G high-speed network port, one M.2 M-Key slot (PCIe 3.0 4-Lane), supporting for the installation of NVMe SSDs or SATA SSDs.
OrangePi 5 Max is compact, PCB measuring only 89mmX57mmX1.6mm, and powerful enough to be widely used in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, etc., covering various industries of AIoT. OrangePi 5 Max supports Orangepi OS（Droid）、Orangepi OS（Arch）、Orangepi OS（OH）、Ubuntu、Debian、Android13 operating system.

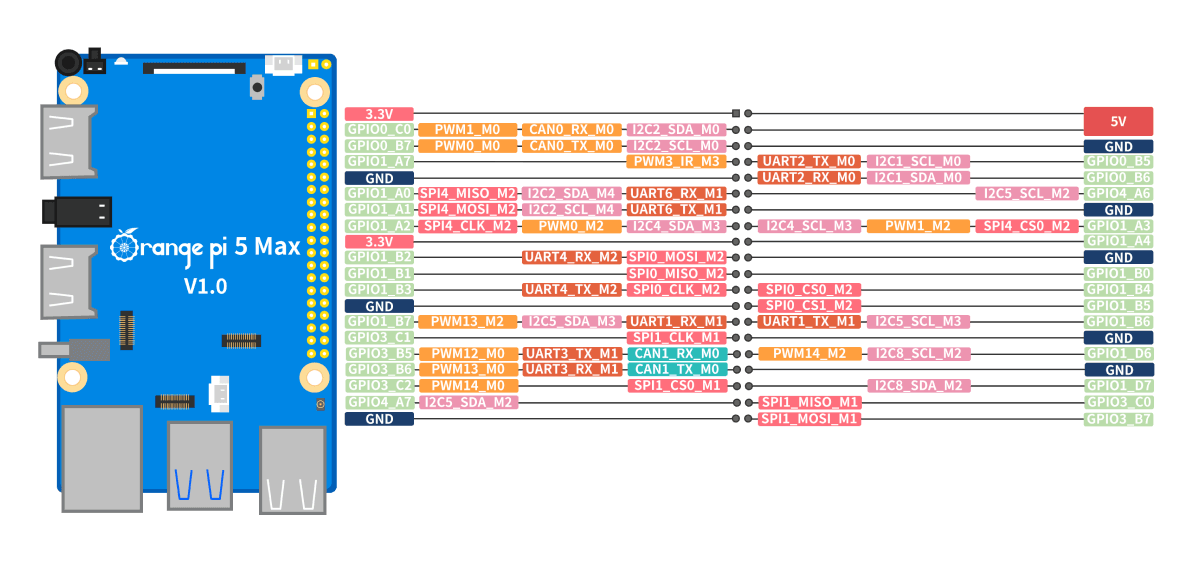

OrangePi 5 Max Pin Definition
Product display

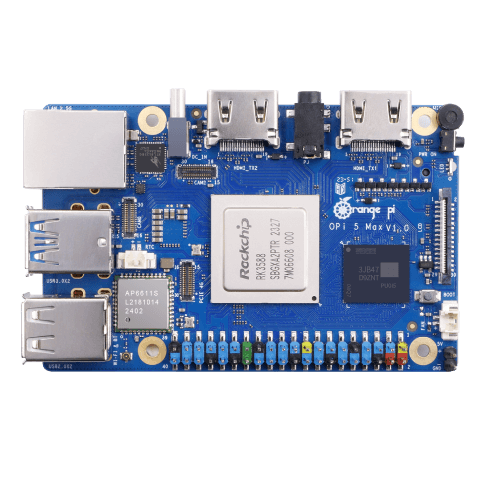

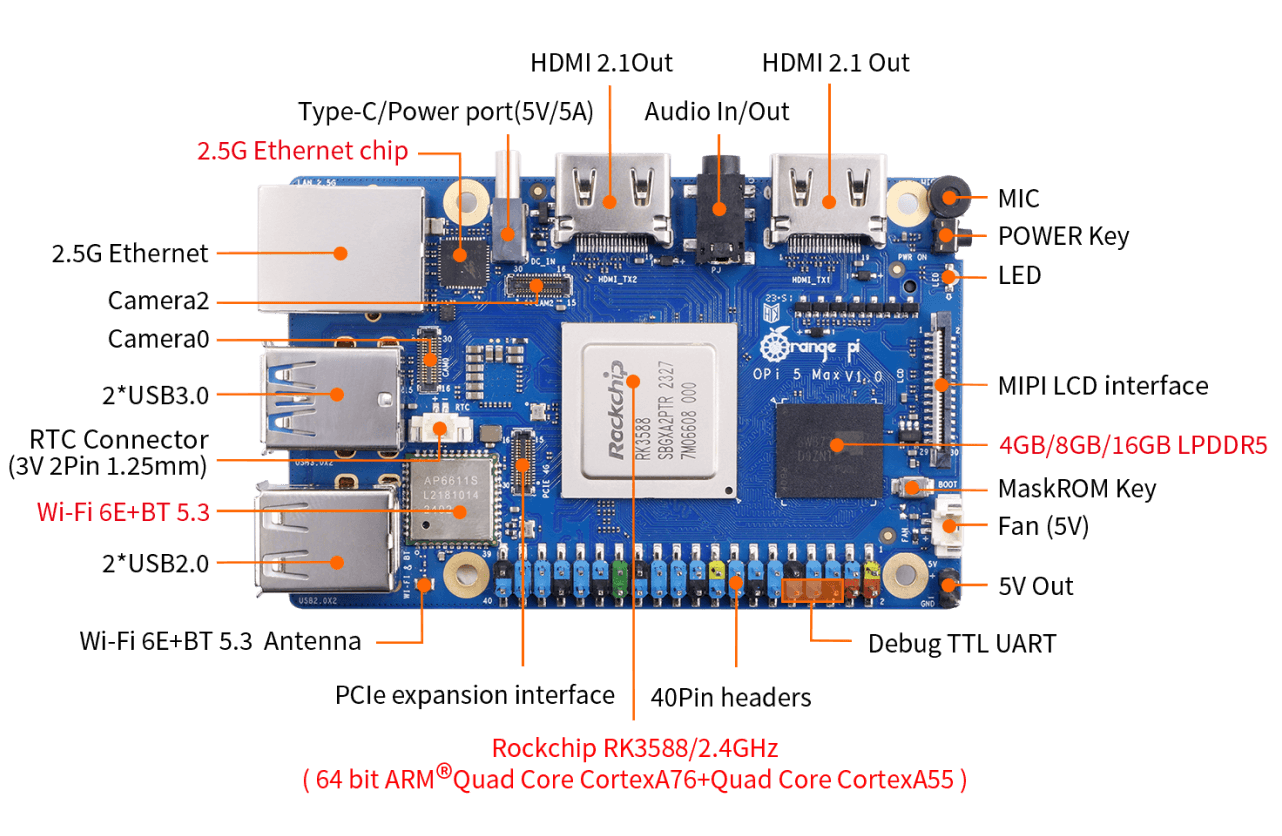

Top View

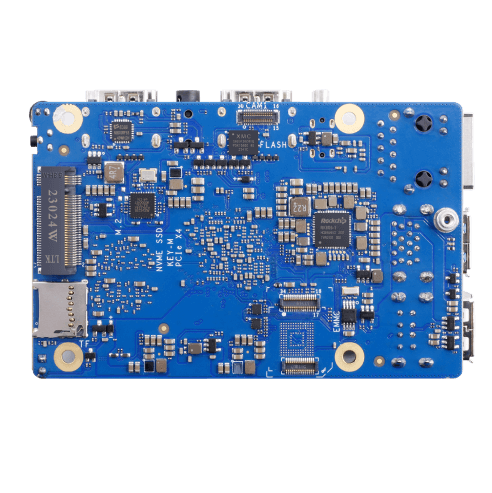

Bottom View
Hardware Parameters
| Master Chip | Rockchip RK3588 (8nm LP process) |
| CPU | • 8-core 64-bit processor • 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor • Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz |
| GPU |
• Integrated ARM Mali-G610 • Built-in 3D GPU • Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2. |
| NPU | Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS. |
| PMU | RK806-1 |
| RAM | LPDDR5 496PIN：4GB、8GB、16GB optional |
| Memory |
• eMMC Flash Sockets（default） • Onboard eMMC（customizable） Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional • QSPI Nor FLASH: 16MB • MicroSD card slot • M.2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane) |
| USB | 2*USB3.0；2*USB2.0； |
| Video | • 2* HDMI 2.1, up to 8k@60FPS • 1* MIPI DSI TX 4 Lane |
| Camera | • 2* MIPI CSI 4 Lane • 1* MIPI D-PHY RX 4 Lane |
| Audio |
CODEC：ES8388 • 1* Audio 3.5mm jack with mic • 1*MIC In • 1*HDMI 2.1 eARC |
| Ethernet | 1*PCIe 2.5G LAN（RTL8125BG ) |
| Wi-Fi+BT Module |
Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611 Wi-Fi interface: SDIO3.0 BT interface: UART/PCM |
| Expansion Port | Dual-row pin: 2.54mm 40Pin Supports DC 5V and 3.3V power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces. |
| Button | 1* BOOT key, 1 * On/Off key |
| Power Source | Supports Type-C power supply, 5V @ 5A |
| LED | RGB LED Side Illumination |
| FAN | 5V 2PIN 1.25mm socket |
| RTC | 3V 2PIN 1.25mm socket |
| Debugging | Debug serial UART included in 40PIN expansion port |
| Supported OS | Orangepi OS（Droid）、Orangepi OS（Arch）、Orangepi OS（OH）、Ubuntu、Debian、Android13 |
Appearance Specification Introduction
| PCB | Length: 89mm, Width: 57mm, Thickness: 1.6mm | |
| Weight | 62g | |
Product display
-
Front -
Back -

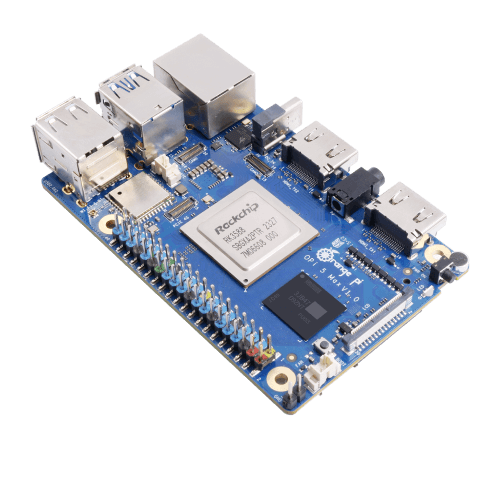

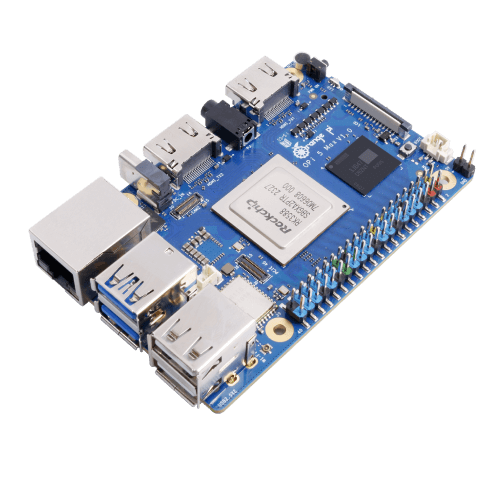

45° angle -
45° angle
