Use both 2.4GHz and 5GHz frequency bands
Wi-Fi supports 2T2R 802.11 a/b/g/n/ac/ax
BT5.3 with BLE support
-

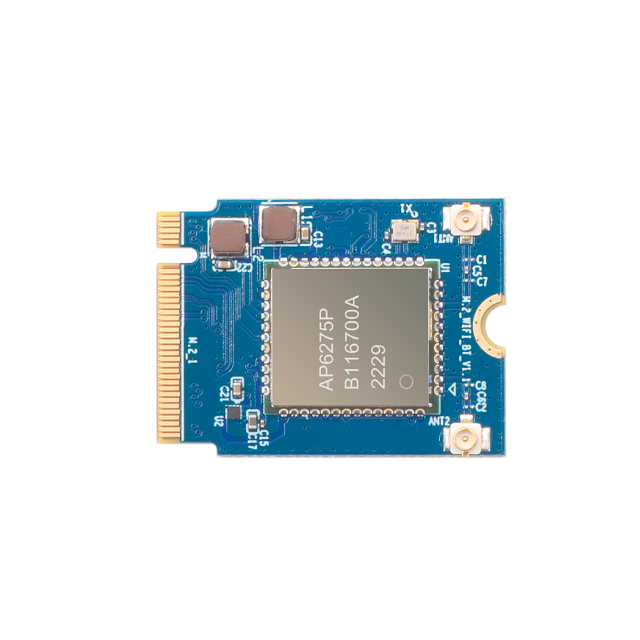

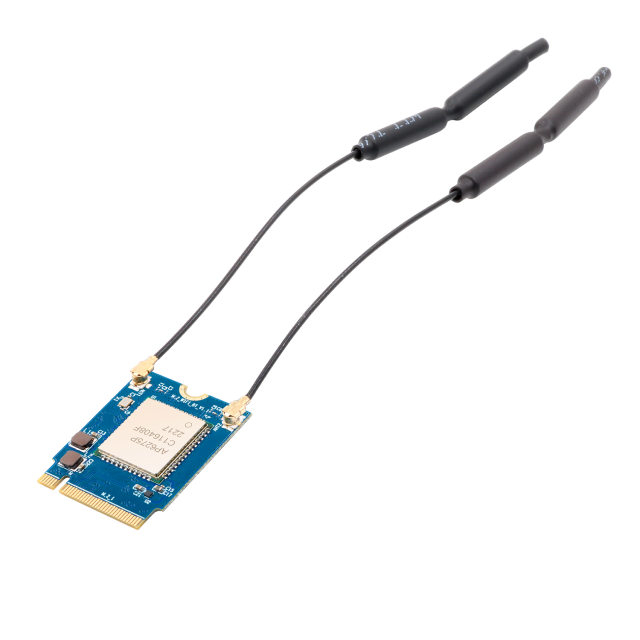

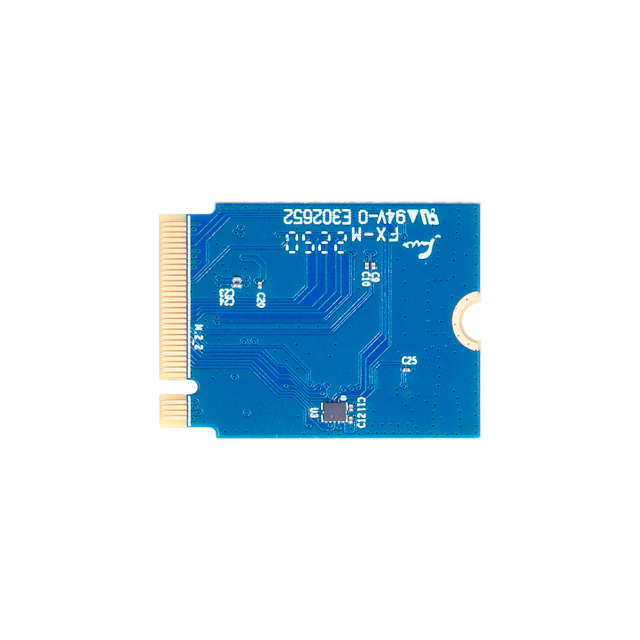

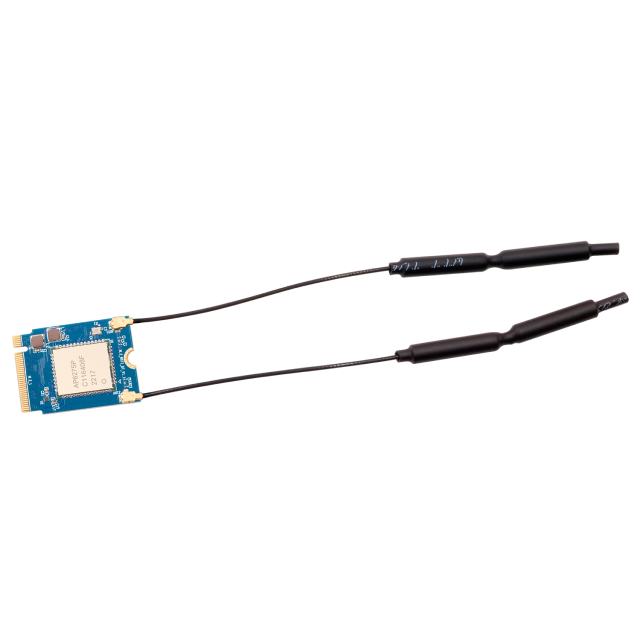

The Wi-Fi6+BT5.3 module for Orange Pi 5 a high-performance module for a wide range of applications. Wi-Fi supports 2T2R 802.11 a/b/g/n/ac/ax, using both 2.4GHz and 5GHz bands with MIMO standard. Wi-Fi uses 2 antennas, 1 of which is shared with BT, supporting PCIe v3.0 interface; BT5.3 uses UART/ PCM interface.
Parameter
| Main chip | AP6275P |
| Supply voltage | 3.3V |
| Operating temperature | -30°C ~ 85°C |
| Storage temperature | -40°C ~ 125°C |
| Size | 22mm X 30mm |
