Rockchip RK3588 8-
core 64-bit processor -
Main frequency up to
2.4GHz -
4GB/8GB/16GB
（LPDDR4/4X） -
Support 8K video codec
-
Rockchip RK3588 8-core 64-bit processor
-
Main frequency up to 2.4GHz
-
4GB/8GB/16GB（LPDDR4/4X）
-
Support 8K video codec
-
8-core 64-bit processor
-
M.2 slot supporting 2280 SSD -
M.2 slot supporting
2230 Wi-Fi 6/BT
module -
External 16GB/32GB/64GB/128GB/256GB eMMC module is available -
4GB/8GB/16GB (LPDDR4/4X)
-
2.5G high-speed dual LAN ports -
2 * USB 3.0, 2 * USB 2.0 -
Supports 8K video decoding
Rockchip RK3588
8-core 64-bit processor
Orange Pi 5 Plus uses Rockchip RK3588 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2; embedded NPU supports INT4/INT8/INT16/FP16 mixed computing, with up to 6Tops of computing power, which can meet the edge computing needs of most end devices; 4GB/8GB/16GB LPDDR4/4X memory and eMMC socket, which can be connected with 16GB/32GB/64GB/128GB/256GB eMMC module. Orange Pi 5 Plus supports Orange Pi OS, the official operating system developed by Orange Pi, as well as Android 12, Debian 11, Ubuntu 22.04 and other operating systems.
Provides abundant interfaces
Orange Pi 5 Plus provides abundant interfaces, including two HDMl output ports, one HDMl input port , two PCIe extended 2.5G Ethernet ports, an M.2 M-Key slot that supports installation of NVMe SSDs, and an M.2 E-Key slot that supports Wi-Fi6/BT modules. In addition, Orange Pi 5 Plus has two USB 3.0, two USB 2.0, and two Type-C (one of which is a power connector).
Orange Pi 5 Plus has a wide range of uses to help embedded system development enthusiasts explore, and is also suitable for enterprises developing mini machine vision systems with multiple Ethernet ports, Orange Pi 5 Plus offers enhanced high-end applications performance experience to meet the needs of product customization in different industries.
Rockchip RK3588
embedded with 6 Tops computing power NPU, suitable for developing AI applications
2.5G high-speed dual Ethernet ports
2.5G high-speed dual Ethernet ports with PCIe extension for faster data transfer speeds
Rich display ports
Supports HDMI 2.1 8K video output, Type-C (DP1.4A), MIPI DSI video output, which can realize up to four different displays, suitable for high-end applications such as VR cameras and deep vision.
8K video decoding for clear and realistic picture
With support for up to 8K@60Hz, the powerful video codec allows for clearer images and more detailed picture quality.
High-quality and smooth gaming experience
8-core CPU + 8nm process + 8K video decoding for a smoother, more stable gaming experience
Supports Orange Pi OS (Droid)
Wide range of application scenarios
It can be widely applied to tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Hardware Parameters
| SoC | Rockchip RK3588 (8nm LP process) |
| CPU |
• 8-core 64-bit processor • 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors |
| GPU |
• Arm Mali-G610 • Built-in 3D GPU • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 |
| NPU | Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power |
| PMU | RK806-1 |
| RAM | 4GB/8GB/16GB （LPDDR4/4X） |
| Memory |
• QSPI Nor FLASH: 16MB/32MB • MicroSD card slot: up to 128GB • eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached • M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s |
| USB |
USB3.0 × 2 USB2.0 × 2 Type-C ×1 |
| Video |
• 2x HDMI 2.1 out up to 8k@60FPS • 1x Type-C with DP TX 1.4A，up to 8K@30FPS • 1x HDMI in with up to 4K@60FPS • 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz |
| TP interface | 1x 6Pin FPC socket |
| Camera | • 1XMIPI CSI 4 Lane |
| Audio |
CODEC:ES8388 • 1xAudio 3.5mm jack with mic • 1xMIC In • 1xHDMI 2.1 eARC • 1xSPK |
| Ethernet | 2xPCIe 2.5G LAN（RTL8125BG) |

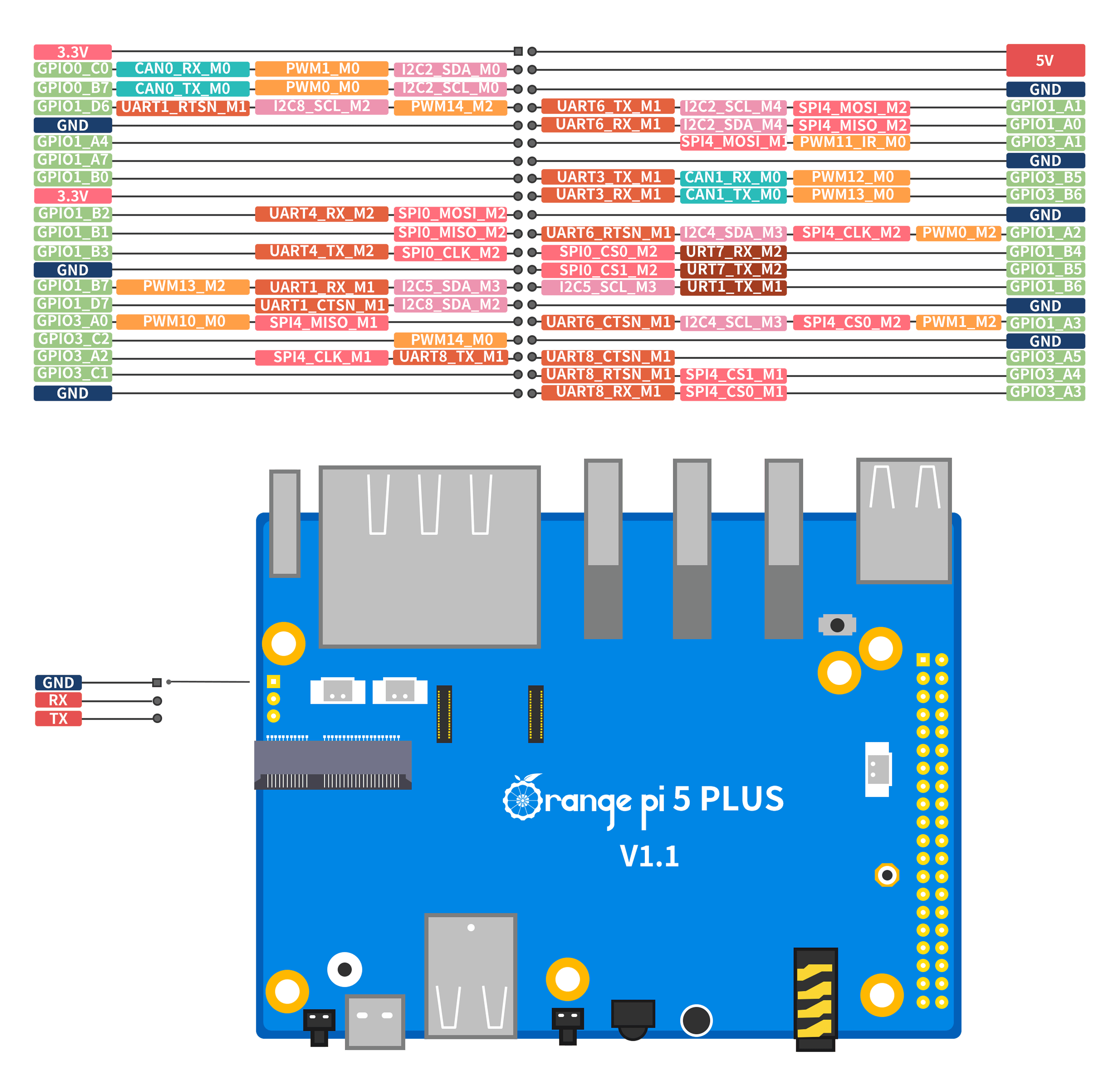

| Expansion Port | 40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO |
| PCIe M.2 M-KEY Socket | M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD |
| PCIe M.2 E-KEY Socket | M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported |
| Button | 1×MaskROM key 1xRecovery 1×on/off key |
| Power Source | Support Type-C power supply, 5V@4A |
| IR receiver | 1x IR receiver tube |
| LED | RGB LED side light |
| FAN | 5V FAN |
| RTC | 2Pin: RTC backup battery |
| Debugging | 3Pin debug serial port (UART) |
| Supported OS | Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu22.04、Debian11、Android12 |
Appearance specification introduction
| Dimension | 100mm * 75mm |
| Weight | 86.5g |
Product display
-
Front -
Back -
45° angle -
45° angle
