Rockchip RK3588S 8-
core 64-bit processor -
Main frequency up to
2.4GHz -
4GB/8GB/16GB/32GB
（LPDDR4/4x） -
Support 8K video codec
-
Rockchip RK3588S octa-core 64-bit processor
-
Main frequency up to 2.4GHz
-
4GB/8GB/16GB/32GB(LPDDR4/4x)
-
Support 8K video codec
Product introduction
-
8-core 64-bit
processor -
4GB/8GB/16GB/32GB
(LPDDR4/4x) -
HDMI 2.1 -
Gigabit LAN port -
USB2.0/3.0 -
Type-C power supply -
TF card slot -
26pin headers
Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor,
quad-core A76+quad-core A55,
with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded
high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with
4GB/8GB/16GB/32GB (LPDDR4/4x), and up to 8K display processing capability.
Orange Pi 5 provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C,
Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial
intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT
various industries.
Orange Pi 5 supports Orange Pi OS（Droid）, the official operating system developed by Orange Pi, as well
as
Android12 and Debian11.
Rockchip RK3588S
A new generation AIoT chip
Using 8nm LP process, it is faster and consumes less power, bringing superior performance to various AI application scenarios.
CPU8-core 64 core architecture, 4*Cortex-A76 + 4*Cortex-A55
Improvement
GPUARM Mali-G610
Improvement
NPU6Tops AI computing power
Up to 32GB RAM
Meet the application requirements of products with large RAM and large storage.
8K video codec for clearer images
Up to support 8K @ 60fps, the powerful video codec allows for clearer images and more detailed picture quality.
Gigabit Ethernet
On-board 1000Mbps Ethernet for stronger and more stable network connection and higher transmission speed.
Rich interfaces, easy to expand
Gathering all kinds of popular interfaces such as MIPI D-PHY, MIPI CSI, USB3.0, USB2.0, Type-C, HDMI2.1, M.2 PCIe2.0, Gigabit Ethernet, etc.
Multi-channel input and output
Support HDMI 2.1 8K video output, USB-C (DP1.4), dual MIPI D-PHY video output for multi-screen display, support three MIPI interface camera inputs.
Supports NVMe SSD hard drives for massive capacity expansion
The onboard M.2 PCIe 2.0 interface supports access to NVMe SSD hard drives to increase massive data storage space and meet the demand for fast read/write and large-capacity storage.
Supports Orange Pi OS（Droid）
With the self-designed Launcher, it provides users with the same operating habits as a normal computer to the maximum extent, and with the Google Play Store pre-installed, it can run Facebook, Instagram, Twitter, YouTube, Telegram and other applications smoothly.
Wide range of application scenarios
It can be widely applied to tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.

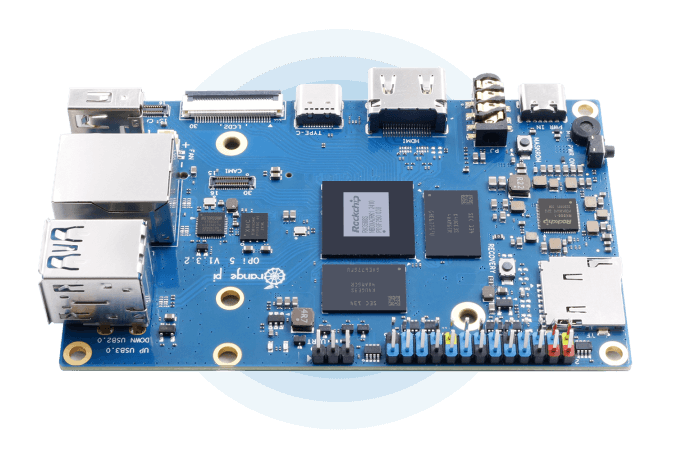

Top view
Bottom view

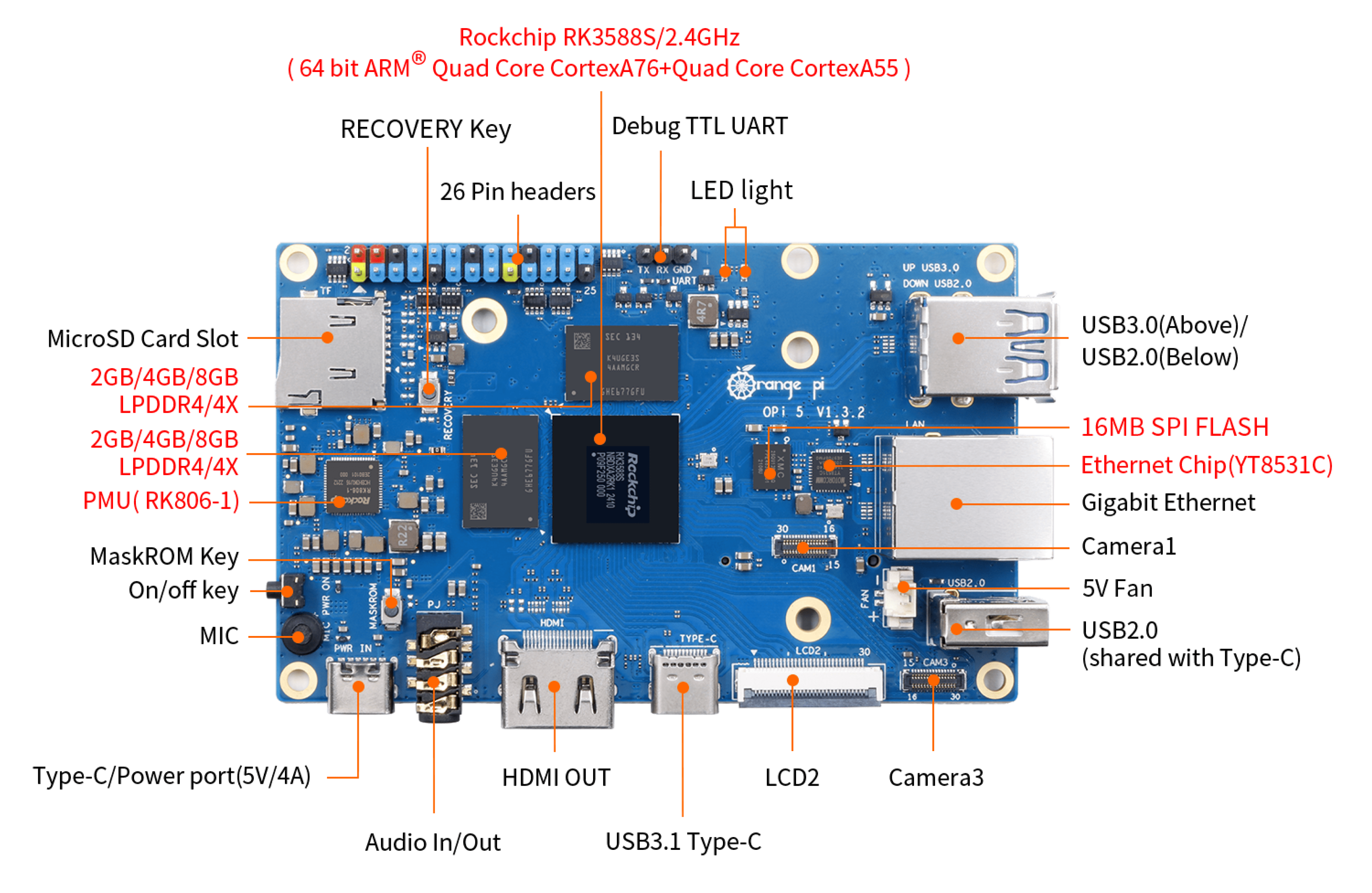

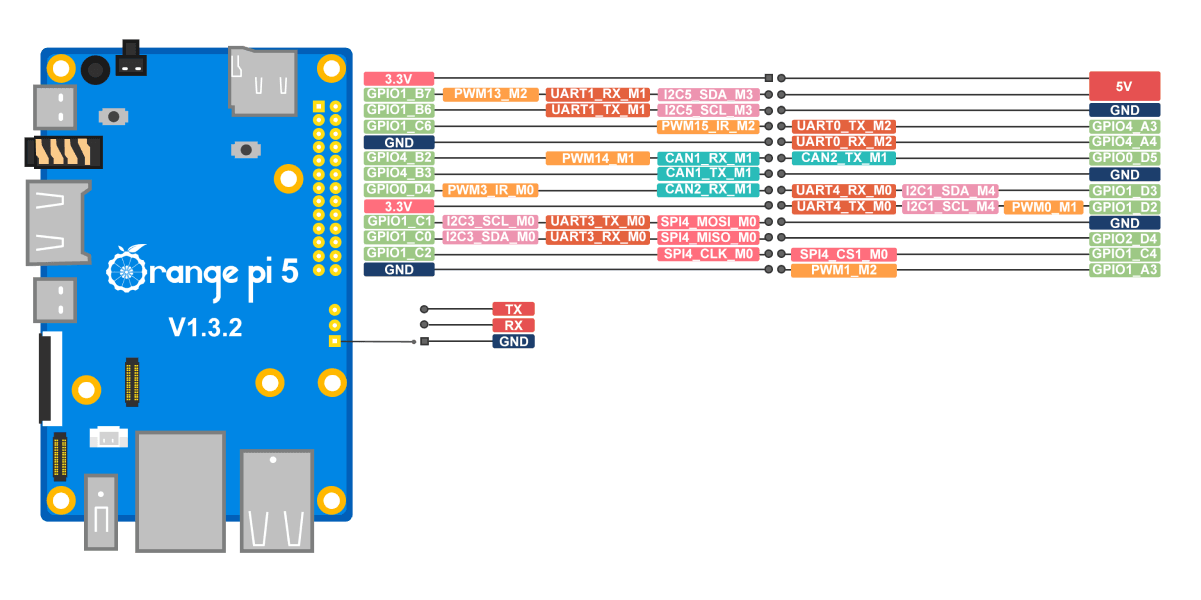

Orange Pi 5 v1.0 pin definition
Hardware Specification
| SoC | Rockchip RK3588S (8nm LP process) |
| CPU |
• 8-core 64-bit processor • Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency. |
| GPU |
• Arm Mali-G610 MP4 “Odin” GPU • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 • 3D graphics engine and 2D graphics engine |
| NPU | Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation |
| PMU | RK806-1 |
| RAM | 4GB/8GB/16GB /32GB（LPDDR4/4x） |
| Memory |
• QSPI Nor FLASH 16MB • MicroSD (TF) Card Slot • PCIe M.2 M-KEY (SSD) Socket |
| USB | USB3.0 × 1 USB2.0 × 2 Type-C (USB3.1) ×1 |
| Video Output |
• HDMI2.1, up to 8K @60Hz • DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C • 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz |
| Camera | • MIPI CSI 4Lane • 2 * MIPI D-PHY RX 4Lane |
| Audio |
CODEC: ES8388 • 3.5mm headphone jack audio input/output • Input: Onboard MIC • HDMI 2.1 eARC |
| Ethernet | 10/100/1000Mbps Ethernet (YT8531B ) |
| Expansion Port | 26Pin double row pins supporting the following functions: 3 * UART、6 * PWM、2 * I2C、1 * SPI、2 * CAN、17 *GPIO, these functions are multiplexed and cannot be supported at the same time. |
| PCIe M.2 M-KEY Socket |
The following functional modules are supported but not limited to: SSD module supporting PCIe M.2 M-KEY NVMe WiFi6+BT 5.0 custom module supporting PCIe M.2 M-KEY |
| Button | 1×MaskROM key 1×Recovery key 1×Reset key |
| Power Source | Support Type-C power supply, 5V @ 4A |
| LED | Power indicator: red Status indicator: green |
| Debugging | 3 Pin debug serial port (UART) |
| Supported OS | Orange Pi OS（Droid）、Orange Pi OS（Arch）、Orange Pi OS（OH）、Ubuntu、Debian、Android12 |
Appearance specification introduction
| Dimension | 62mm*100mm |
| Weight | 46g |
Product display
-

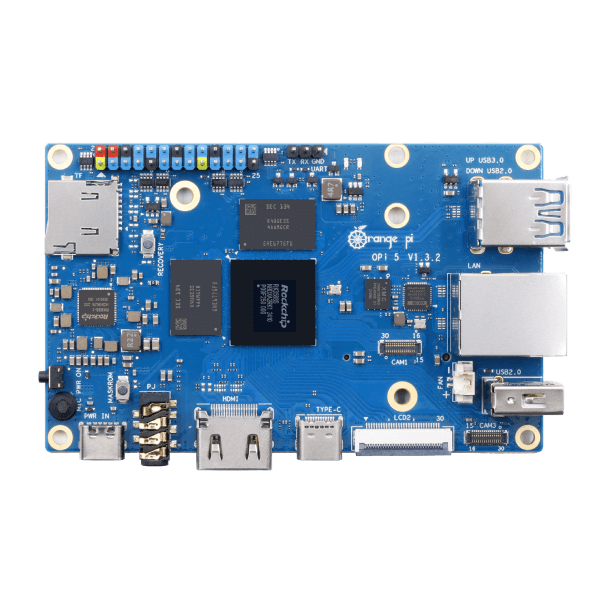

Front -
Back -

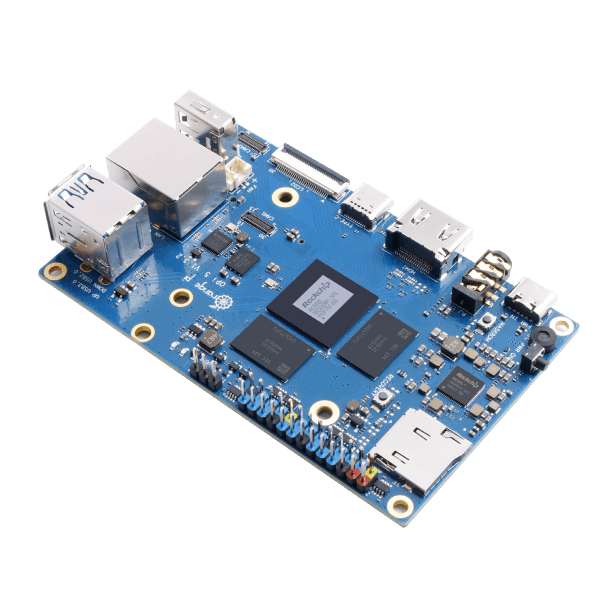

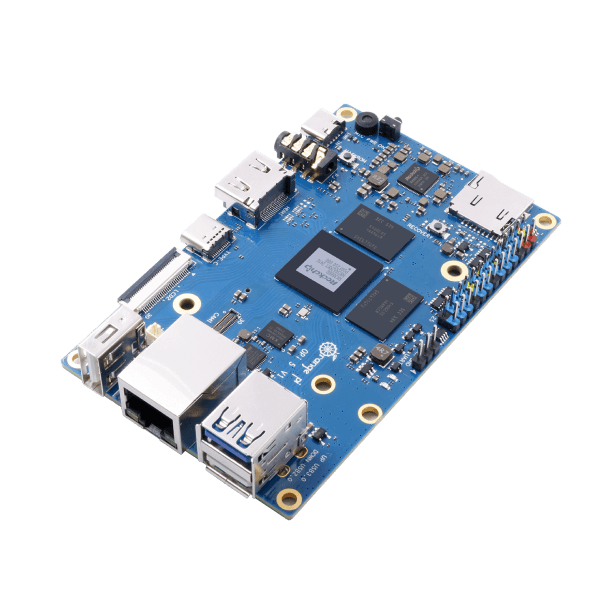

45° angle -
45° angle
Completely Open Source Maker Artifact
