OrangePi AIpro (20T)
Built for AI
12GB/24GB LPDDR4X
20TOPS AI computing power
2*HDMI 2.0 output
2.5G High Speed Dual Ethernet Ports
Wi-Fi5+BT4.2, BLE
3*USB3.0, USB Type-C 3.0
Supports M.2 228 SATA/NVMe SSD
External 32GB/64GB/256GB eMMC module available
USB Type-C power supply
20 TOPS AI computing power
Highly integrated CPU, AI computing, ISP, graphics output, and other functions, with 20TOPS AI computing power, can effectively realize the target recognition, image classification and other AI acceleration applications, can quickly improve the development efficiency and reduce development costs.
Available with 24GB RAM
All kinds of complex applications can run smoothly.

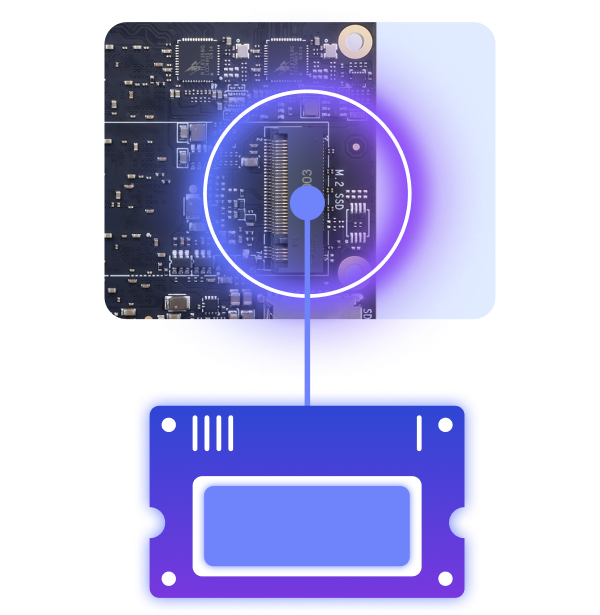

Supports M.2 2280 SATA/NVMe SSD to expand massive capacity
The onboard M.2 interface supports access to SATA/NVMe SSD 2280 hard disk to increase massive data storage space and meet the needs of fast read/write and high-capacity storage.
2.5G high-speed dual Ethernet ports
2.5G Ethernet ports with 2 PCIe extensions for faster data transfer speeds.
Multi-channel output, supporting multi-screen heterodyne display
Supports dual HDMI video output, 4K HD output, one MIPI DSI video output, and two MIPI interface camera input.

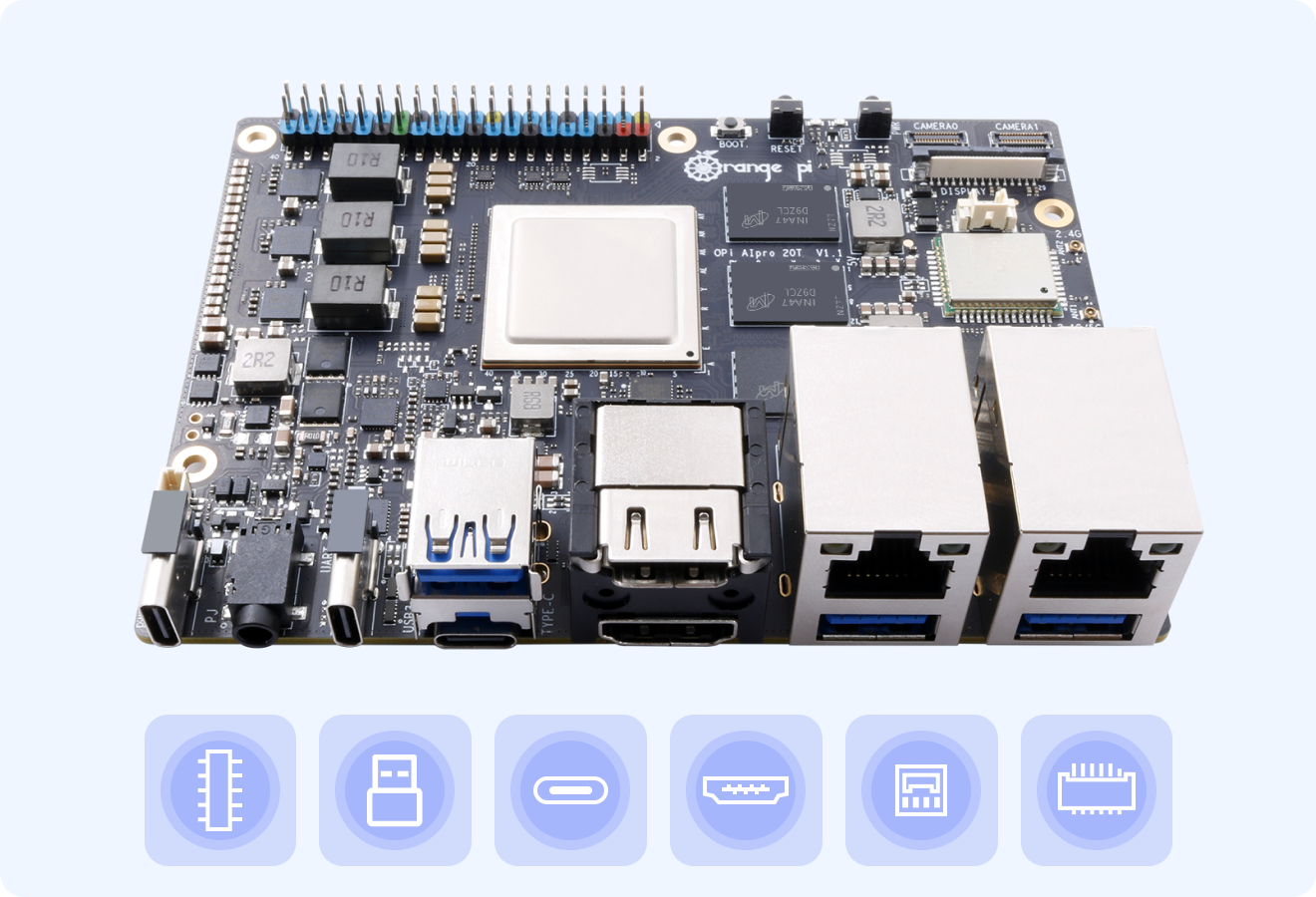

Rich interfaces for easy expansion
Gathering all kinds of popular interfaces such as MIPI DSI, dual MIPI CSI, USB3.0, Type-C, dual HDMI2.0, dual 2.5G Ethernet, M.2 slot supporting SATA/NVMe SSD 2280, and so on.
Wide range of application scenarios
Can be widely used in AI teaching and training, AI algorithm verification, intelligent carts, robotic arms, edge computing, drones, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home, intelligent transportation, and other fields.

OrangePi AIpro (20T) is powered by a 4-core 64-bit processor + AI processor with integrated graphics, supports 20TOPS of AI computing power, has 12GB/24GB LPDDR4X, can be externally connected to 32GB/64GB/256GB eMMC modules, and supports dual 4K HD outputs.

OrangePi AIpro (20T) references a fairly rich set of interfaces,, including two HDMI outputs, GPIO ports, Type-C power port, M.2 slot supporting 2280 SATA/NVMe SSD, MicroSD slot, 2.5G high-speed LAN port, three USB 3.0, one USB 3.0 Type-C, and one Type-C (serial print debugging function), two MIPI cameras, one MIPI screen, and reserved battery interface.

OrangePi AIpro (20T)supports Ubuntu and openEuler operating system, which meets the needs of most AI algorithm prototyping and inference application development.

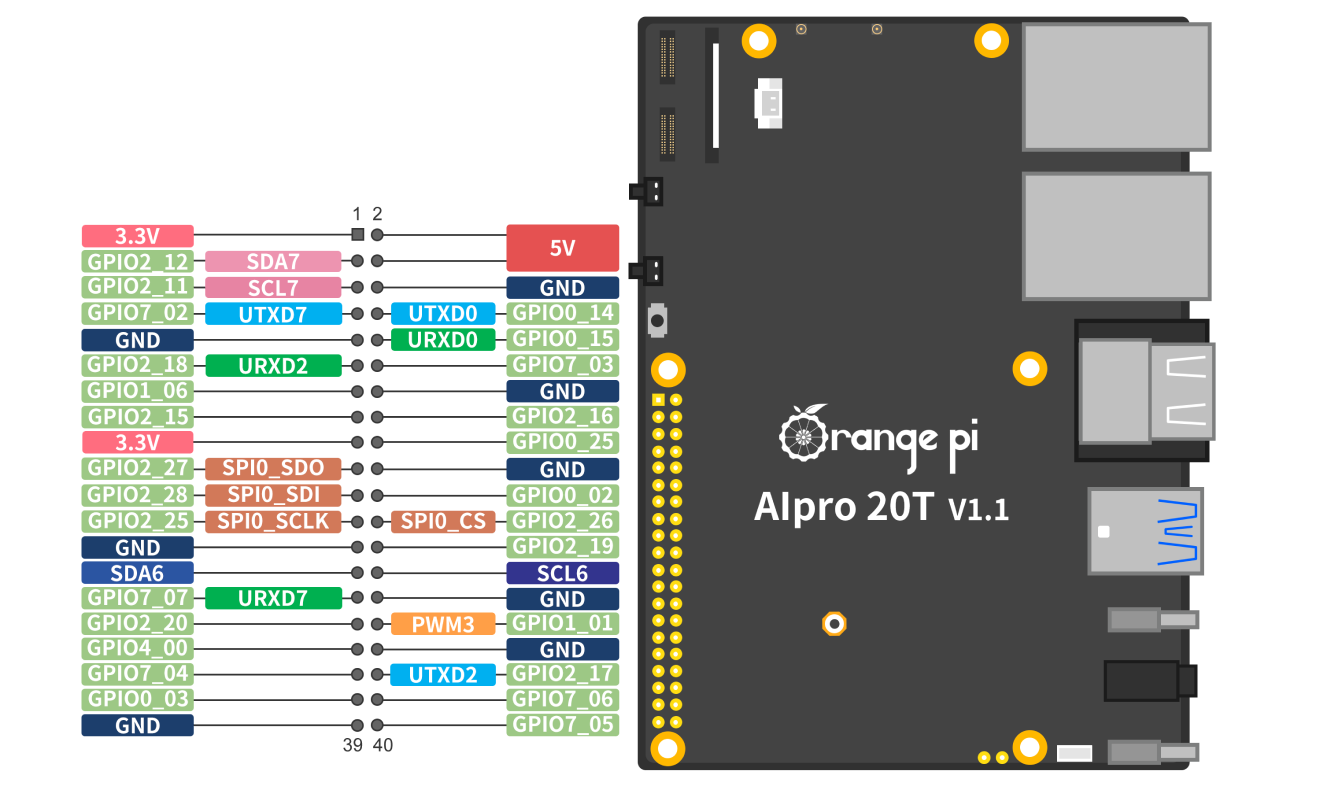

OrangePi AIpro（20T） Pin Definition

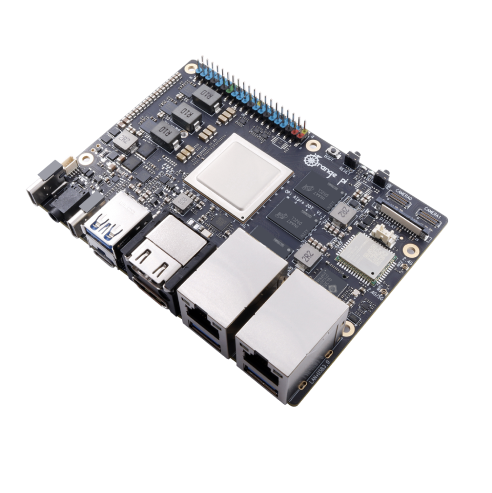

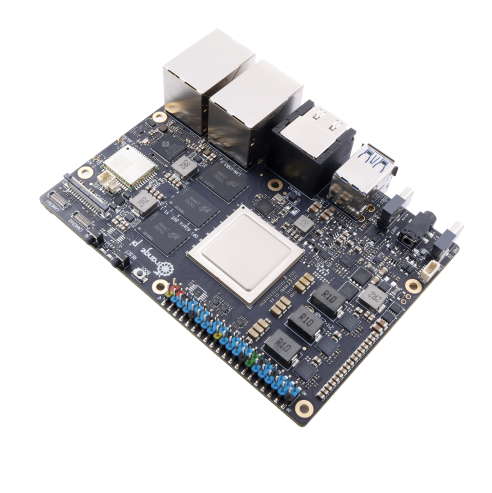

Product display
Top View
Bottom View

Hardware Specification

CPU 4-core 64-bit processor + AI processor
1 DaVinciV300 AI core at 1.224GHz
4 TAISHANV200M processor cores at 1.6GHz
GPU Integrated graphics processor
AI computing power 20 TOPS
RAM LPDDR4X: 12GB/24GB (optional), rate: 4266Mbps
Storage • Supports eMMC module: 32GB/64GB/256GB
• SATA/NVME SSD (M.2 interface 2280)
• SPI flash: 32MB
• MicroSD slot
Wi-Fi +Bluetooth Wi-Fi 5 dual-band + BT 4.2, BLE
Ethernet transceiver Dual 2.5G Ethernet
Display • 2 * HDMI TX 2.0 outputs, support up to 4K@60FPS
• 1 * MIPI DSI 4-lane output
Camera 2 * MIPI CSI 4-lane camera interface
USB •3 * USB 3.0 HOST
•1 * USB Type-C 3.0 HOST/Device (USB 2.0 compatible)
•1 * Type-C serial port printing function
Audio 3.5mm headphone jack audio in/out
Button 1*On key, 1*RESET key, 1*Start toggle key, 1*BOOT key
40pin 40pin function expansion interface, supporting the following interface types:
GPIO、UART、I2C、SPI、 I2S、PWM
Fan Fan connector * 1
Reserved ports 2pin battery connector
Power supply Type-C PD 20V IN, standard 65W
Supported OS Ubuntu、openEuler
Product size 115.23mm*83.26mm*1.6mm
Weight 120.5g

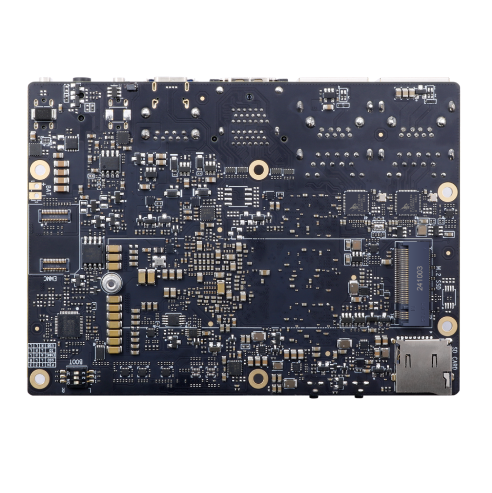

Product display

Notes：
Due to real-time changes in product batches and production supply factors, the product information and specifications of the above products are subject to change, please refer to the actual product sold in the store on that day.
