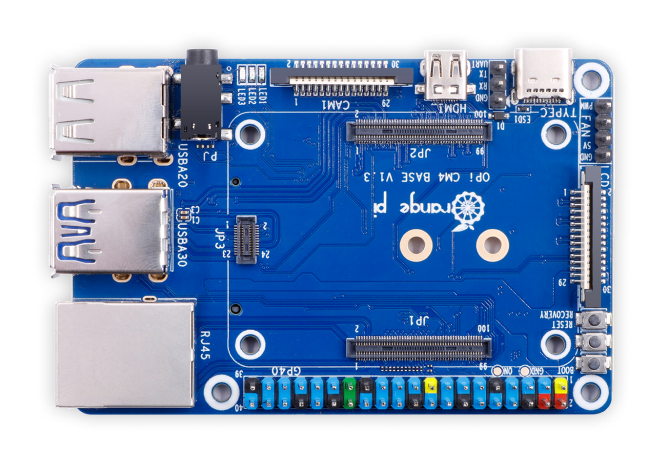

Orange Pi CM4 base board is an official Orange Pi base board that can be used with the Orange Pi Compute Module 4, with 40Pin GPIO interface and standard CM4 connector. It can be used as a development system for Compute Module 4 and as an embedded board integrated into the end product, supporting access to Orange Pi CM4/Raspberry Pi CM4 core board.
Multiple interfaces, more convenient to use
Equipped with CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit LAN port/TF card/M.2 M-Key and other interfaces.

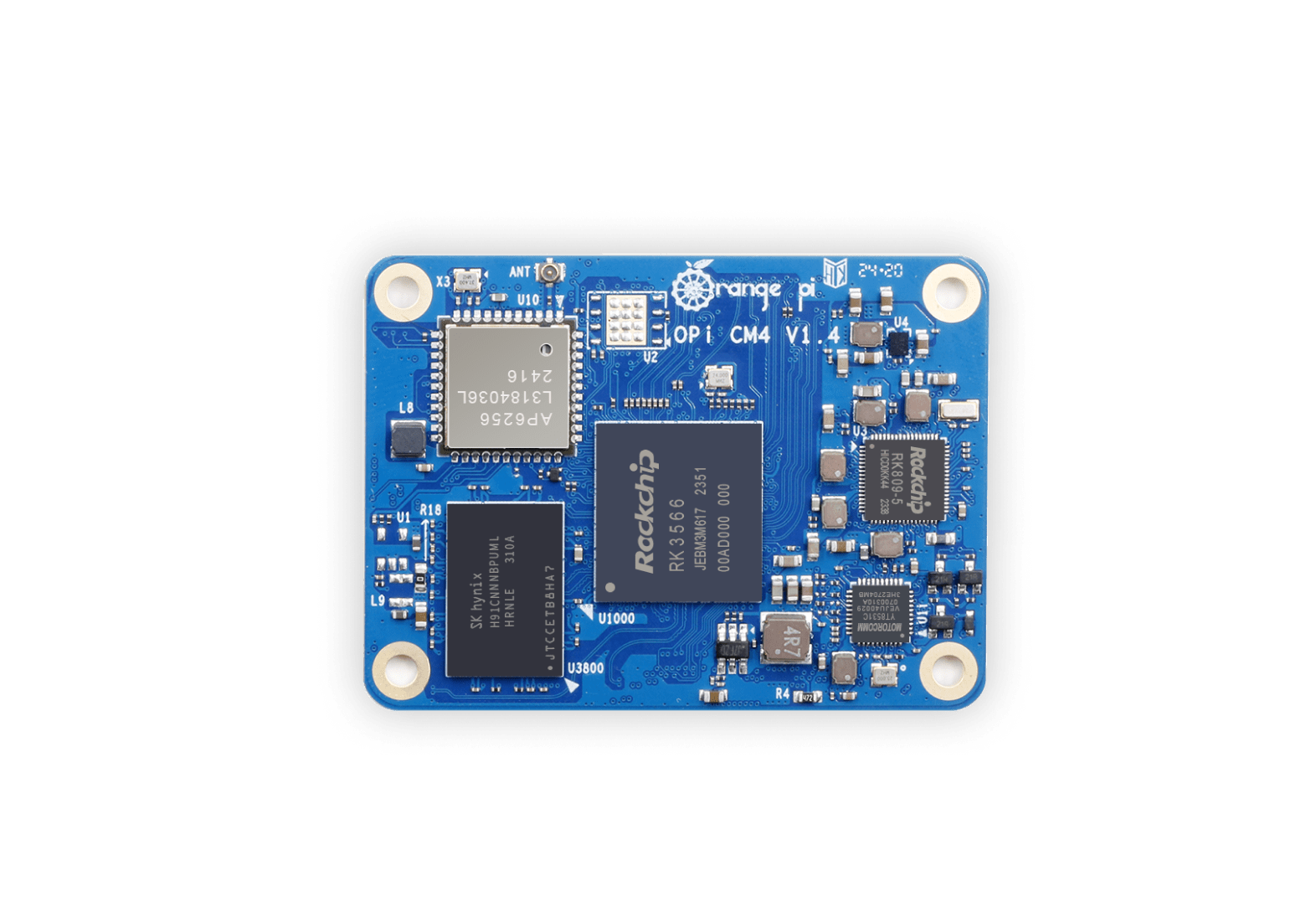

Orange Pi Compute Module 4
Small size, high speed
Quad-core 64-bit Cortex-A55 processor, 2GB/4GB/8GB (LPDDR4/4X), 4K HD display, Wi-Fi5+BT 5.0, BLE support, different specifications of eMMC flash memory and wireless module, can be widely used in industrial IoT field.
More info
Interface introduction
| Memory |
• M.2 M-KEY slot: SATA3 or PCIe2.0 NVME SSDs • TF card slot |
| Ethernet interface | 10/100/1000Mbps Ethernet RJ45 socket |
| Video output | • 1* HDMI TX 2.0 , up to 4K@60fps • 1*MIPI DSI 2 lane • eDP1.3 |
| Camera | 2*MIPI CSI 2 Lane |
| USB | •1*USB 2.0 support Device or HOST mode •1*USB 3.0 HOST •2*USB 2.0 HOST |
| Audio | 3.5mm headphone jack audio in/out |
| Button | 1*MaskROM key, 1*RECOVERY key, 1*RESET key |
| FAN | 4Pin 2.54mm size 5V fan connector |
| 40Pin | 40Pin functional expansion interface, interface voltage 1.8V/3.3V optional, supports the following interface types: GPIO, UART, I2C, SPI, PWM |
| Power source | Type-C 5V3A |
| Supported OS | Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems. |
| PCB dimension | 85x56mm |
| Weight | 46g |
