The OrangePi CM5 tablet base board is an official OrangePi base board that can be used with the OrangePi CM5 core board, with Wi-Fi5+BT 5.0, BLE support, and standard CM5 connectors, and can be used as a CM5 development system or as an embedded board integrated into end products.
OrangePi CM5 base-tablet Pin Definition
Product display

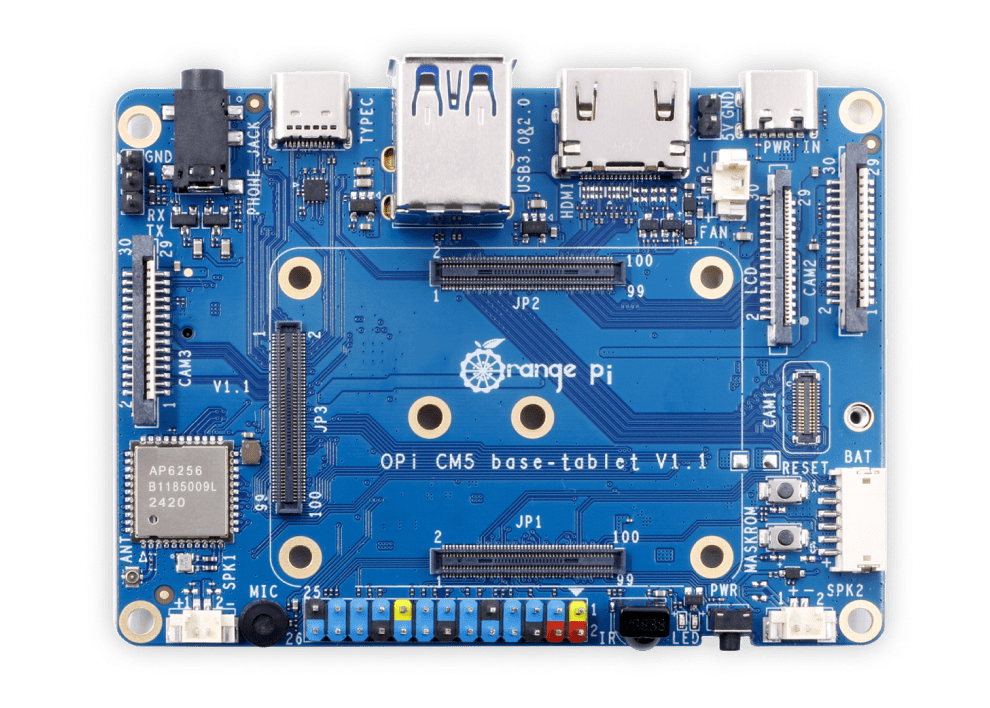

Top View
Bottom View
OrangePi CM5
Compact and Powerful Industrial PC
OrangePi CM5 is powered by the Rockchip RK3588S 8-core 64-bit processor with 4
Cortex-A76 (2.4GHz) and 4 Cortex-A55 (1.8GHz).
More info
Hardware Parameters
| Board-to-board connector | 3*100pin, 0.4mm pin pitch, connector model: df40c-100ds-0.4v |
| Memory | MicroSD (TF) slot M.2 MKEY slot: NVMe SSD (PCIe 2.0 1 Lane) or SATA3.0 SSD |
| USB | Type-C USB3.0 USB3.0 + USB2.0 |
| Video output |
HDMI2.1, supports up to 8K @60Hz DP1.4 ALT 4Lane (shared TYPE C connector) MIPI DPHY TX 4 Lane |
| Camera |
MIPI CSI 4 Lane 2*MIPI DPHY RX 2Lane |
| Audio |
3.5mm headphone jack audio in/out HDMI 2.1 eARC Input: onboard MIC Output: 2*SPK sockets, 2pin 1.25mm |
| Wi-Fi, BT module |
Onboard Wi-Fi5+BT 5.0/BLE module:AP6256 Wi-Fi interface: SDIO3.0 BT interface: UART/PCM |
| Expansion port: 26pin double-row pins |
Dual row pin: 2.54mm 26Pin Support DC 5V and 3.3V power output. Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces. |
| Button | 1* MaskROM，1*RESET，1 * PWR IN |
| Power supply | Support Type-C power supply, 5V @ 5A |
| Battery Holder | Battery holder: board-to-wire connection, 6pin, 1.5mm pitch, supports single Li-ion battery charging function, charging current up to 3.78A |
| Button interface | 6pin FPC socket, pin distance 0.5mm |
| Sensor interface | 6pin FPC socket, pin distance 0.5mm |
| LED | Power indicator: red; status indicator: green |
| Fan | 5V 2pin 1.25mm socket |
| SPK | 2PIN 1.25mm socket |
| RTC | Test pad spare, can be connected to 3V spare RTC battery |
| Debugging | Debugging serial port UART |
| PCB | Length: 90mm, width: 66mm, thickness: 1.6mm |
| Weight | 43g |
