OrangePi CM5
Compact and Powerful Industrial PC

Rockchip RK3588S

 (8nm LP process)

OrangePi CM5 is powered by the Rockchip RK3588S 8-core 64-bit processor with 4 Cortex-A76 (2.4GHz) and 4 Cortex-A55 (1.8GHz).

Artificial Intelligence NPU
Embedded 6TOPS computing power NPU, supporting INT4/INT8/INT16 hybrid computing
Multi-memory
Supports 2GB/4GB/8GB/16GB LPDDR4/4X to meet different needs
Rich eMMC
Supports 32GB/64GB/128GB/256GB eMMC flash memory
Integrated SDIO 3.0, expandable Wi-Fi5+BT 5.0 with BLE support
enjoy the wonderful network anytime, anywhere. (OrangePi CM5 Tablet Base Board supports)
Expandable Ethernet
2 * 2.5G + 1 * 10/100/1000M (OrangePi CM5 Base Board supports)
Introduce
OrangePi Compute Module 5 is a compact size and powerful performance for deep embedded applications.OrangePi CM5 is powered by Rockchip RK3588S 8-core 64-bit processor, 4-core  Cortex-A76 (2.4GHz) and 4-core Cortex-A55 (1.8GHz), 8nm advanced process; Integrated ARM Mali-G610 graphics processor, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2; built-in AI accelerator NPU with up to 6TOPS of computing power, supporting INT4/INT8/INT16 hybrid computing; providing rich interfaces and supporting different capacities of eMMC flash memory, which can be widely used in the field of industrial IoT.
OrangePi CM5 Base Board
OrangePi CM5 base board is an official OrangePi base board that can be used with Orange Pi CM5 core board. It has two 2.5G high-speed ports, Gigabit ports, and standard CM5 connectors, and can be used as a CM5 development system as well as embedded boards to be integrated into end-products.
More info
Product display

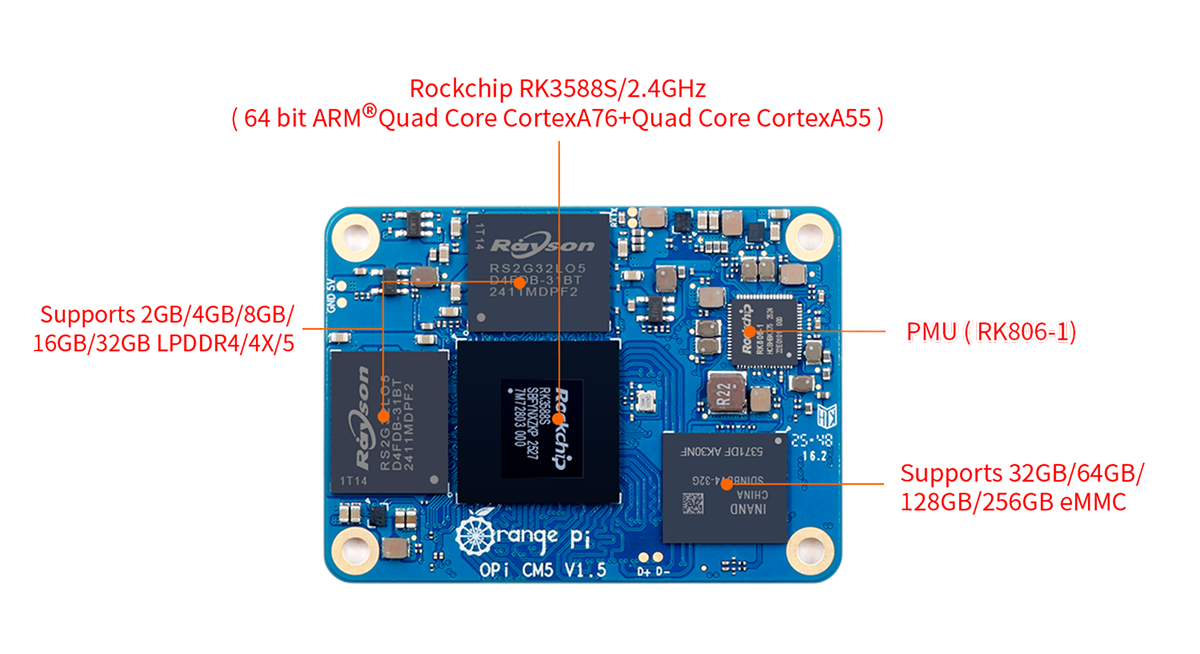

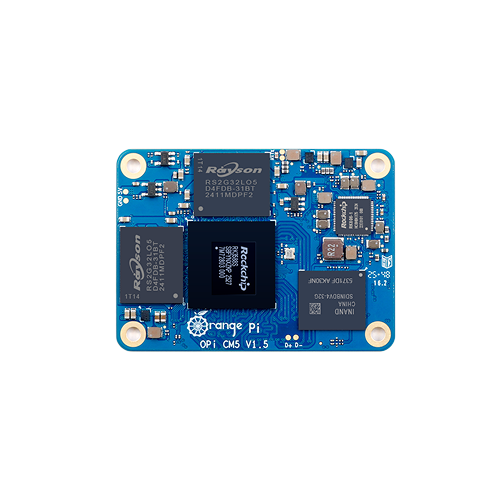

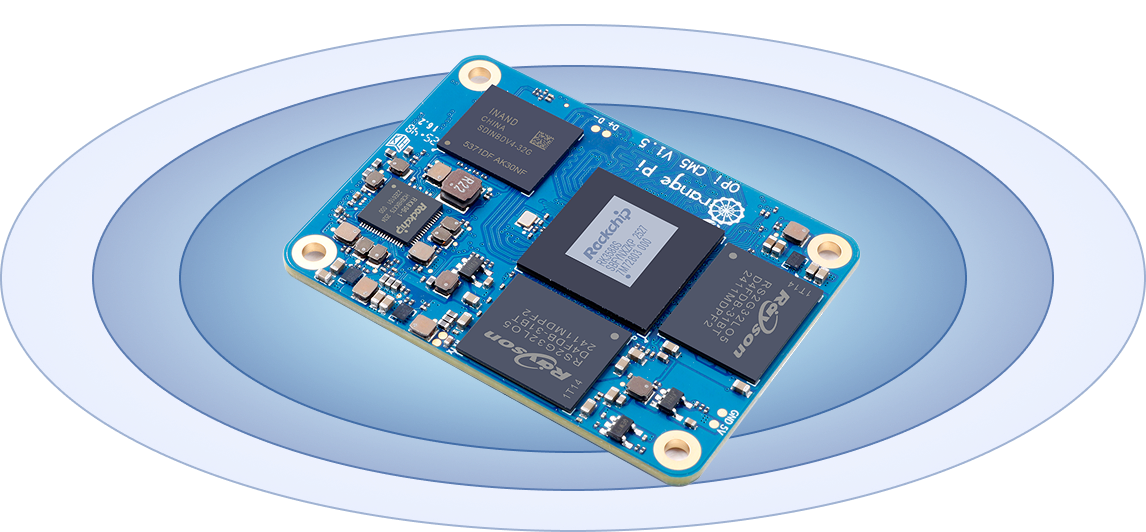

Top View
Bottom View

Hardware Parameters

SoC Rockchip RK3588S (8nm LP process)
CPU • 8-core 64-bit processor
• 4-core Cortex-A76 (2.4GHz)and 4-core Cortex-A55 (1.8GHz) typical small and large core architectures
GPU • Integrated ARM Mali-G610
• Built-in 3D GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
NPU Built-in AI accelerator NPU with up to 6TOPS computing power, supporting INT4/INT8/INT16 hybrid computing.
PMU RK806-1
RAM LPDDR4/4x:supports 2GB、4GB、8GB、16GB
eMMC eMMC:supports 32GB、64GB、128GB、256GB
Interface • 3*100pin (Model: DF40C-100DP-0.4V(51)), including the following interfaces:
• 1*Type C or DP1.4
• 3*USB2.0
• 1*HDMI 2.1 or eDP1.3
• 1*SDMMC
• 1*4-lane MIPI DPHY TX
• 1*2-lane MIPI DPHY TX
• 2*2-lane MIPI DPHY RX
• 1*4-lane MIPI CSI RX
• 1*SATA III or PCIe2.0
• 1*SATA III or PCIe2.0 or USB3.0
• USB3.0*1+USB2.0*3
• POWER_ON、RESET、MASKROM、RECOVERY etc.
• SDIO 3.0 or RGMII
• I2C、I2S、UART、SPI、CAN、PWM、SPDIF、PDM、GPIO etc.
Power supply Input: DC 5V Max1800mA
Output: DC3.3V Max600mA and DC1.8V Max600mA

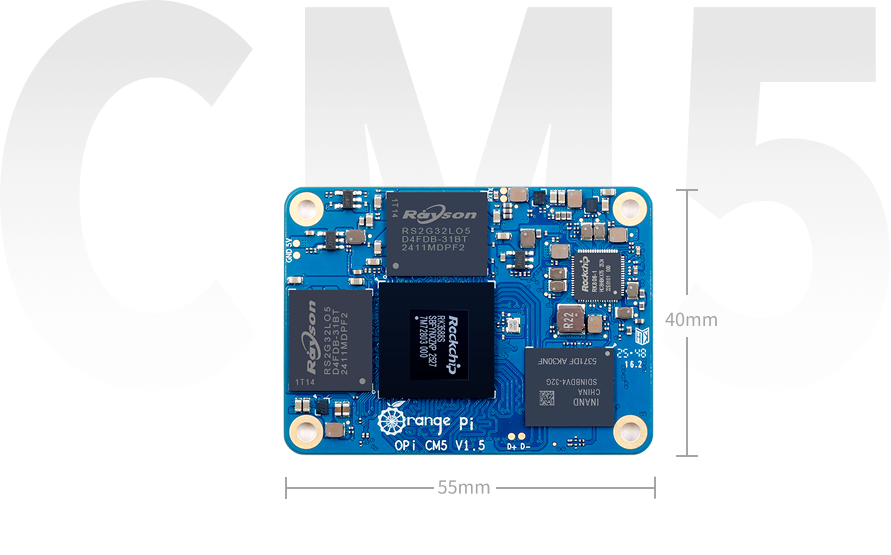

PCB Length: 55mm, width: 40mm, thickness: 1.6mm
Weight 12g

Product display

Note:Due to real-time changes in product batches and production supply factors, the product information and specifications of the above products are subject to change, please refer to the actual product sold in the store on that day.
