Orange Pi i96

Amazon Store BUY

Orange Pi i96 is an open-source single-board computer with wireless WiFi and Bluetooth .It is highly compact with a dimension of 60X30mm.

Product introduction

  • WiFi
  • USB 2.0
  • TF card
  • CSI camera port
  • Bluetooth
  • Powered through USB-OTG
  • 40pin headers
  • Multiple operating systems

Orange Pi i96 uses the RDA8810 Soc, and has 256MB LPDDR2 SDRAM. It integrates TF card, CSI camera port,USB 2.0, 40pin headers, etc.It can run Android 4.4, Ubuntu, Debian image. It is powered through USB-OTG and Battery(Optional).

Orange Pi i96 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Hardware specification

CPU ARM Cortex-A5 32bit
GPU • Separate graphic processor, Vivante's GC860
• support OpenGLES1.1/2.0
• support OpenVG1.4
• support DirectFB
• support GDI/DirecShow
• 30M Triangle/s, 250M Pixel/s
Memory (SDRAM) Integrated 256MB LPDDR2 SDRAM
Onboard Storage TF card / Integrated 512MB 8Bit 1.8V 4K SLC Nand Flash
Onboard WiFi+BT RDA5991, WiFi+BT
Video Input • A CSI input connector Camera
• Supports 8-bit YUV422 CMOS sensor interface
• Supports CCIR656 protocol for NTSC and PAL
• Supports SM pixel camera sensor
• Supports video capture solution up to 1080p@30fps
Power Source • USB OTG can supply power
• Battery input can supply power(Optional)
GPIO(1x3) pin UART, ground.
USB 2.0 Ports One USB 2.0 HOST, One USB 2.0 OTG
Buttons Power Button(SW602)
Low-level peripherals 40 Pins Header
LED Power led
Supported OS Android, Ubuntu, Debian Image

Interface definition

Product size 60 mm × 30mm
Weight 30g

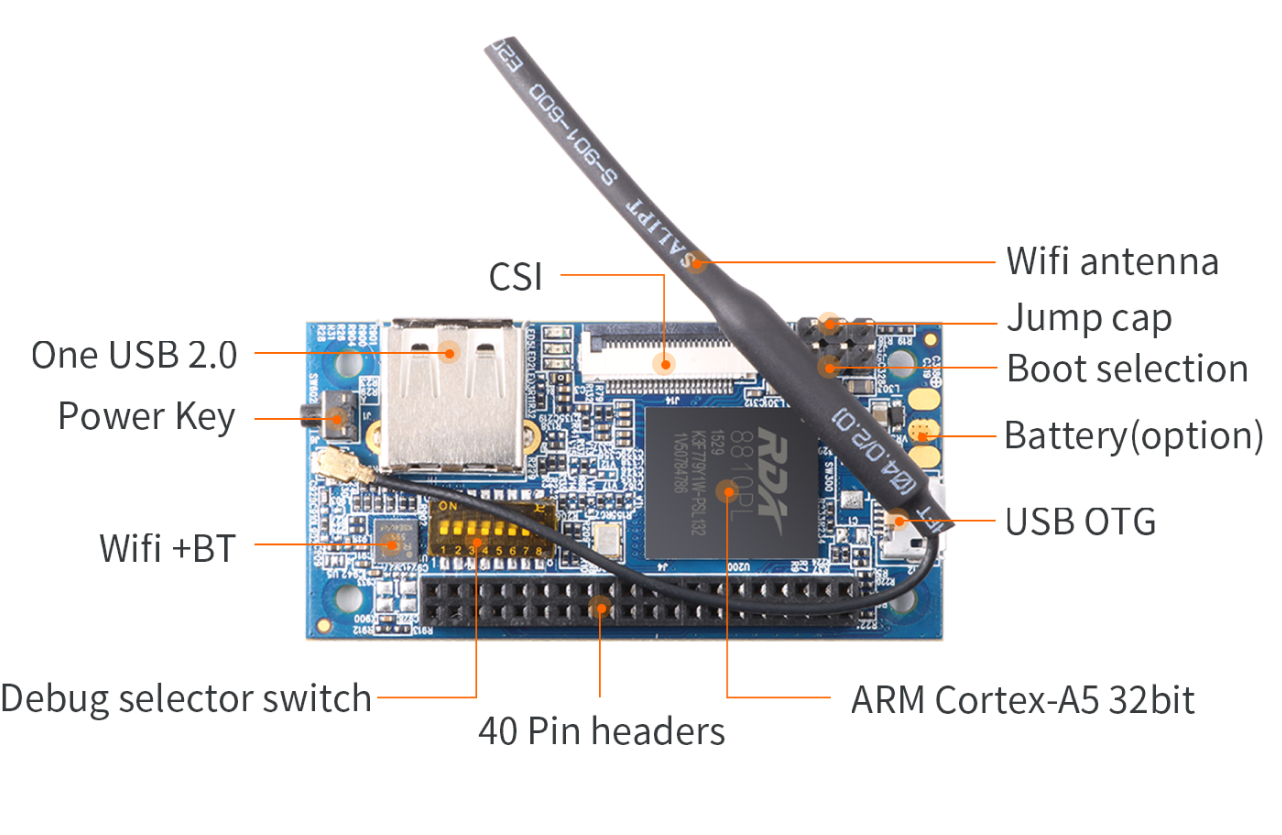

Top view

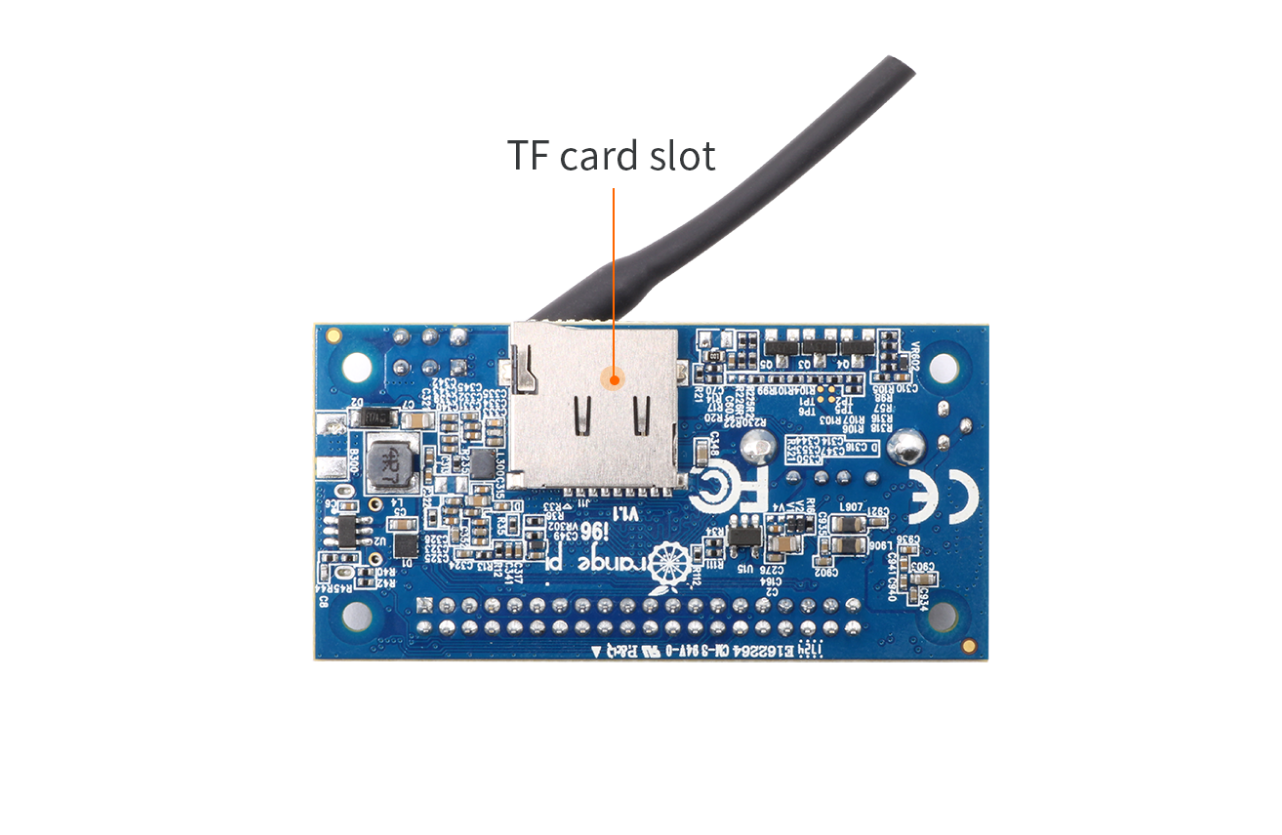

Bottom view

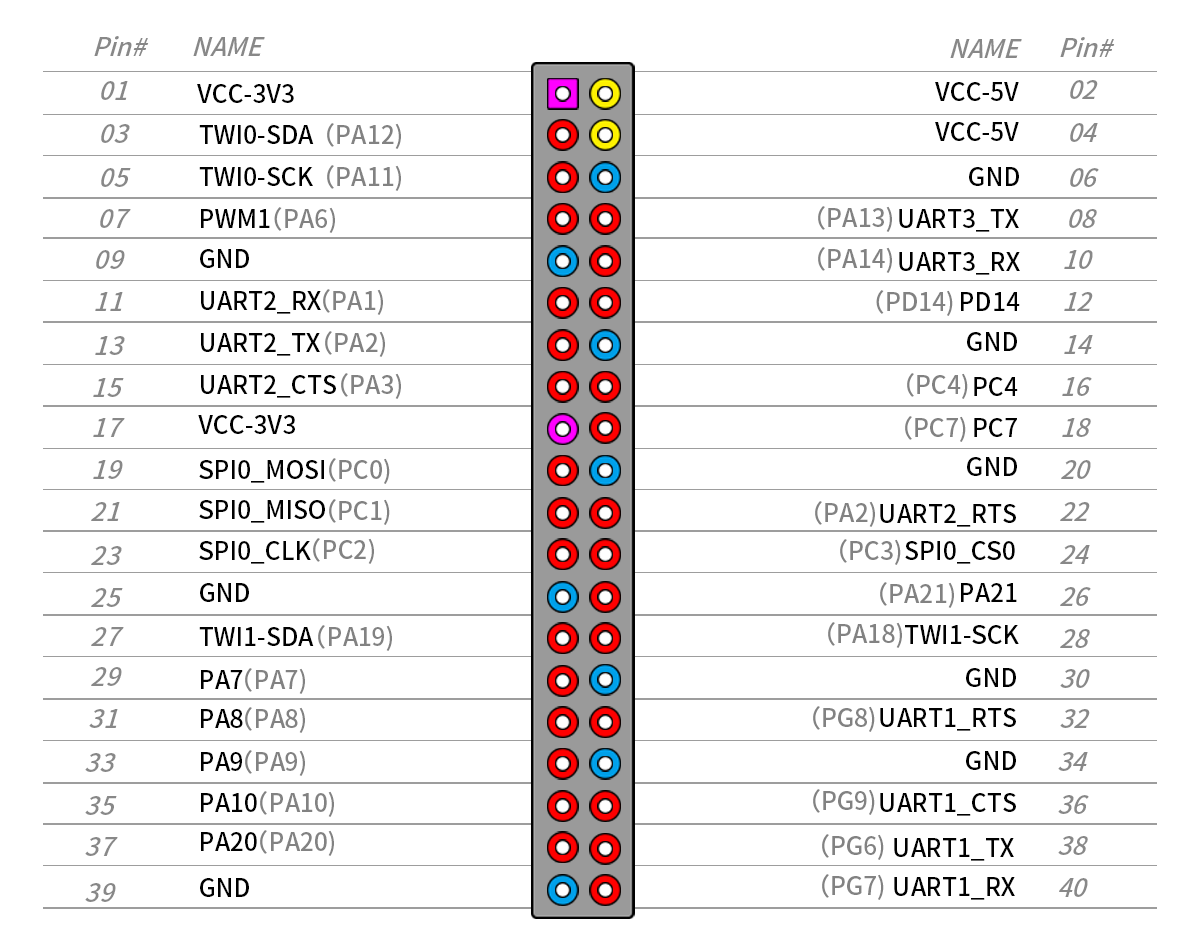

Orange Pi i96 v1.2 pinout diagram

Completely open source maker artifact

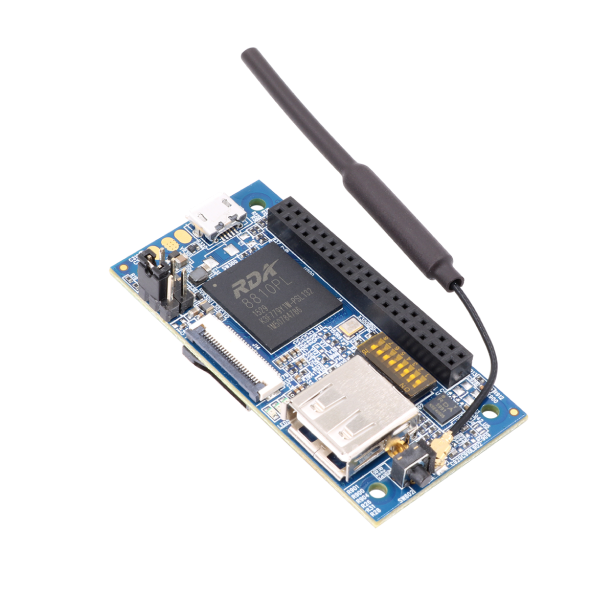

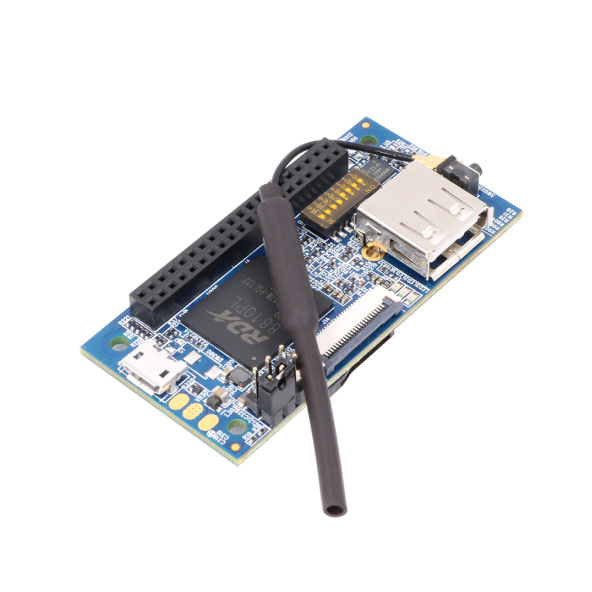

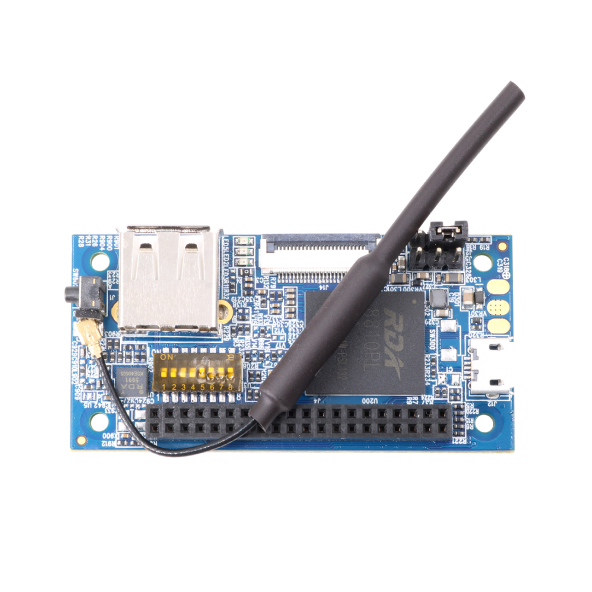

Product display

What can l do with Orange Pi i96?

You can use it to build-…

Pretty much anything else, because Orange Pi i96 is open source
