Orange Pi Lite2 is an open-source single-board computer with WiFi and Bluetooth4.1. It is highly compact with a dimension of 69X48mm.
Product introduction
-
USB3.0
-
Powered through USB-OTG
-
HDMI output
-
TF card
-
WiFi
-
Bluetooth
-
1GB LPDDR3 SDRAM
-
USB2.0
-
Multiple operating systems
-
26pin headers
It uses the Allwinner H6 SoC with Quad-core 64-bit ARM Cortex™-A53, and has 1GB LPDDR3 SDRAM (shared with GPU). It can run Android 7.0,Ubuntu,Debian image. Orange Pi Lite2 offers a range of different ports, including HDMI output, 26pin headers,USB 2.0, USB 3.0, CSI camera port, TF card slot, etc. It is powered through DC and USB-OTG.
Orange Pi Lite2 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
-
WiFi+Bluetooth 4.1
Enjoy wonderful network anytime and anywhere
-
Multiple functional interfaces
Integrates the popular HDMI, CSI camera port ,USB 3.0,USB-OTG,etc.
USB 3.0
Orange Pi Lite 2 LTS has upgraded USB capacity: along with two USB 2 ports,you'll find one USB 3 port, which can transfer data up to ten times faster.
Hardware specification
CPU | H6 Quad-core 64-bit ARM Cortex™-A53 |
GPU |
• High-performance multi-core GPU Mali T720 • OpenGL ES3.1/3.0/2.0/1.1 • Microsoft DirectX 11 FL9_3 • ASTC(Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS |
Memory (SDRAM) | 1GB LPDDR3 (shared with GPU) |
Onboard Storage | TF card (Max. 32GB) /MMC card slot |
WiFi+BT | AP6255, IEEE 802.11 AC/bb/g/n, BT4.1 |
Audio Input | MIC |
Audio Output | HDMI 2.0a |
Video Input | • A CSI input connector Camera: • Support 8 bit digital camera interface • Maximum still capture resolution for parallel interface to 5M • Maximum still capture resolution for parallel interface to 5M |
Video Decoding | • H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
• H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps • VP9,Profile 0/2, 4K@30fps • AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps |
Video Outputs | HDMI 2.0a TX with HDCP 2.2 output |
Power Source | DC input, USB OTG input can supply power |
PMU | AXP805 |
USB 2.0 Ports | One USB 2.0 Host, one Micro USB 2.0 |
USB 3.0 Ports | One USB 3.0 Host |
Low-level peripherals | 26 Pins Header |
GPIO(1x3) pin | UART, ground. |
LED | Power led & Status led |
IR Receiver | Yes |
Key | Power(K1) |
Supported OS | Android, Ubuntu, Debian |

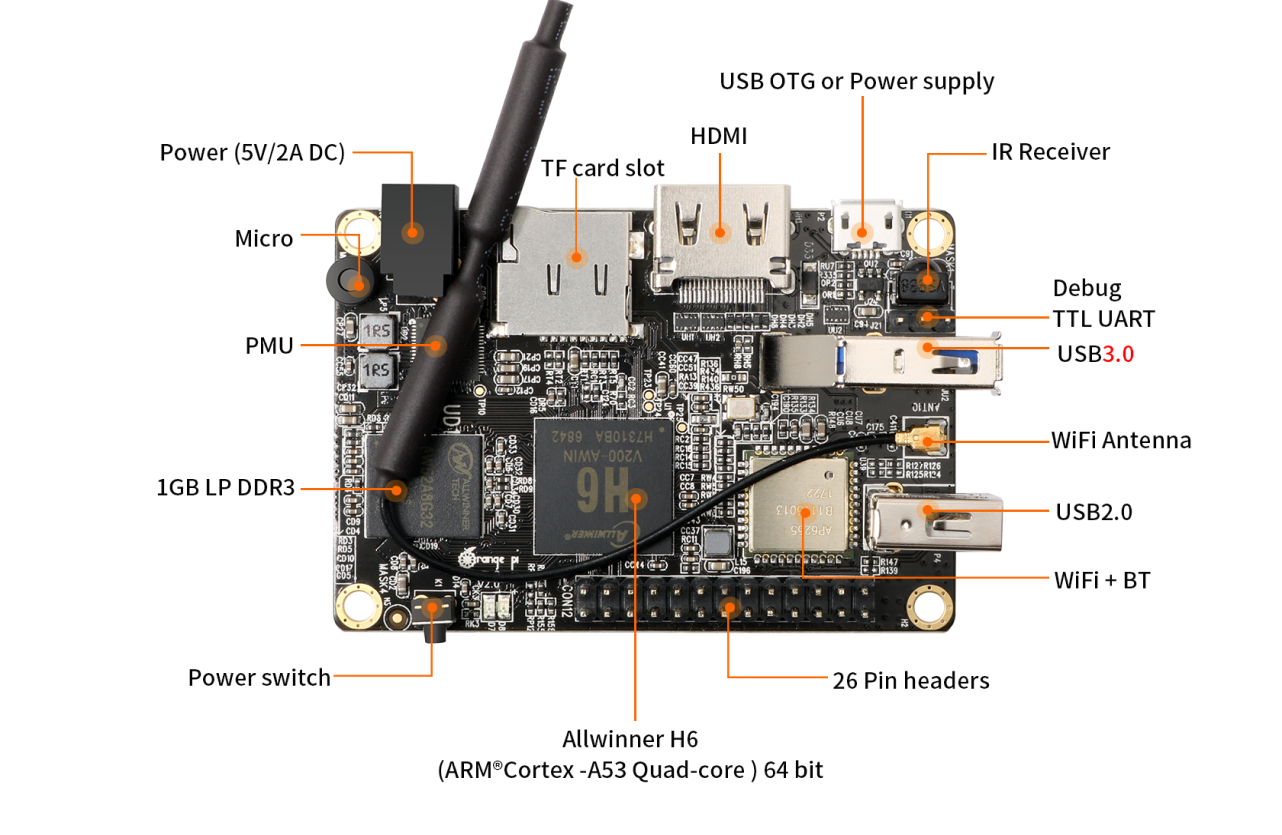

Interface definition
Product size | 69 mm × 48mm |
Weight | 50g |

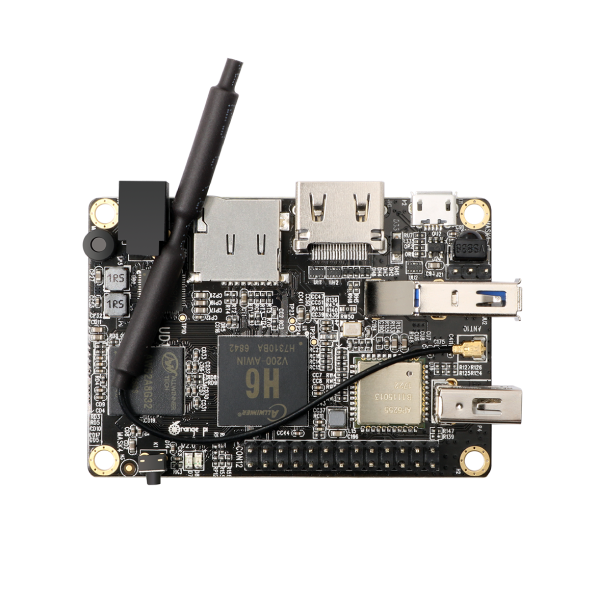

Top view

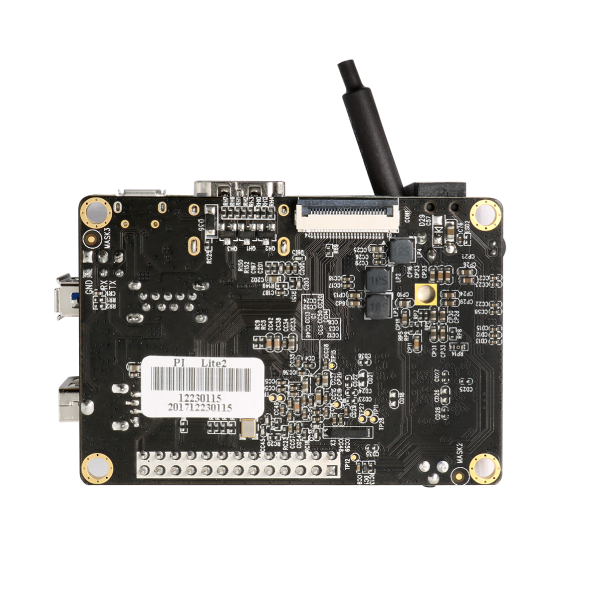

Bottom view

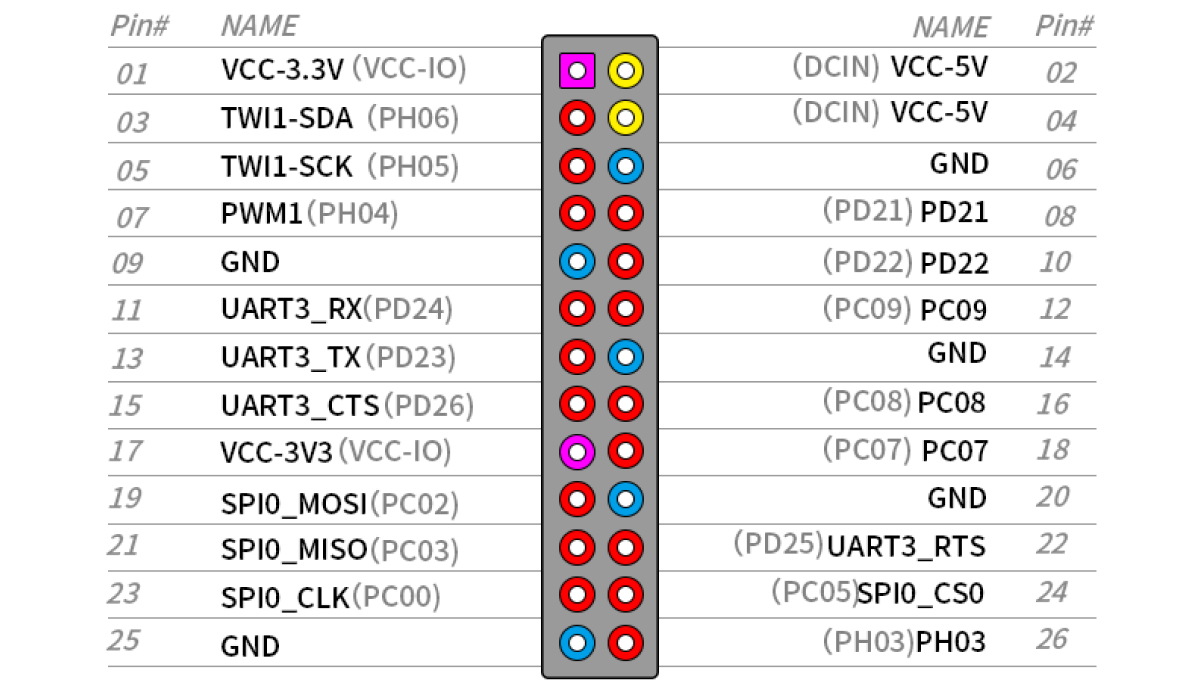

Orange Pi Lite2 v1.2 pinout diagram
-
Completely open source maker artifact
-
Orange Pi Lite2 runs Android
-
Orange Pi Lite2 runs Ubuntu
-
Orange Pi Lite2 runs Debian
-
Product display
-
Front
-
Back
-

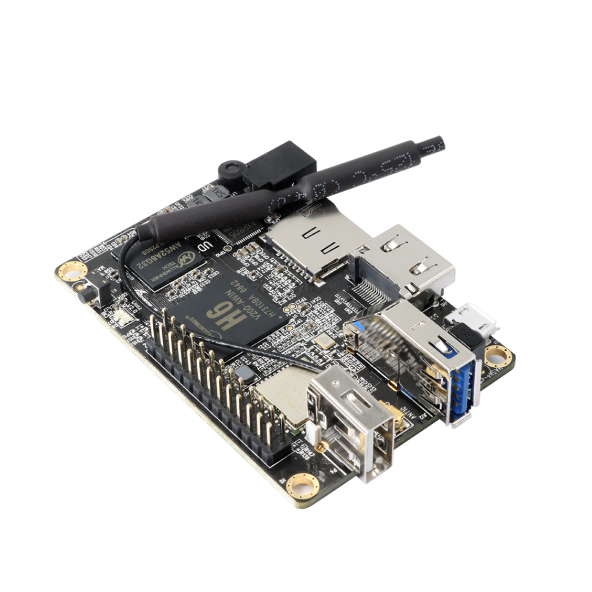

45° angle
-

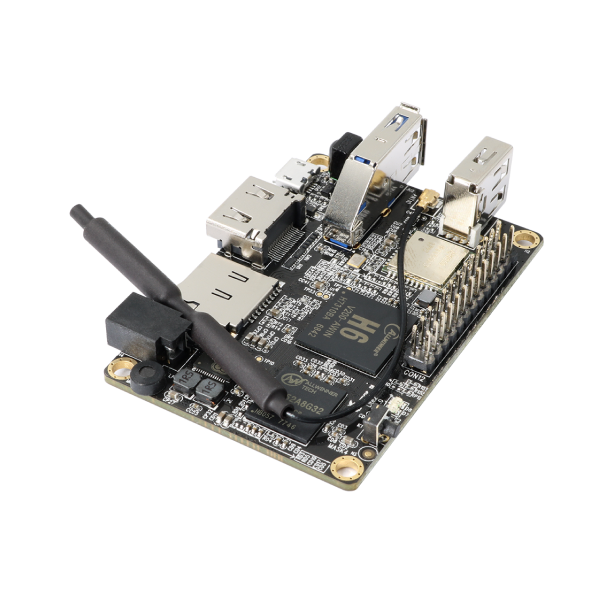

45° angle
What can l do with Orange Pi Lite2?
You can use it to build-…
Pretty much anything else, because Orange Pi Lite2 is open source
