Orange Pi Lite is an open-source single-board computer with wireless WiFi. It is highly compact with a dimension of 69X48mm.

Product introduction

  • WiFi
  • HDMI output
  • CSI camera port
  • 512MB/1GB DDR3 SDRAM
  • Multiple operating systems
  • USB 2.0
  • Powered through DC
  • Cortex-A7
  • TF card
  • 40pin headers

It uses the Allwinner H3 SoC with Quad-core Cortex-A7, and has 512MB/1GB DDR3 SDRAM. It can run Android 4.4,Ubuntu,Debian image. Orange Pi Lite offers a range of different ports, including HDMI output, 40pin headers,USB 2.0, CSI camera port, TF card slot, etc. It is powered through DC.

Orange Pi Lite is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Your choice of RAM

We're making different variants of the Orange Pi Lite available, depending on how much RAM you need — 512MB or1GB.

Hardware specification

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU • Mali400MP2 GPU @600MHz
• Supports OpenGL ES 2.0
Memory (SDRAM) 512MB/1GB DDR3 (shared with GPU)
Onboard Storage TF card (Max. 32GB) / MMC card slot
Wifi Antenna Yes
Video Input • A CSI input connector Camera:
• Supports 8-bit YUV422 CMOS sensor interface
• Supports CCIR656 protocol for NTSC and PAL
• Supports SM pixel camera sensor
• Supports video capture solution up to 1080p@30fps
Audio Input MIC
Video Outputs • Supports HDMI output with HDCP
• Supports HDMI CEC
• Supports HDMI 30 function
Audio Output HDMI
Power Source DC input, USB OTG input don't supply power
USB 2.0 Ports Two USB 2.0 HOST, one USB 2.0 OTG
Buttons Power button
Low-level peripherals 40 Pins Header
GPIO(1x3) pin UART, ground.
LED Power led & Status led
Key POWER
Supported OS Android Lubuntu, Debian Image

Interface definition

Product size 69mm × 48mm
Weight 60g

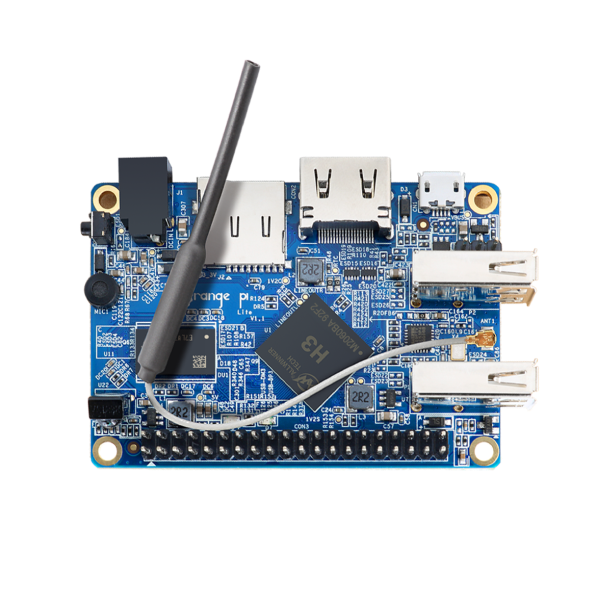

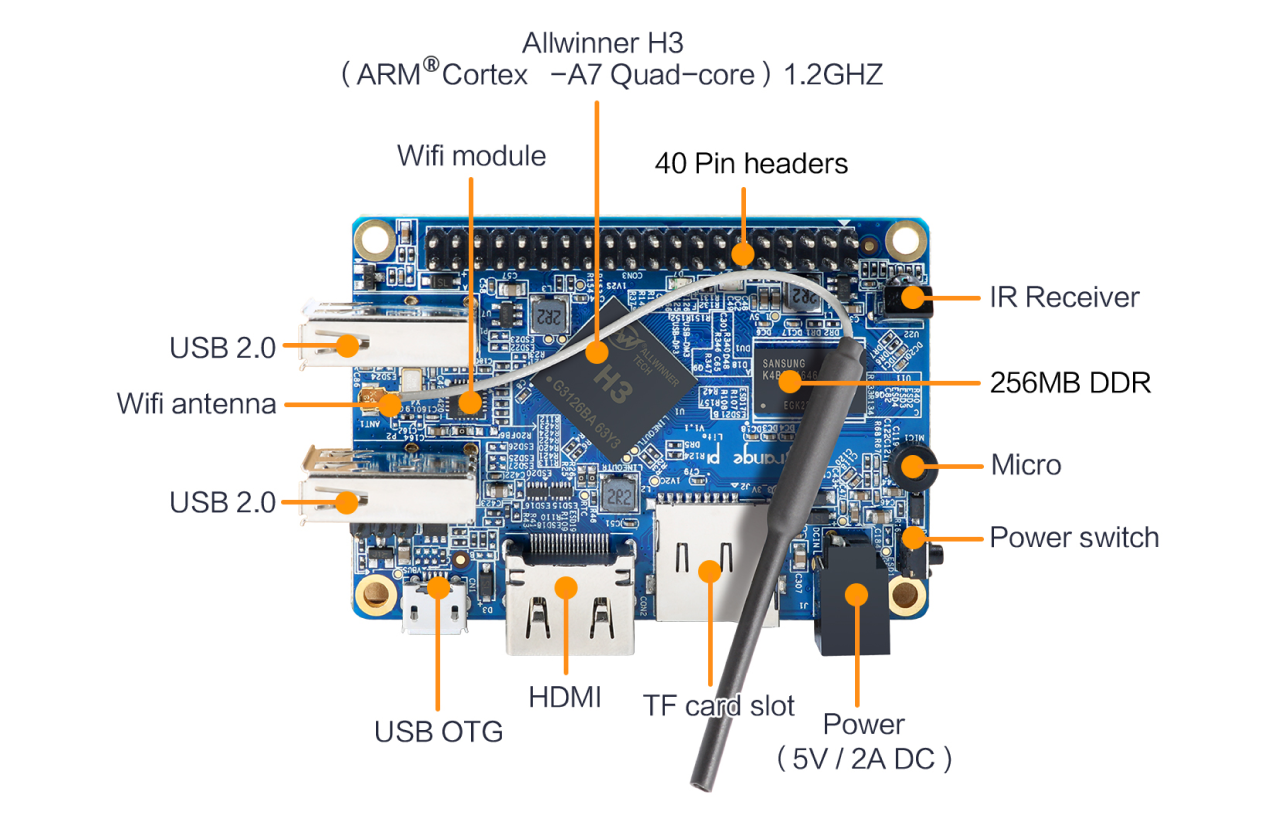

Top view

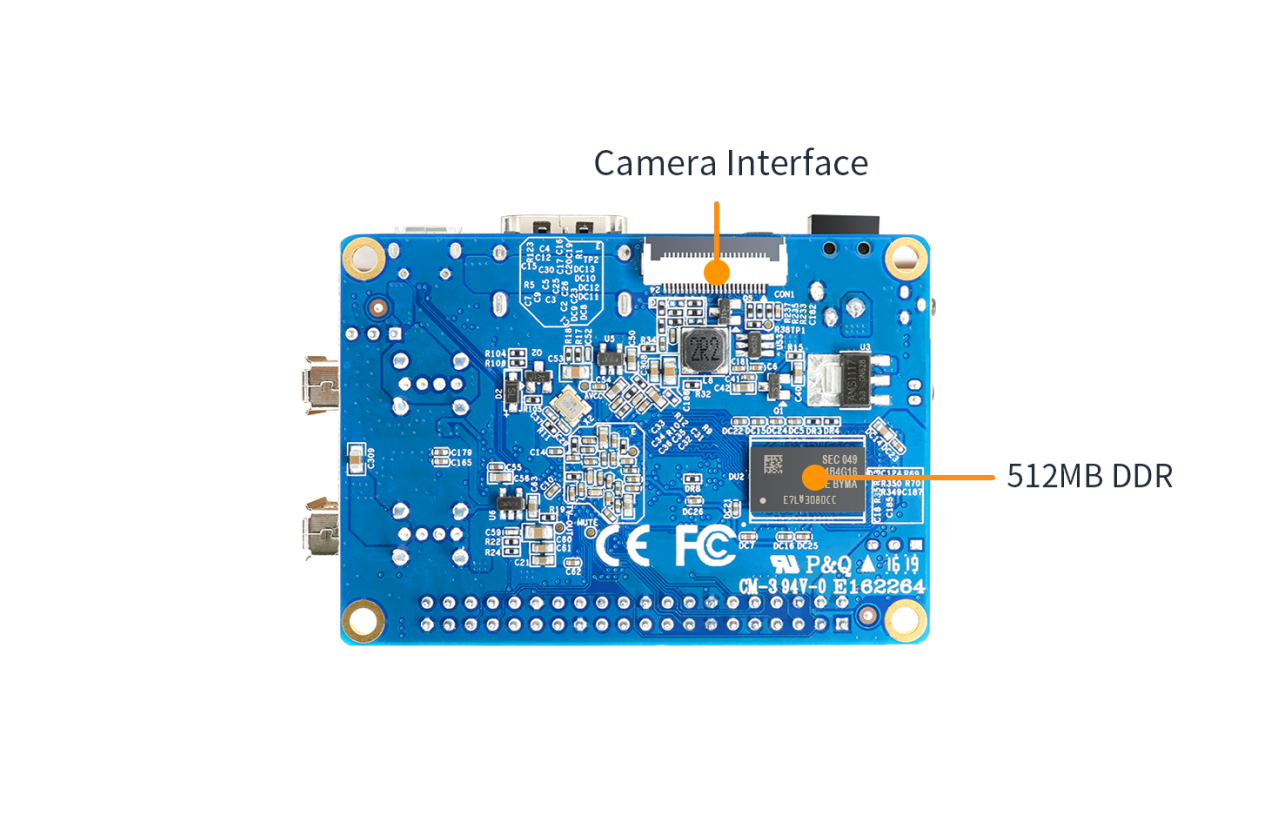

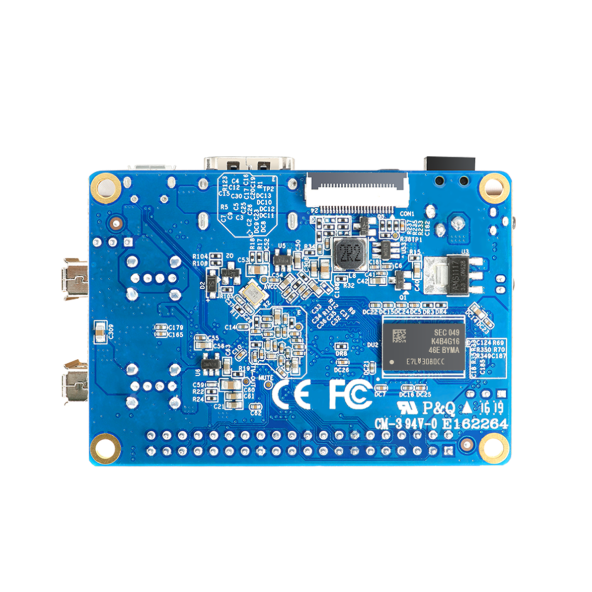

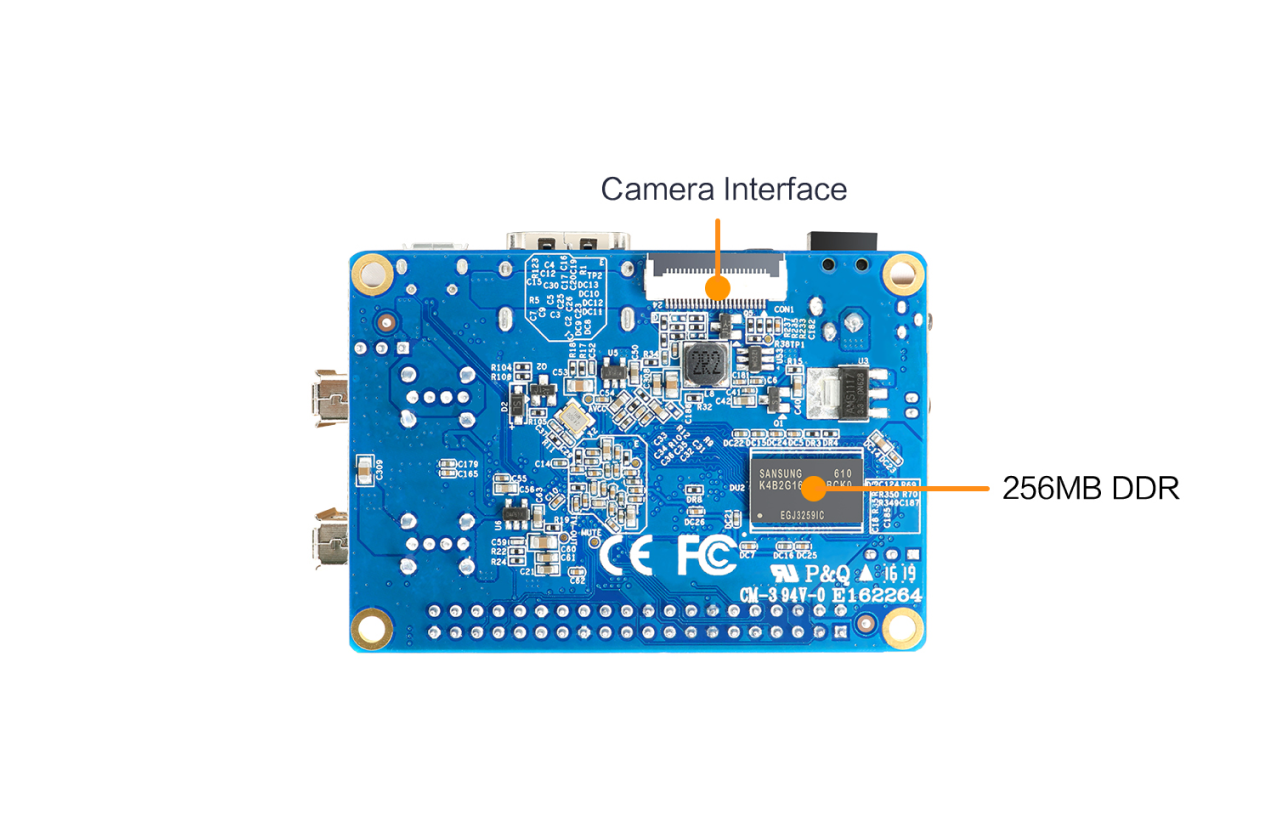

Bottom view

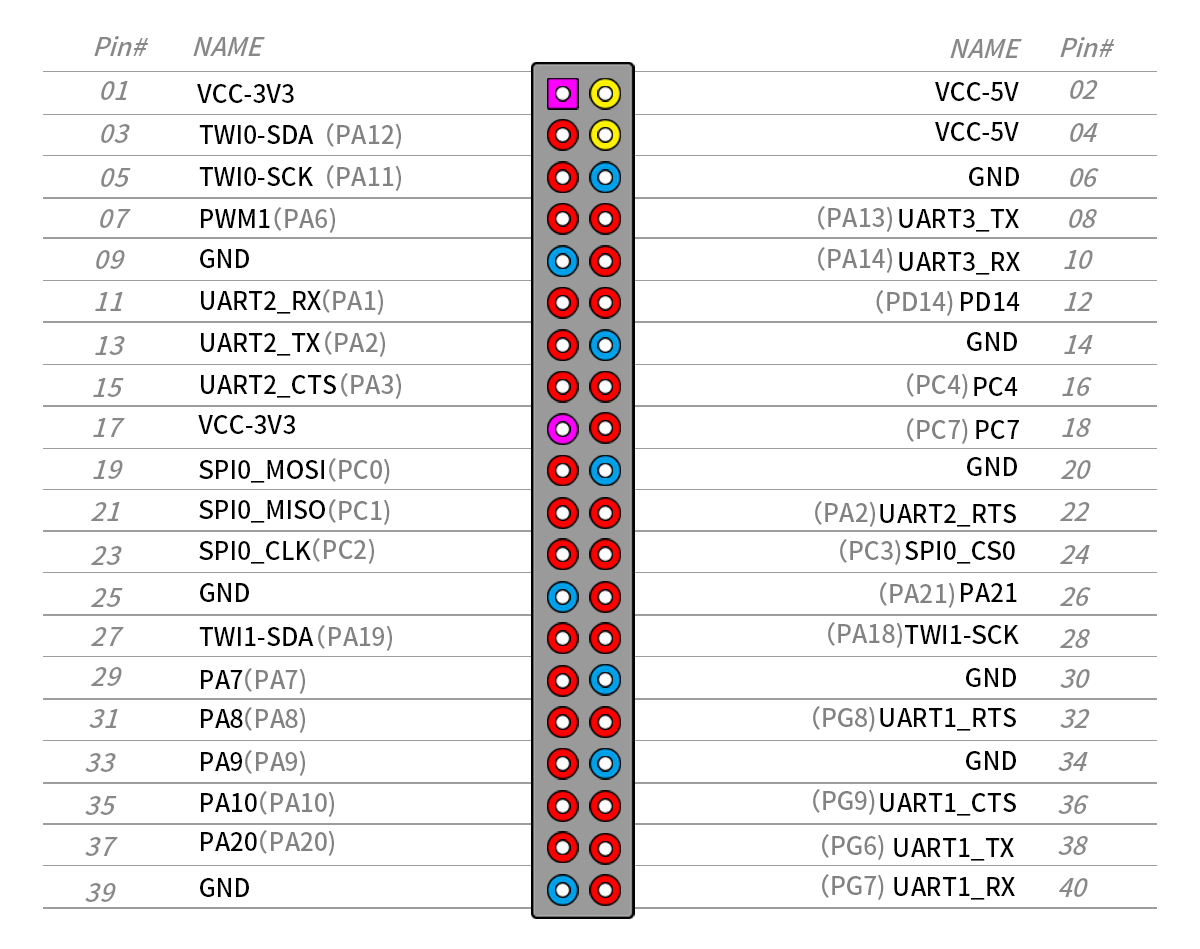

Orange Pi Lite v1.2 pinout diagram

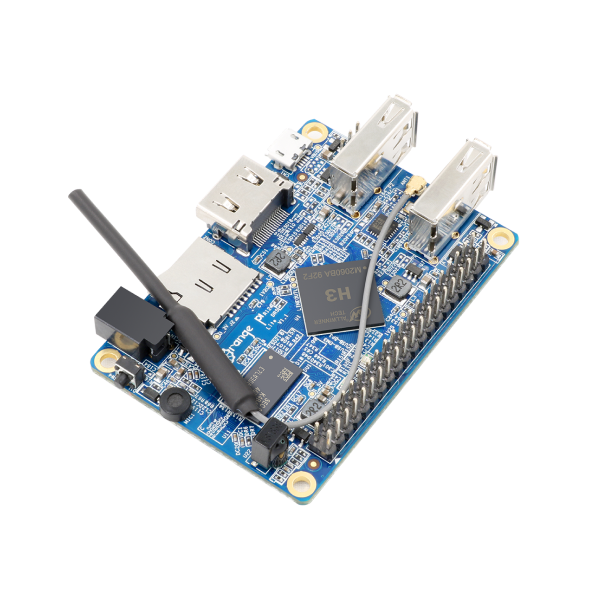

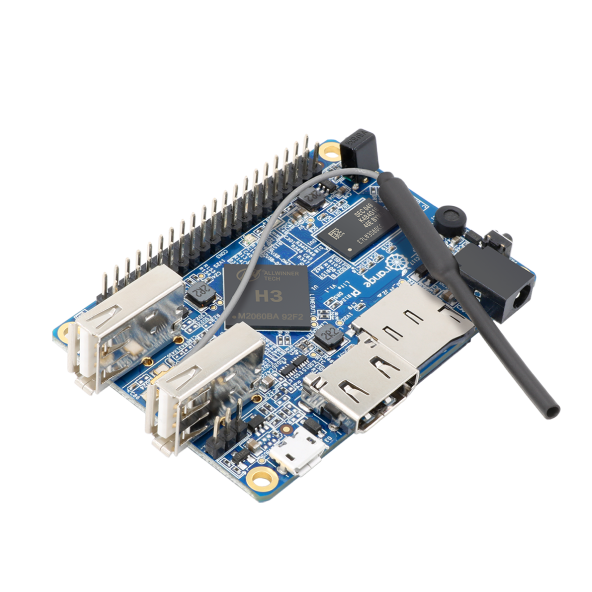

Product display

What can l do with Orange Pi Lite?

You can use it to build-…

Pretty much anything else, because Orange Pi Lite is open source
