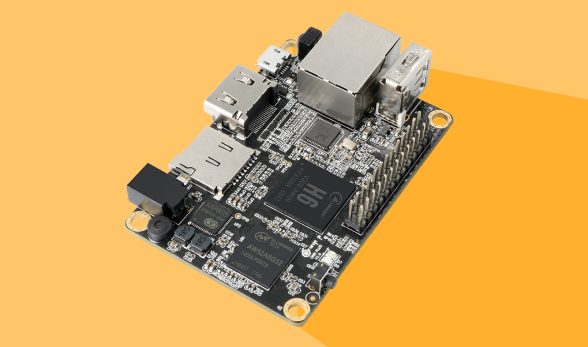

Orange Pi One Plus is an open-source single-board computer with Gigabit Ethernet port . It is highly compact with a dimension of 68X48mm. It can run Android 7.0, Ubuntu, Debian.
Product introduction
-
Cortex™-A53 -
HDMI output -
TF card -
1GB LPDDR3 SDRAM -
USB2.0 -
26pin headers -
Gigabit Ethernet port -
Multiple operating systems -
Powered through USB-OTG -
Powered through DC
Orange Pi One Plus uses the AllWinner H6 SoC with Quad-core 64-bit ARM Cortex™-A53, and has 1GB LPDDR3 (shared with GPU) SDRAM. It integrates Gigabit Ethernet port, HDMI output, USB 2.0 port, TF card slot, 26pin headers,etc. It is powered through DC and USB OTG.
Orange Pi One Plus is for anyone who wants to start creating with technology - not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
-
AllWinner H6 SoC， Powerful Performance
-
Multiple functional interfaces
Integrates the popular HDMI, Ethernet, USB-OTG,etc.
Gigabit Ethernet
Supports a maximum transmission rate of one gigabit per second (1,000 Mbps)
Hardware specification
| CPU | H6 Quad-core 64-bit ARM Cortex™-A53 |
| GPU |
• High-performance multi-core GPU Mali T720 • OpenGL ES3.1/3.0/2.0/1.1 • Microsoft DirectX 11 FL9_3 • ASTC(Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS |
| Memory (SDRAM) | 1GB LPDDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 32GB) /MMC card slot |
| Onboard Network | 10/100M/1000M Ethernet RJ45 |
| Network Chip | RTL8211 |
| Audio Input | MIC |
| Audio Output | HDMI 2.0a |
| Video Decoding | • H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
• H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps • VP9，Profile 0/2, 4K@30fps • AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps |
| Video Outputs | HDMI 2.0a TX with HDCP 2.2 output |
| Power Source | DC input, USB OTG input can supply power |
| PMU | AXP805 |
| USB 2.0 Ports | One USB 2.0 Host, one Micro USB 2.0 |
| Low-level peripherals | 26 Pins Header |
| GPIO(1x3) pin | UART, Ground. |
| LED | Power led & Status led |
| IR Receiver | Yes |
| Key | Power(K1) |
| Supported OS | Android, Ubuntu, Debian |
Interface definition
| Product size | 68 mm × 48mm |
| Weight | 45g |

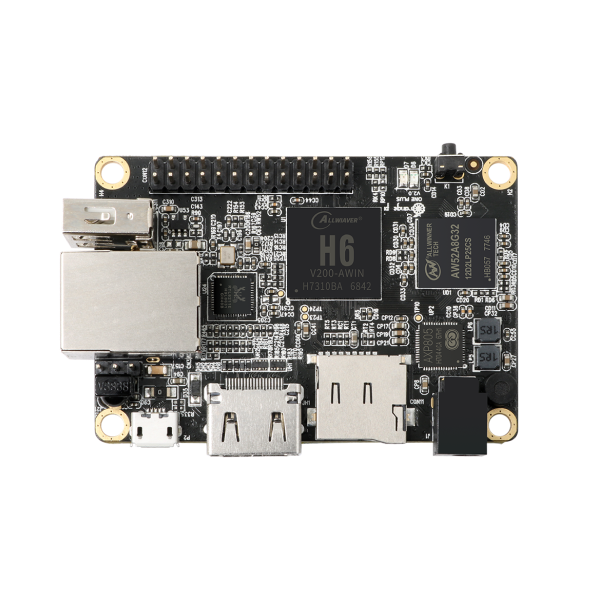

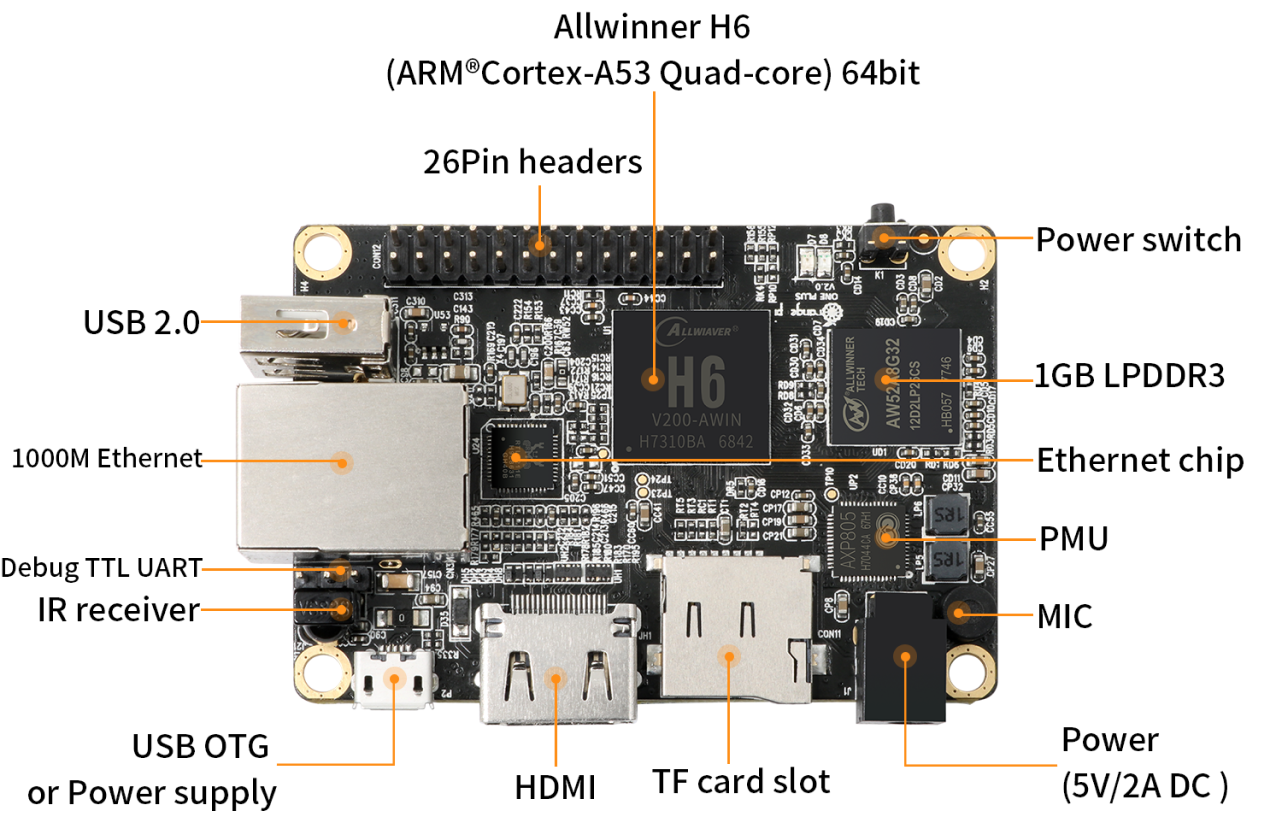

Top view

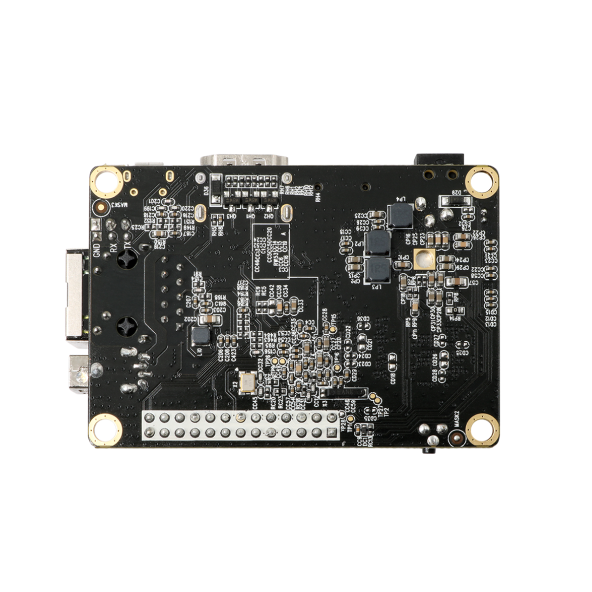

Bottom view

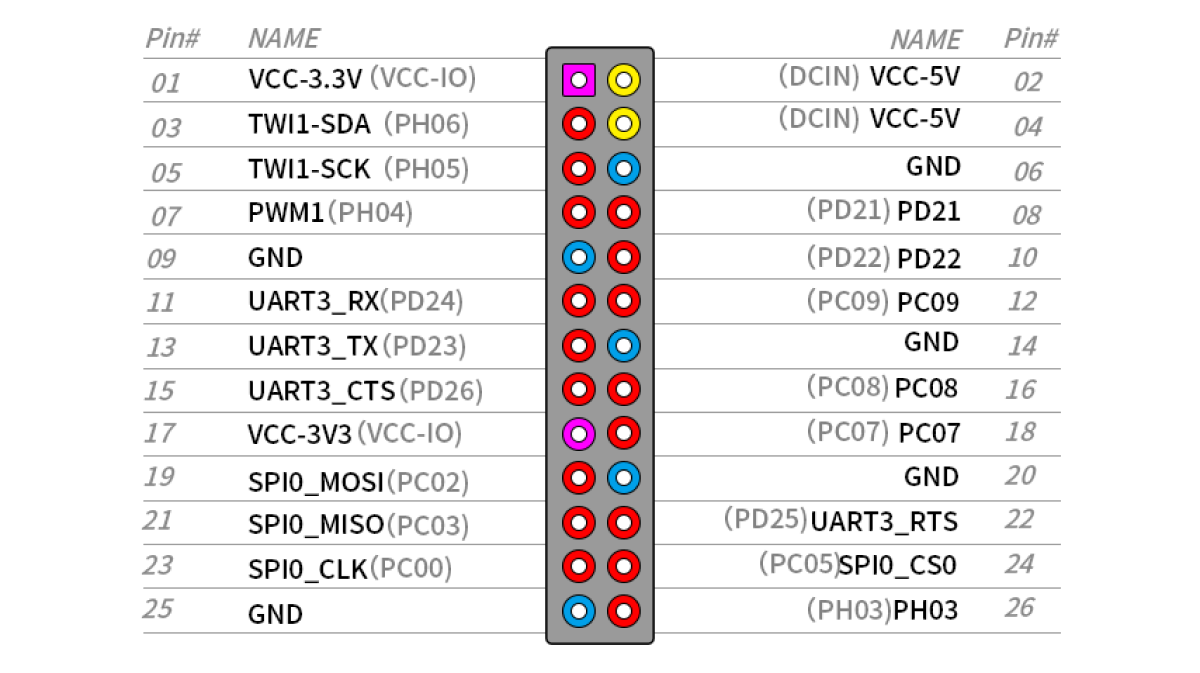

Orange Pi One Plus v1.2 pinout diagram
-
Completely open source maker artifact
-
Orange Pi One Plus runs Android
-
Orange Pi One Plus runs Ubuntu
-
Orange Pi One Plus runs Debian
-
Product display
-
Front -
Back -

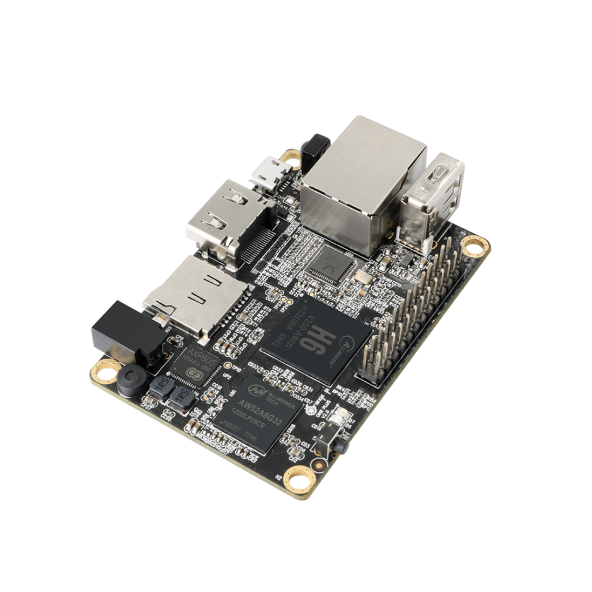

45° angle -

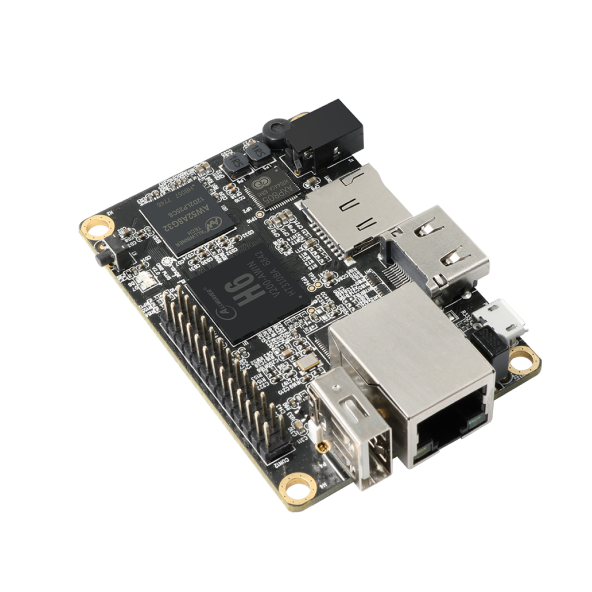

45° angle
What can l do with Orange Pi One Plus?
You can use it to build-…
Pretty much anything else, because Orange Pi One Plus is open source
