Orange Pi One is an open-source single-board computer. It is highly compact with a dimension of 69X48mm. It can run Android 4.4, Ubuntu, Debian Image.
Product introduction
-
Powered through DC
-
HDMI output
-
CSI camera port
-
TF card
-
USB2.0
-
40pin headers
-
100 Ethernet network
-
Multiple operating systems
Orange Pi One uses the AllWinner H2 SoC, with Quad-core 32-bit Cortex-A7 and 256MB/512MB DDR3 (shared with GPU). It integrates USB 2.0 port, TF card slot, 26 pin headers etc. It is powered through USB OTG.
![](../../../../img/computersAndMmicrocontrollers/One/product.png)
Orange Pi One is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
GPU |
• Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
Memory (SDRAM) | 512MB/1GB DDR3 (shared with GPU) |
Onboard Storage | TF card (Max. 32GB) / MMC card slot |
Onboard Network | 10/100M Ethernet RJ45 |
Video Input | • A CSI input connector Camera: • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps |
Video Outputs | • Supports HDMI output with HDCP • Supports HDMI CEC • Supports HDMI 30 function • Supports simultaneous output of HDMI |
Power Source | DC input can supply power, but USB OTG input don’t supply power |
USB 2.0 Ports | Only One USB 2.0 HOST, one USB 2.0 OTG |
Buttons | Power Button(SW4) |
Low-level peripherals | 40 Pins Header |
LED | Power led & Status led |
Key | POWER |
Supported OS | Android Ubuntu, Debian Image |
Interface definition
Product size | 69 mm × 48mm |
Weight | 36g |
Top view
![](../../../../img/computersAndMmicrocontrollers/One/Rectangle 740.png)
Bottom view
![](../../../../img/computersAndMmicrocontrollers/One/Rectangle 641.png)
Orange Pi One v1.2 pinout diagram
![](../../../../img/computersAndMmicrocontrollers/One/Rectangle 741.png)
-
Completely open source maker artifact
-
Orange Pi One runs Android
-
Orange Pi One runs Ubuntu
-
Orange Pi One runs Debian
-
Product display
-

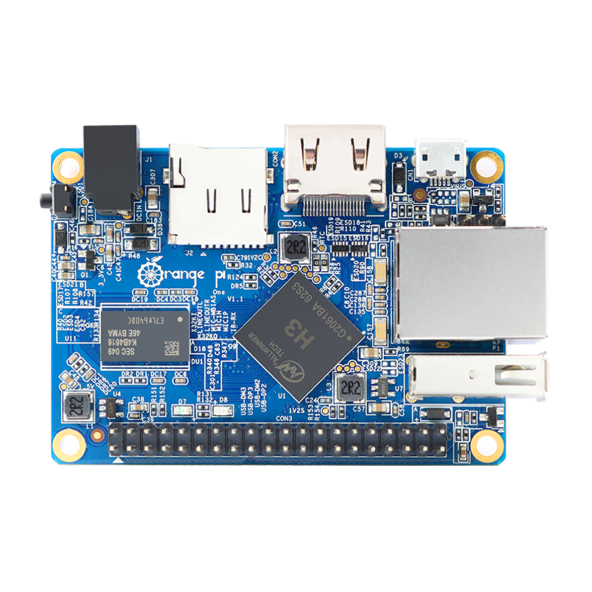

Front
-

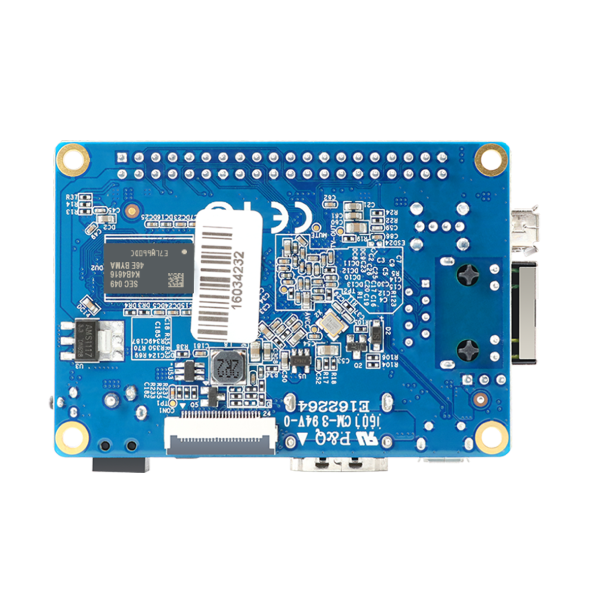

Back
-

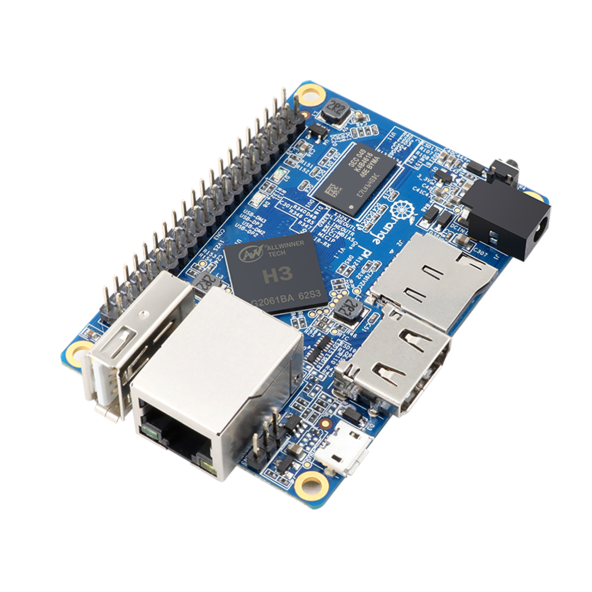

45° angle
-
45° angle
What can l do with Orange Pi One?
You can use it to build-…
Pretty much anything else, because Orange Pi One is open source
