Orange Pi PC2 is an open-source single-board computer with Gigabit Ethernet port .It uses the Allwinner H5 SoC with Quad-core 64-bit Cortex-A53, has 1GB DDR3 SDRAM((shared with GPU), and can run Android 5.1, Ubuntu, Debian Image.
Product introduction
-
Cortex-A53
-
1GB DDR3 SDRAM
-
HDMI output
-
CSI camera port
-
3 * USB2.0
-
Powered through DC
-
TF card
-
Gigabit Ethernet port
-
40pin headers
-
Multiple operating systems
Orange Pi PC2 offers a range of different ports, including CSI camera port ,HDMI output, 40pin headers, Gigabit Ethernet port,USB2.0,etc. It is powered through DC.
![](../../../../img/computersAndMmicrocontrollers/Pc2/product.png)
Orange Pi PC2 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU | • H5 High Performance Quad-core 64-bit Cortex-A53 • Integrated multimedia acceleration engine • Hardware Java acceleration • Integrated hardware floating-point coprocessor |
GPU |
• Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage • High Performance Hexa-core Mali450 • OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL • 40 GFlops, Pixel fill rate greater than 2.7GPixel/s |
Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
Onboard Storage | TF card (Max. 32GB) / NOR flash(2MB) |
Onboard Network | 1000M/100M Ethernet RJ45 |
Video Input | • A CSI input connector Camera: • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps |
Audio Input | MIC |
Video Outputs | • Supports HDMI output with HDCP • Supports HDMI CEC • Supports HDMI 30 function • Integrated CVBS • Supports simultaneous output of HDMI and CVBS |
Audio Output | 3.5 mm Jack and HDMI |
Power Source | DC input can supply power, but USB OTG input don’t supply power |
USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG |
Buttons | Power Button(SW4) |
Low-level peripherals | 40 Pins Header |
GPIO(1x3) pin | UART, Ground. |
LED | Power led & Status led |
Key | IR input, Power |
Supported OS | Android, Ubuntu, Debian |
Interface definition
Product size | 85 mm × 55mm |
Weight | 70g |
Top view
![](../../../../img/computersAndMmicrocontrollers/PC240.png)
Bottom view
![](../../../../img/computersAndMmicrocontrollers/Pc2/Rectangle 641.png)

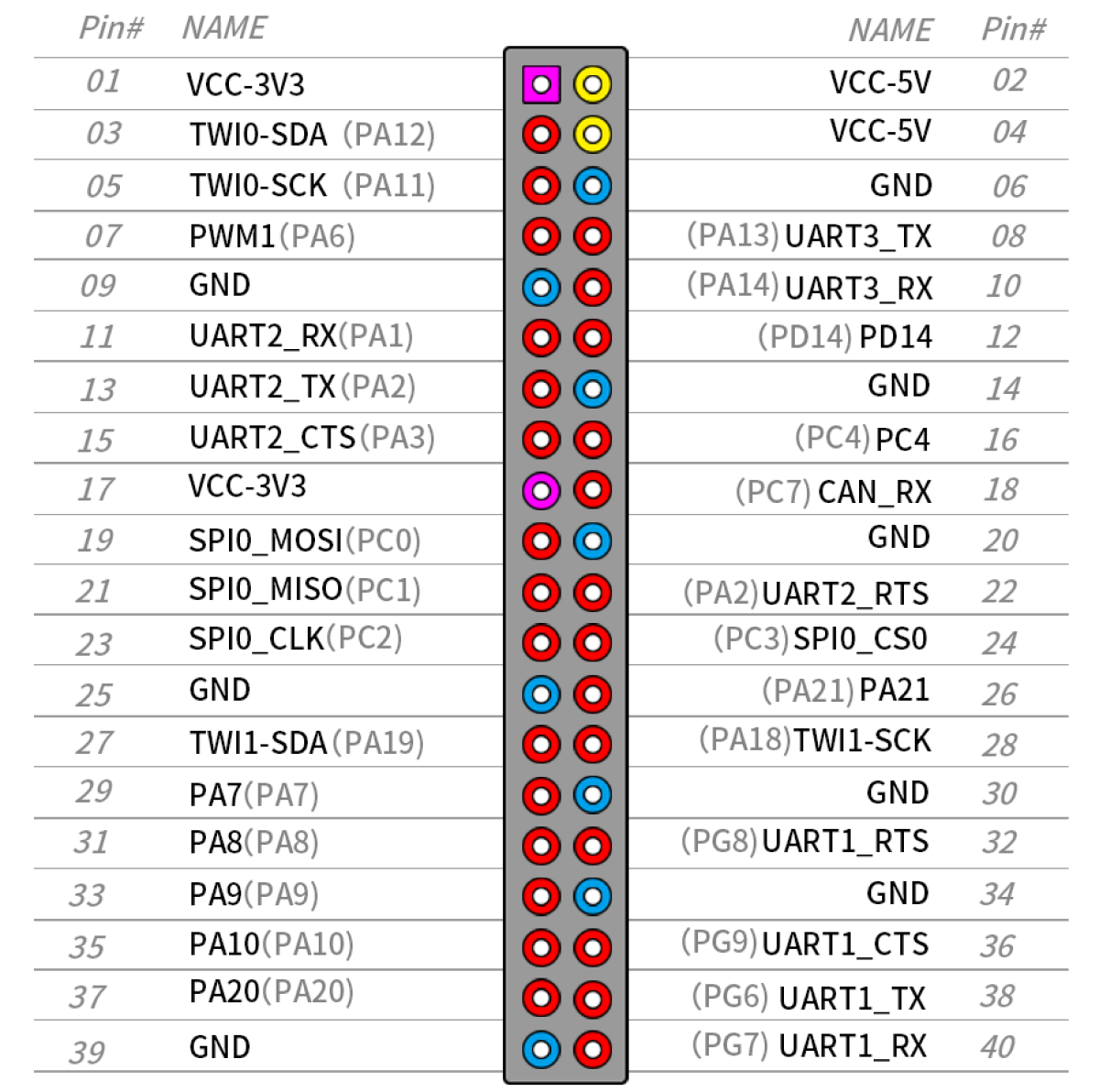

Orange Pi PC2 v1.2 pinout diagram
![](../../../../img/computersAndMmicrocontrollers/Pc2/Rectangle 741.png)
-
Completely open source maker artifact
-
Orange Pi PC2 runs Android
-
Orange Pi PC2 runs Ubuntu
-
Orange Pi PC2 runs Debian
-
Product display
-

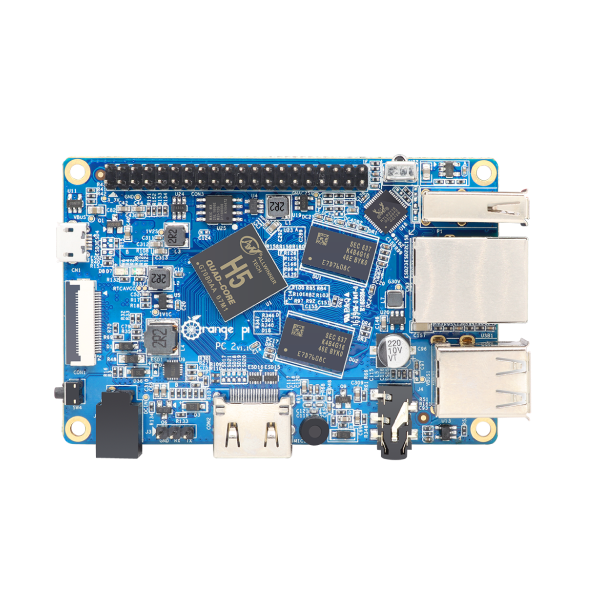

Front
-

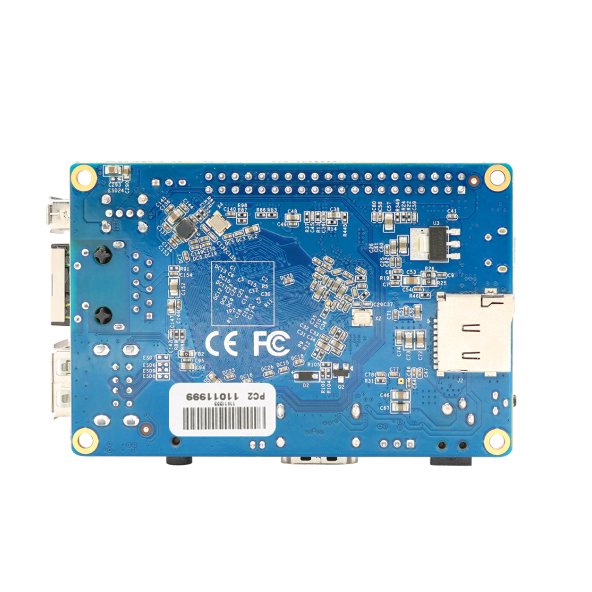

Back
-

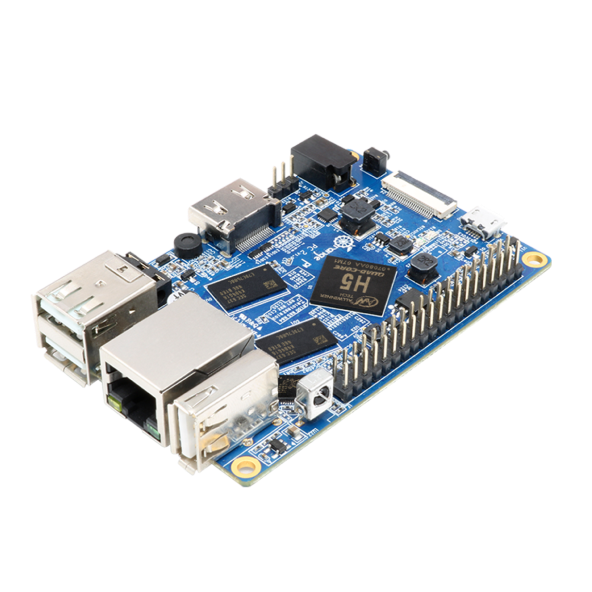

45° angle
-

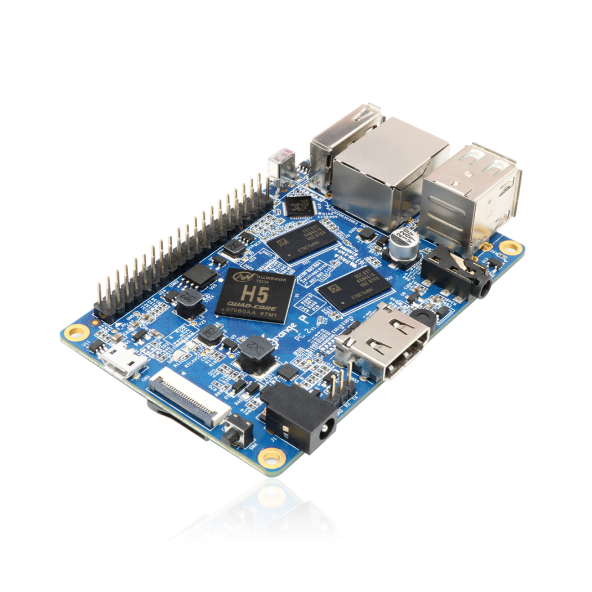

45° angle
What can l do with Orange Pi PC2?
You can use it to build-…
Pretty much anything else, because Orange Pi PC2 is open source
