Orange Pi PC is an open-source single-board computer .It uses the Allwinner H3 SoC with Quad-core Cortex-A7, has 1GB LPDDR3 SDRAM, and can run Android 4.4, Ubuntu, Debian Image.

Product introduction

  • Cortex-A7
  • 1GB DDR3 SDRAM
  • HDMI output
  • CSI camera port
  • USB2.0
  • Powered through DC
  • TF card
  • 100M Ethernet port
  • 40pin headers
  • Multiple operating systems

Orange Pi PC offers a range of different ports, including CSI camera port ,HDMI output, 40pin headers, 100M Ethernet port,USB2.0,etc. It is powered through DC.

Orange Pi PC is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Hardware specification

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU • Mali400MP2 GPU @600MHz
• Supports OpenGL ES 2.0
Memory (SDRAM) 1GB DDR3 (shared with GPU)
Onboard Storage TF card (Max. 32GB) / MMC card slot
Onboard Network 10/100M Ethernet RJ45
Video Input • A CSI input connector Camera:
• Supports 8-bit YUV422 CMOS sensor interface
• Supports CCIR656 protocol for NTSC and PAL
• Supports SM pixel camera sensor
• Supports video capture solution up to 1080p@30fps
Audio Input MIC
Video Outputs • Supports HDMI output with HDCP
• Supports HDMI CEC
• Supports HDMI 30 function
• Integrated CVBS
• Supports simultaneous output of HDMI and CVBS
Audio Output 3.5 mm Jack and HDMI
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG
Buttons Power Button(SW4)
Low-level peripherals 40 Pins Header
GPIO(1x3) pin UART, ground.
LED Power led & Status led
Key IR input, POWER
Supported OS Android Ubuntu, Debian Image

Interface definition

Product size 85 mm × 55mm
Weight 38g

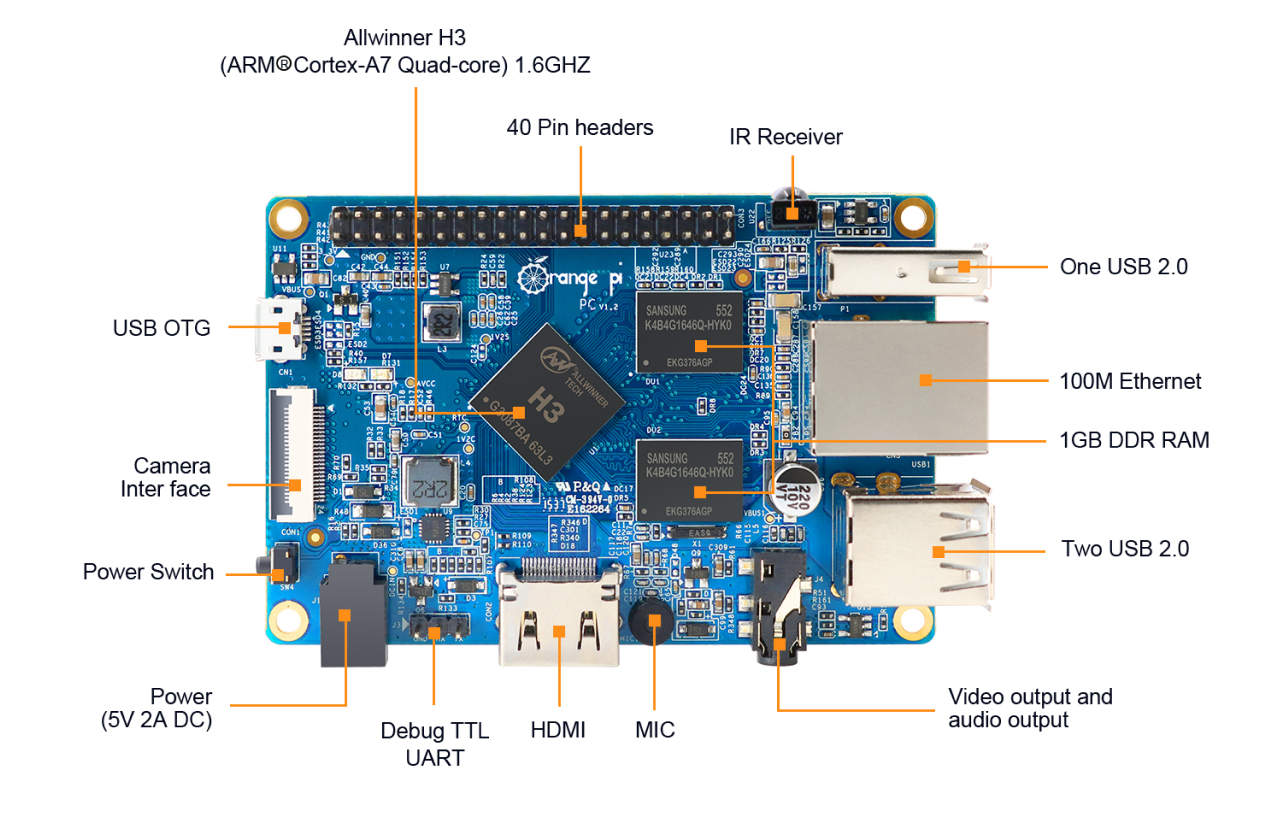

Top view

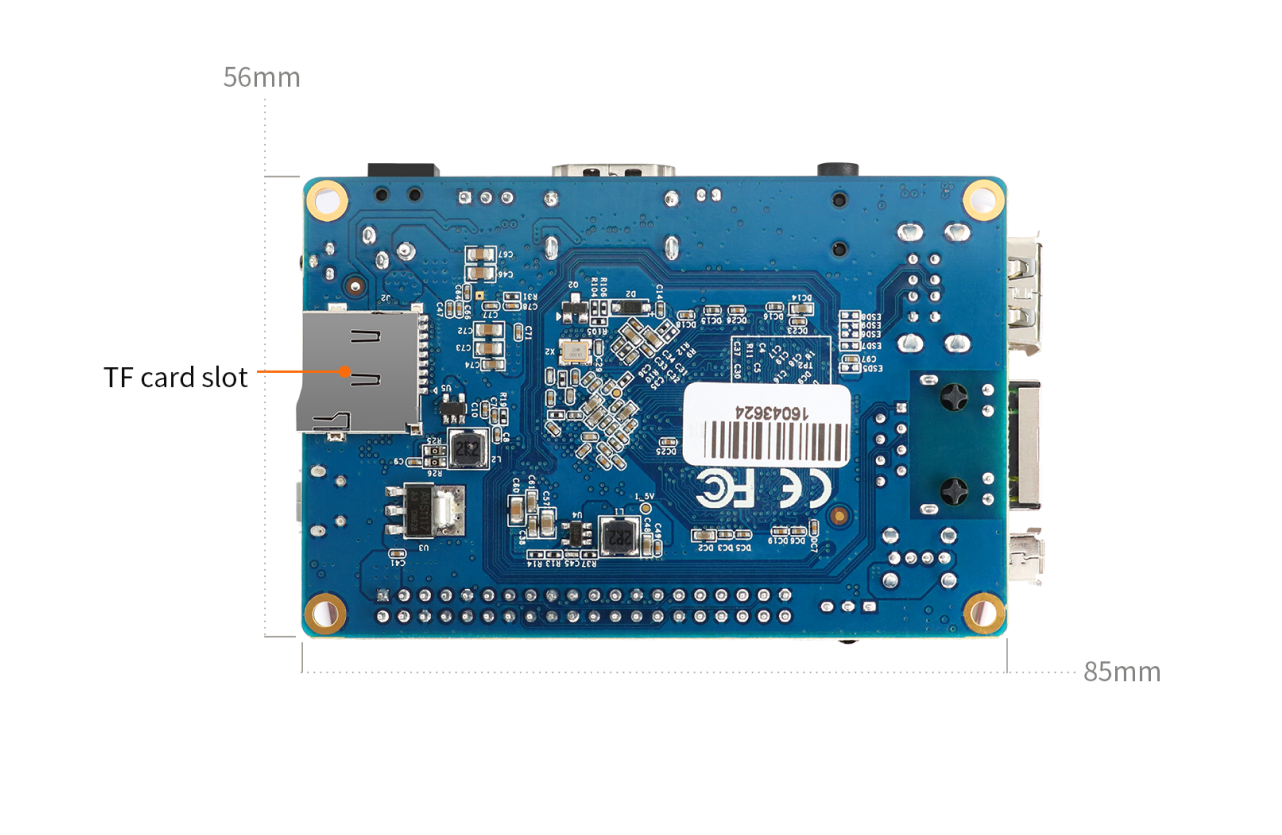

Bottom view

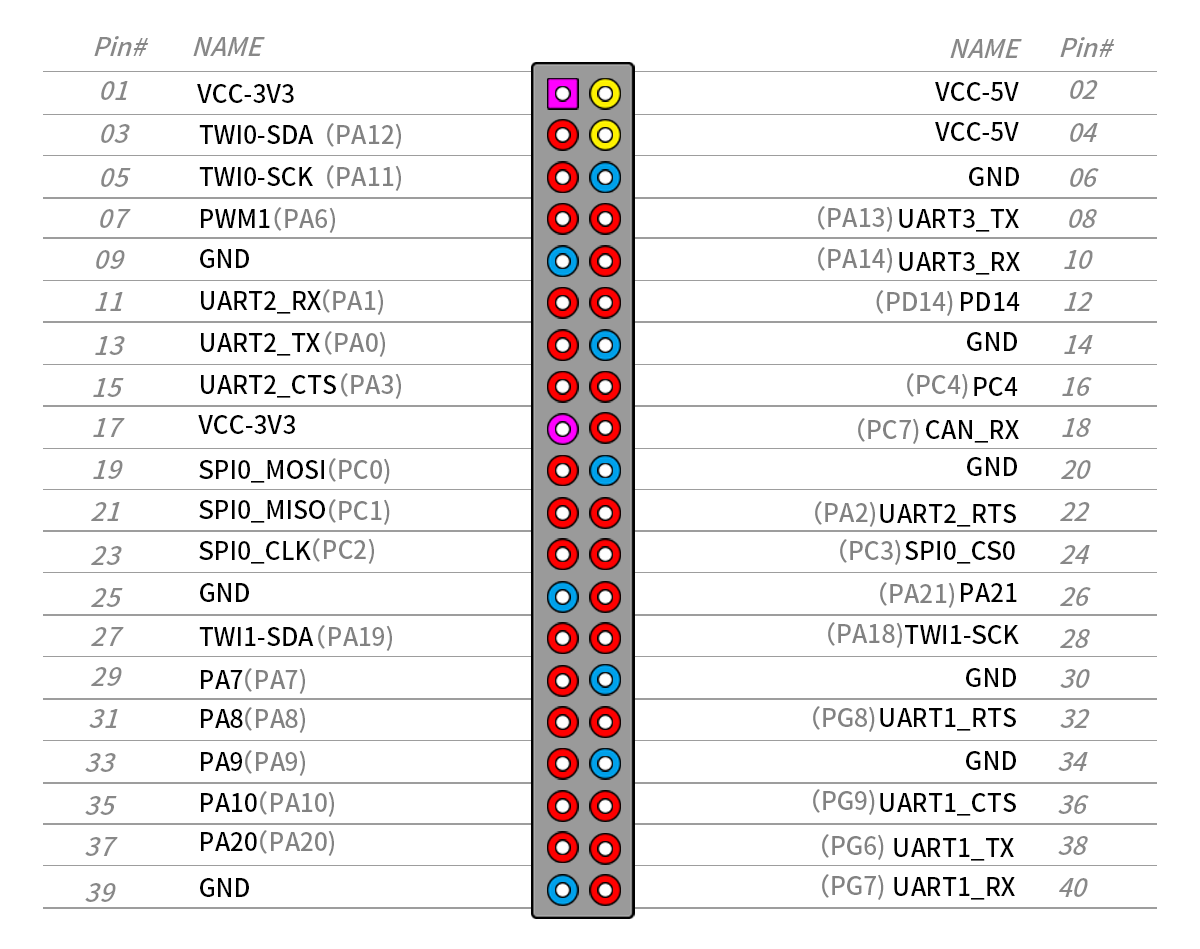

Orange Pi PC v1.2 pinout diagram

Product display

What can l do with Orange Pi PC?

You can use it to build-…

Pretty much anything else, because Orange Pi PC is open source
