Orange Pi Plus 2E

Amazon Store BUY

Orange Pi Plus 2E is an open-source single-board computer with Gigabit Ethernet port . It is highly compact with a dimension of 60X93mm. It can run Android 4.4 , Ubuntu, Debian Image.

Product introduction

  • Multiple operating systems
  • HDMI output
  • CSI camera port
  • Cortex-A7
  • TF card
  • Gigabit Ethernet port
  • WiFi
  • Powered through DC
  • 40pin headers
  • USB 2.0

Orange Pi Plus 2E uses the AllWinner H3 SoC with Quad-core Cortex-A7, and has 2GB DDR3 SDRAM with 16GB EMMC Flash. It integrates Gigabit Ethernet port, HDMI output, CSI camera port,USB 2.0 port, TF card slot, 40pin headers,etc. It is powered through DC.

Orange Pi Plus 2E is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

AllWinner H3 SoC,Powerful Performance

Multiple Functional Interfaces

Integrates the popular HDMI, Ethernet, USB-OTG,etc.

Hardware specification

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU • Mali400MP2 GPU @600MHz
• Supports OpenGL ES 2.0
Memory (SDRAM) 2GB DDR3 (shared with GPU)
Onboard Storage • TF card (Max. 32GB) / MMC card slot
• 16GB EMMC Flash
Onboard Network 10/100/1000M Ethernet RJ45
Onboard WiFi Realtek RTL8189ETV, IEEE 802.11 b/g/n
Video Input • A CSI input connector Camera:
• Supports 8-bit YUV422 CMOS sensor interface
• Supports CCIR656 protocol for NTSC and PAL
• Supports SM pixel camera sensor
• Supports video capture solution up to 1080p@30fps
Audio Input MIC
Video Outputs • Supports HDMI output with HDCP
• Supports HDMI CEC
• Supports HDMI 30 function
• Integrated CVBS
• Supports simultaneous output of HDMI and CVBS
Audio Output 3.5 mm Jack and HDMI
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG
Buttons Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)
Low-level peripherals 40 Pins Header
GPIO(1x3) pin UART, ground.
LED Power led & Status led
Other IR input
Supported OS Android, Ubuntu, Debian

Interface definition

Product size 60mm × 93mm
Weight 83g

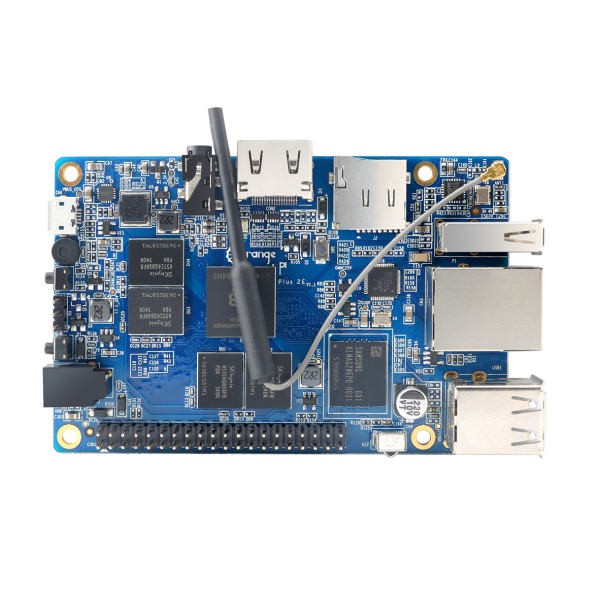

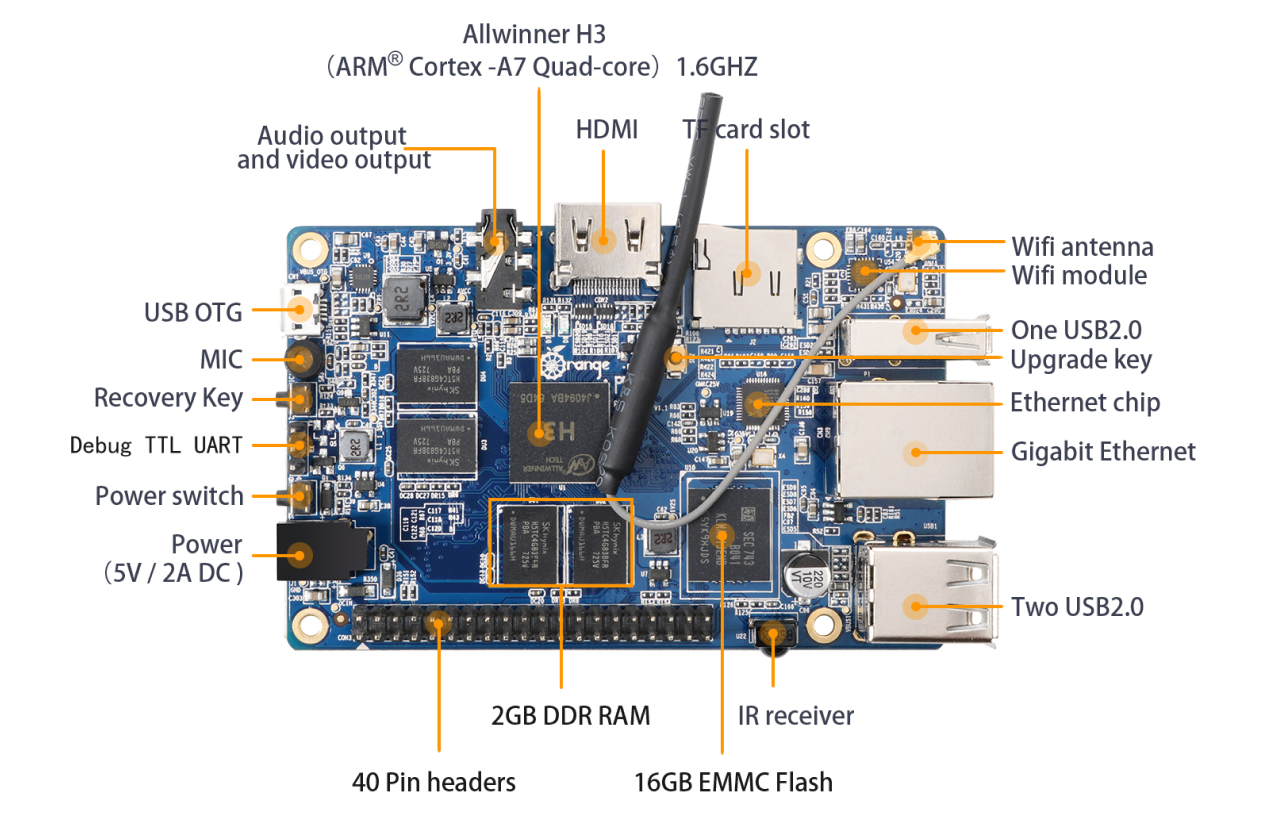

Top view

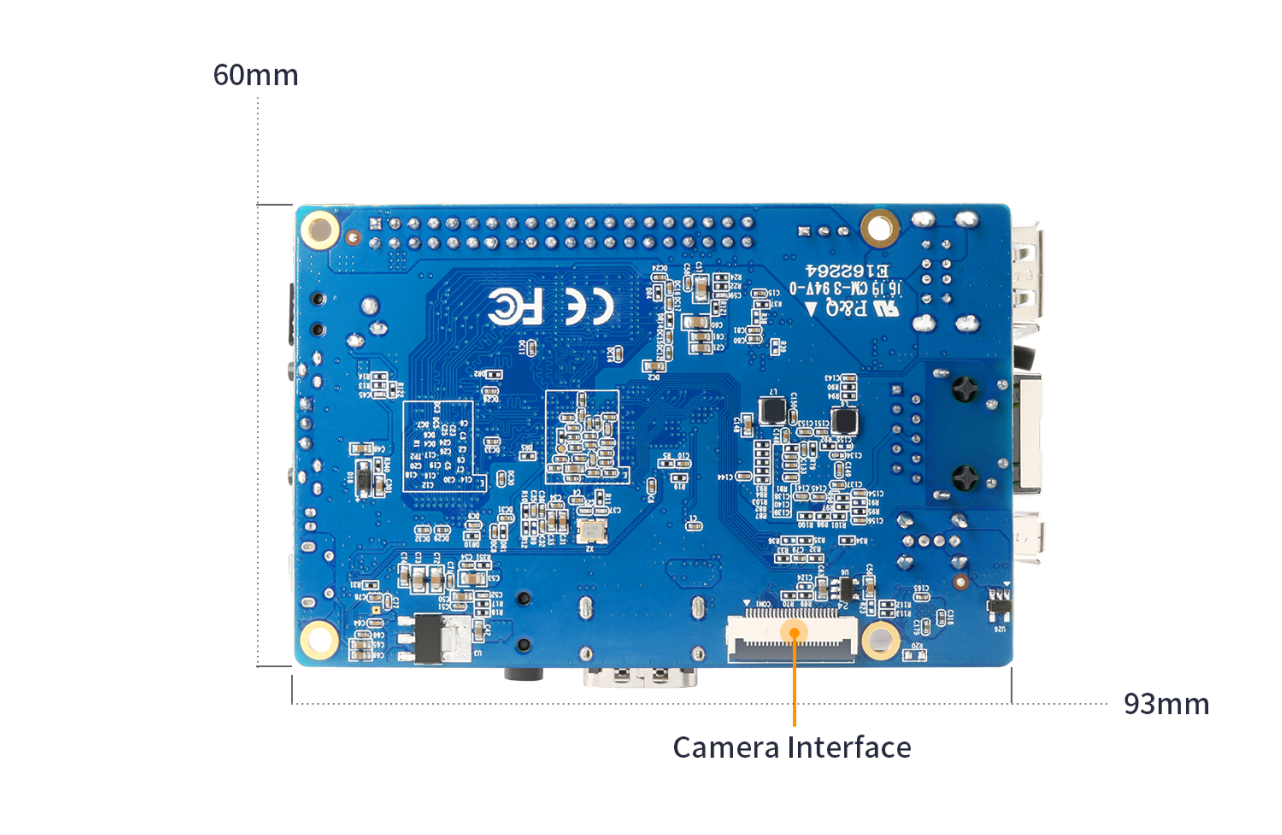

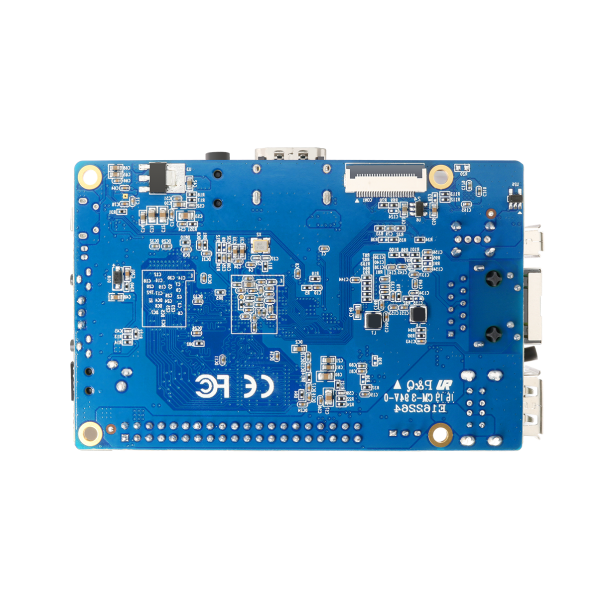

Bottom view

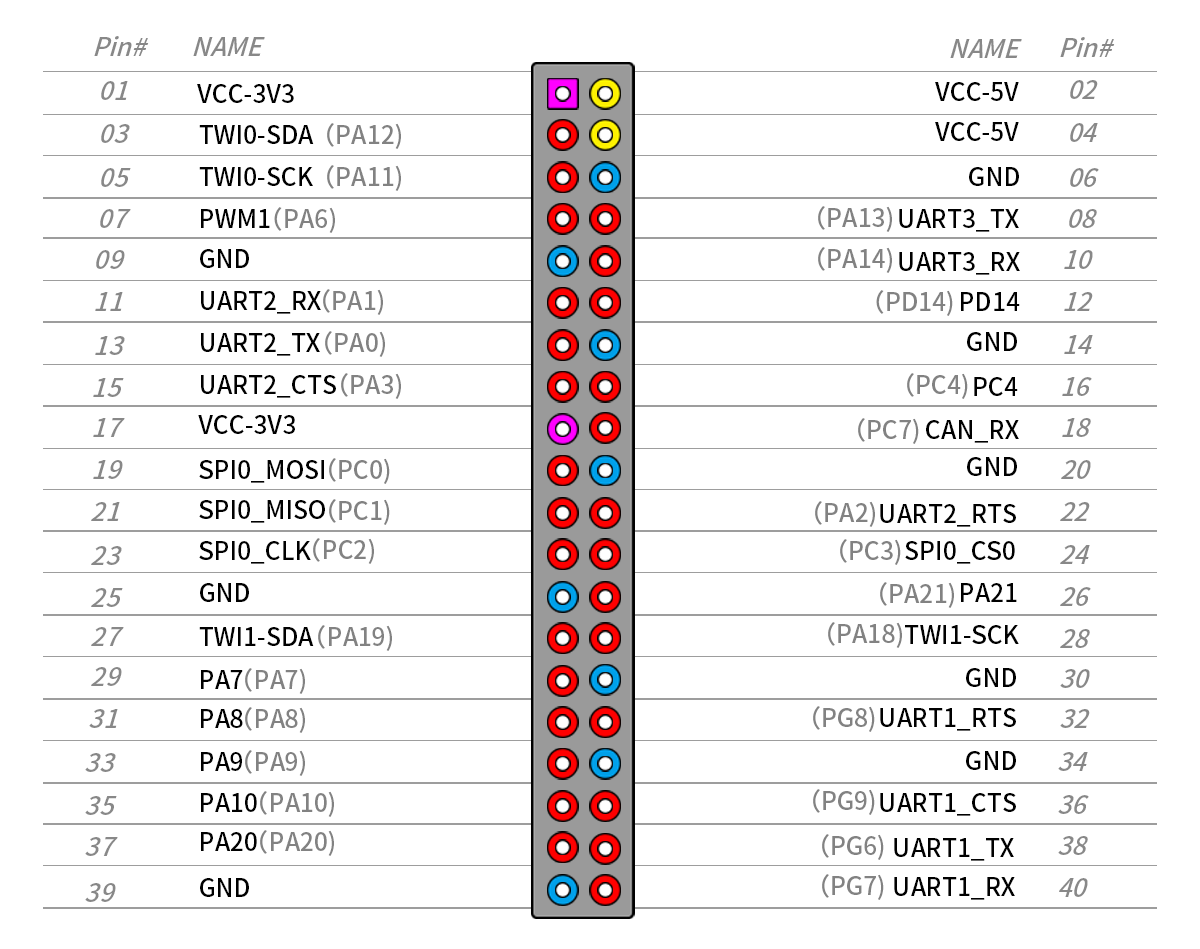

Orange Pi Plus 2E v1.2 pinout diagram

Completely open source maker artifact

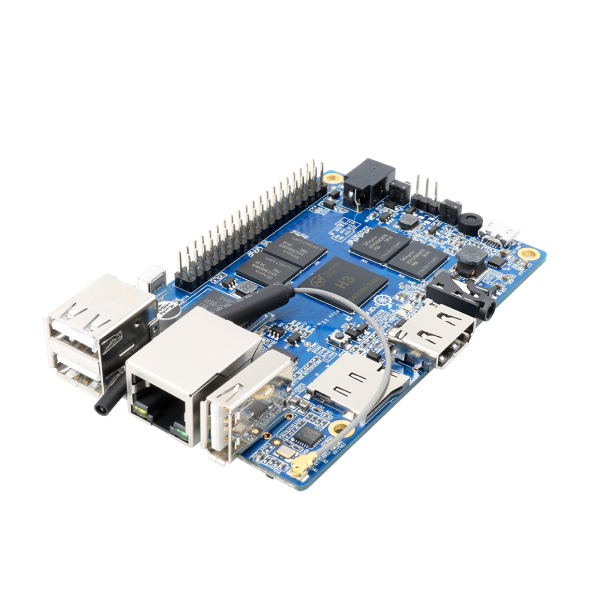

Product display

What can l do with Orange Pi Plus 2E?

You can use it to build-…

Pretty much anything else, because Orange Pi Plus 2E is open source
