Orange Pi Prime

Buy Now(EOL)
Overview Download

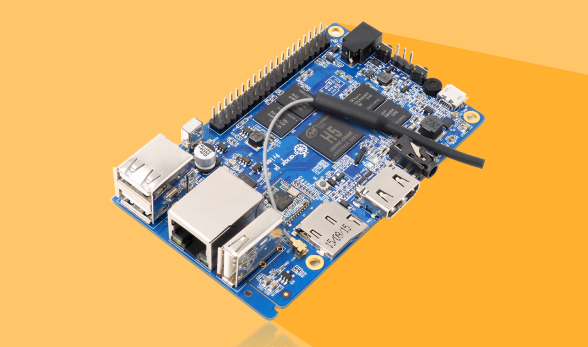

Orange Pi Prime is an open-source single-board computer with WiFi and Bluetooth4.0. It is highly compact with a dimension of 98X60mm.

Product introduction

  • Multiple operating systems
  • TF card
  • HDMI output
  • CSI camera port
  • Powered through DC
  • Cortex-A53
  • USB 2.0
  • Bluetooth
  • WiFi
  • 40pin headers

It uses the Allwinner H5 SoC with Quad-core Cortex-A53, and has 2GB DDR3 (shared with GPU). It can run Android 5.1, Ubuntu, Debian Image. Orange Pi Prime offers a range of different ports, including HDMI output, 40pin headers,USB 2.0, CSI camera port, TF card slot, etc. It is powered through DC.

Orange Pi Prime is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

2GB DDR3

2GB DDR3, sufficient for running various applications, smooth & elegant.

Hardware specification

CPU H5 Quad-core Cortex-A53
GPU • Mali450 GPU including dual Geometry Processors(GP) and quad Pixel Processors
• Supports OpenGL ES 2.0 and OpenVG1.1
• 3000Mpix/sec and 163Mtri/sec
• Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage
Memory (SDRAM) 2GB DDR3 (shared with GPU)
Onboard Storage TF card (Max. 32GB) / NOR flash(optional)
Onboard Network 1000M/100M Ethernet RJ45
Onboard WiFi+BT 8723BS, IEEE 802.11 b/g/n,BT4.0
Video Input • A CSI input connector Camera
• Supports 8-bit YUV422 CMOS sensor interface
• Supports CCIR656 protocol for NTSC and PAL
• Supports SM pixel camera sensor
• Supports video capture solution up to 1080p@30fps
Audio Input MIC
Video Outputs • Supports HDMI output with HDCP
• Supports HDMI CEC
• Supports HDMI 30 function
Audio Outputs 3.5 mm Jack, HDMI
Power Source DC input can supply power
GPIO(1x3) pin UART, Ground.
USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG
Buttons Power Button(SW2), Reset Button (SW4)
Low-level peripherals 40 Pins Header
LED Power led & Status led
Key IR input, POWER,Reset
Supported OS Android, Ubuntu, Debian Image

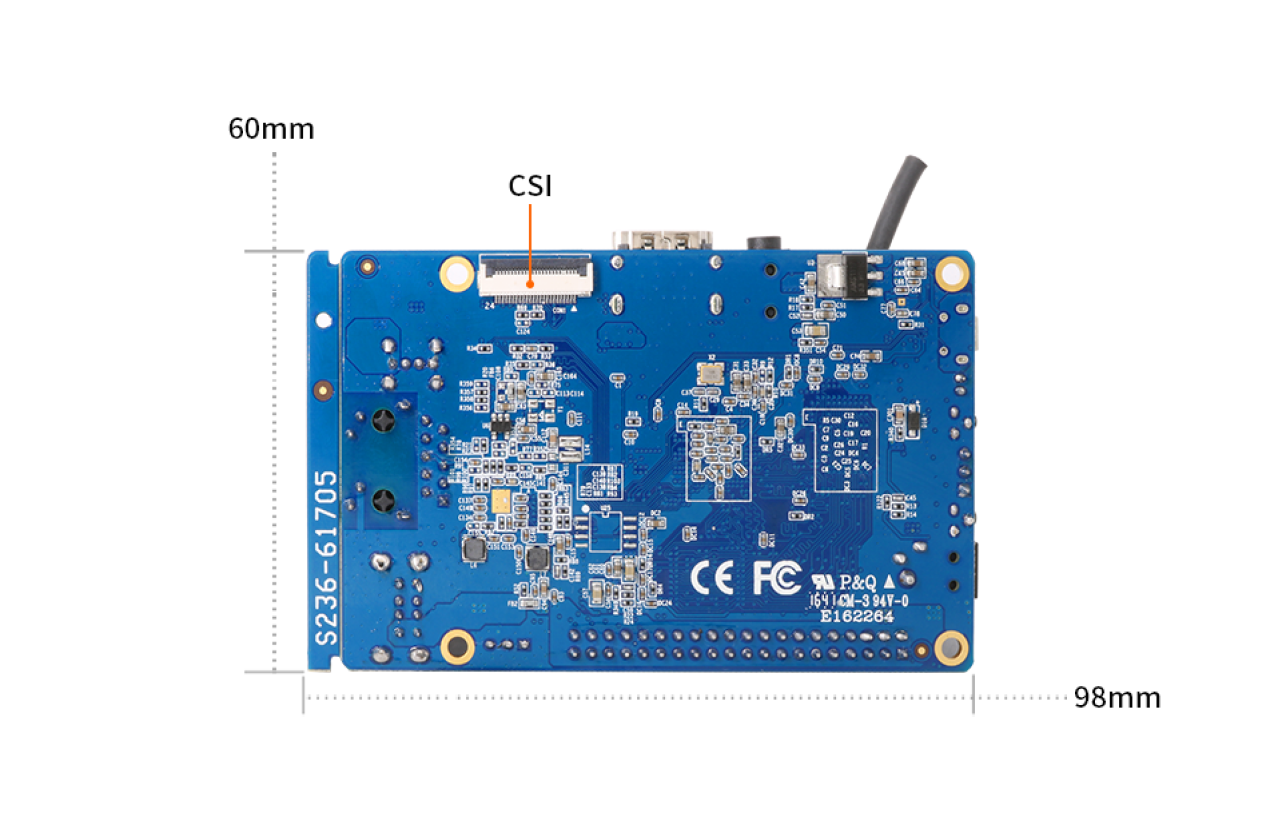

Interface definition

Product size 98 mm × 60mm
Weight 68g

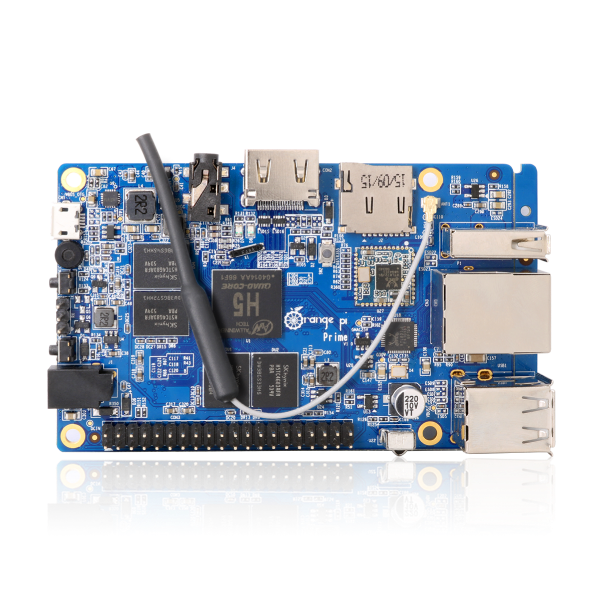

Top view

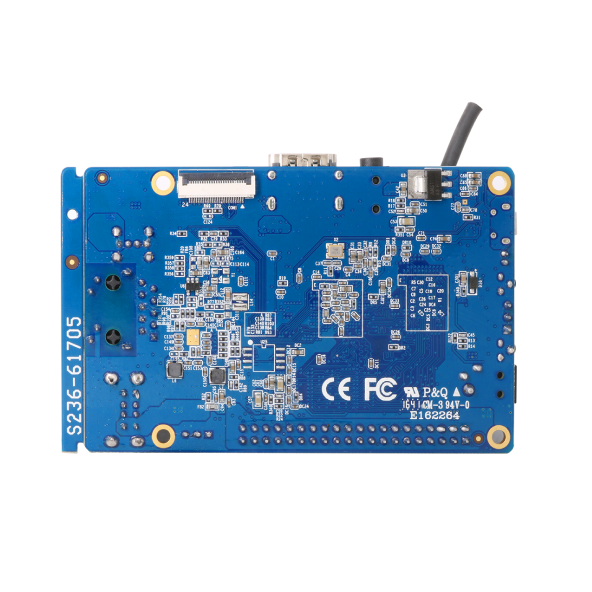

Bottom view

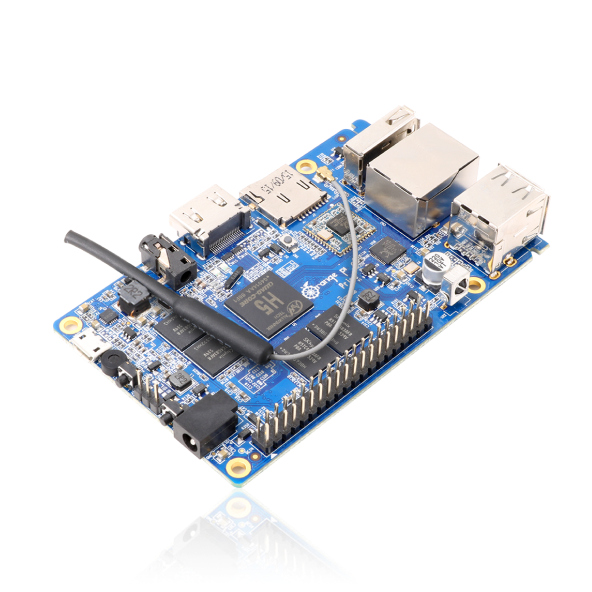

Product display

What can l do with Orange Pi Prime?

You can use it to build-…

Pretty much anything else, because Orange Pi Prime is open source
