Product introduction
A53 RK3328 SoC
1GB LPDDR3
Gbps Ethernet ports
USB 2.0
16MB SPI Flash
Type-C
OpenWRT system

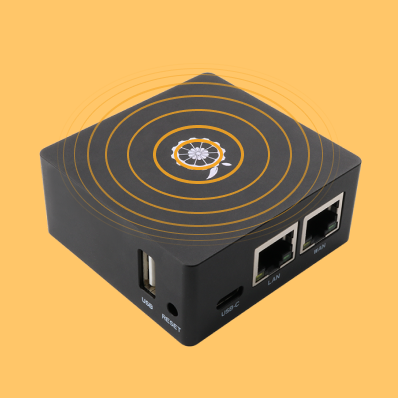

Orange Pi R1 Plus LTS with metal case is a mini-router with dual Gbps Ethernet ports. It uses Rockchip's quad-core A53 RK3328 SoC, and has 1GB LPDDR3, dual Gbps Ethernet ports, USB 2.0 , 16MB SPI FLASH. It is powered through Type-C .lt can run OpenWRT, Ubuntu, and Debian.

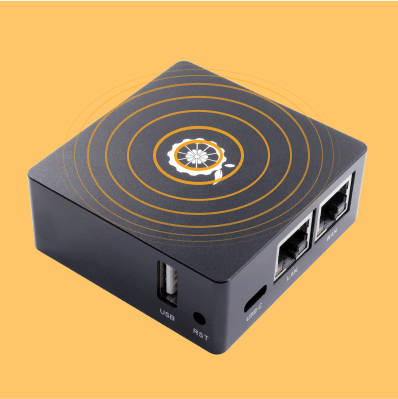

Cute, Lovely and Portable

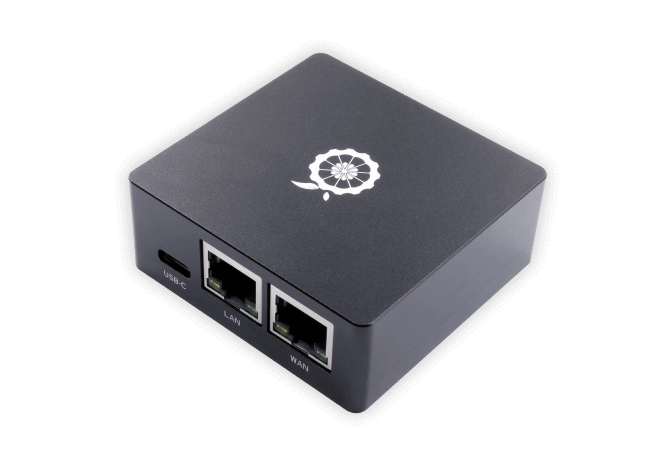

A mini-router with dual Gbps Ethernet ports

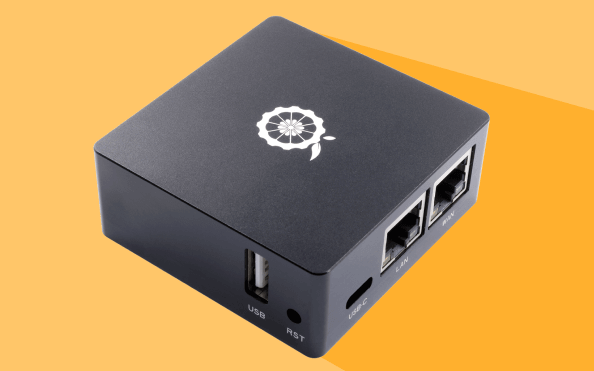

Orange Pi R1 Plus LTS with metal case is elegantly designed and carefully painted with eco-friendly material, well suitable for developing IoT applications, NAS applications, smart home gateways etc.
Support for OpenWRT system
OpenWRT is a highly modular, highly automated embedded Linux system with powerful networking components and scalability, often used in industrial control devices, telephones, small robots, smart homes, routers, and VOIP devices.
Rockchip RK3328 SoC，more powerful
1GB LPDDR3
1GB LPDDR3, Sufficient for Running Various Applications, Smooth & Elegant.

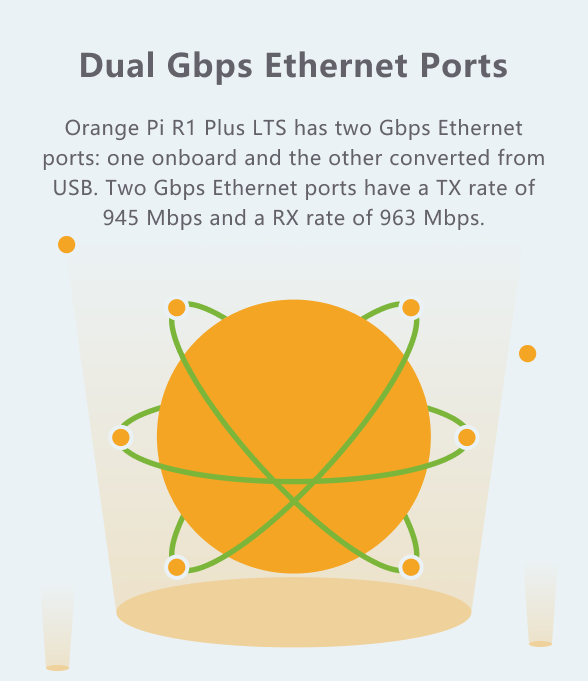

Dual Gbps Ethernet Ports
Orange Pi R1 Plus LTS has two Gigabit Ethernet ports, one on-board and the other converted by USB. The onboard Gigabit Ethernet port sends at 948 Mbps and receives at 948 Mbps; the USB-converted Gigabit Ethernet port sends at 886 Mbps and receives at 945 Mbps.

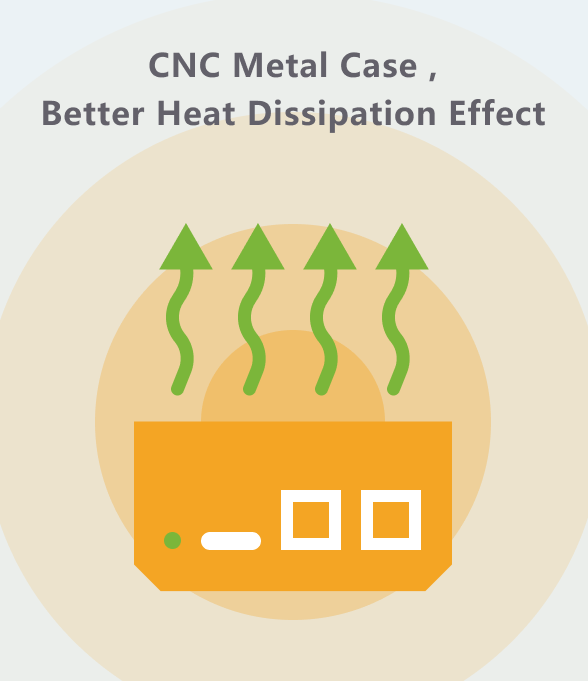

CNC Metal Case ,Better Heat Dissipation Effect
CPU Temperature Test

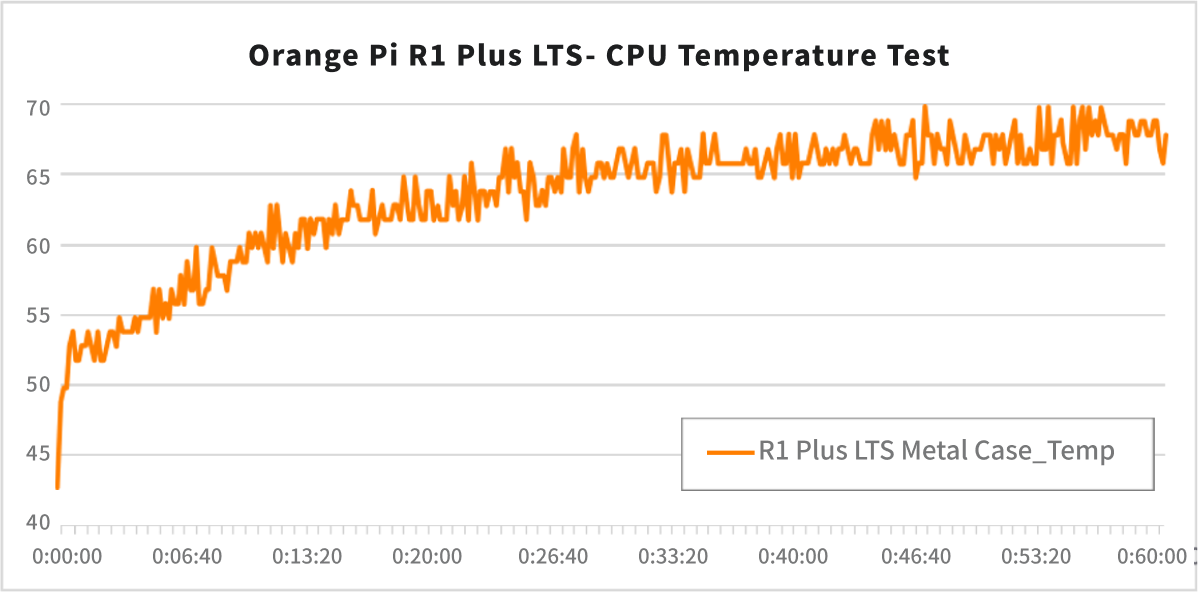

We tested the heat dissipation and the CPU's performance for Orange Pi R1 Plus LTS in the room temperature of 24 degrees in Celcius. During the test the board was contained in the metal case and its CPU ran in full capacity. The test result showed that the board's CPU could run well with high frequencies.
USB WiFi Test
After our testing, the models that work with USB WiFi in Linux 5.10 are: RTL8723BU, RTL8821CU, RTL8811CU, MT7601U.You can test other models of USB WiFi, if not available, you need to manually load the drivers and set the configurations and make the modules work.

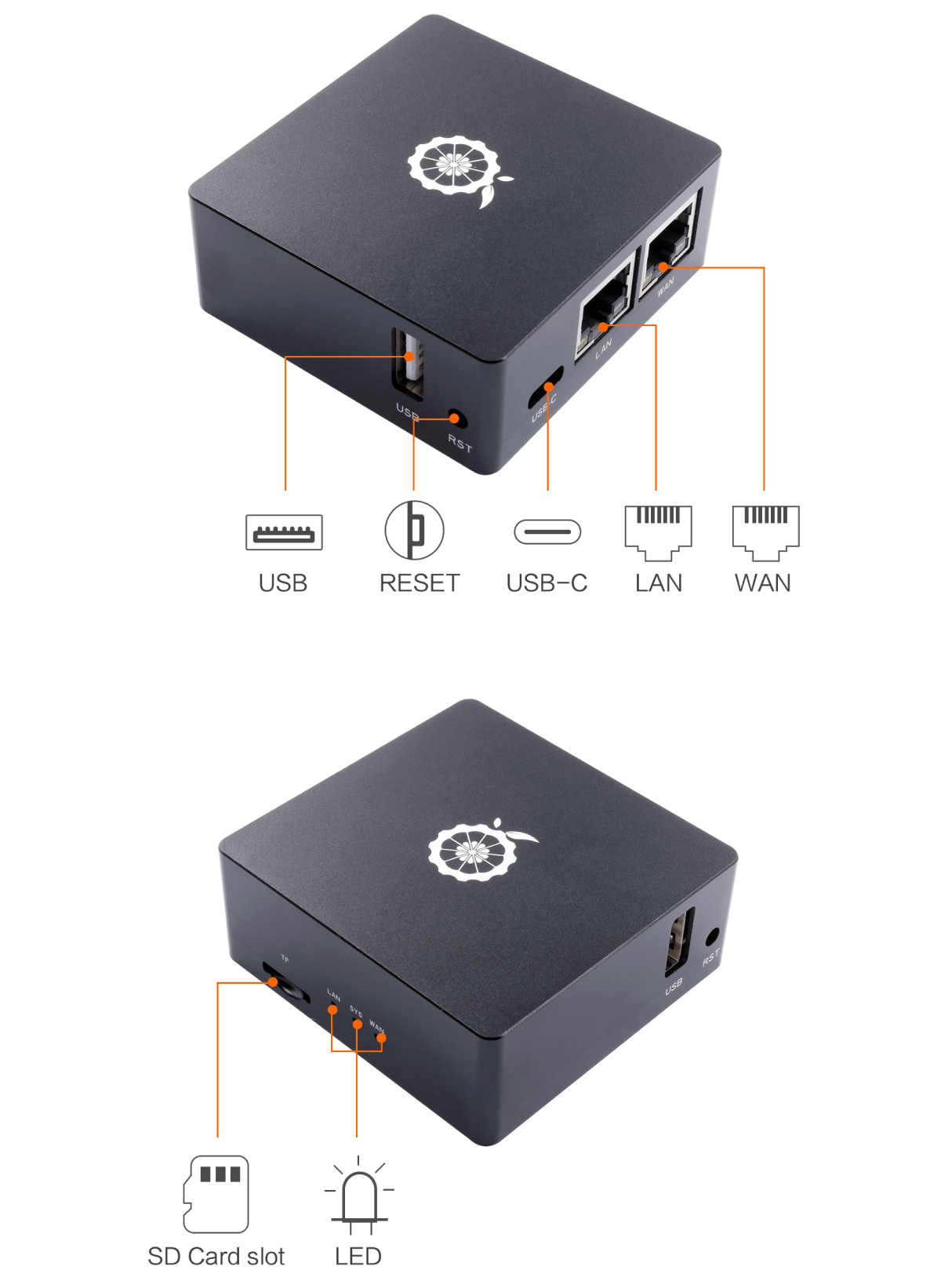

Orange Pi R1 Plus LTS Interface/Port Specification
Hardware specification
| CPU | Rockchip RK3328 Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up to 1.5GHz |
| GPU | Mali-450MP2 Supports OpenGL ES 1.0/2.0 |
| Power Management Chip | RK805 |
| Memory(SDRAM) | 1GB LPDDR3(Shared With GPU) |
| Onboard Storage | • Micro SD Card Slot • 16MB SPI Flash |
| Onboard Network | 10M/100M/1000M Ethernet (YT8531C) 10M/100M/1000M USB Ethernet (RTL8153B) |
| Video Output | TV CVBs Output (Via 13Pin Interface Board) |
| Audio Output | 3.5mm Audio Port (Via 13Pin Interface Board) |
| Power Source | USB Type-C Interface 5V/2A Input |
| USB | 1*USB 2.0 HOST |
| Low-Level Peripherals | 13Pin Headers with UART, I2C, IR pin, Tv-Out, AUDIO (No MIC), 2*USB2.0 (Not Supported) and 1 GPIO Port Note: 13Pin Headers Will Not Be Welded |
| Debug Serial Port | UART-TX, UART-RX and GND |
| Button | 1* Reset Button |
| Fan Interface | 1* Cooling Fan Interface (5V) |
| LED | Power LED & Status LED |
| Supported OS | OpenWRT、Ubuntu、Debian |
Appearance specification introduction
| Dimension | 63mm X 60.6mm X 24.3mm |
| Weight | 144.5g |
