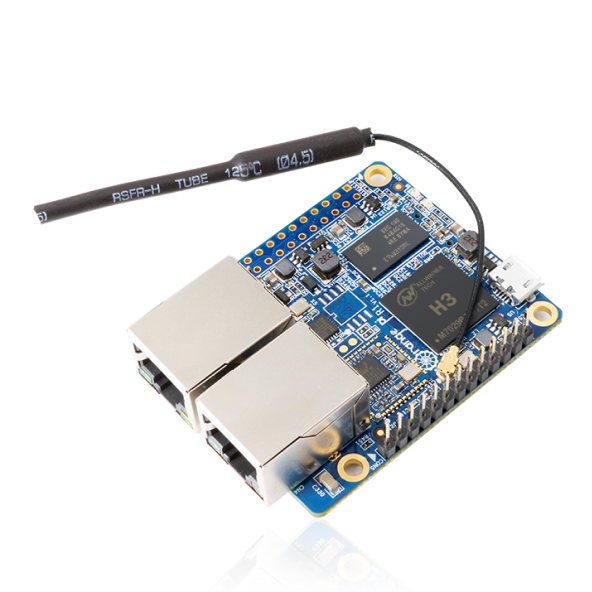

Orange Pi R1 is an open-source single-board computer with dual 100 Ethernet network ports. It is highly compact with a dimension of 45X60mm. It can run Android 4.4, Ubuntu, Debian.

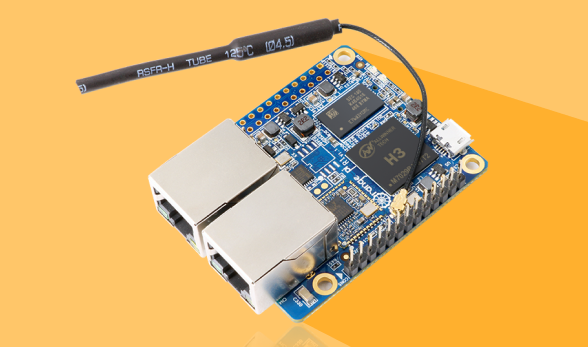

Product introduction
-
Dual 100 Ethernet network ports -
TF card -
Powered through USB OTG -
Multiple operating systems -
Cortex-A7 -
26pin headers -
USB 2.0 -
256MB/512MB DDR3
Orange Pi R1 uses the AllWinner H2 SoC, with Quad-core 32-bit Cortex-A7 and 256MB/512MB DDR3 (shared with GPU). It integrates USB 2.0 port, TF card slot, 26 pin headers etc. It is powered through USB OTG.
Orange Pi R1 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
| CPU | H3 Quad-core 32-bit Cortex-A7 |
| GPU | Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 256MB/512MB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 32GB) / Spi flash(16MB) |
| Wifi Antenne | Yes |
| Onboard WiFi | Realtek RTL8189FTV, IEEE 802.11 b/g/n |
| Onboard Network | • 100M/10M Ethernet RJ45(Onboard Ethernet) • 100M/10M Ethernet RJ45(RTL8152B) |
| Audio Input | No |
| Video Outputs | Supports external board via 13pins |
| Power Source | USB OTG can supply power |
| GPIO(1x3) pin | UART, ground. |
| Buttons | Power Button(SW602) |
| Low-level peripherals | • 26 Pins Header • 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) |
| LED | Power led & Status led |
| Supported OS | Android4.4, Lubuntu, Debian, Armbian Image |
Interface definition
| Product size | 45 mm × 60mm |
| Weight | 35g |

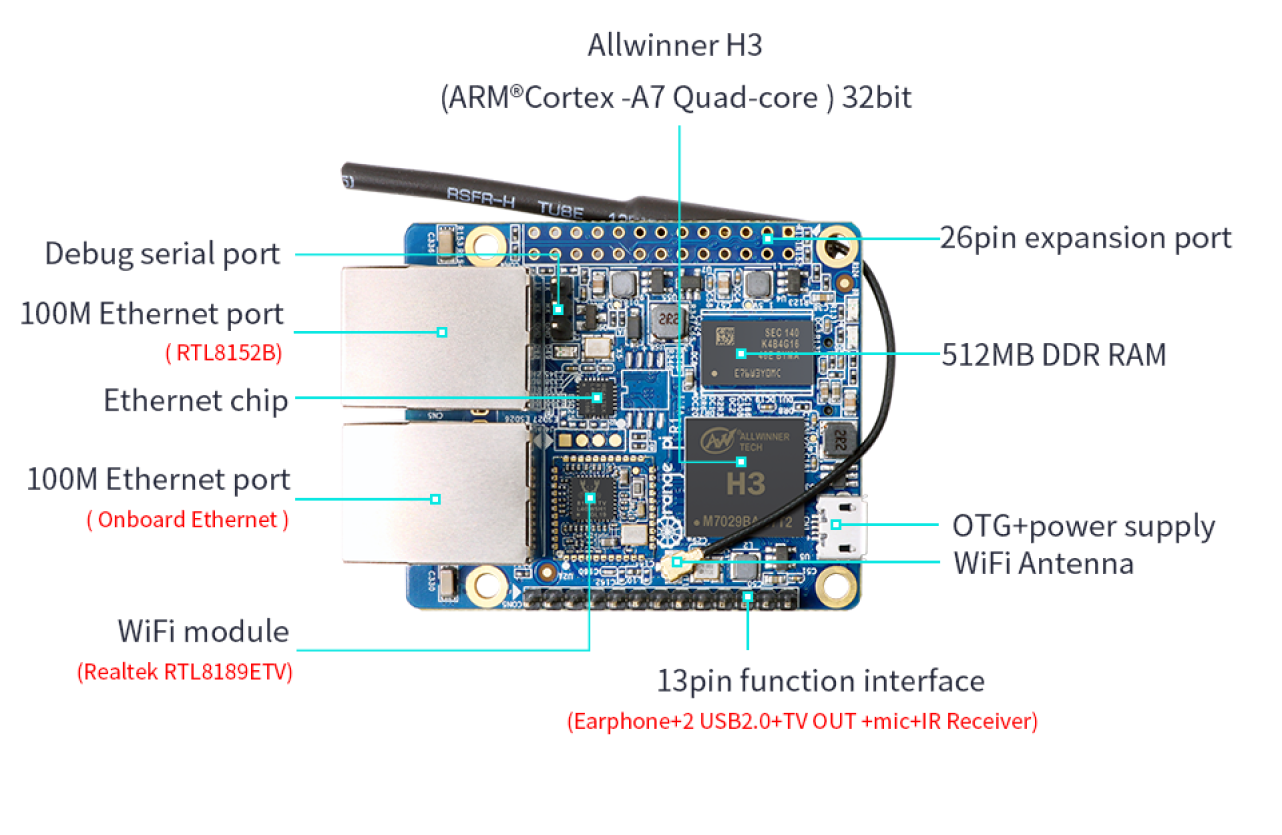

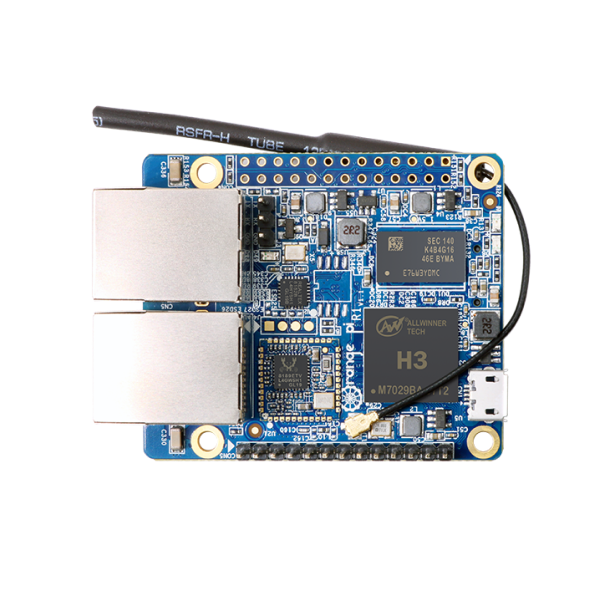

Top view

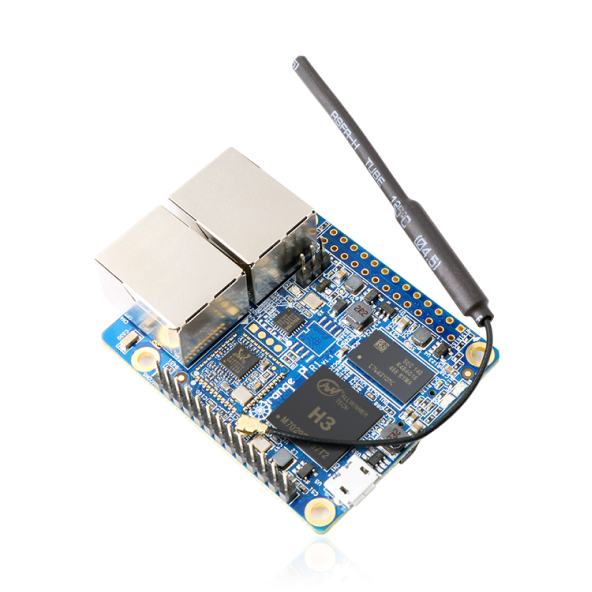

Bottom view

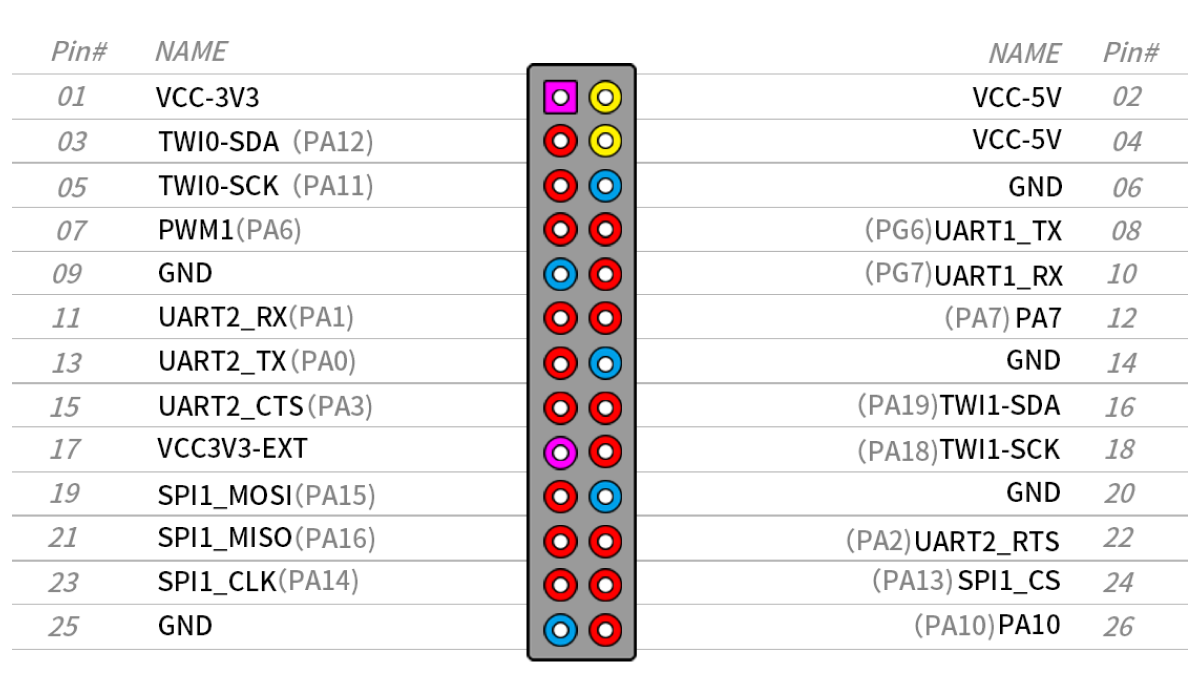

Orange Pi R1 v1.2 pinout diagram
-
Completely open source maker artifact
-
Orange Pi R1 runs Android
-
Orange Pi R1 runs Ubuntu
-
Orange Pi R1 runs Debian
-
Product display
-
Front -
Back -
45° angle -
45° angle
What can l do with Orange Pi R1?
You can use it to build-…
Pretty much anything else, because Orange Pi R1 is open source
