OrangePi R2S is powered by Ky X1 8-core RISC-V AI CPU, providing 2TOPS CPU fusion of general-purpose arithmetic power. It has 2GB/4GB/8GB LPDDR4X operating memory, and supports 8GB eMMC .

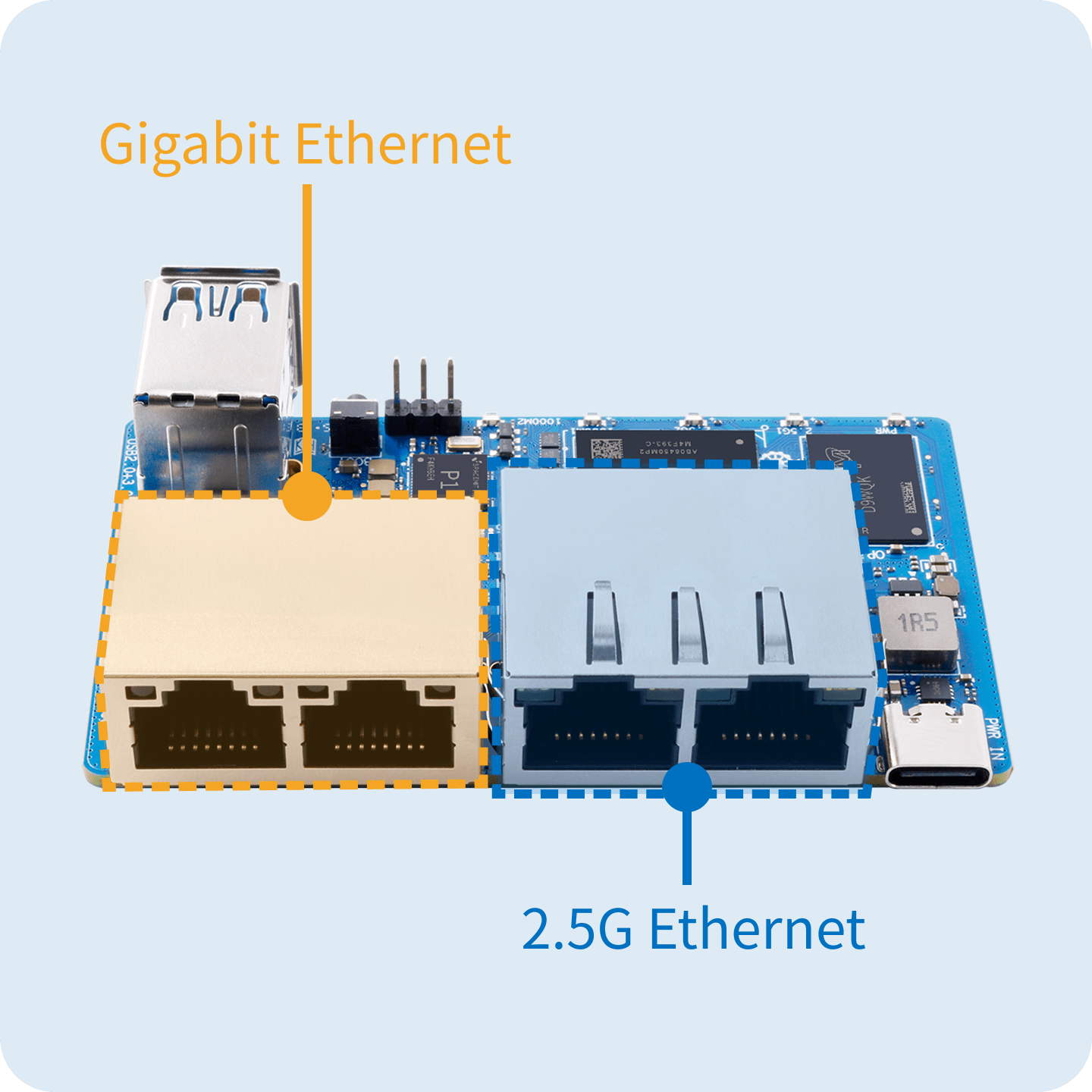

The OrangePi R2S features a wealth of interfaces, including 2.5G high-speed dual LAN ports, dual Gigabit LAN ports, USB2.0, USB3.0, Type-C power supply, TF card transfer interface, debug serial port, and more.
OrangePi R2S is exquisite and compact, with the size of 79.2*46*1.6 mm, it can be easily installed in various narrow spaces.OrangePi R2S supports OpenWrt, Ubuntu, and can be widely used in enterprise gateways, industrial control hosts, industrial automation, energy management, intelligent transportation, smart cities and other fields.
Hardware Parameters
| Processor |
Ky X1 8 Core RISC-V AI 2.0TOPS |
| Memory | LPDDR4X: 2GB/4GB/8GB |
| Storage | eMMC: 8GB |
| Ethernet transceiver |
1000M Ethernet*2 2.5G Ethernet*2 |
| USB |
USB3.0*1 USB2.0*1 (can be used for software upgrade and burning software) |
| Buttons |
MASKROM key *1
|
| Status lights |
Power indicator *1 1000M Ethernet indicator *2 2.5G Ethernet indicator *2 |
| TF card |
TF card transfer interface |
| DEBUG |
3PIN debug serial port, 3.3V level |
| Power supply | Type C 5V 3A DCIN |

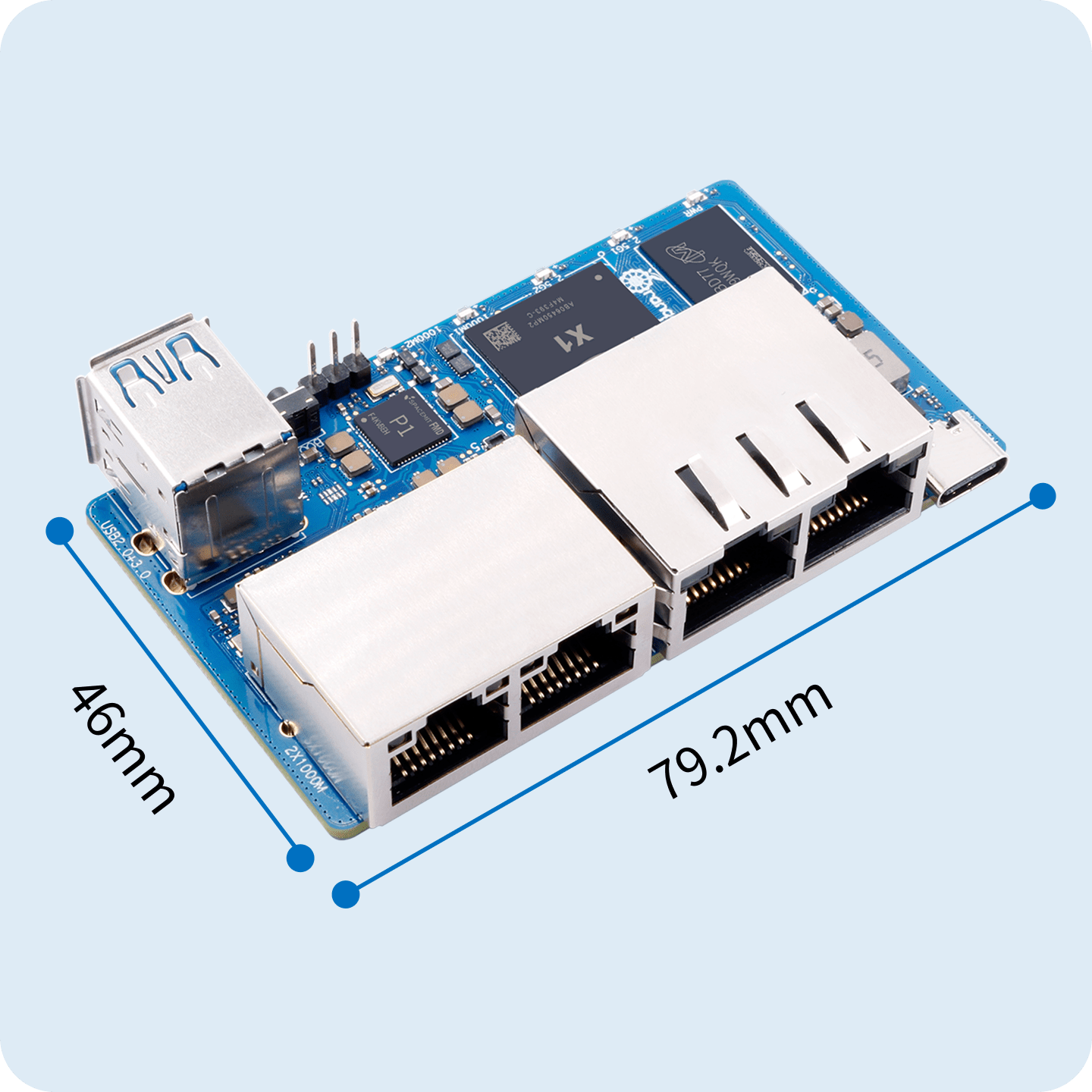

| PCB | 79.2*46*1.6 mm |
| Supported OS | OpenWrt、Ubuntu |
Product display
-

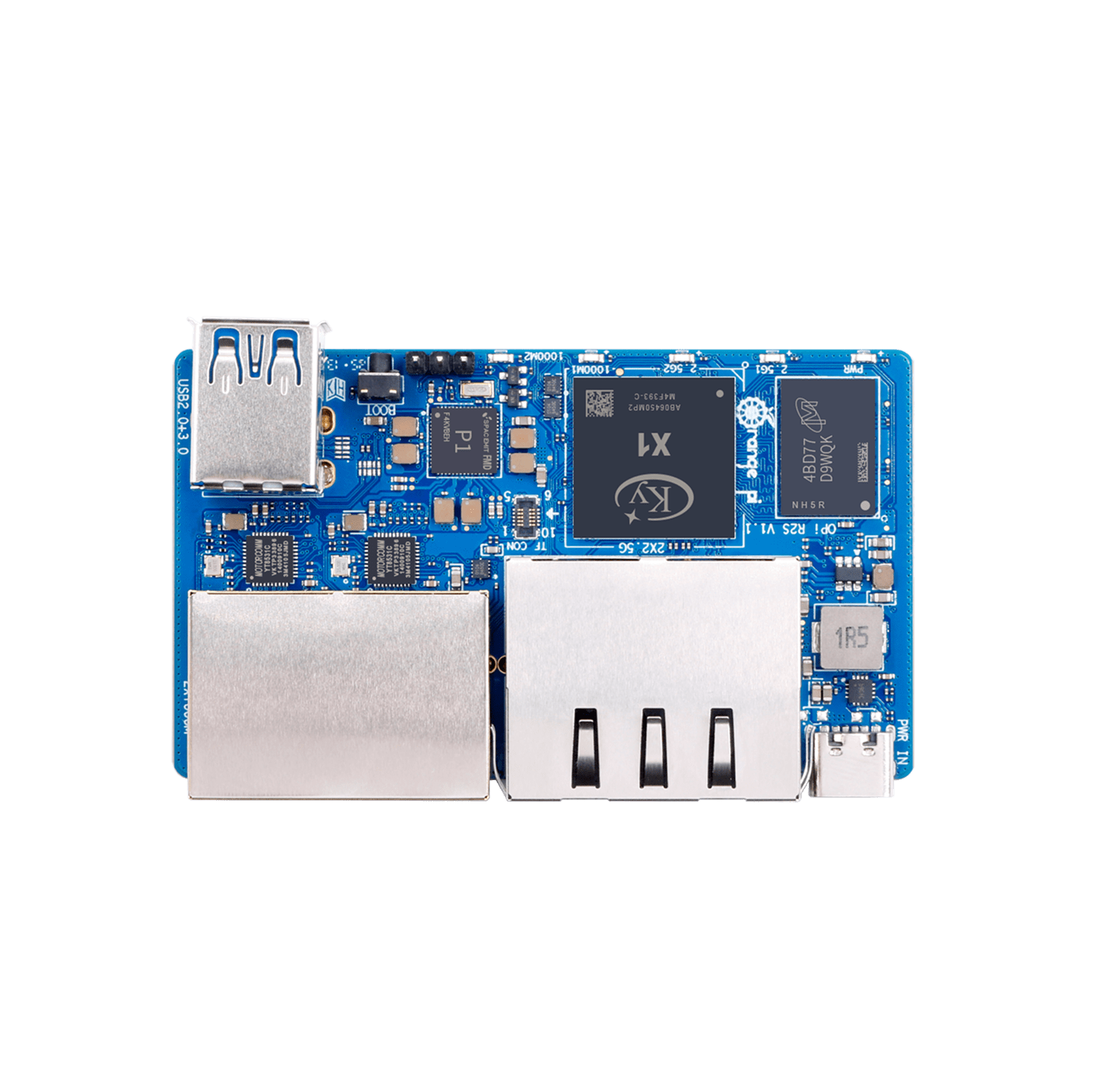

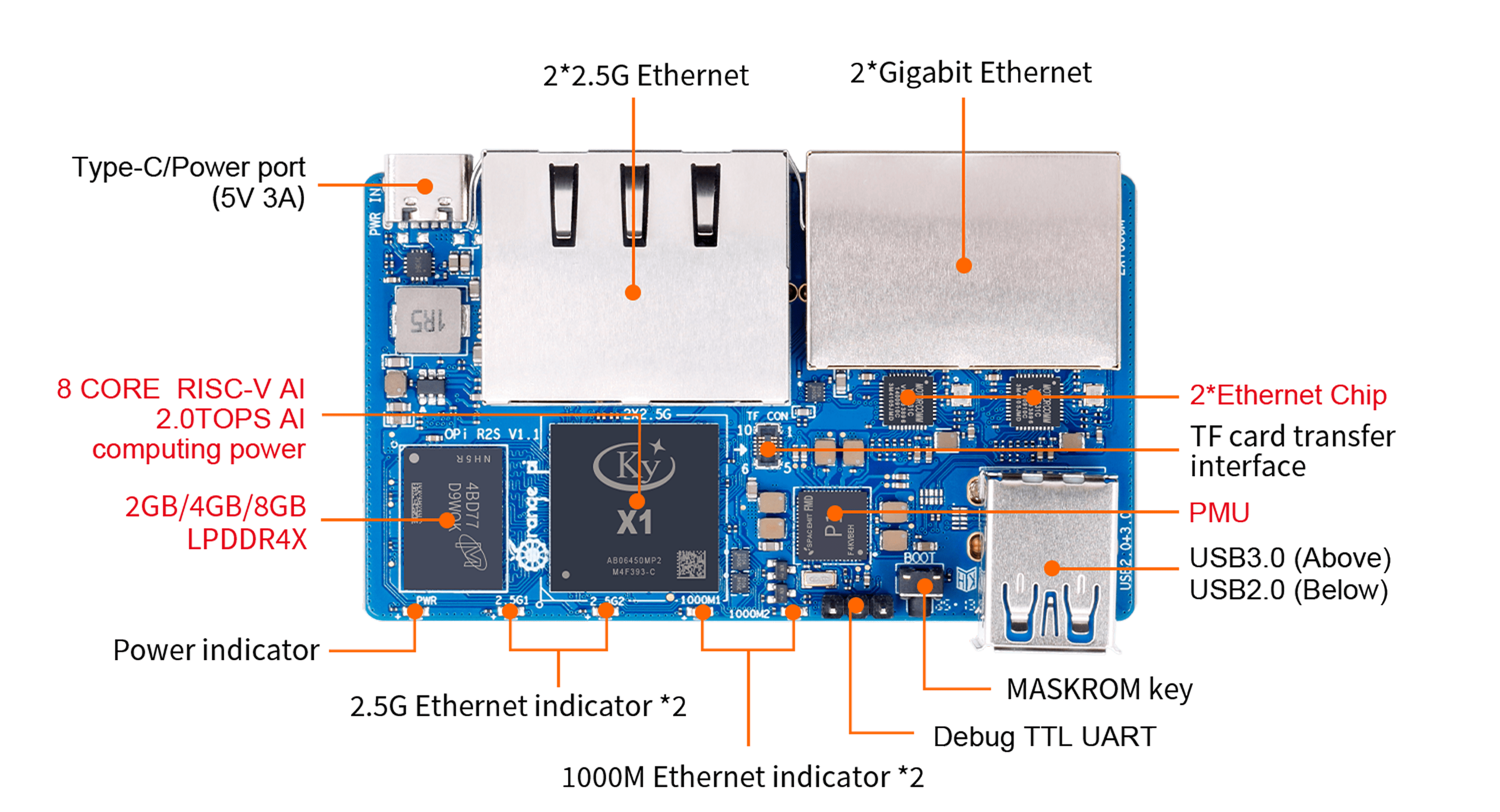

Front -

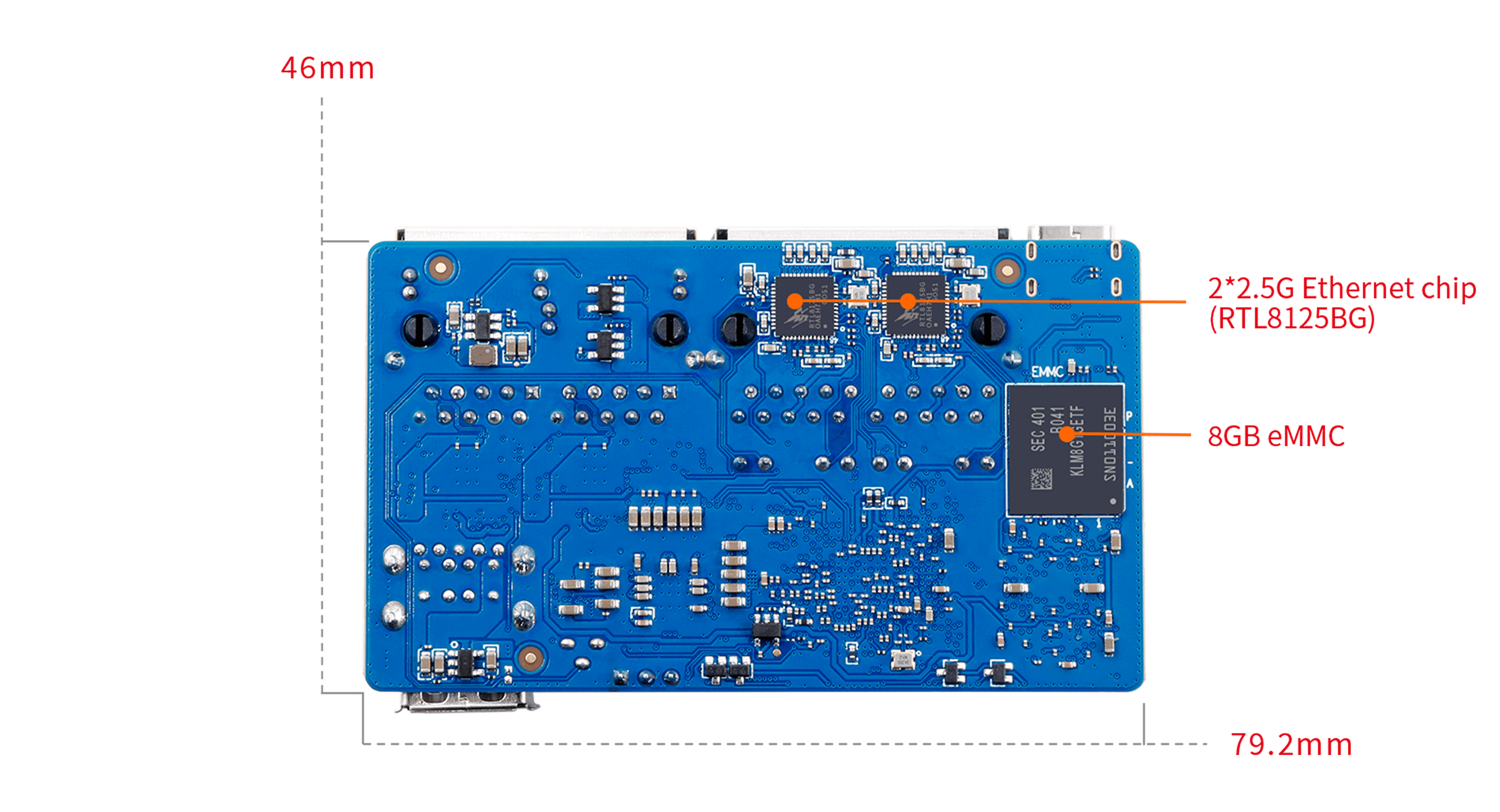

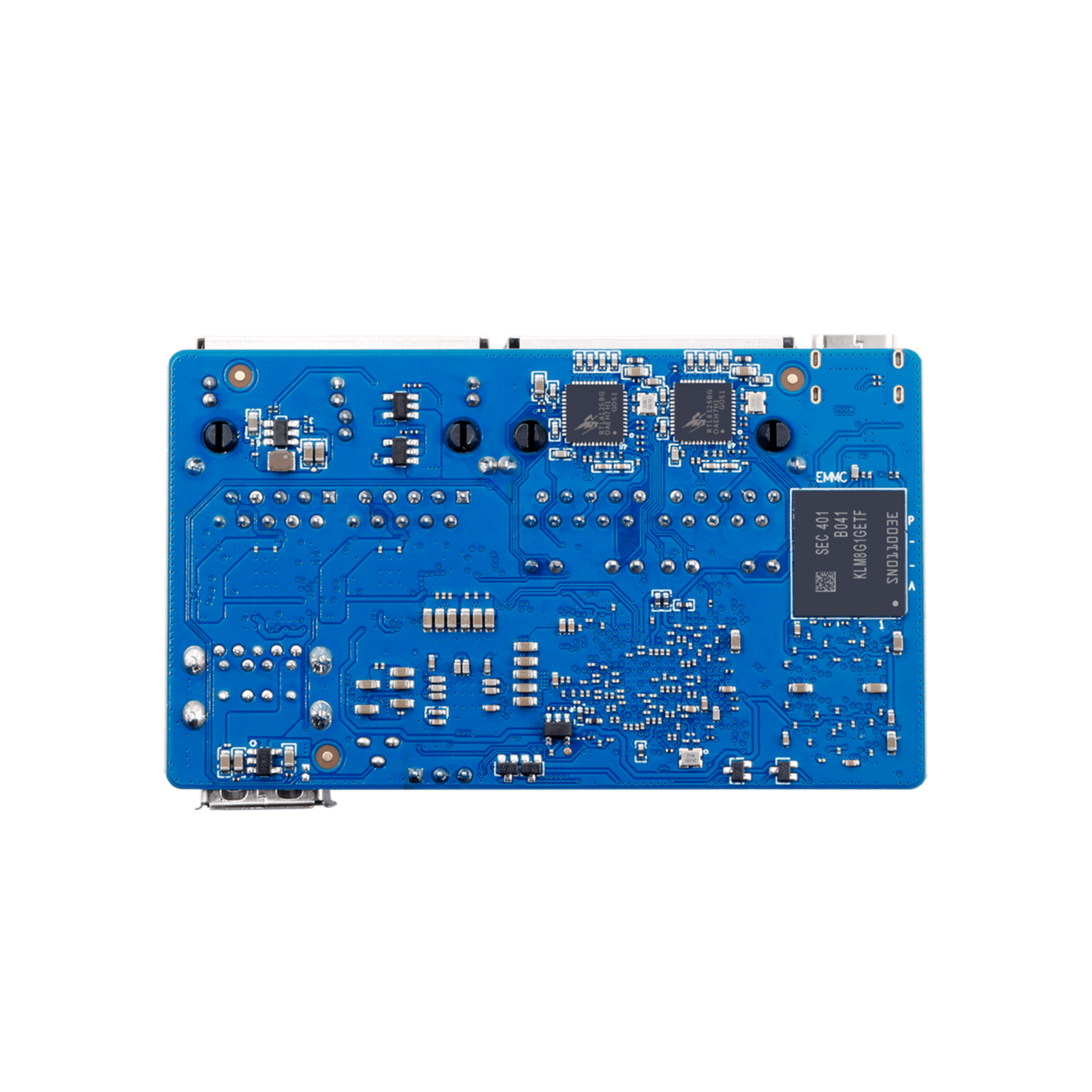

Back -

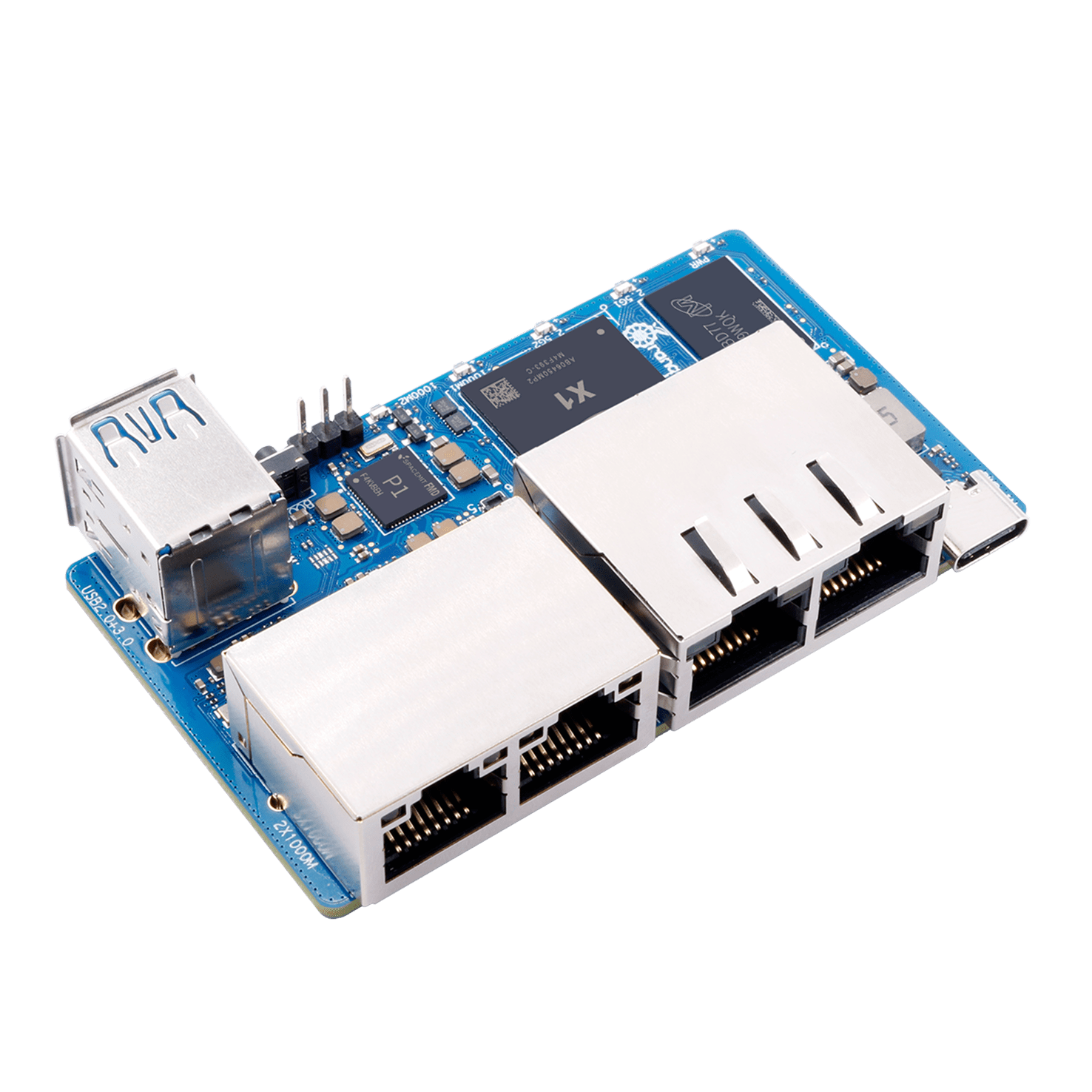

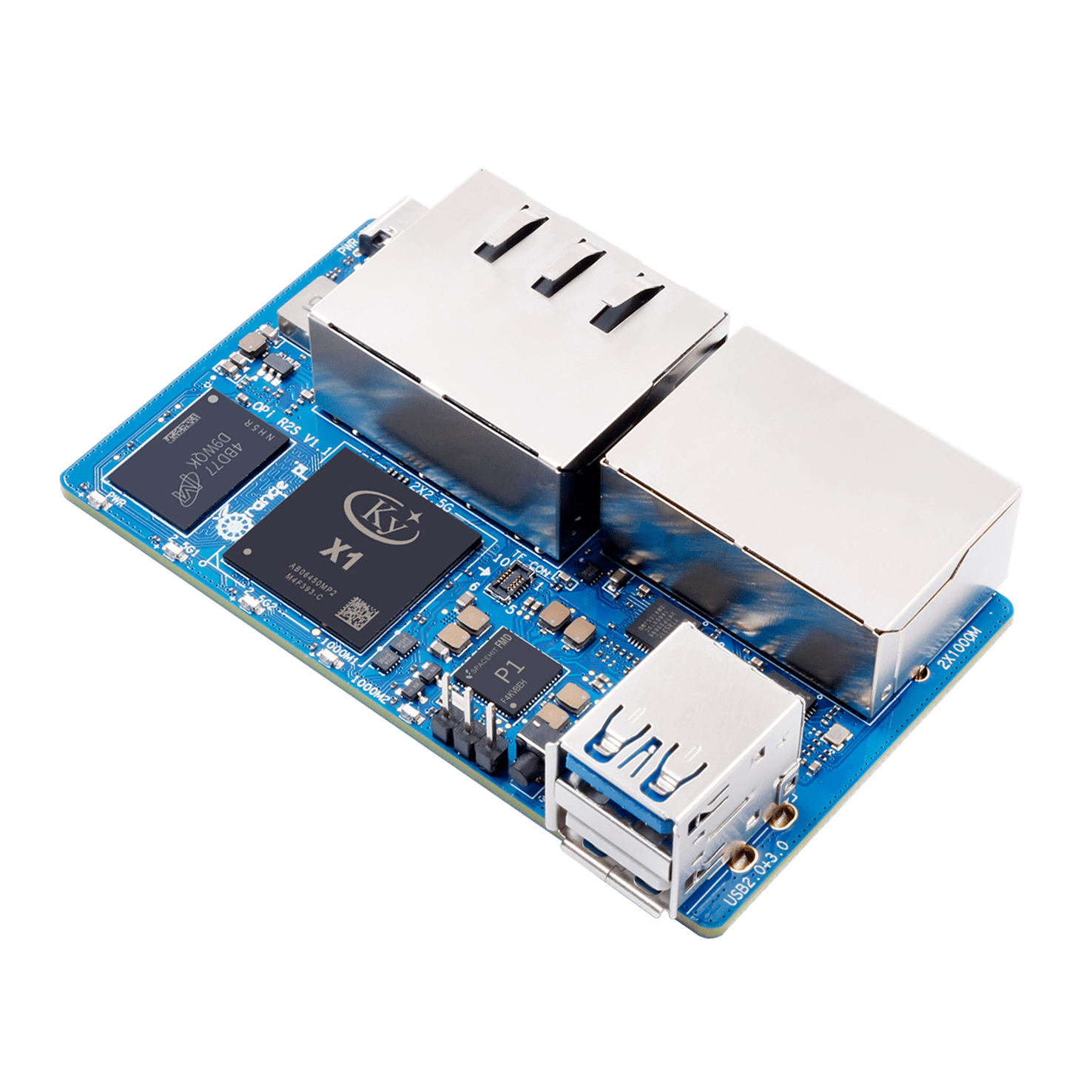

45° angle -
45° angle
