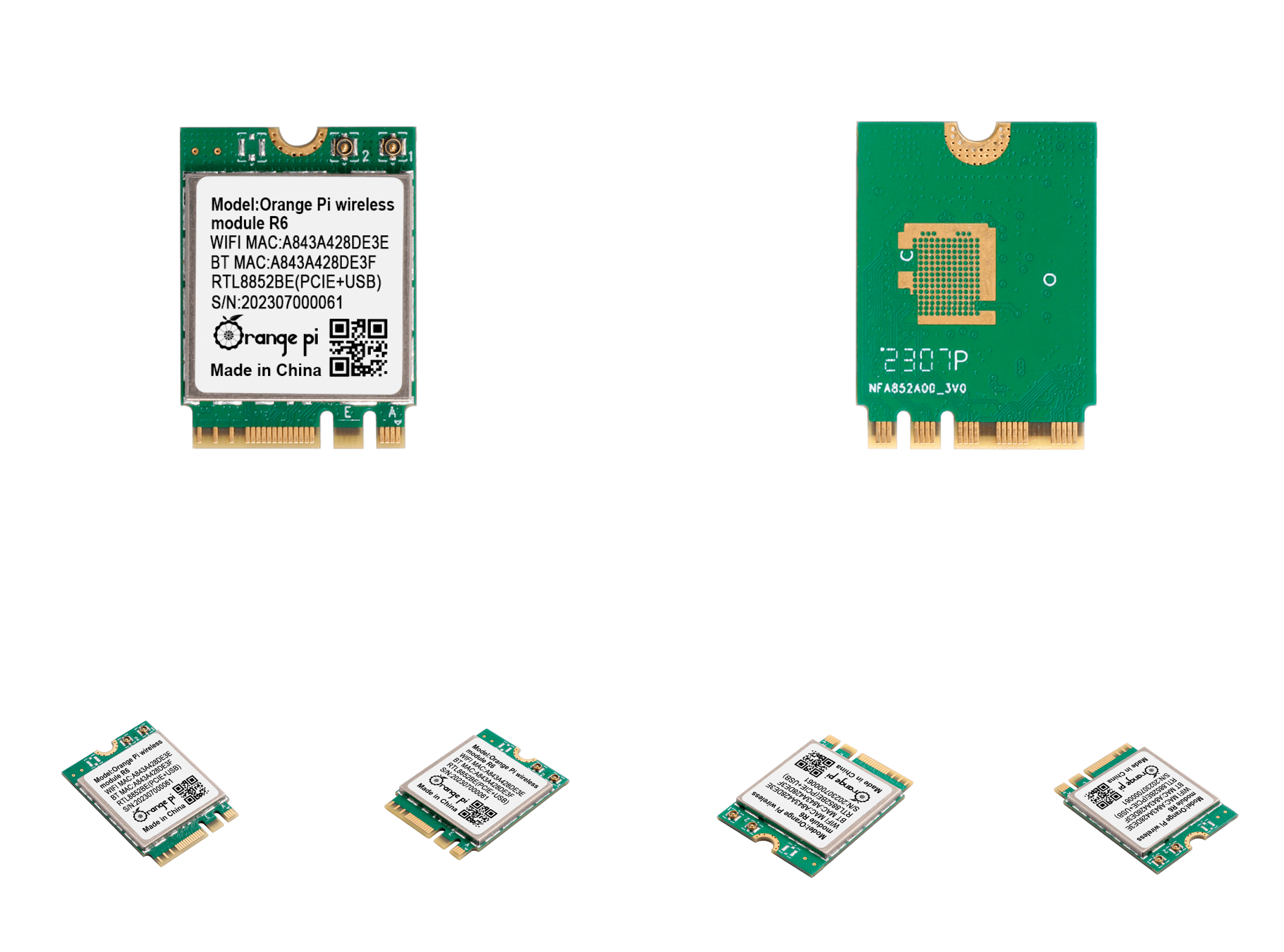

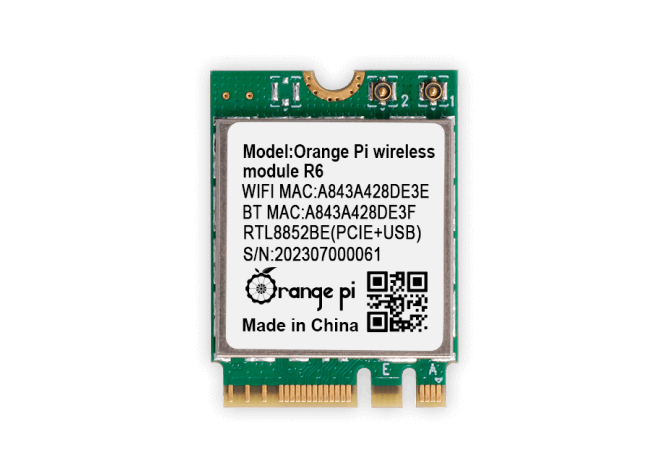

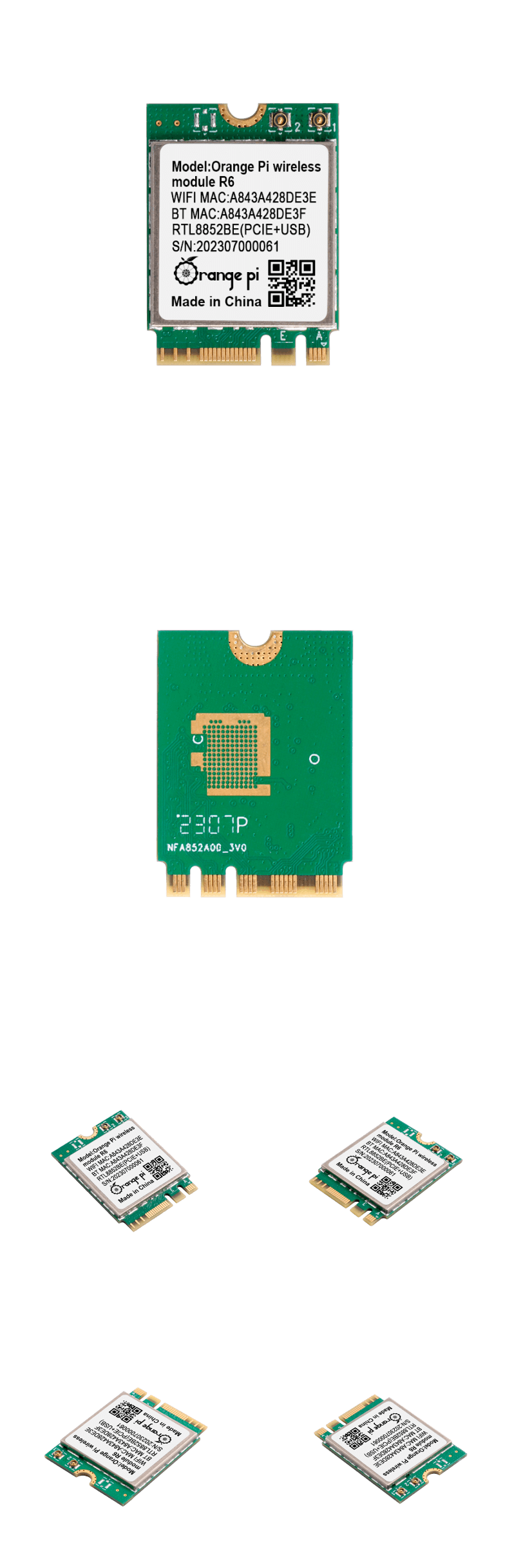

Orange Pi wireless module R6 for Orange Pi 5 Plus is a highly integrated Wi-Fi6+BT5.2 module with PCIe M.2 E-KEY interface, Multi-user MIMO (Multiple-Input, Multiple-Output) , and WLAN PCI Express network interface controller. It integrates WIFI MAC, 2T2R capable WLAN baseband and RF in a single chip, providing a complete solution for high-performance integrated wireless and Bluetooth devices.
Parameter
| Major chip | Realtek RTL8852BE-CG |
| Standard | IEEE802.11a/b/g/n/ac/ax, BT V2.1+EDR/4.2/5.2 |
| Data transfer rate | Max:1201 Mbps |
| Frequency band | 2.4~2.4835 GHz, 5.0~5.8 GHz |
| Interface | Wi-Fi: PCI-E, Bluetooth: USB2.0 |
| Operating temperature | -10~+70°C ambient temperature |
| Storage temperature | -40~+85℃ ambient temperature |
| Dimension | 22mm x30mm x2.33mm(LxWxH)土0.2mm |
