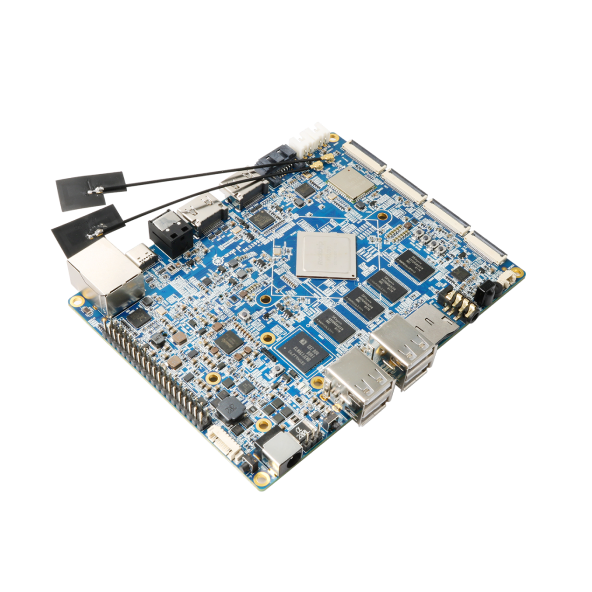

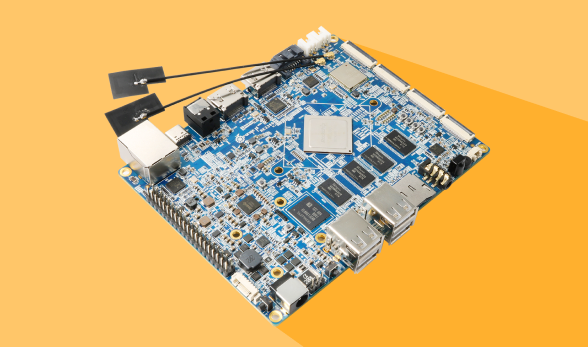

Orange Pi RK3399

Orange Pi RK3399 is an open-source single board computer with dual-band wireless WiFi and Bluetooth 4.1 .It is highly compact with a dimension of 99X129mm.

Product introduction

Rockchip RK3399
Gigabit Ethernet port
Bluetooth 4.1
USB 3.0
Multiple operating systems
dual-band wireless WiFi
HDMI output
CSI camera port
16GB EMMC
2GB/4GB DDR3 SDRAM
Type-C
TF card
IR Receiver
SIM card
40pin headers

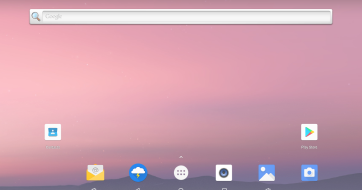

Orange Pi RK3399 uses the Rockchip RK3399 with Six-CoreARM® 64-bit processor，up to 2.0GHz frequency, and has 2GB/4GB DDR3 (shared with GPU) SDRAM with 16GB EMMC . It can run Android6.0 and Debian 9. Orange Pi RK3399 offers a range of different ports, including Gigabit Ethernet port ,HDMI output, CSI camera port ,40pin headers, USB 3.0,etc. It is powered through Type-C. lt is perfect for a range of smart home applications and other IoT projects.

Orange Pi RK3399 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth

Dual-band wireless WiFi+Bluetooth 4.1, Fast networking

Orange Pi RK3399 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.
16GB EMMC Flash

16GB EMMC Flash to meet users' higher demand for storage capacity

USB 3.0

Orange Pi Lite 2 LTS has upgraded USB capacity: along with two USB 2 ports，you'll find one USB 3 port, which can transfer data up to ten times faster.

Hardware specification

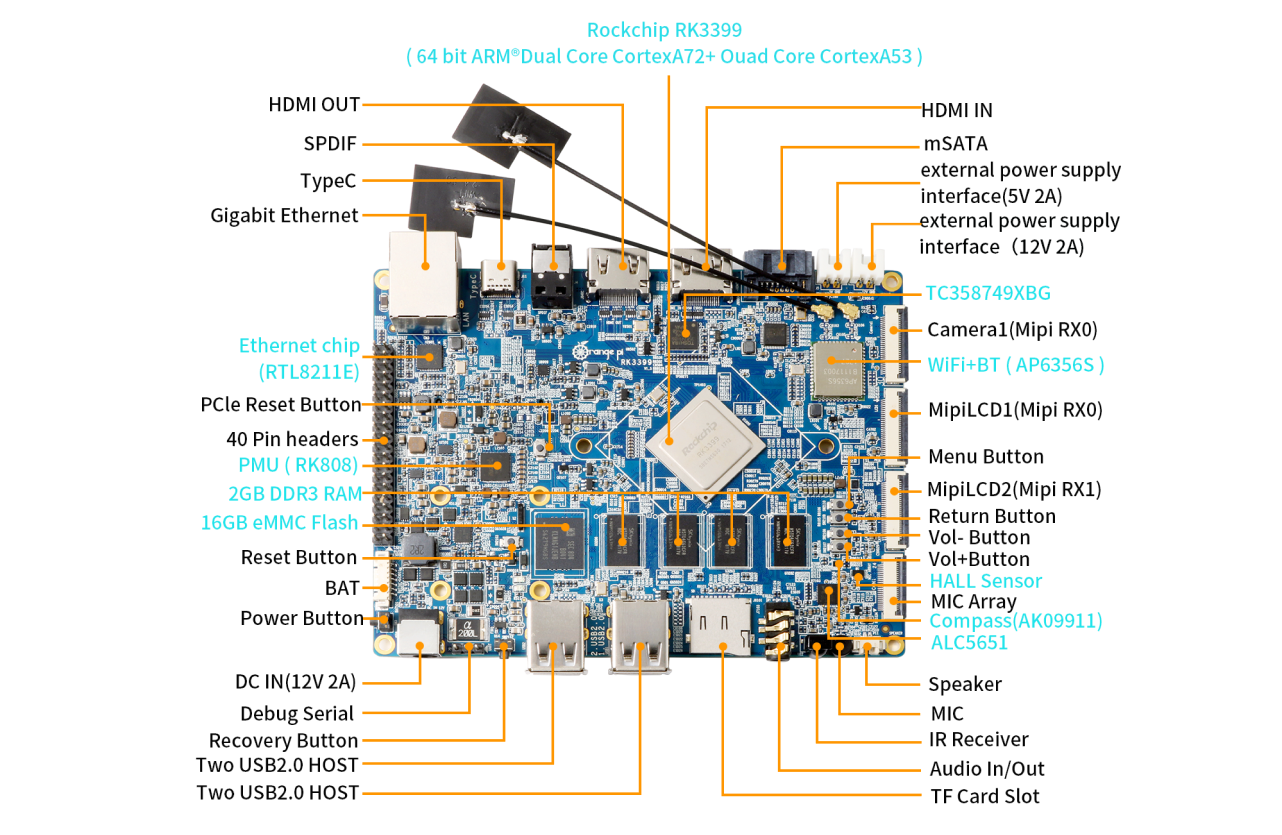

Soc	Rockchip RK3399 (28nm HKMG Process）
CPU	• Six-CoreARM® 64-bit processor，up to 2.0GHz frequency • Dual-Core Cortex-A72 and Quad-Core Cortex-A53 with separate NEON coprocessor
GPU	• ARM Mali-T860 MP4 Quad-Core GPU •Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX1 • Support AFBC
PMU	• RK808 PMU • BQ25700 Charger IC • CW2015 Fuel Gas
Memory	2GB/4GB DDR3
Storage	• 16GB High-Speed eMMC • MicroSD (TF) Card Slot • miniPCIe (for LTE / mSATA) • mSATA interface
Wireless	• Integrated WiFi Combo Module ( AP6356S ) : • 2.4GHz/5GHz Dual-Band WiFi, Support 802.11a/b/g/n/ac, 2x2 MIMO standard • Bluetooth 4.1（Support BLE）
Ethernet	10/100/1000Mbps Ethernet ( Realtek RTL8211E
Display	• 1 x HDMI 2.0 ( Type-A ), Support maximum 4K@60Hz display • 1 x DP 1.2 (DisplayPort) , Support maximum 4K@60Hz display • 2 x MIPI , support 2560x1600@60fps output with dual channel • 1 x eDP 1.3 ( 4 lanes with 10.8Gbps ) • 1 x HDMI IN
Audio	• 1 x HDMI or 1 x DP ( DispalyPort ) for audio output • 1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput) • 1 x Speaker for audio output ( 1.5W 8Ω or 2.5W 4Ω ) • 1 x SPDIF • 1 x On-board Microphon • 1 x I2S (up to 8 channels) for audio input and output • 1 x Mic Array Interface
Camera	• 2 x MIPI-CSI (13Mpixel Max for each port )(OV13850（13M）) • Support USB Camera

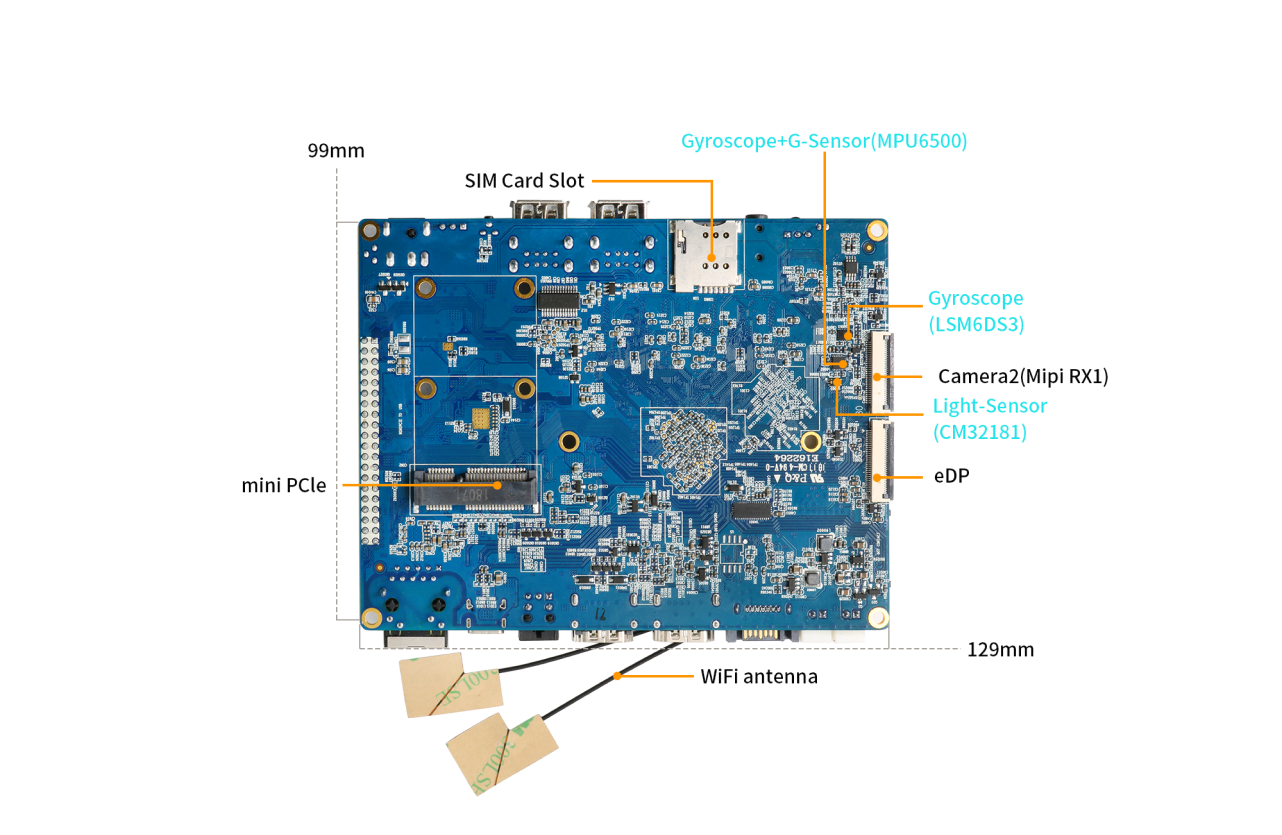

Sensor	• 1 x Gyroscope+G-Sensor(MPU6500) • 1 x Gyroscope(LSM6DS3) • 1 x HALL Sensor(HAL248TWCL) • 1 x Light Sensor(CM32181) • 1 x Compass(AK09911)
PCIe	• 1 x Mini PCIe • Compatible USB, used for LTE or TF Card • Compatible mSATA, used for expand SATA hard disk or SSD
SIM	1 x SIM slot, use as LTE module for miniPCIe extension
USB	4 x USB2.0 HOST, 1 x USB3.0 Type-C
IR	1 x IR, Support IR control function
LED	• 2 x Power Status LED (Red and Green) • 1 x SATA Power Status LED(Green)
Key	• 1 x Reset Button，1 x Power Button，1 x Recovery Button， • 1 x Menu Button，1 x Return Button，1 x Vol+ Button，1 x Vol- Button
Debugging	1 x Serial Console
Reserved Interface	• 40pin 2.54mm header • 4 x I2C , 1 x SPI, 2 x UART • 5 x GPIO
External Power supply interface	• DC12V - 2A (2 pins) • DC5V - 2A (2 pins)
Power	• DC12V-2A (via DC 5.5*2.1mm Jack) • TypeC 5V-3A • Battery (Dual Battery 7.4V)
OS	Android 6.0、Debian 9
Programming support	C、C++、Kotlin、Java、Shell、Pyhon
