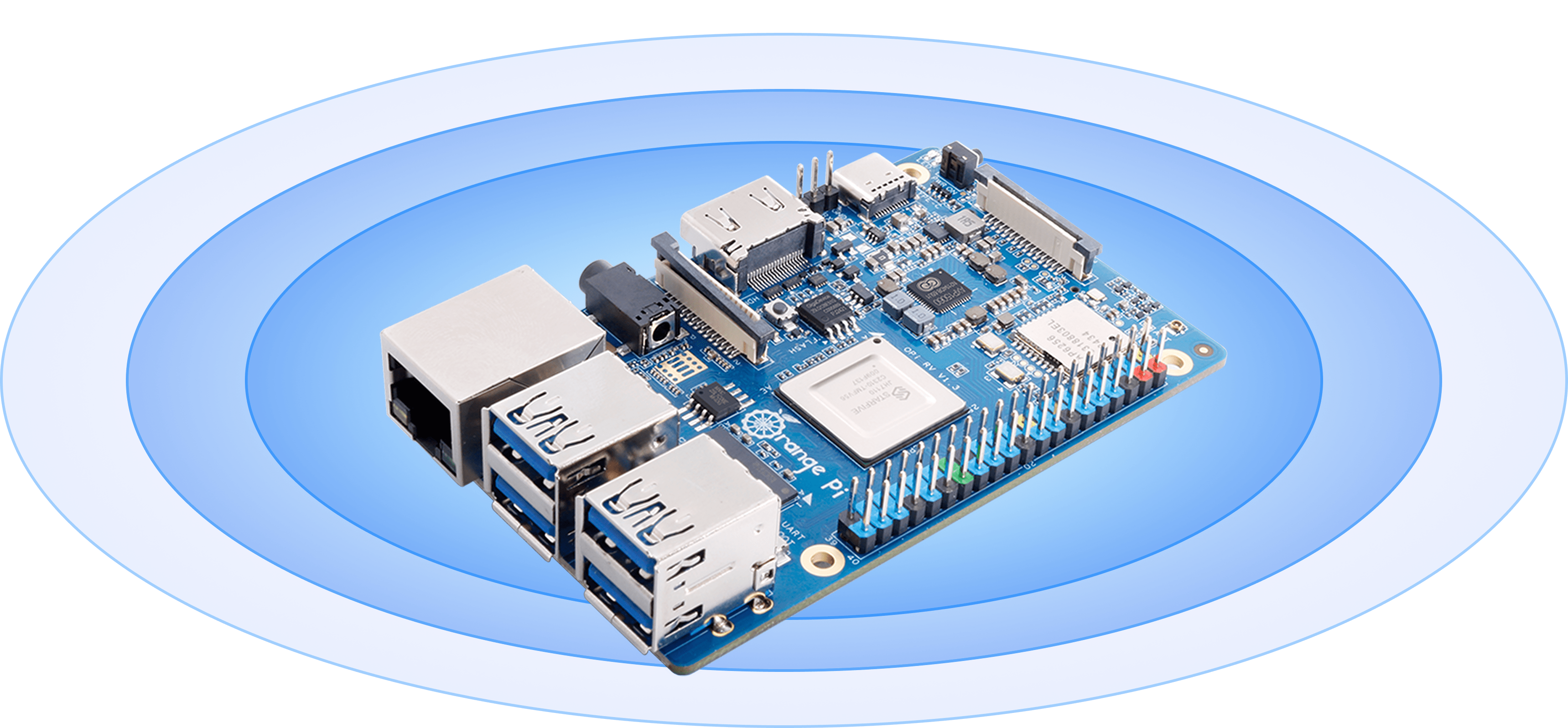

OrangePi RV
High Performance Open Source RISC-V
Development Board
JH-7110
Open source RISC-V architecture, higher level of open source
4 RISC-V cores up to 1.5GHz
2GB / 4GB / 8GB LPDDR4
Gigabit Ethernet port
USB3.0*4
Type-C power supply
HDMI 2.0 output
OrangePi RV is a cost-effective RISC-V development board, equipped with
a RISC-V quad-core processor JH-7110, with high-performance,
multi-function, low-power features, providing powerful GPU processing
capabilities, H.264/H.265 video encoding and decoding IP and ISP IP,
video decoding up to 4K @ 30fps, and supports PCIe2.0, Gigabit Ethernet,
MIPI-CSI, MIPI-DSI, 40Pin expansion interface and other commonly used
functional interfaces, and supports Linux operating system.
OrangePi RV is capable of accomplishing various complex video image processing and intelligent visual computations, meeting the various visual real-time processing needs at the edge, and is widely used in commercial electronic products, smart home, industrial intelligence, video surveillance, power energy, traffic management, etc. Based on the RISC-V architecture, OrangePi RV enables open source to reach a higher level, developers can get more freedom and stronger ability to innovate and design industry-leading solutions, and better support enterprise technology innovation.
OrangePi RV is capable of accomplishing various complex video image processing and intelligent visual computations, meeting the various visual real-time processing needs at the edge, and is widely used in commercial electronic products, smart home, industrial intelligence, video surveillance, power energy, traffic management, etc. Based on the RISC-V architecture, OrangePi RV enables open source to reach a higher level, developers can get more freedom and stronger ability to innovate and design industry-leading solutions, and better support enterprise technology innovation.
Highly open source, strong performance
Equipped with 64-bit high-performance quad-core RISC-V processor core, CPU stable operating frequency of 1.5GHz, with efficient computing, high-speed connection, visual processing and other characteristics.
Enriched interfaces
Rich peripheral interfaces, including PCIe2.0 interface, USB3.0
interface, Gigabit Ethernet interface, Wi-Fi and Bluetooth, MIPI
DSI, MIPI CSI, 40Pin expansion port, 3.5mm headphone jack, Type-C
5V4A power supply and so on.
Powerful codec
Video decoding (H.264/H.265) up to 4K@30fps, support multi-way
decoding; video encoding (H.265) up to 1080p@30fps, support
multi-way encoding; provide JPEG codec.
Wide range of applications
It can be widely used in commercial electronic products, smart home, industrial intelligence, video surveillance, power energy, transportation management, etc.

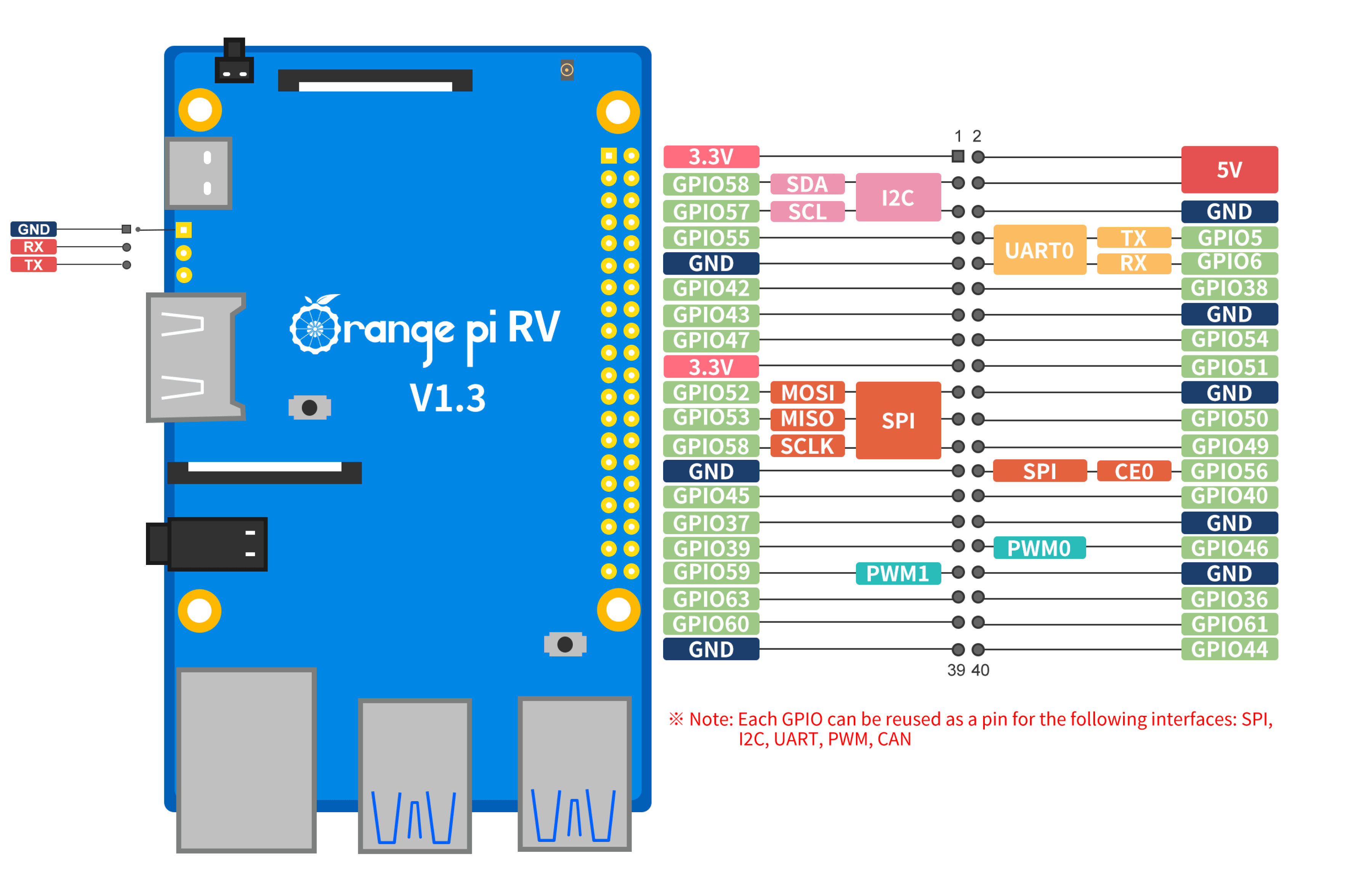

OrangePi RV Pin Definition
Product display

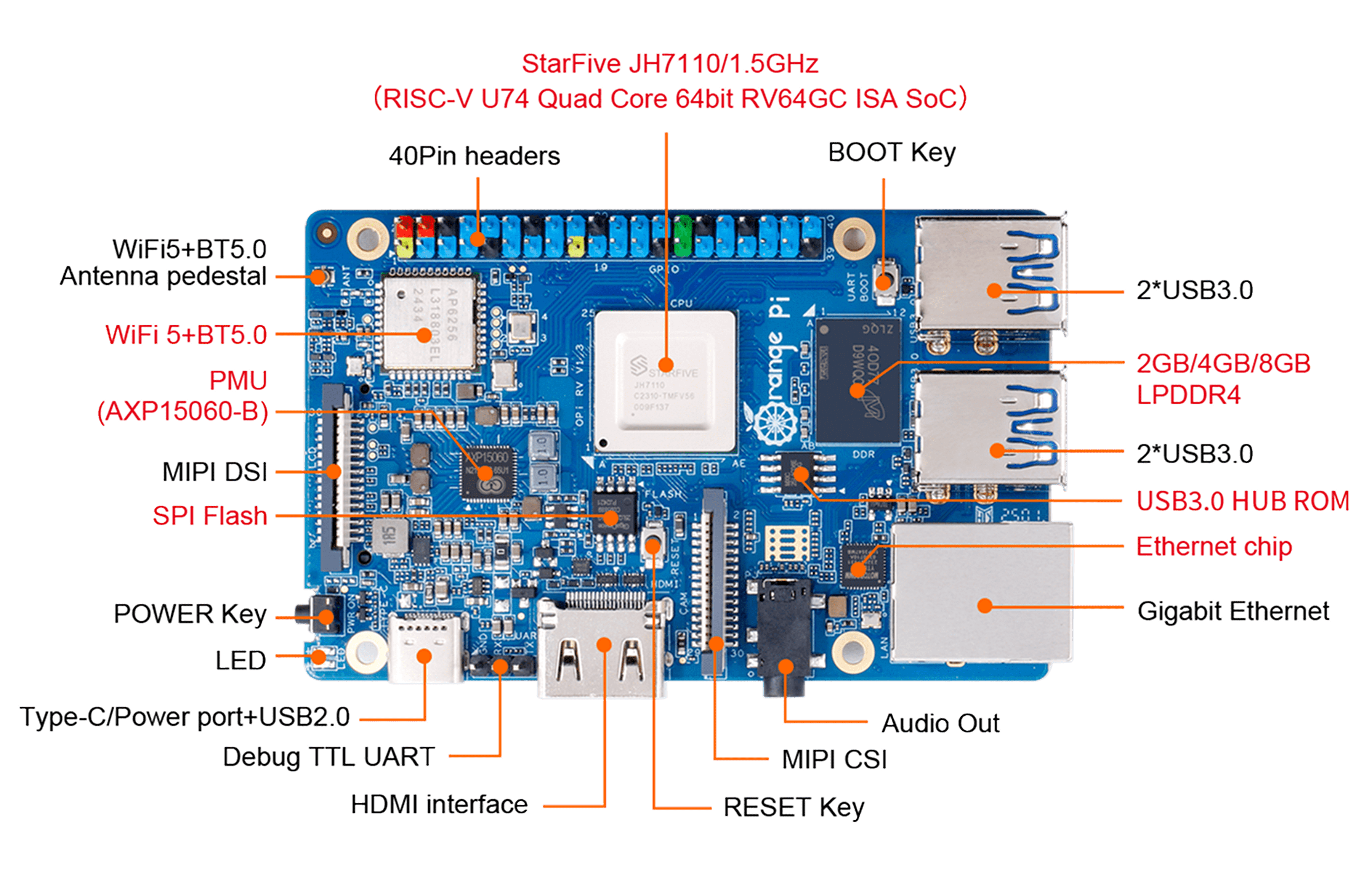

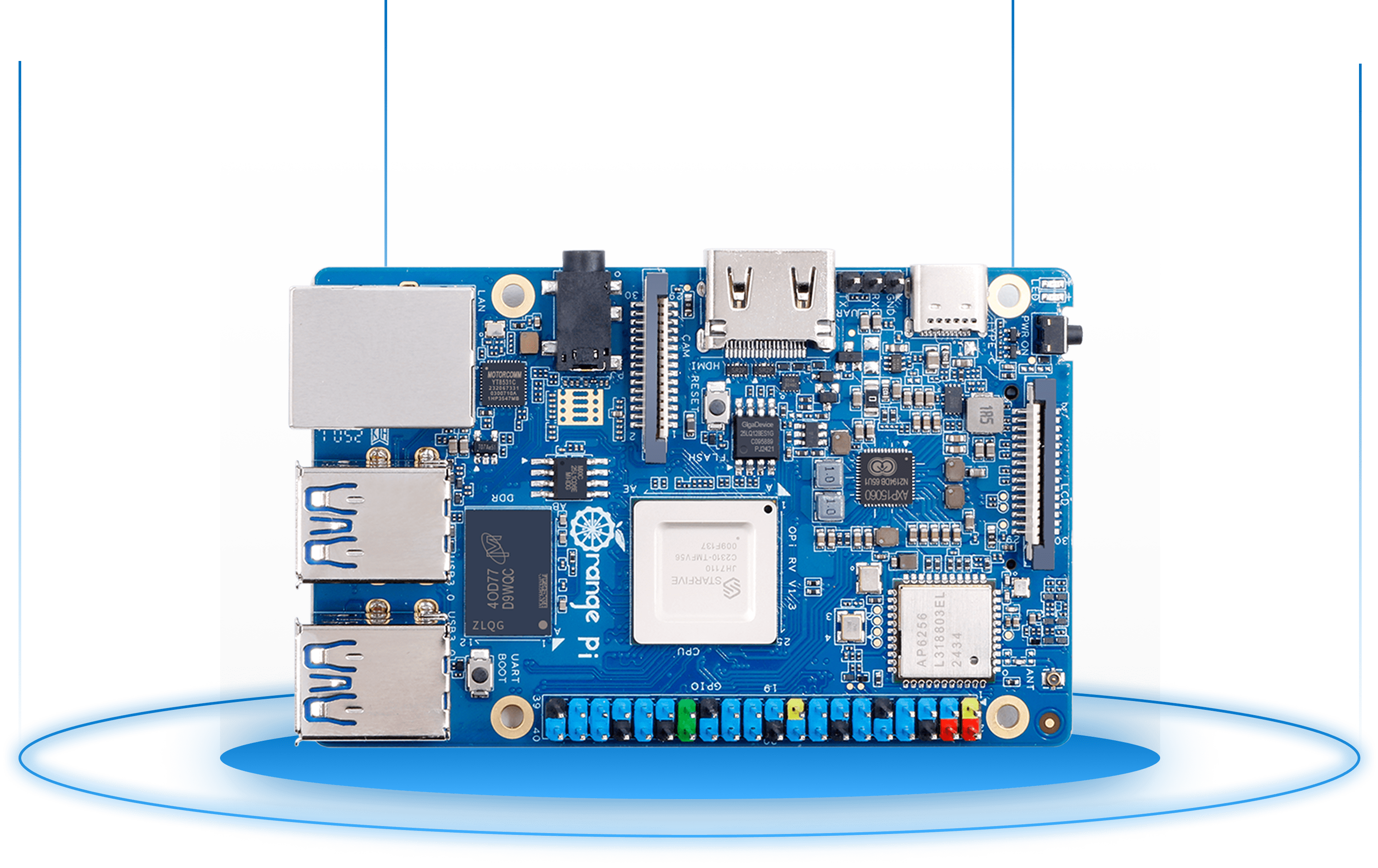

Top View

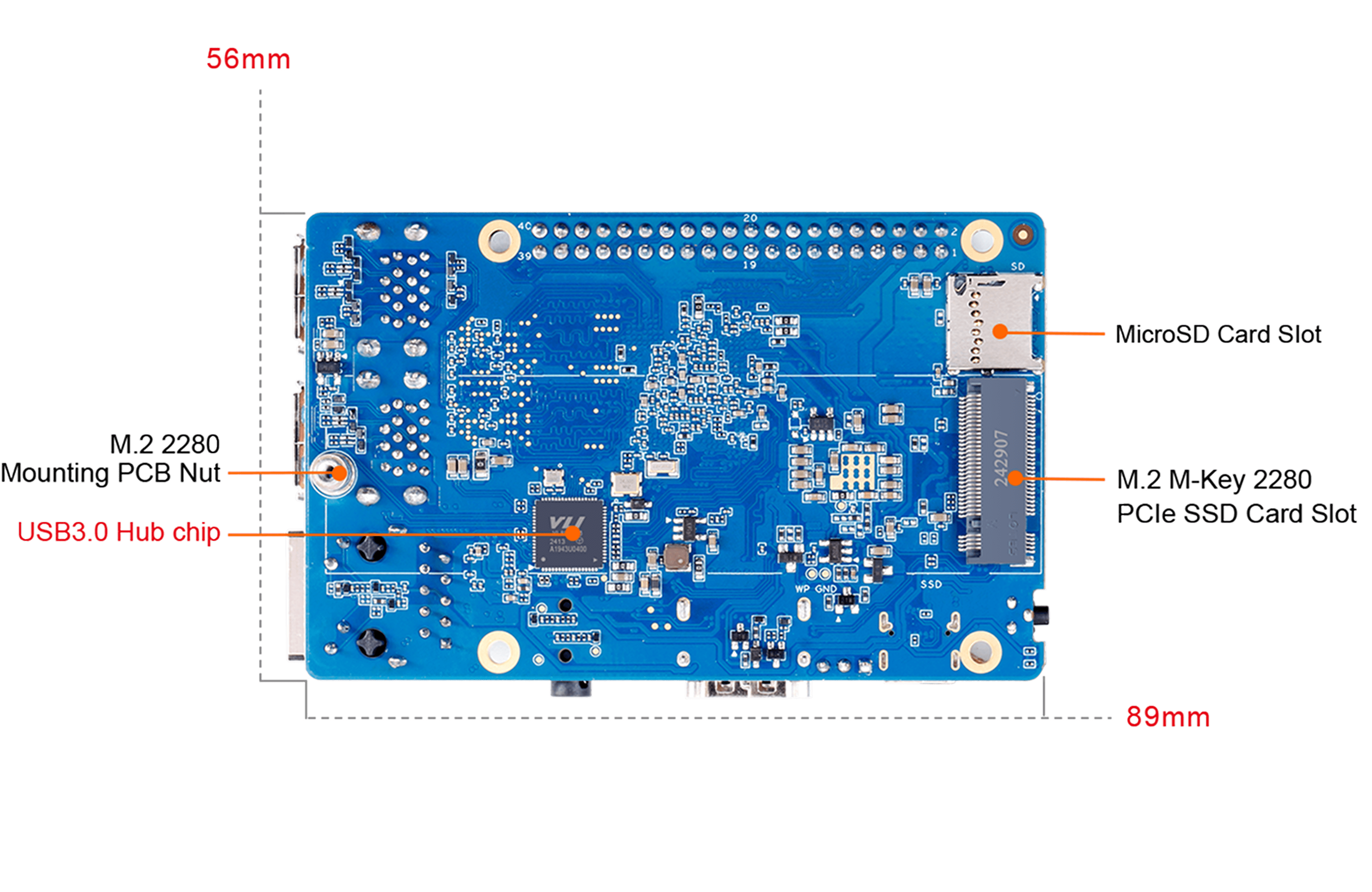

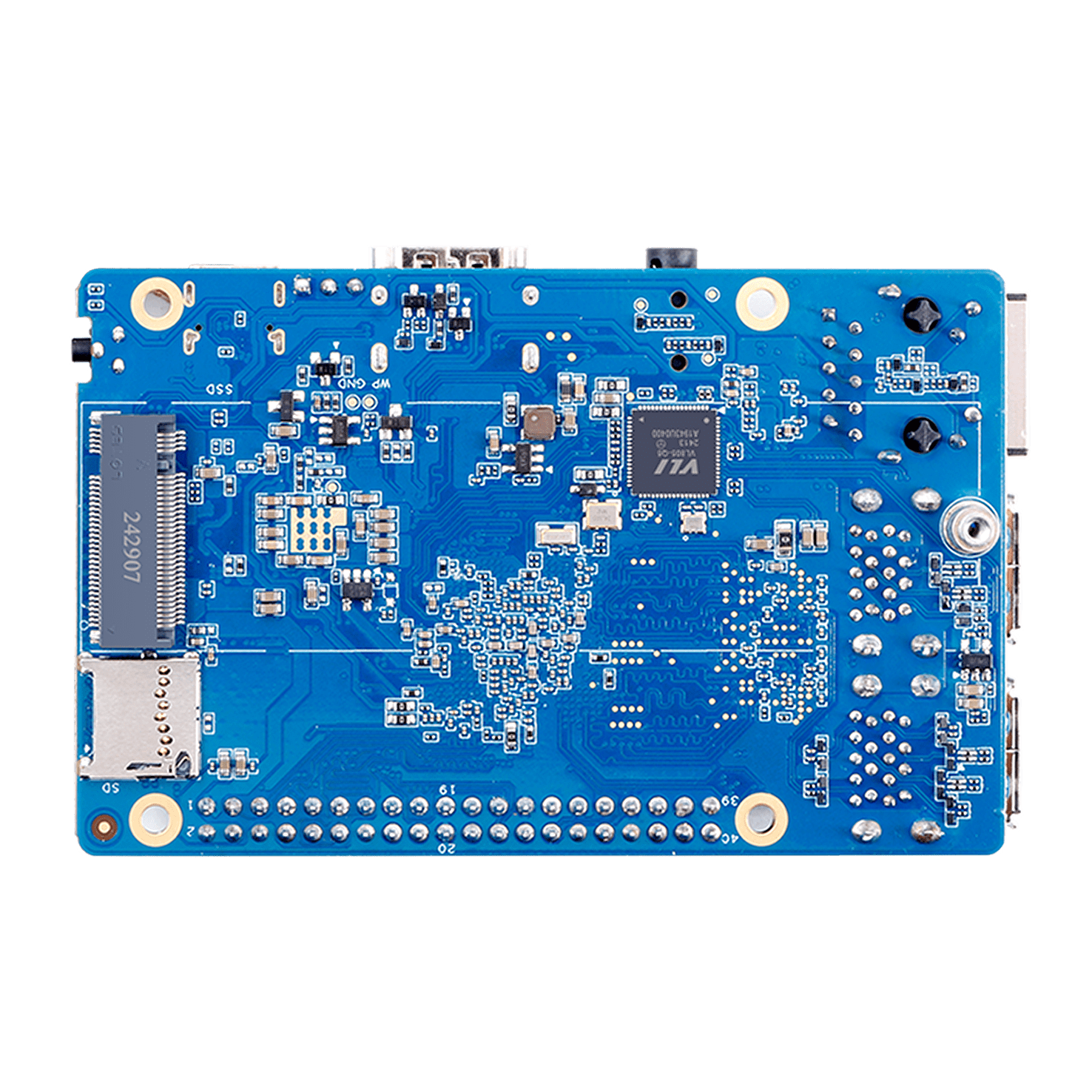

Bottom View
Hardware Specification
CPU | JH-7110 |
GPU | RISC-V architecture |
RAM | 2GB / 4GB / 8GB LPDDR4, 2800MT/s single channel B200 balls |
Memory | M.2 NGFF PCIe *1 (2280 *1);TF card slot *1, SDIO signal, max support 1TB |
Wi-Fi+BT |
• Wi-Fi5.0+BT5.0 • Wi-Fi Interface: SDIO2.0 Model: AP6256 |
Ethernet | Support 10/100/1000Mbps *1 YT8531C |
USB | USB3.0 *4;PCIe to USB3.0 HUB |
Camera | 2Lane CSI*1, dual-row 30Pin |
Video |
• HDMI Type A, 2.0*1, up to 4K@30fps • 2Lane DSI*1, dual-row 30Pin |
Audio | 3.5mm, 4-section headphone cradle, left and right channel only, no MIC |
Expansion port | 40Pin expansion interface: UART serial port, I2C, 3V/5V power supply and other GPIO |
Indicator light | Power on lamp |
Power button | Side buttons, board edge |
Reset button | Horizontal buttons, in-board |
Burn flash button | Horizontal buttons, in-board (for burning from USB when flash is damaged) |
Power source | Type-C port power supply, rated 5V 4A |
Supported OS | Linux |
Dimension | 89*56mm, board thickness 1.6mm |
Weight | 54g |
Product display
-

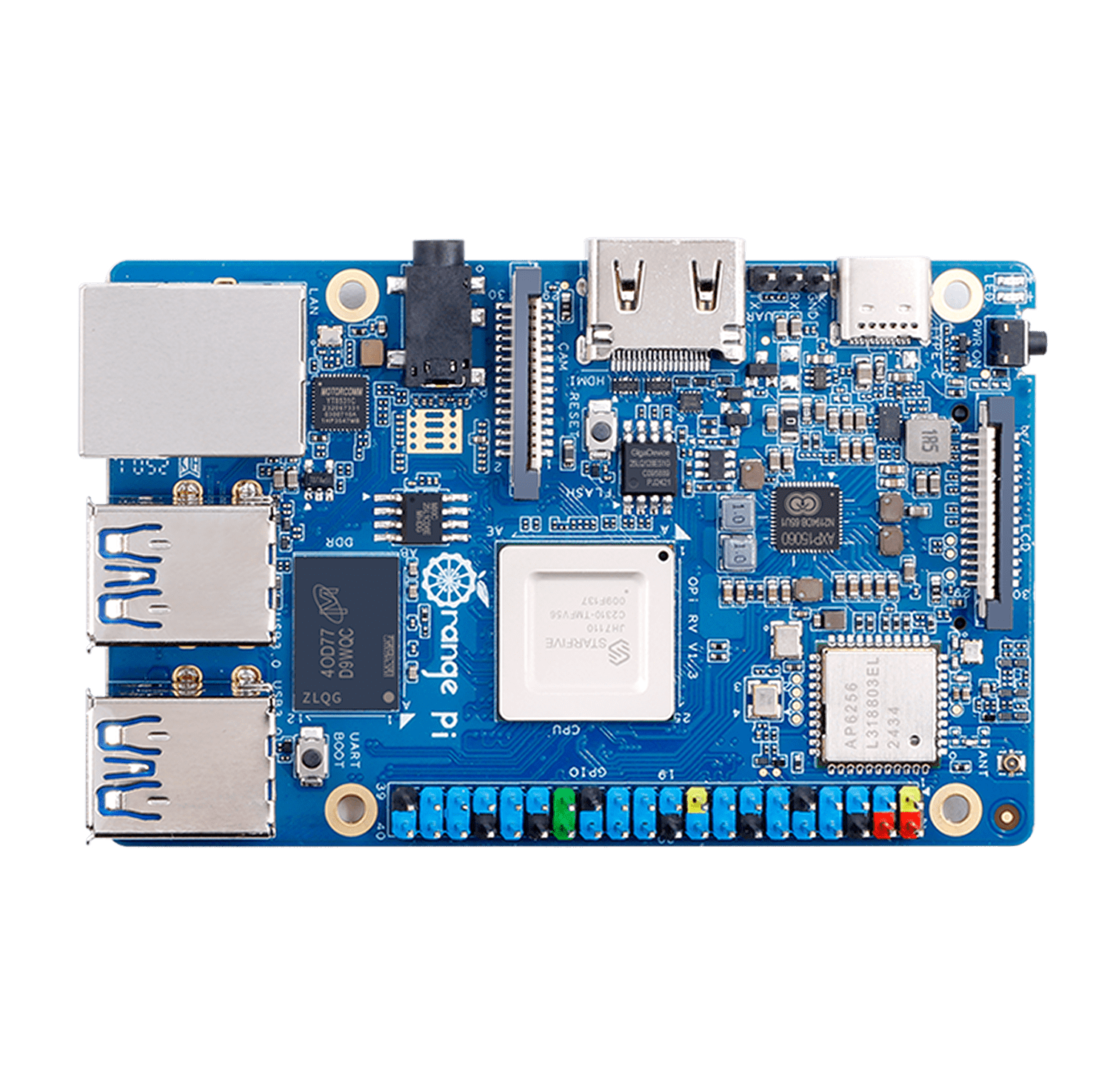

Front
-
Back
-

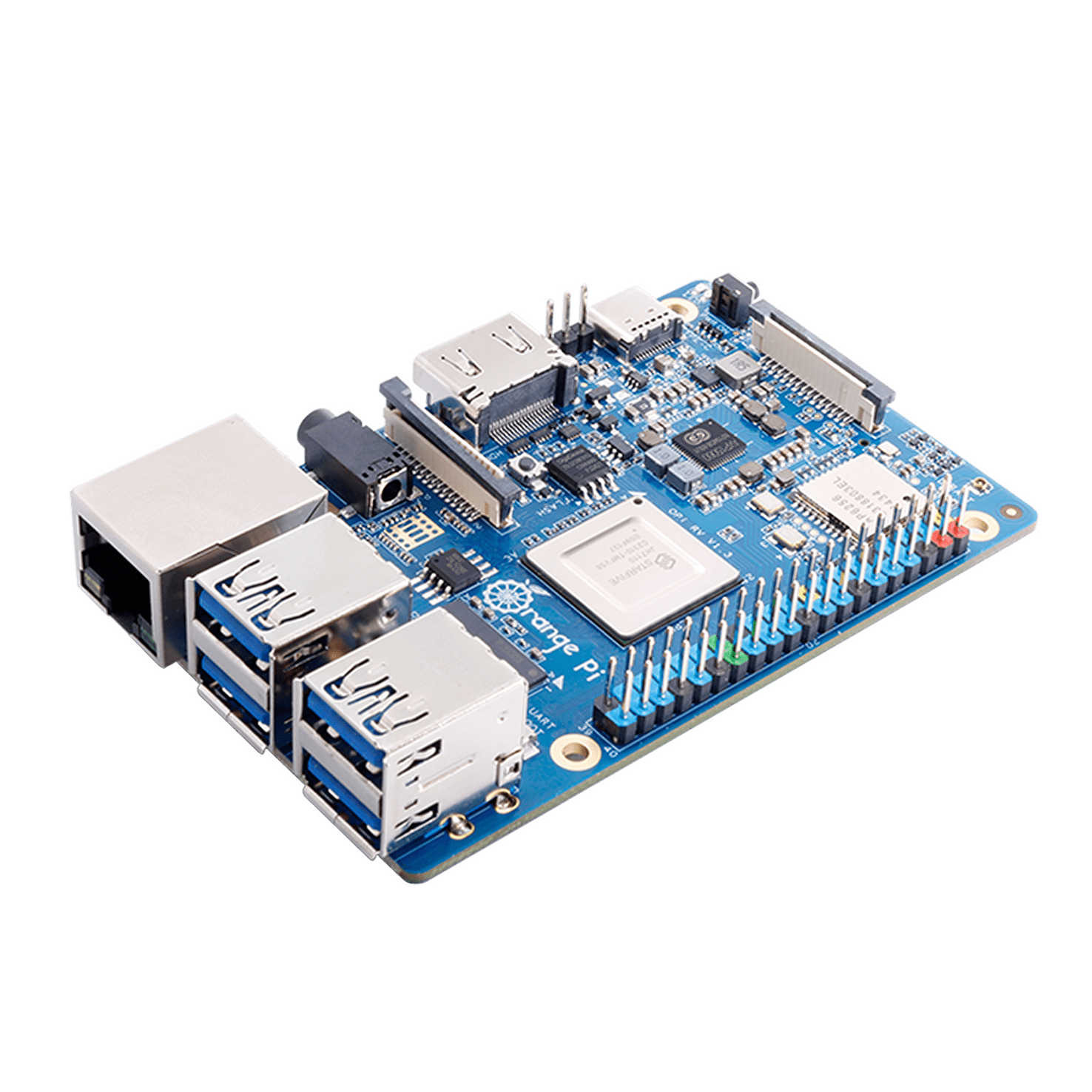

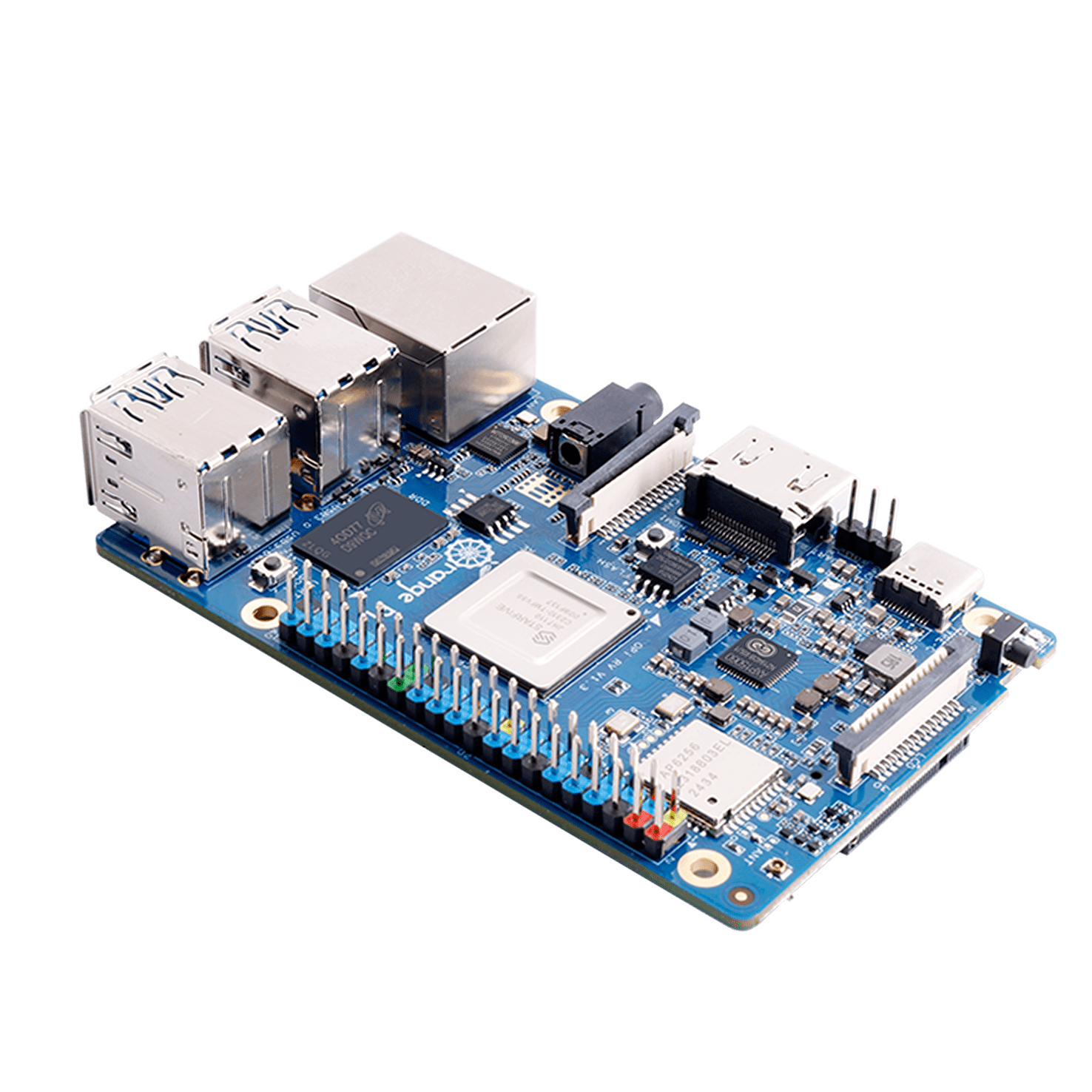

45° angle
-
45° angle
