OrangePi RV2

Overview Download
BUY NOW
OrangePi RV2
8-core RISC-V AI CPUs delivering 2TOPS CPU fusion for general-purpose computing power
Support for DeepSeek
8-core RISC-V AI CPU 2TOPS of converged AI power
2GB / 4GB / 8GB LPDDR4X
2*M.2 M-Key slots
Wi-Fi 5.0+BT 5.0, BLE
2*Gigabit LAN ports
3*USB3.0, 2*USB2.0
Supports dual-screen heterodyne display
Type-C power supply

OrangePi RV2 is a cost-effective RISC-V development board with Ky X1 8-core RISC-V AI CPU, providing 2TOPS CPU fusion of general-purpose computing power to support rapid deployment of AI model algorithms. It has 2GB / 4GB / 8GB LPDDR4X, supports eMMC module (16GB/32GB/64GB/128GB optional), has Wi-Fi 5.0 + BT 5.0, with BLE support.

OrangePi RV2 has a rich set of interfaces, including HDMI output, GPIO port, USB2.0, USB3.0, Gigabit LAN port, 3.5mm headphone socket, equipped with two M.2 M-Key slots (PCIe 2.0 2-Lane), supporting for the installation of NVMe SSDs.

OrangePi RV2 is exquisite and compact, measuring only 89mmX56mmX1.6mm, with powerful functions, it can be widely used in NAS, commercial electronics, smart robotics, smart home, industrial control, edge computing and so on.

OrangePi RV2 supports Ubuntu 24.04 and is deeply adapted to DeepSeek to help users quickly realize a range of AI convergence innovations.

8-core RISC-V AI CPU
Provides 40K+DMIPS CPU arithmetic and 2TOPS AI arithmetic, single-core CPU arithmetic is more than 130% of ARM A55.
Provides 2TOPS CPU-fused general-purpose computing power
Provides AI arithmetic in CPU mode, realizing 2TOPS@INT8 AI capability without the need for an independent NPU module, avoiding the large model deployment to compilation process of traditional NPU solutions, significantly reducing the deployment threshold of mainstream AI models, improving development efficiency, and realizing rapid docking with mainstream AI ecosystem.
Deeply adapted to DeepSeek
Supports local deployment of Deepseek-R1 distillation models, which helps users realize efficient end-side intelligence and ensure the security and controllability of data processing through offline deployment at the edge.
Leading arithmetic energy efficiency
With the streamlined RISC-V architecture and excellent micro-architecture design, the arithmetic energy efficiency breaks through the process bottleneck, and the power consumption in the same scenario is only 80% of that of ARM A55.
Abundant interfaces
Rich peripheral interfaces, including PCIe2.0 interface, USB3.0 interface, Gigabit Ethernet interface, Wi-Fi and Bluetooth, MIPI DSI, MIPI CSI, 26Pin expansion port, 3.5mm headphone jack, Type-C 5V5A power supply and so on.
Equipped with two M.2 M-Key slots
(PCIe 2.0 2-lane)
Supports the installation of NVMe solid state drives to expand massive capacity.
Powerful wireless communication
Wi-Fi 5.0 + BT 5.0 with BLE support
Wide range of applications
It can be widely used in NAS, commercial electronic products, intelligent robots, smart home, industrial control, edge computing, etc.
OrangePi RV2 Pin Definition

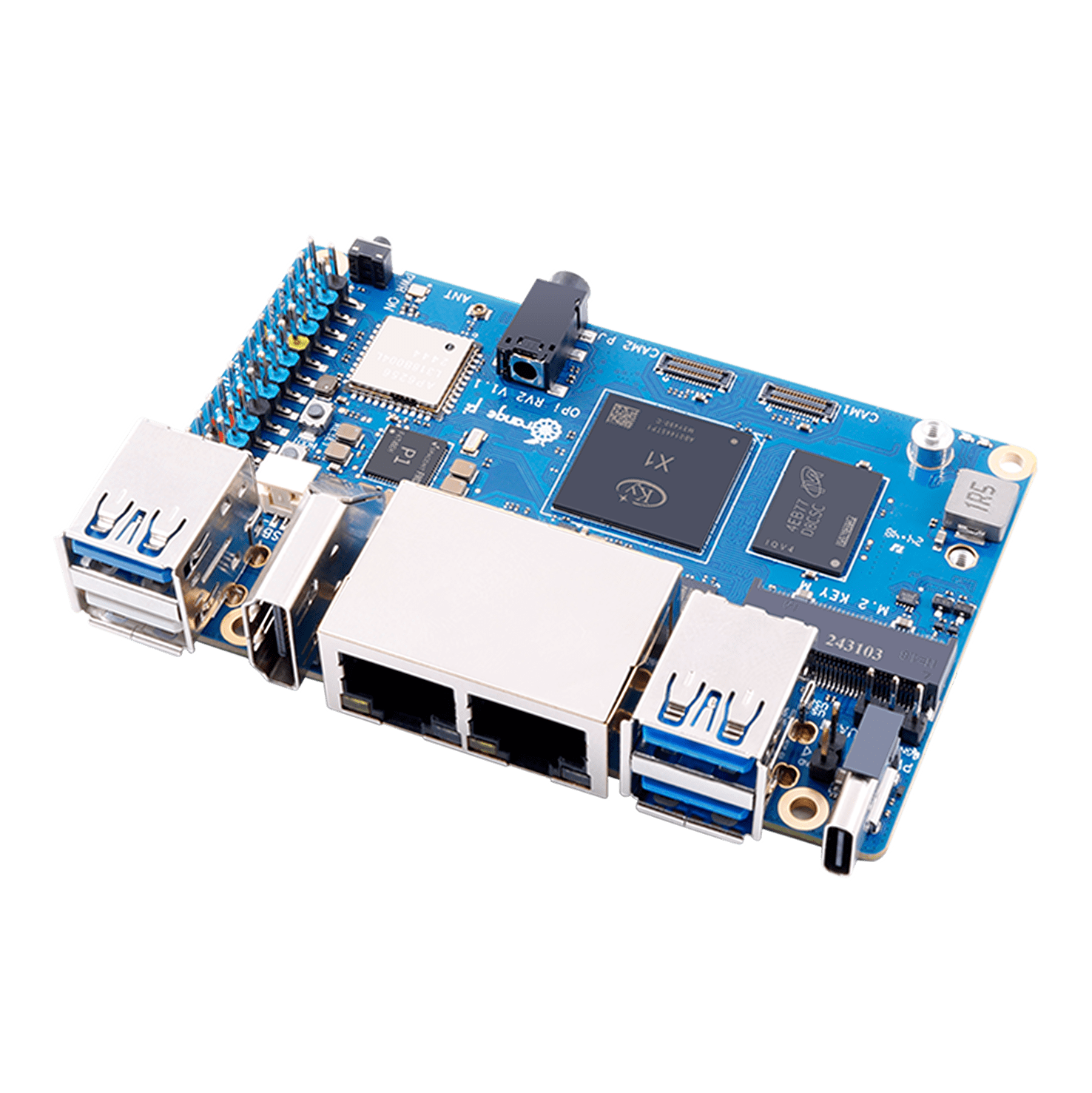

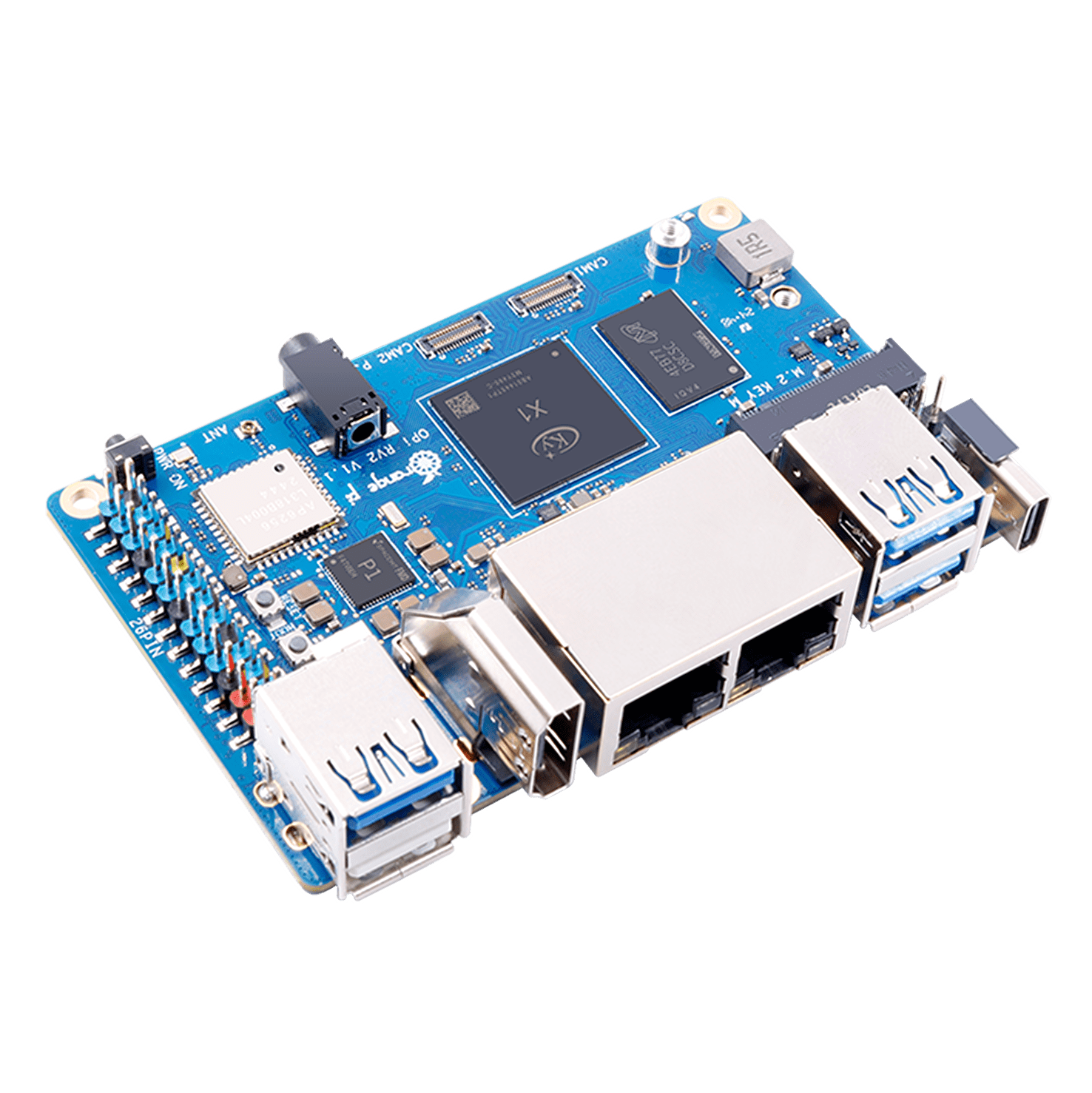

Product display

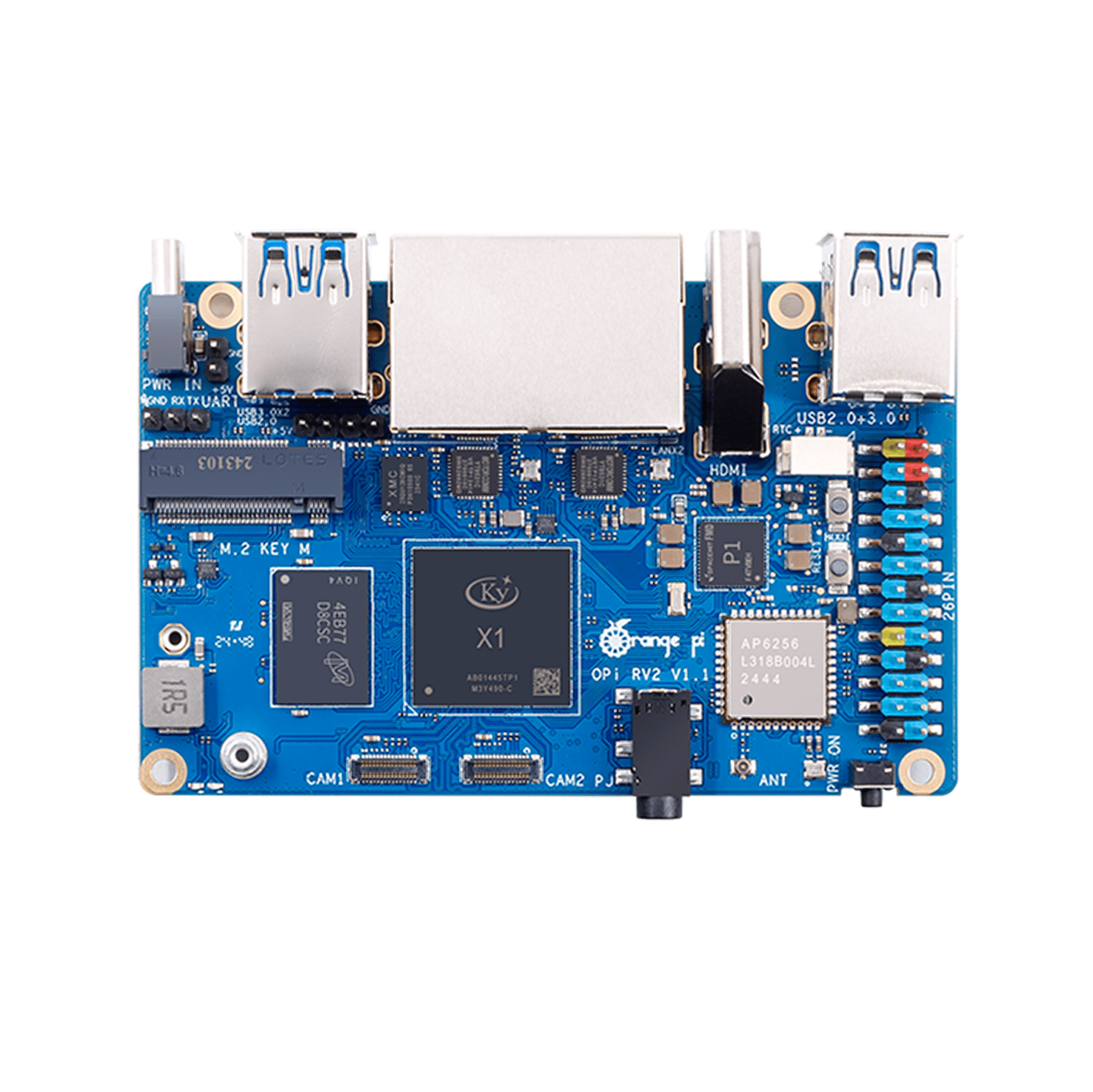

Top View
Side View

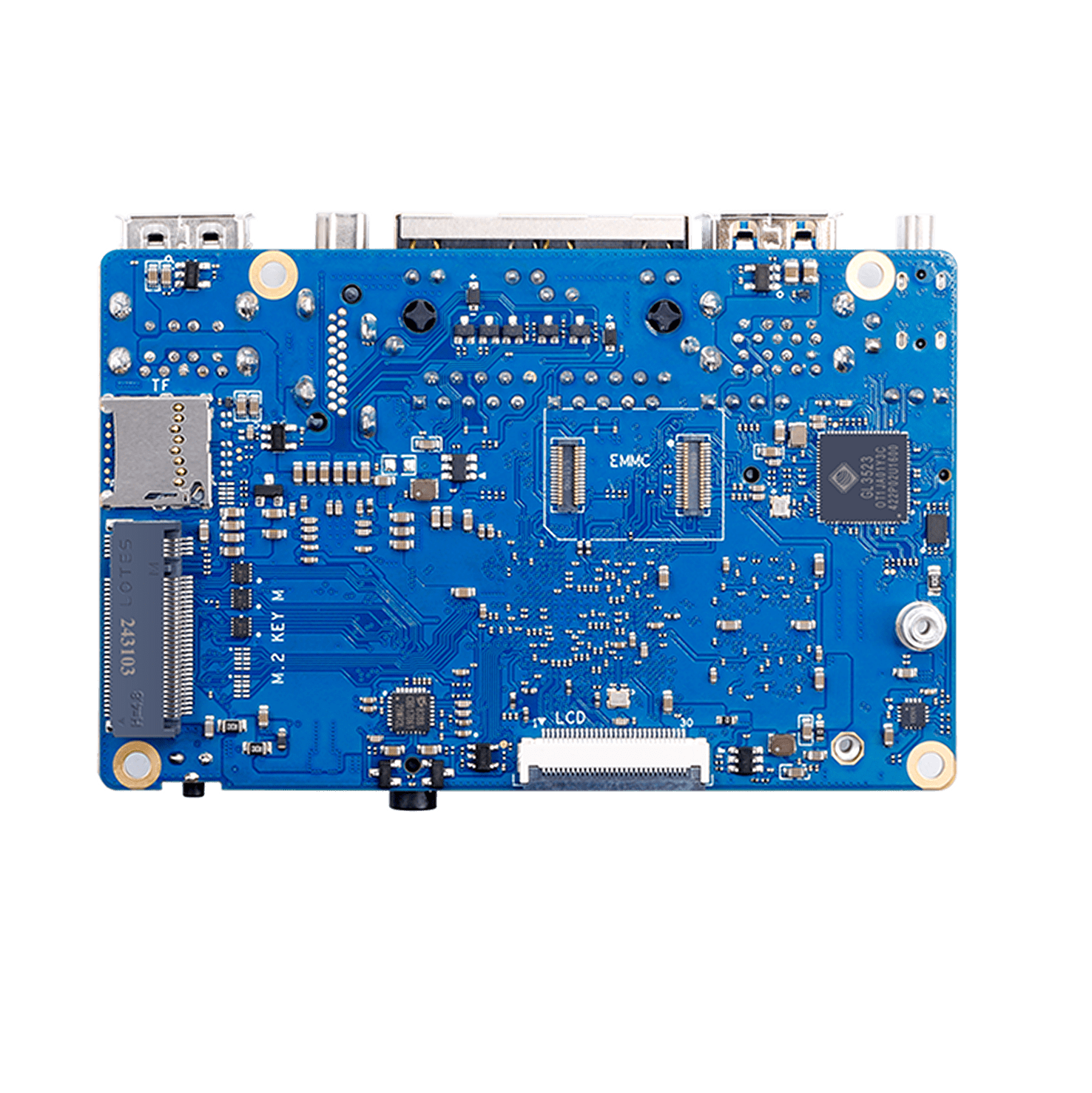

Bottom View

Hardware Parameters

CPU Ky X1 8-core RISC-V AI CPU
2TOPS AI power
Memory LPDDR4X: 2GB/4GB/8GB optional
Storage eMMC module (optional): 16GB/32GB/64GB/128GB optional
SPI FLASH: 128Mb (default), 256Mb optional
2*M.2 M-Key SOCKET: PCIe2.0 2 Lane NVMe SSD
TF Card: Supports SDIO3.0 TF Card
Wi-Fi + Bluetooth Wi-Fi + Bluetooth 2-in-1 Module: AP6256
Wi-Fi5.0+BT 5.0, BLE
Ethernet interface 2* Gigabit Ethernet, PHY Chip: YT8531C-CA
Display Supports dual-screen heterodyne display, up to 1920*1440@60fPS
1* HDMI2.0
1* 4-lane MIPI DSI
Camera 2x 4-lane MIPI CSI camera interface
USB 1*USB2.0 HOST or DEVICE
3*USB3.0 HOST
1*USB2.0 HOST (4Pin header)
Audio 3.5mm headphone jack audio input/output
HDMI audio output
Buttons 1* BOOT, 1*RESET, 1 *PWR ON
RTC 2Pin spare battery connector (Pitch=1.25mm)
26Pin 26Pin function expansion interface, supports the following interface types:
GPIO, UART, I2C, SPI, PWM, etc.
DEBUG 3Pin debug serial port, 3.3V level
Power input/output Power connector: 2Pin. Maximum 5V 1A output , such as connecting the fan.
Power supply Type-C 5V 5A DC IN
PCB size 89*56*1.6 mm
Supported OS Ubuntu24.04
