Orange Pi Win Plus

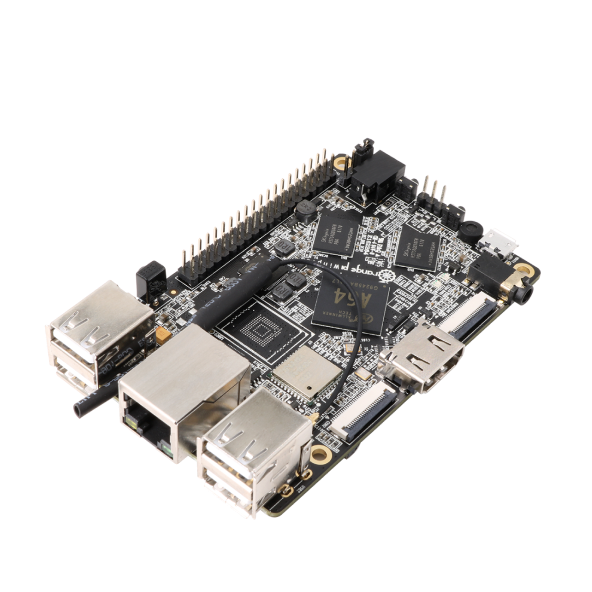

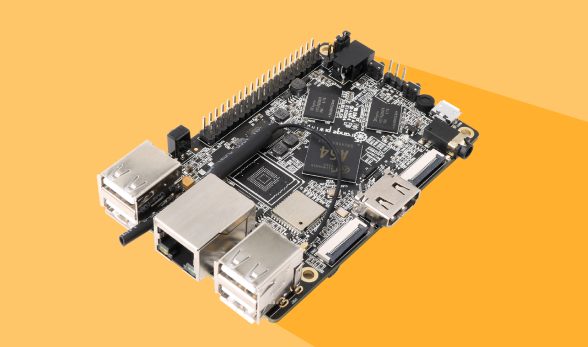

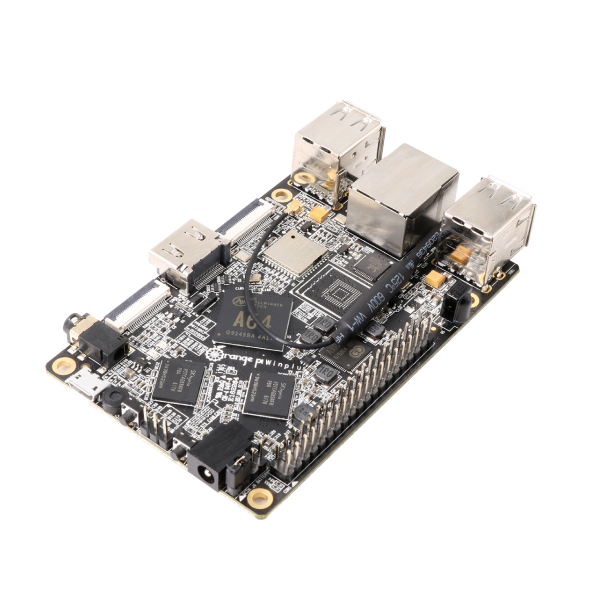

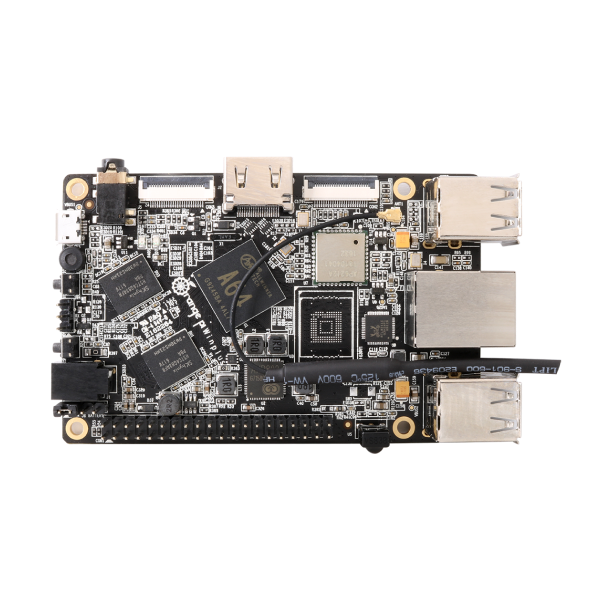

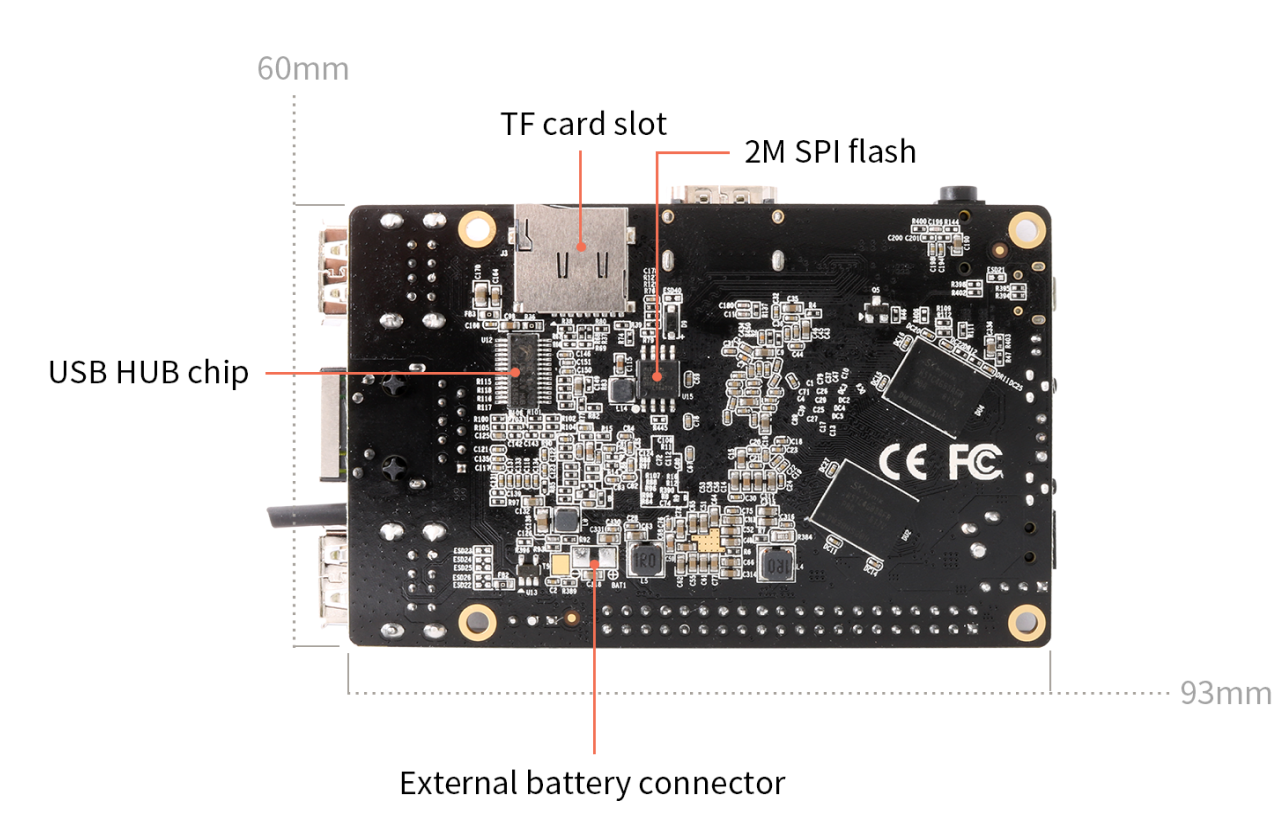

Orange Pi Win Plus is an open-source single-board computer with Gigabit Ethernet port. It is highly compact with a dimension of 93X60mm.

Product introduction

Cortex-A53
TF card
HDMI output
CSI camera port
USB 2.0
Gigabit Ethernet port
USB-OTG
Powered through DC
WiFi
2GB DDR3
40pin headers

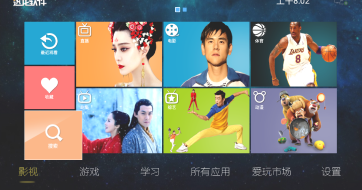

Multiple operating systems

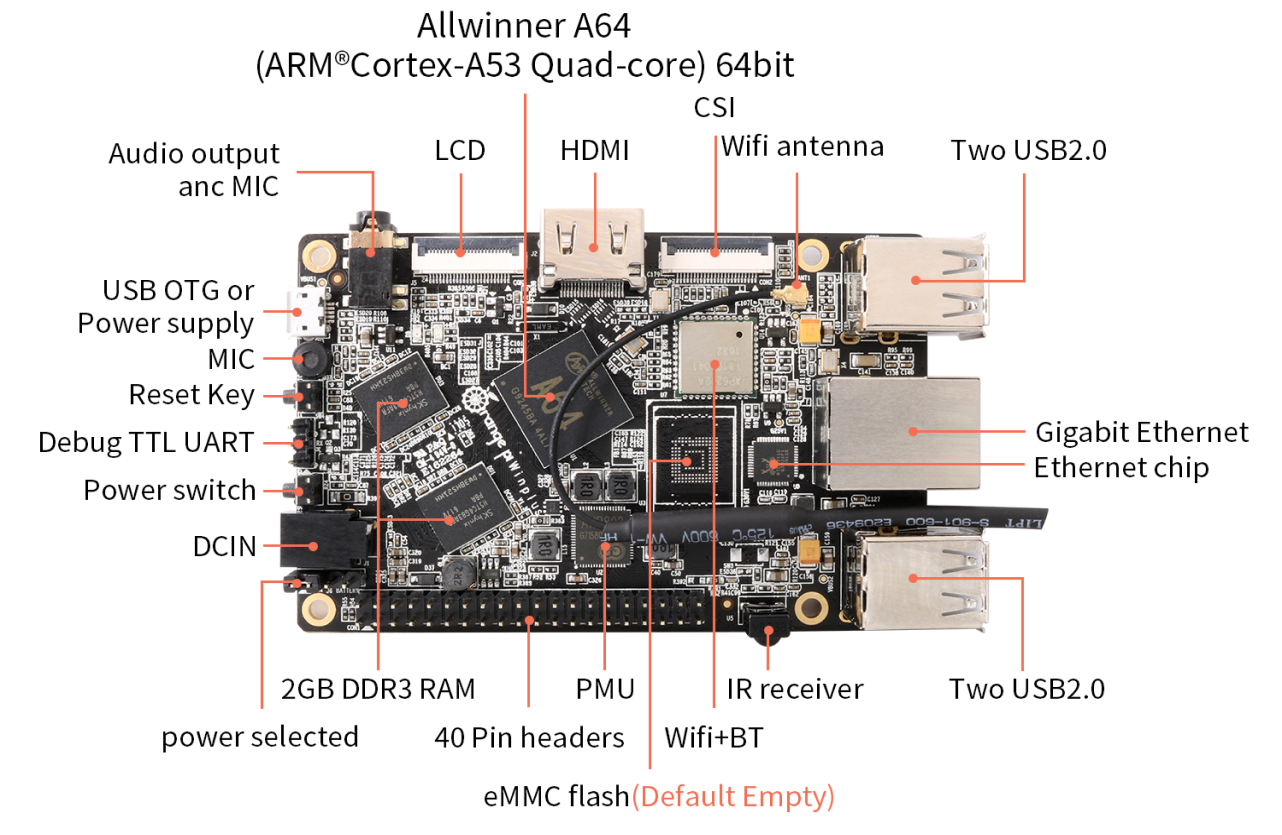

It uses the Allwinner A64 SoC with Quad-core Cortex-A53 64bit, and has 2GB DDR3 (shared with GPU) , It can run Android 6.0,Ubuntu,Debian image. Orange Pi Win Plus offers a range of different ports, including HDMI output, 40pin headers, Gigabit Ethernet port, USB 2.0, CSI camera port, TF card, etc. It is powered through DC, USB OTG and Battery.

Orange Pi Win Plus is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

2GB DDR3

2GB DDR3, sufficient for running various applications, smooth & elegant.
Dual Gigabit Ethernet ports, faster

Multiple Functional Interfaces

Integrates the popular HDMI, Ethernet, CSI camera port ,USB-OTG,etc.

Hardware specification

CPU	A64 Quad-core Cortex-A53 64bit
GPU	• Mali400MP2 GPU • Supports OpenGL ES 2.0 and OpenVG1.1
Memory (SDRAM)	2GB (shared with GPU)
Onboard Storage	TF card (Max. 32GB) / NOR flash(2MB)/eMMC（Default empty）
Onboard Network	1000M/100M Ethernet RJ45
Onboard WiFi+BT	AP6212, IEEE 802.11 b/g/n,BT4.2
Video Input	• A CSI input connector Camera • Supports 8-bit YUV422 CMOS sensor interface • Supports CCIR656 protocol for NTSC and PAL • Supports SM pixel camera sensor • Supports video capture solution up to 1080p@30fps
Audio Input	MIC, 3.5 mm Jack
Video Outputs	LCD
Audio Outputs	3.5 mm Jack, HDMI
Power Source	• DC input can supply power • USB OTG input can supply power • Battery input can supply power
GPIO(1x3) pin	UART, Ground.
USB 2.0 Ports	Four USB 2.0 HOST, one USB 2.0 OTG
Buttons	Power Button(SW2), Reset Button (SW4)

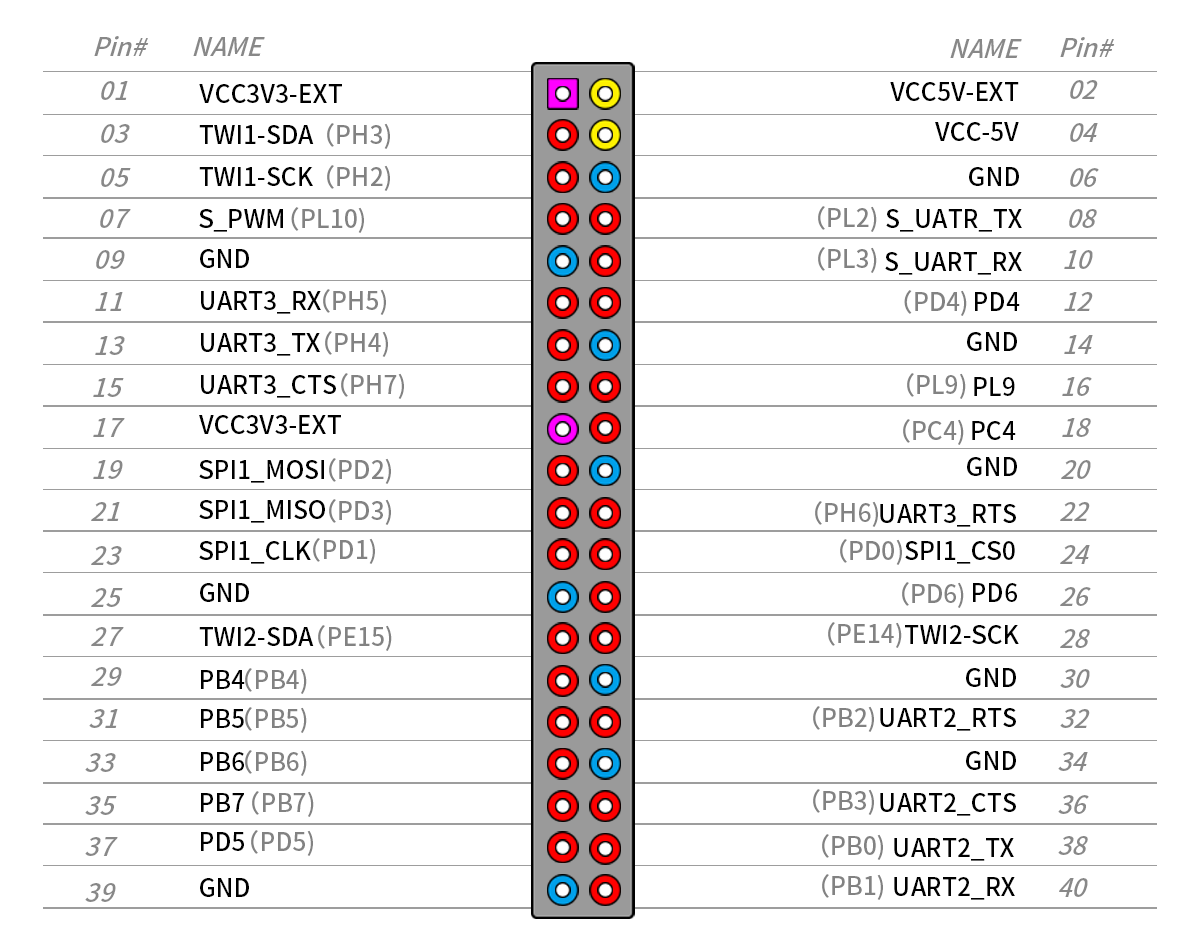

Low-level peripherals	40 Pins Header
LED	Power led & Status led
Key	IR input, POWER,Reset
Supported OS	Android, Ubuntu, Debian
