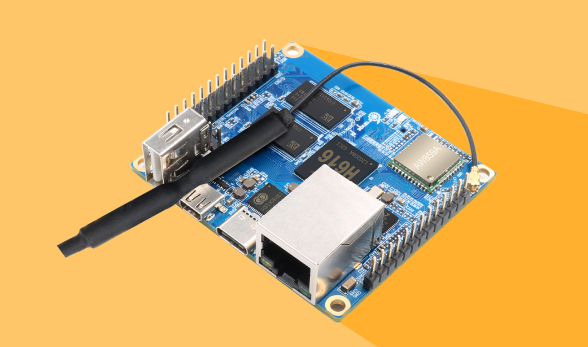

Orange Pi Zero2 is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 53X60mm. It can run Android10, Ubuntu, Debian.
Product introduction
-
Gbps Ethernet port -
Multiple operating systems -
USB 2.0 -
TF card Slot -
Powered through Type-C -
HDMI output -
WiFi -
Bluetooth 5.0
Orange Pi Zero2 uses the Allwinner H6 SoC, and has 512MB/1GB DDR3 SDRAM. It offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,3*USB USB2.0,etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.
Orange Pi Zero2 is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
| CPU | Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor |
| GPU |
• Mali G31 MP2 • Supports OpenGL ES 1.0/2.0/3.2、OpenCL 2.0 |
| Video decoding |
• H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps • VP9 Profile 2 decoder up to 4K@60fps • AVS2 JiZhun 10bit decoder up to 4K@60fps • H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps |
| Video encoding | • H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps • JPEG snapshot performance of 1080p@60fps |
| Memory(SDRAM) | 512MB/1GB DDR3 (Shared with GPU） |
| Onboard Storage | • TF card slot • 2MB SPI Flash |
| Onboard Network | Support 1000M/100M/10M Ethernet |
| Onboard WiFi+BT | • 859 Chip • Support IEEE 802.11 a/b/g/n/ac • Support BT5.0 |
| Video Outputs |
• Micro HDMI 2.0a up to 4K@60fps • TV CVBS output, Support PAL/NTSC（Via 13pin interface board） |
| Audio output | • Micro HDMI • 3.5mm audio port (Via 13pin interface board) |
| Power Source | Type-C interface 5V3A input |
| USB 2.0 Ports | 3*USB 2.0 HOST（Two of them are via 13pin interface board） |
| Low-level peripherals |
• 26pin header with I2C, SPI, UART and multiple GPIO ports • 13pin header with 2*USB Host, IR pin, Tv-out、AUDIO (no MIC) and 3 GPIO ports |
| Debug serial port | UART-TX、UART-RX and GND |
| LED | Power led & Status led |
| IR receiver | Support IR remote control (via 13pin interface board) |
| Supported OS | Android10、Ubuntu、Debian |
Appearance specification introduction
| Dimension | 53mm×60mm |
| Weight | 30g |
Top view
Bottom view
Orange Pi Zero2 v1.5 pinout diagram
-
Completely open source maker artifact
-
Orange Pi Zero2 runs Android
-
Orange Pi Zero2 runs Ubuntu
-
Orange Pi Zero2 runs Debian
-
Product display
-

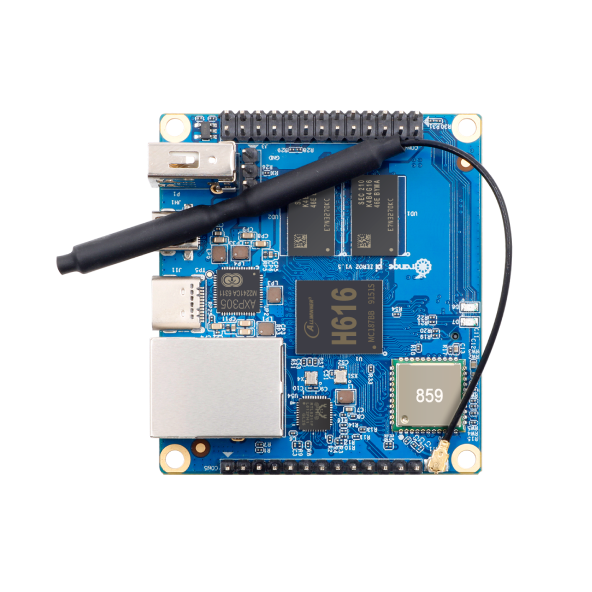

Front -

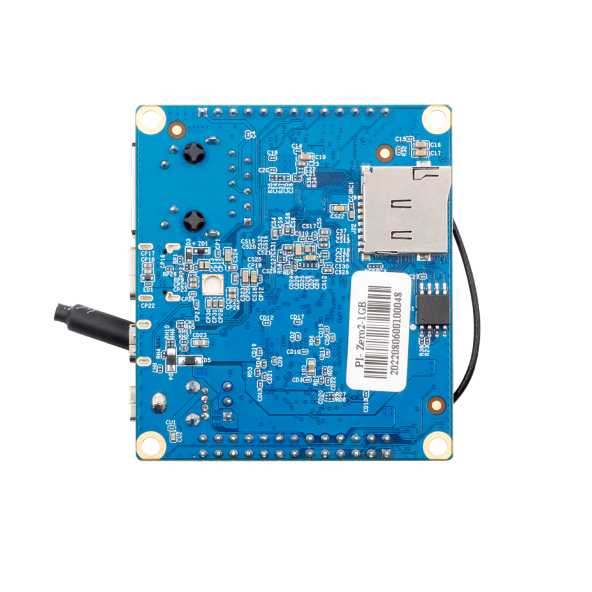

Back -

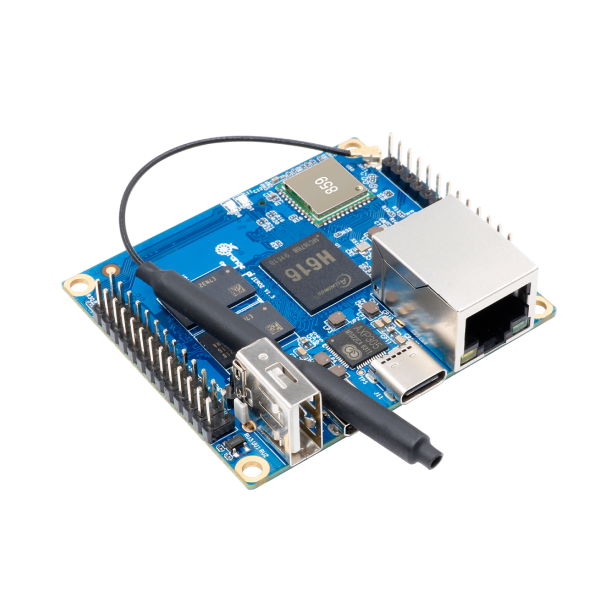

45° angle -

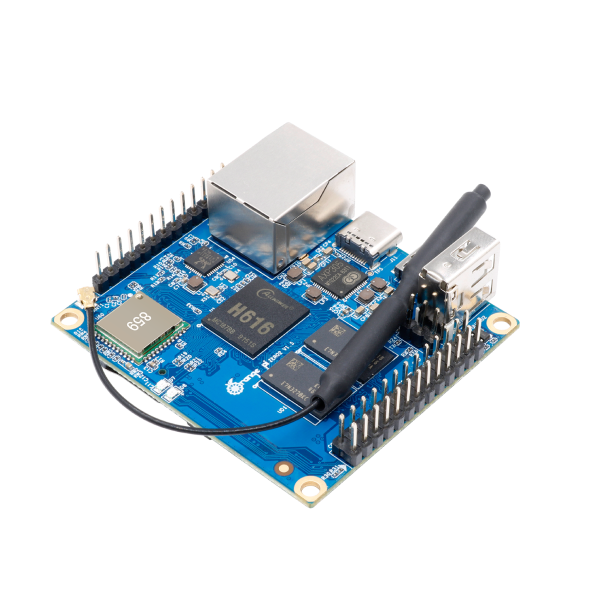

45° angle
What can l do with Orange Pi Zero2?
You can use it to build-…
Pretty much anything else, because Orange Pi Zero2 is open source
