Orange Pi Zero 2W

Small, Practical, Powerful

Quad-core Cortex-A53 processor

1GB/1.5GB/2GB/4GB LPDDR4

Wi-Fi5+BT5.0

USB2.0

16MB SPI Flash on board

Orange Pi Zero 2W is powered by Allwinner H618 high-performance quad-core Cortex-A53 processor with up to 1.5GHz, integrated Mali G31 MP2 graphics processor, supporting OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1. It has 1GB /1.5GB / 2GB /4GB LPDDR4 memory specification options, supports 16MB SPI Flash, has Wi-Fi5, BT5.0. Orange Pi Zero 2W can be extended with USB2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button, etc. via 24Pin connector with adapter board. In addition, the 40Pin expansion port on the board further enriches the motherboard's functional interfaces and enhances the development potential. Orange Pi Zero 2W adheres to the compact and exquisite design concept of the Zero series, with a PCB size of 30mm X 65mm X 1.2mm, and can be widely used in TV boxes, smart screen casting devices, smart home, smart gateway, IoT and other fields. Orange Pi Zero 2W supports Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04 ，Orange Pi OS（Arch）and other operating systems.

Compact size and powerful functions

Allwinner H618 high-performance quad-core Cortex-A53 processor, main frequency up to 1.5GHz, low power consumption and high performance.

Multiple memory options to meet different needs

1GB/1.5GB/2GB/4GB LPDDR4 memory specifications are available to meet the needs of different application scenarios.

Wi-Fi5+BT 5.0

2.4G/5G dual-band Wi-Fi5 and Bluetooth 5.0, enjoy the wonderful network anytime, anywhere.

Support mainstream operating system

Support Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04，Orange Pi OS（Arch） and other operating systems.

Complete development materials and user manual

Development materials, user manual, third-party images to download（Download: http://www.orangepi.org/html/serviceAndSupport/index.html）, to help users use the product correctly and efficiently, users can carry out secondary development according to project requirements.

Professional technical support

At Orange Pi Creator Group,our professional technical team will provide online technical support services to quickly solve users' technical problems and enquiries.
• Telegram Group: https://t.me/OPi_official_group
• Facebok Group: https://www.facebook.com/groups/2691142251169626
• Discord Group: https://discord.gg/hE5wdMPm7z
• Reddit: https://www.reddit.com/r/OrangePI/

Active technical forum

We have a large, friendly, vibrant and diverse forum（http://www.orangepi.org/orangepibbsen/）. The forum is filled with creators, geeks, hardware enthusiasts, privacy advocates and project developers from all over the world，where you can communicate and share.

Continuous and stable supply capacity

As the world's leading open source product brand, we have established long-term cooperation and strategic partnership with domestic and foreign mainstream IC manufacturers, standing inventory to protect the long-term demand for materials, with continuous and stable supply capacity.

Orange Pi Zero 2W V1.1 Pin Definition

Product display

Top View

Bottom View

Hardware Parameters

CPU	Allwinner H618 Quad-Core Cortex-A53 Processor 1.5GHz
GPU	Mali G31 MP2 - Support OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
RAM	LPDDR4:1GB/1.5GB/2GB/4GB (optional)
Memory	SPI Flash: 16MB
Wi-Fi + BT	Wi-Fi5.0+BT 5.0
Video output	1*Mini HDMI TX 2.0 port supporting 4K@60FPS
USB	Type-C USB2.0*2
SD card interface	1*Micro SD card interface
Expansion interface	24Pin expansion interface: USB2.02, 100M Ethernet interface, IR receiver interface, audio output, TV-out, power button, user-defined buttons2
40Pin	40Pin function expansion interface, supporting the following interface types: GPIO、UART、I2C、SPI、PWM
Power Source	Type-C 5V2A
Supported OS	Android 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04，Orange Pi OS（Arch）
PCB Dimension	30mm x 65mm x 1.2mm
Weight	12.5g

Product display

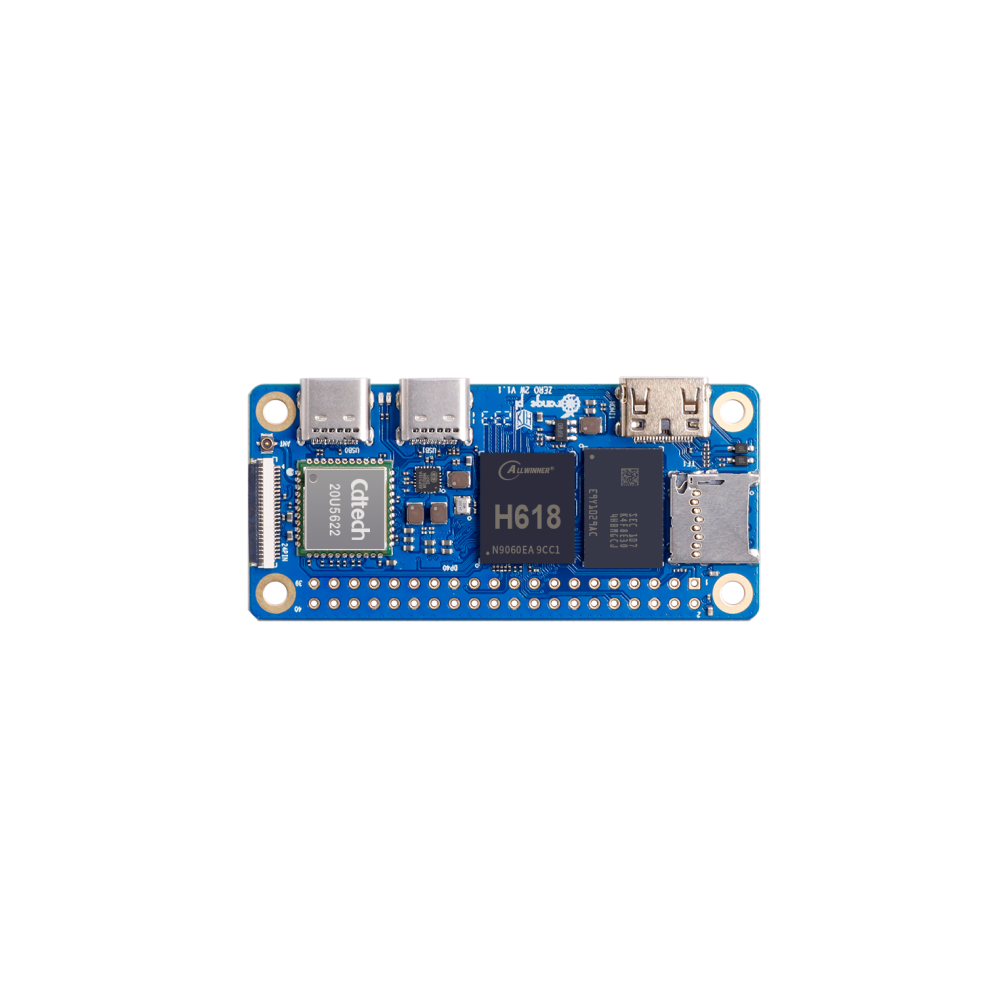

Front
Back

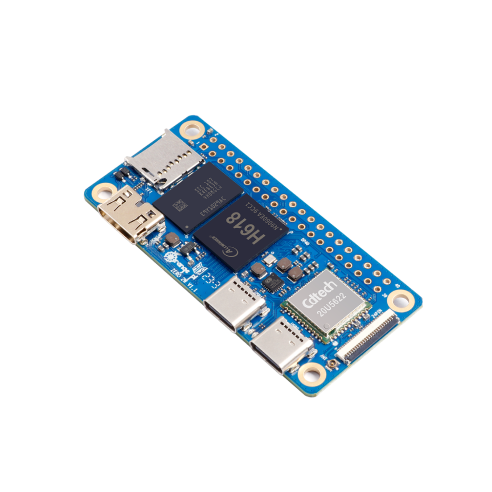

45° angle

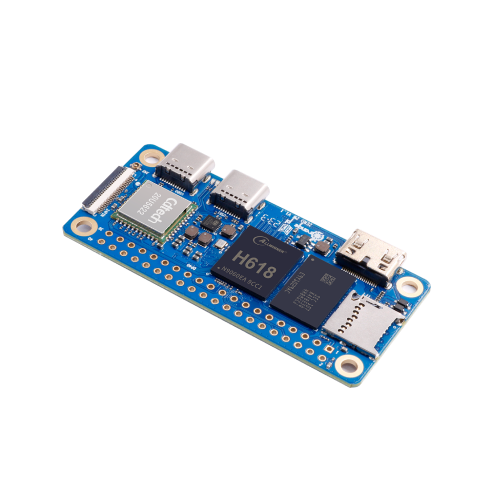

45° angle
