Allwinner H618 Quad-Core Cortex-A53
-
1GB/1.5GB/2GB/4GB LPDDR4
-
WiFi 5+Bluetooth 5.0
-
Allwinner H618 Quad-Core Cortex-A53
-
1GB/1.5GB/2GB/4GB LPDDR4
-
WiFi 5+Bluetooth 5.0
-
Quad-core Cortex-A53 processor
-
1GB/1.5GB/2GB/4GB LPDDR4 -
Gigabit LAN port -
WiFi5 & Bluetooth 5.0
-
USB2.0 -
Type-C power supply
Orange Pi Zero 3 is powered by Allwinner H618 quad-core Cortex-A53 processor, Arm Mali-G31 MP2 GPU, supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1, etc.,with 1GB/1.5GB/2GB/4GB memory options, decoding of multiple video formats is supported, and the Micro-HDMI output supports 4K display. In addition, Orange Pi Zero 3 can also be extended with headphones, TVout, USB2.0, IR reception and other functions via 13Pin expansion ports with an adapter board, in addition to the 26Pin expansion function port on the board, further enriching the functional interface of the motherboard.
Allwinner H618
.png)
.png)
.png)
|
Model |
Orange Pi Zero 2
|
Orange Pi Zero 3
|
|
SOC |
Allwinner H616 64bit
|
Allwinner H618 64bit
|
|
CPU architecture |
Cortex-A53 |
Cortex-A53 |
|
CPU frequency |
1.5GHz |
1.5GHz |
|
Onboard Storage |
• MicroSD card • 2MB SPI Flash |
• MicroSD card • 16MB SPI Flash |
|
Corenumber |
4 |
4 |
|
Memory bus |
DDR3
|
LPDDR4
|
|
Memory |
512MB/1GB
|
1GB/1.5GB/2GB/4GB
|
|
WiFi |
WiFi 5 |
WiFi 5 |
|
BT |
BT5.0 |
BT5.0 |
|
network |
10M/100M/1000M Ethernet |
10M/100M/1000M Ethernet |
|
USB |
USB2.0 |
USB2.0 |
|
HDMI OUT |
Micro HDMI |
Micro HDMI |
|
PCB size |
53x60mm
|
50x55mm
|
|
Power interface |
Type-C |
Type-C |
|
PMU |
Yes |
Yes |
|
OS |
Android10, Ubuntu, Debian
|
Android 12 TV，Debian11/12，Ubuntu22.04/20.04
|
|
Model |
|
|
Orange Pi Zero 2
|
Orange Pi Zero 3
|
|
SOC |
|
|
Allwinner H616 64bit
|
Allwinner H618 64bit
|
|
CPU architecture |
|
|
Cortex-A53 |
Cortex-A53 |
|
CPU frequency |
|
|
1.5GHz |
1.5GHz |
|
Onboard Storage |
|
|
• MicroSD card • 2MB SPI Flash |
• MicroSD card • 16MB SPI Flash |
|
Corenumber |
|
|
4 |
4 |
|
Memory bus |
|
|
DDR3
|
LPDDR4
|
|
Memory |
|
|
512MB/1GB
|
1GB/1.5GB/2GB/4GB
|
|
WiFi |
|
|
WiFi 5 |
WiFi 5 |
|
BT |
|
|
BT5.0 |
BT5.0 |
|
network |
|
|
10M/100M/1000M Ethernet |
10M/100M/1000M Ethernet |
|
USB |
|
|
USB2.0 |
USB2.0 |
|
HDMI OUT |
|
|
Micro HDMI |
Micro HDMI |
|
PCB size |
|
|
53x60mm
|
50x55mm
|
|
Power interface |
|
|
Type-C |
Type-C |
|
PMU |
|
|
Yes |
Yes |
|
OS |
|
|
Android10, Ubuntu, Debian
|
Android 12 TV, Debian11/12, Ubuntu22.04/20.04
|

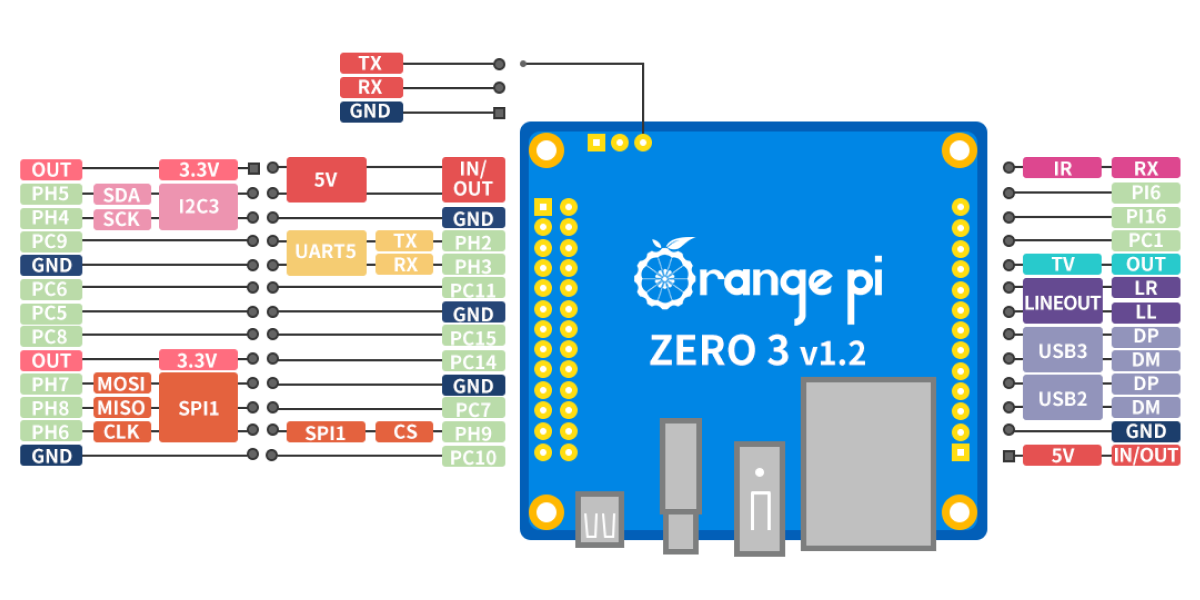

Orange Pi Zero 3 v1.3 Pin Definition
.png)
.png)
.png)
Hardware specification
| CPU | Allwinner H618 Quad-core Cortex-A53 processor 1.5GHz |
| GPU |
• Mali G31 MP2 • Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| Memory | 1GB/1.5GB/2GB/4GB LPDDR4 |
| On-board storage | 16MB SPI Flash |
| Power management | AXP313A |
| On-board WiFi + Bluetooth | Supports WiFi5 and Bluetooth 5.0 |
| Network | 10M/100M/1000M Ethernet interface |
| Audio input/output | 13Pin expansion port supports 2-ch output 1-ch input |
| Video output | • Micro HDMI up to 4K@60fps • TV-Out:13Pin supports 1-ch TV CVBS output |
| UART | 3Pin Debug UART |
| USB | USB 2.0 * 3(two of which lead from the expansion board) |
| SD card interface | Micro SD card interface |
| Expansion interface |
• 26Pin GPIO interface • 13Pin GPIO interface |
| Power input | 5V3A，Type-c connector |
| OS Support | Android 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04 |
| PCB | 50mm*55mm |
Product display
-
.png)

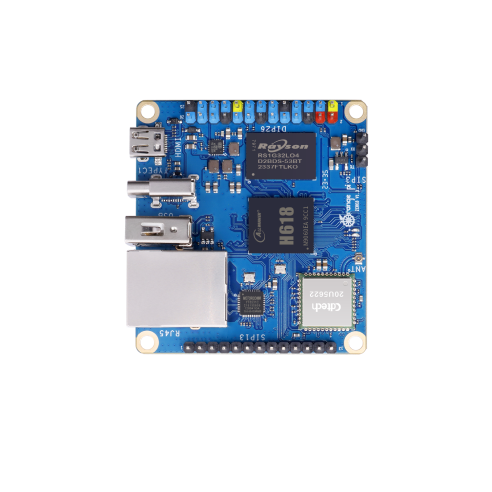

Front -
.png)

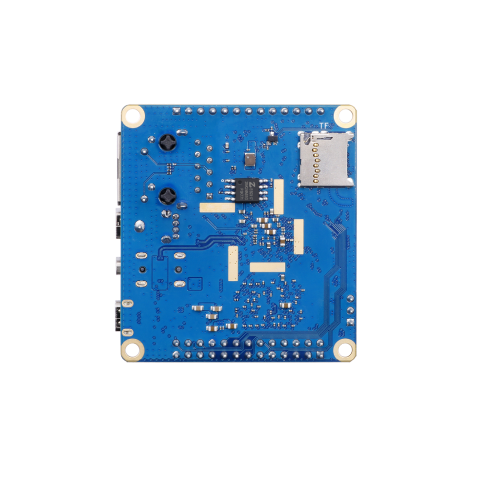

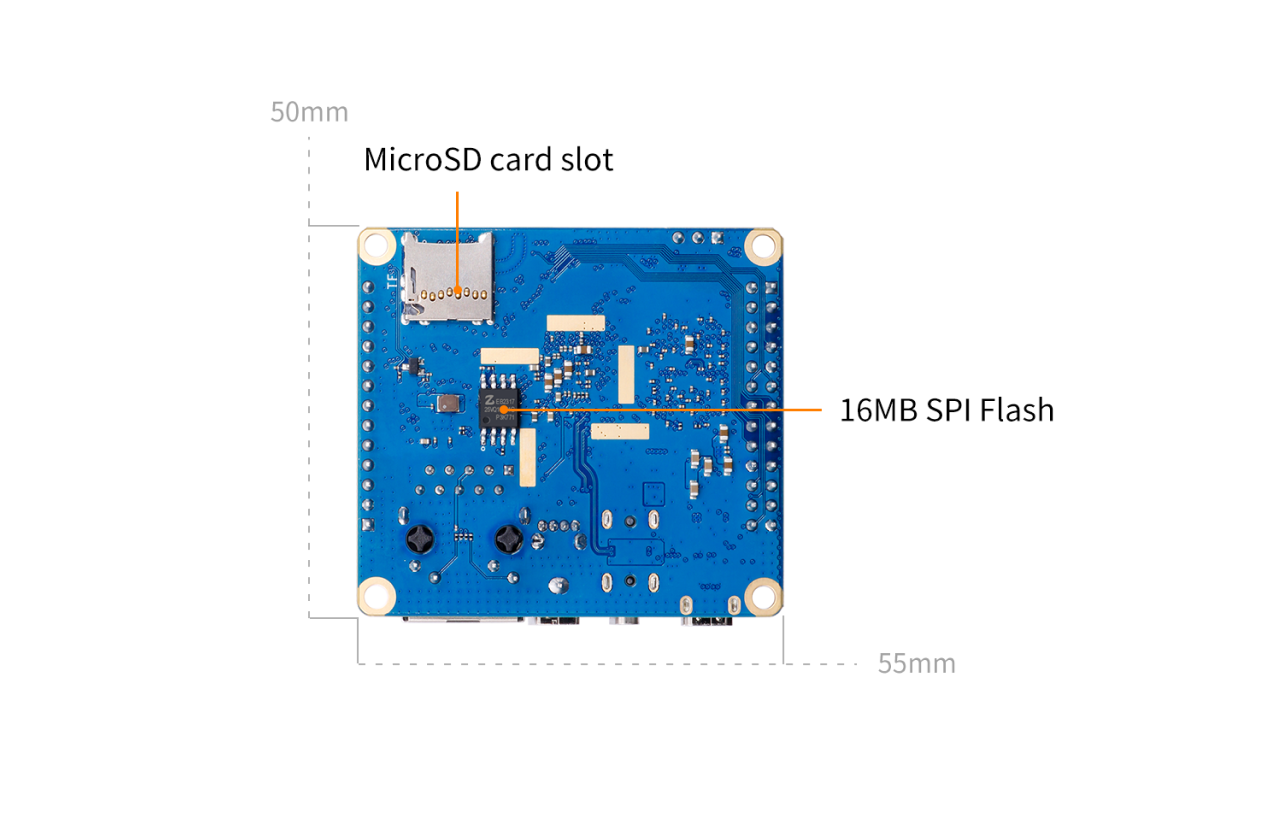

Back -
.png)

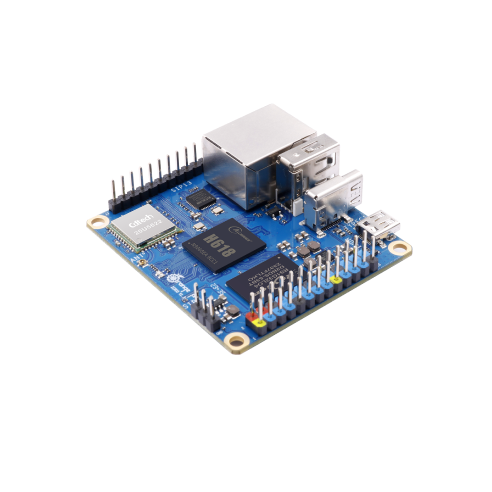

45° angle -
.png)

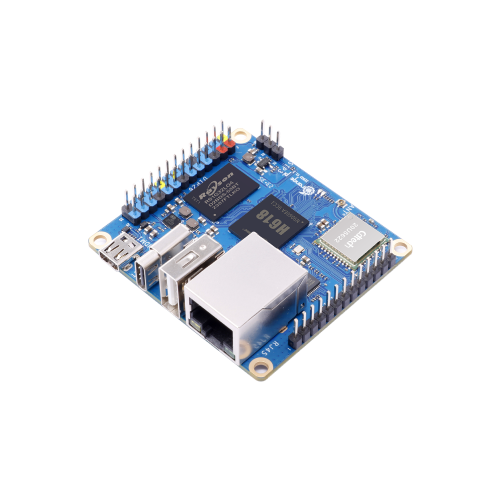

45° angle
