Orange Pi Zero Plus is an open-source single-board computer with Gigabit Ethernet. It is highly compact with a dimension of 45X48mm.
Product introduction
-
TF card
-
Multiple operating systems
-
Powered through USB OTG
-
板载WiFi
-
Gigabit Ethernet
-
USB2.0
-
26Pin headers
-
Cortex-A53

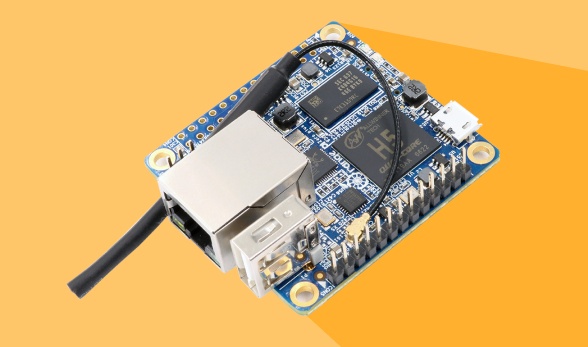

Orange Pi Zero Plus uses the AllWinner H2 SoC, with Quad-core 32-bit Cortex-A7 and 256MB/512MB DDR3 (shared with GPU). It integrates USB 2.0 port, TF card slot, 26 pin headers etc. It is powered through USB OTG.
![](../../../../img/computersAndMmicrocontrollers/Zero Plus/product.png)
Orange Pi Zero Plus is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU | H5 Quad-core 64-bit Cortex-A53 |
GPU |
• Hexa-core Mali450 OpenGL ES 2.0/1.1/1.0 • OpenVG 1.1 • EGL 40 GFlops • Pixel fill rate greater than 2.7GPixel/s |
Memory (SDRAM) | 512MB DDR3 (shared with GPU) |
Onboard Storage | TF card (Max. 32GB) / Spi flash(2MB) |
Wifi Antenne | Yes |
Onboard WiFi | Realtek RTL8189FTV, IEEE 802.11 b/g/n |
Onboard Network | 1000M/100M/10M Ethernet RJ45 |
Audio Input | No |
Video Outputs | Supports external board via 13pins |
Power Source | USB OTG can supply power |
GPIO(1x3) pin | UART, Ground. |
USB 2.0 Ports | One USB 2.0 HOST, One USB 2.0 OTG |
Buttons | Power Button(SW602) |
Low-level peripherals | • 26 Pins Header, • 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) |
LED | Power led & Status led |
Supported OS | Android5.1, Lubuntu, Debian, Armbian Image |
Interface definition
Product size | 45 mm × 48mm |
Weight | 26g |
Top view
![](../../../../img/computersAndMmicrocontrollers/Zero Plus/Rectangle 740.png)

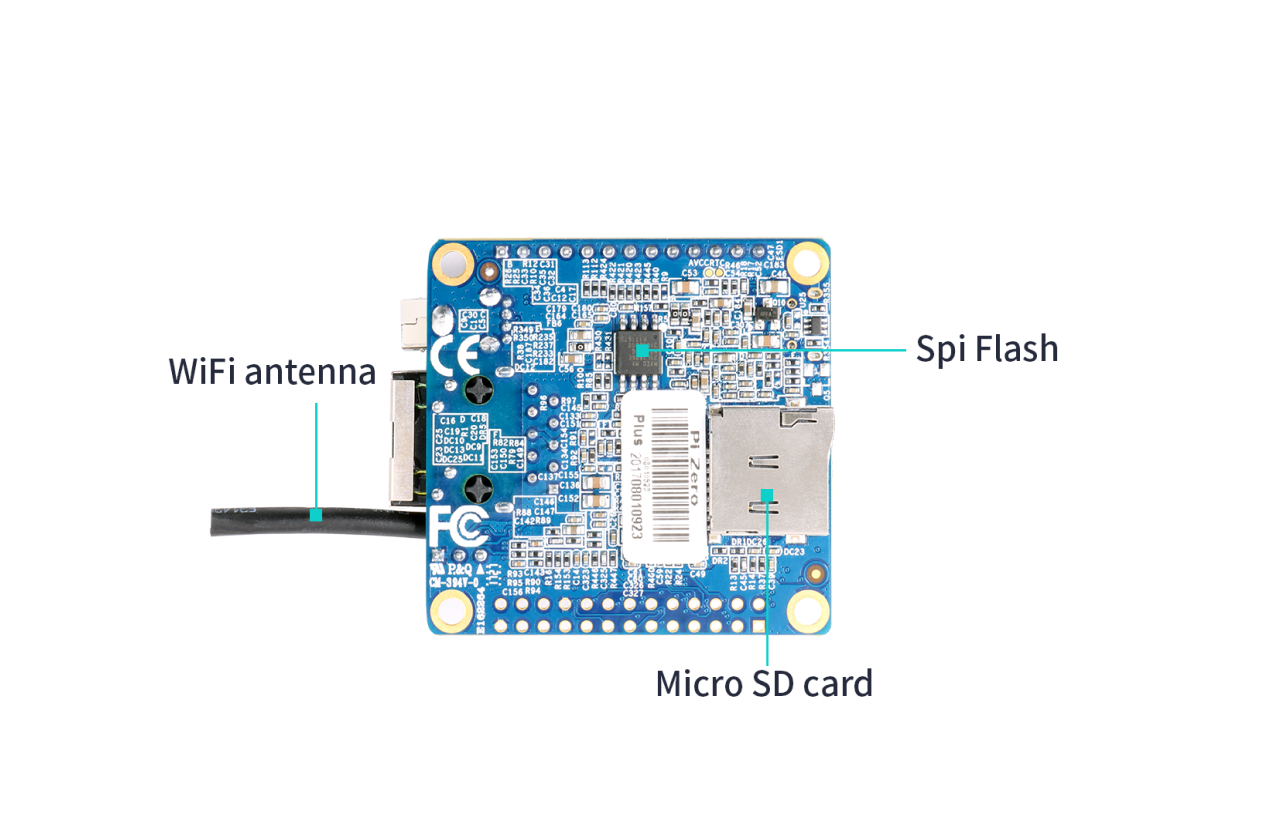

Bottom view
![](../../../../img/computersAndMmicrocontrollers/Zero Plus/Rectangle 641.png)

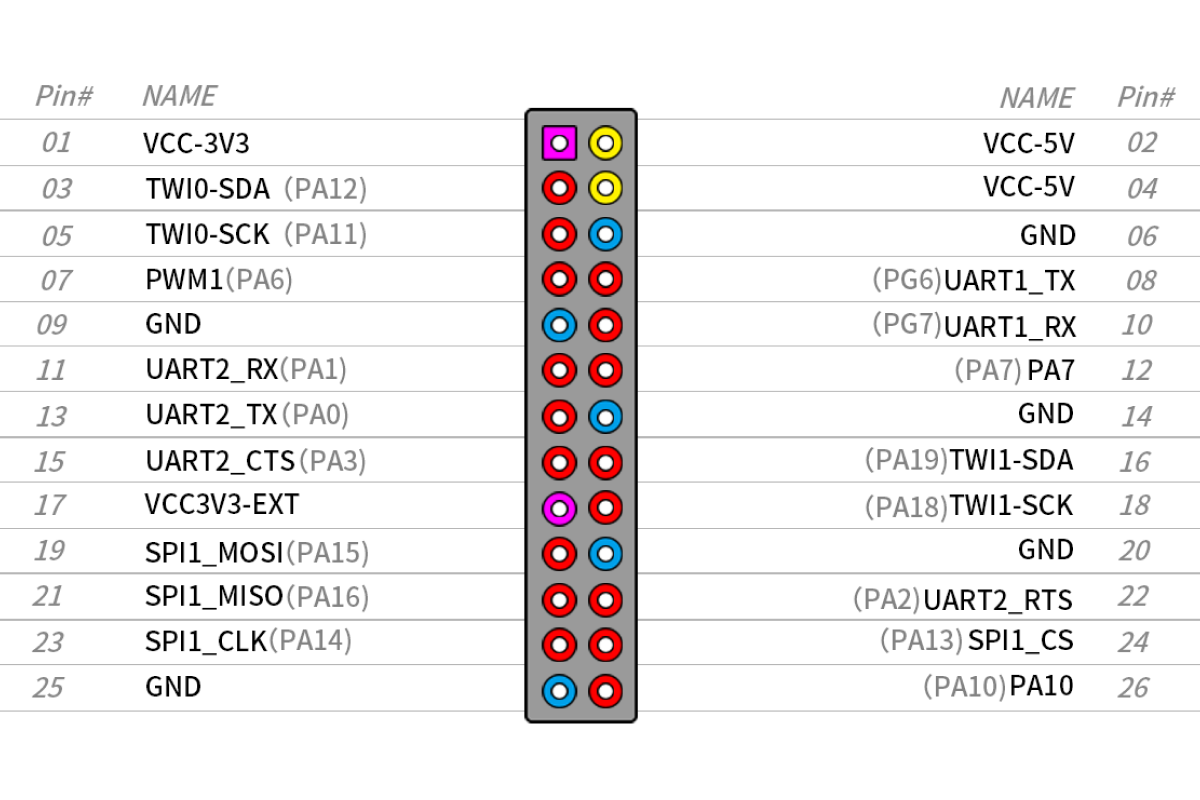

Orange Pi Zero Plus v1.2 pinout diagram
![](../../../../img/computersAndMmicrocontrollers/Zero Plus/Rectangle 741.png)
-
Completely open source maker artifact
-
Orange Pi Zero Plus runs Android
-
Orange Pi Zero Plus runs Ubuntu
-
Orange Pi Zero Plus runs Debian
-
Product display
-

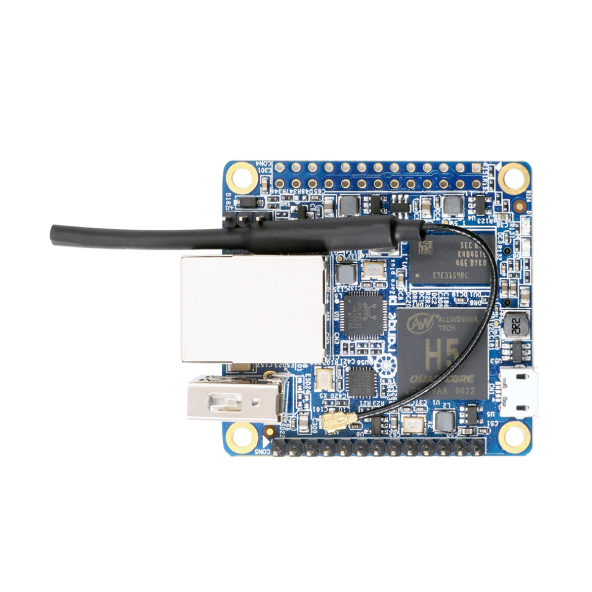

Front
-

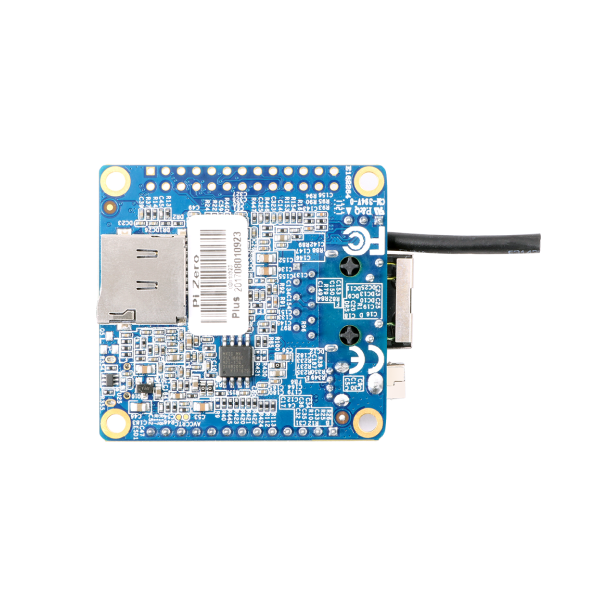

Back
-

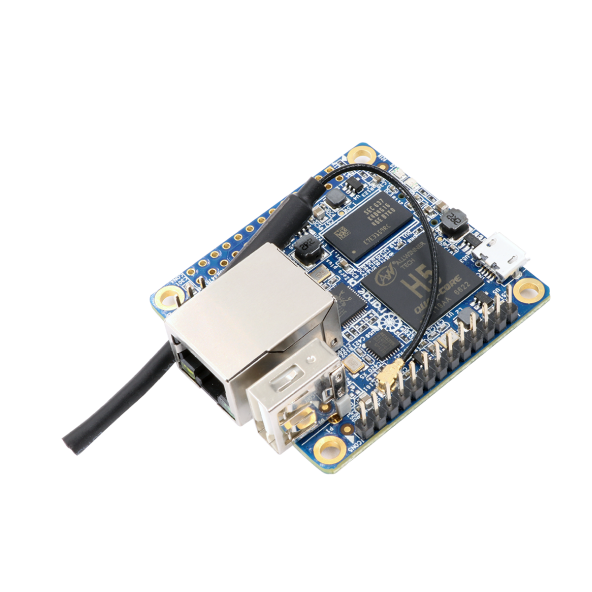

45° angle
-
45° angle
What can l do with Orange Pi Zero Plus?
You can use it to build-…
Pretty much anything else, because Orange Pi Zero Plus is open source
