Orange Pi Zero is an open-source single-board computer. It is highly compact with a dimension of 48X46mm. It can run Android 4.4, Ubuntu, Debian.
Product introduction
-
100 Ethernet network
-
TF card Slot
-
USB 2.0
-
AllWinner H2/H3 SoC
-
Multiple operating systems
-
26pin headers
-
Powered through USB OTG
-
256MB/512MB DDR3 SDRAM
Orange Pi Zero uses the AllWinner H2 SoC, and has 256MB/512MB DDR3 SDRAM(256MB version is Standard version), It integrates TF card, 100 Ethernet network, USB 2.0, 26Pin headers, etc. lt is powered through USB OTG.

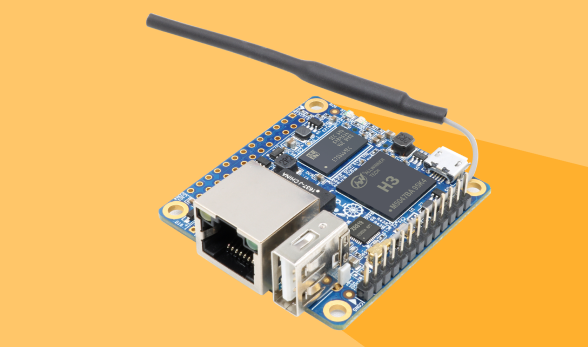

![](../../../../img/computersAndMmicrocontrollers/Zero/product.png)
Orange Pi Zero is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU | • H2 Quad-core Cortex-A7 H.265/HEVC 1080P. • H3 Quad-core Cortex-A7 H.265/HEVC 1080P |
GPU |
• Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
Memory (SDRAM) | 256MB/512MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version) |
Onboard Storage | TF card (Max. 32GB)/ 2MB Spi Flash |
Onboard Network | 10/100M Ethernet RJ45 POE is default off. |
Onboard WiFi | XR819, IEEE 802.11 b/g/n |
Audio Input | MIC(via 13 pins external board ) |
Video Outputs | AV OUT(via 13 pins external board) |
Power Source | USB OTG can supply power |
USB 2.0 Ports | Only One USB 2.0 HOST, one USB 2.0 OTG |
Low-level peripherals | • 26 Pins Header, • 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) |
LED | Power led & Status led |
Supported OS | Android, Lubuntu, Debian |
Interface definition
Product size | 48 mm × 46mm |
Weight | 26g |

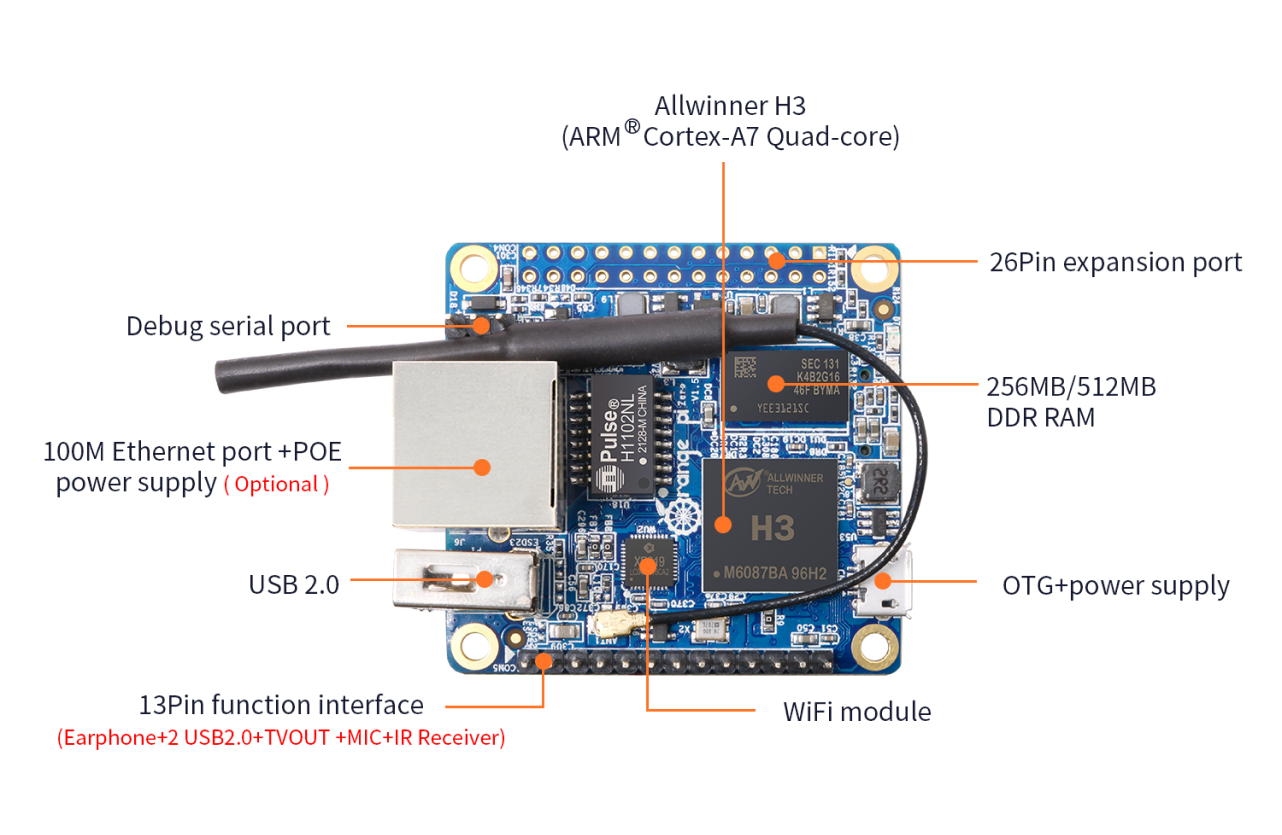

Top view
![](../../../../img/computersAndMmicrocontrollers/Zero/Rectangle 740.png)
Bottom view
![](../../../../img/computersAndMmicrocontrollers/Zero/Rectangle 641.png)
Orange Pi Zero v1.2 pinout diagram
![](../../../../img/computersAndMmicrocontrollers/Zero/Rectangle 741.png)
-
Completely open source maker artifact
-
Orange Pi Zero runs Android
-
Orange Pi Zero runs Ubuntu
-
Orange Pi Zero runs Debian
-
Product display
-
Front
-

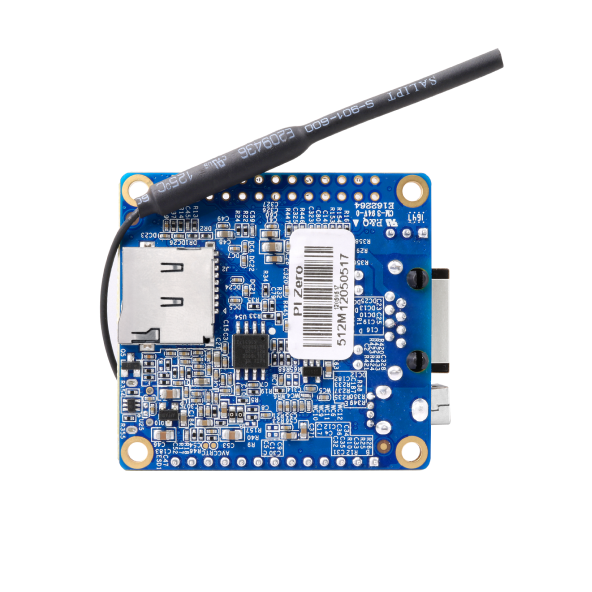

Back
-

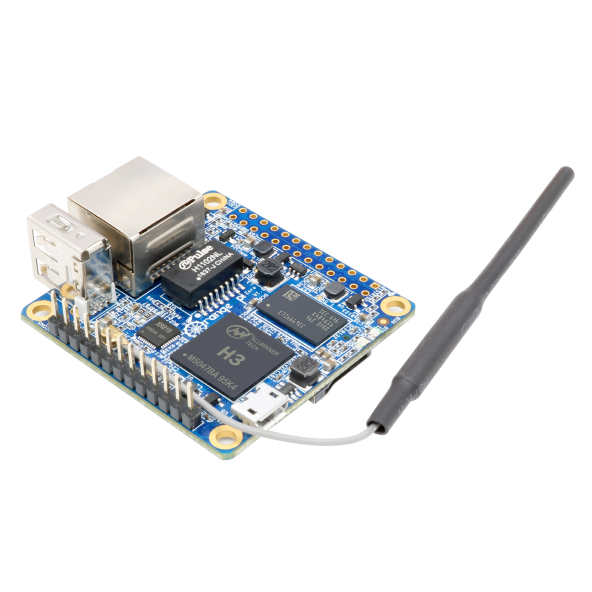

45° angle
-

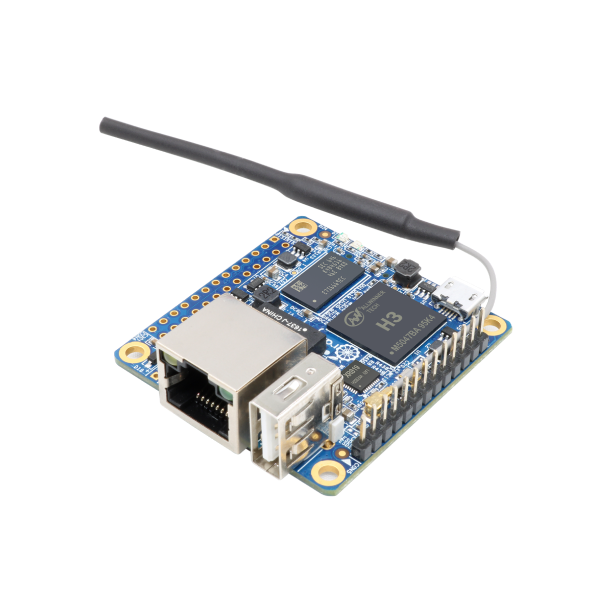

45° angle
What can l do with Orange Pi Zero?
You can use it to build-…
Pretty much anything else, because Orange Pi Zero is open source
